Dvipusė skardos taškinio suvirinimo mašina SHERMAN F30 230V

Trumpai apie prekę

Prekė: Dvipusė skardos taškinio suvirinimo mašina SHERMAN F30 230V. Kategorija: Sandarikliai.

• Gamintojas: Sherman
• Modelis: 7812986

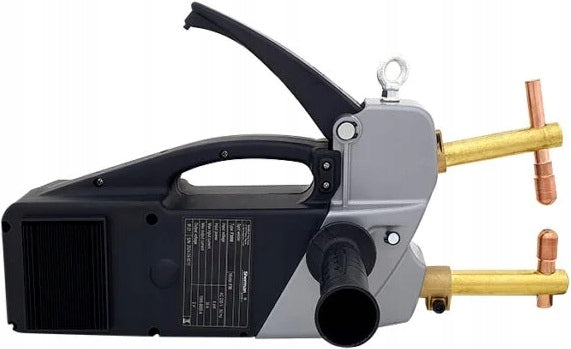

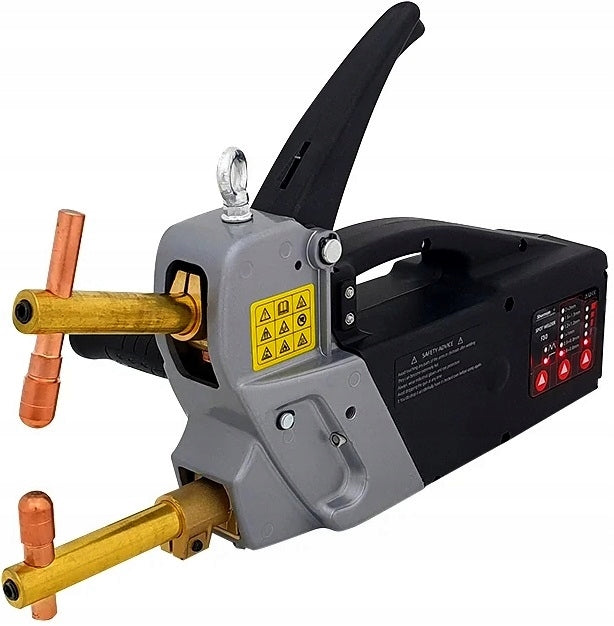

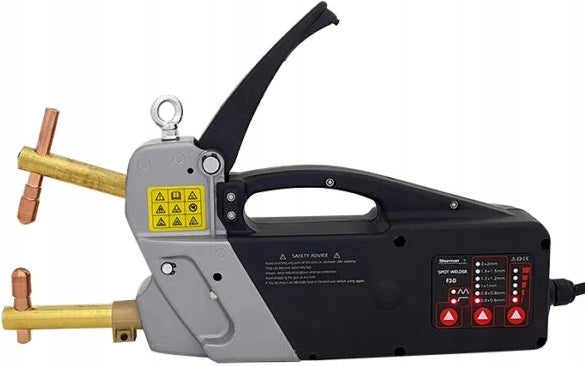

SHERMAN SPOT WELDER F30 is a manual welding machine F30 designed for double-sided, spot welding of sheets. It is widely used in automotive workshops, craft and service plants for repair and casual production work. It allows welding of low-carbon, stainless and galvanized steel sheets with a thickness of up to 2 mm. It is equipped with two operating modes: continuous current and pulsating current.

• Steel sheets:
• Low carbon steel
• Stainless steel
• Galvanized sheets – maintaining the integrity of the protective coating, even under difficult surface conditions.

✔ Double-sided welding of sheets with a maximum thickness of 2 + 2 mm:

• Greater compatibility with material thicknesses than lower models.
• Connections resistant to breakage and deformation.
• Easy, intuitive operation.
• Pressure adjustment.

✔ 2 Operating modes:

• Continuous operation: Standard high-performance welding process.
• Pulse mode: Ideal for materials with difficult surfaces or requiring precise heating.

✔ Advanced control panel:

• 5-stage adjustment of welding time.
• Selection of thickness of welded sheets for precise control and repeatability.

✔ Security:

• Overload protection, which protects the device from damage during intensive work.

• Support for sheet metal with a higher thickness: Up to 2 + 2 mm – more possibilities than in lower models.
• Pulse mode: Perfect for tough surfaces, ensures high quality welds.
• Advanced control: Precise welding time and thickness settings.
• Security: Overload protection increases the durability of the device.
• Versatility: Ideal for both bodywork workshops and small-scale production.

SHERMAN SPOT WELDER F30 is a solution for professionals who need a reliable, efficient and modern tool to work with a variety of sheets and demanding materials. It is a device that will meet the challenges of any workshop!

• Catalog number: 7812986
• Power supply voltage [V]: AC 230
• Max. welding current [A]: 7000-9000
• Thickness of welded element [mm]: 2,0 + 2,0
• Maximum current consumption [A]: 30
• Network security [A]: 25
• Warranty period for companies [years]: 2
• Weight [kg]: 10
• Dimensions (D x SZ x W) [cm]: 50 x 30 x 15

• Complete manual welding machine SHERMAN SPOT WELDER F30

Specifications
