Dvipusis suvirinimo aparatas Telwin MODULAR 230V 13kW, skirtas taškiniam suvirinimui

Trumpai apie prekę

Prekė: Dvipusis suvirinimo aparatas Telwin MODULAR 230V 13kW, skirtas taškiniam suvirinimui. Kategorija: Sandarikliai.

• Gamintojas: Telwin
• Modelis: Zgrzewarka punktowa MODULAR 230V/13kW
• Įtampa: 230 V

☑ Power supply 230V, maximum power 13kW. Built-in welding time controller. Continuous and pulsed operation (for elastic sheets), selection of thickness of welded sheets, adjustable welding time.

✅ Included:

• ✔ Digital Modular 230 Tick welding machine
• ✔ Set of arms with electrodes XA1 (L=120 mm)
• ✔ Additional electrodes 12mm - 2pcs

Technical data:

➡ Physical parameters

• ✔ Degree of protection: IP 20
• ✔ Weight: 10,5 kg
• ✔ Overall dimensions L x W x H: 440x100x185mm

➡ Technical parameters

• ✔ Power: 13 kW
• ✔ Rated Power: 2,3 kW 50%

➡ Power supply parameters

• ✔ Power supply network protection: 25 A
• ✔ Rated supply voltage: 230 V; 50Hz (1ph)
• ✔ single phase power supply

➡ Welding parameters

• ✔ Working cycle: 1,5 %
• ✔ Sterile secondary voltage: 2,5 V
• ✔ Maximum thickness of sheets during double-sided welding: 2 + 2 mm
• ✔ Maximum welding current: 6300 A

✅ Manual welding machine is used in welding stainless steel sheets, low carbon sheets and tinplate sheets with a maximum thickness of 2 + 2mm.

• ➡ It is used especially for car body repairs.
• ➡ Microprocessor control.

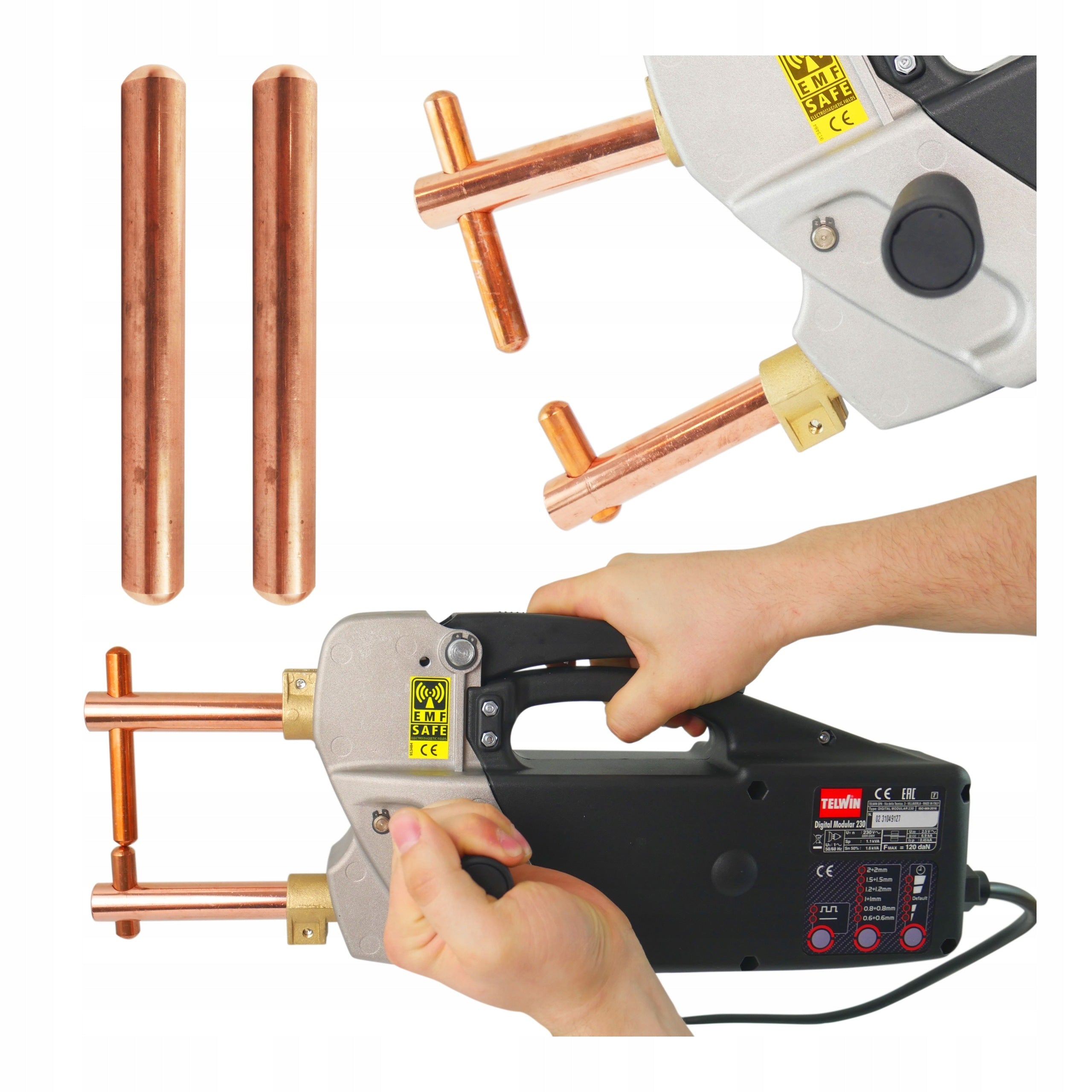

Tick welding machine – precise adjustment and solid workmanship

• ✔ In the control panel there are all settings of the welding machine
• ✔ The welding machine has an automatic setting of working time and welding current depending on the thickness of the welded material
• ✔ The user can manually set time and thickness of welded sheets
• ✔ Choice between continuous work and pulsation (for elastic sheets, galvanically coated, oxidized coating or with traces of paint)
• ✔ Adjustable arm pressure from 40kg to 120kg (at the arms L=120mm)
• ✔ The handle is made of heat-insulating material
• ✔ The device has overload protection
• ✔ The equipment includes a set of arms and electrodes L=120mm

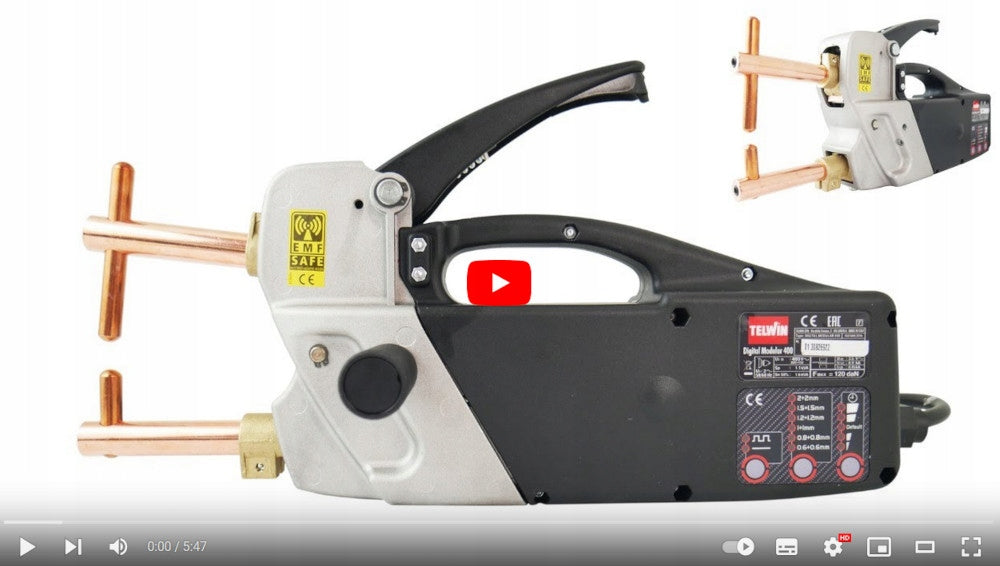

See a similar model of a tick welding machine in the video:

Copy the link and paste into your browser window

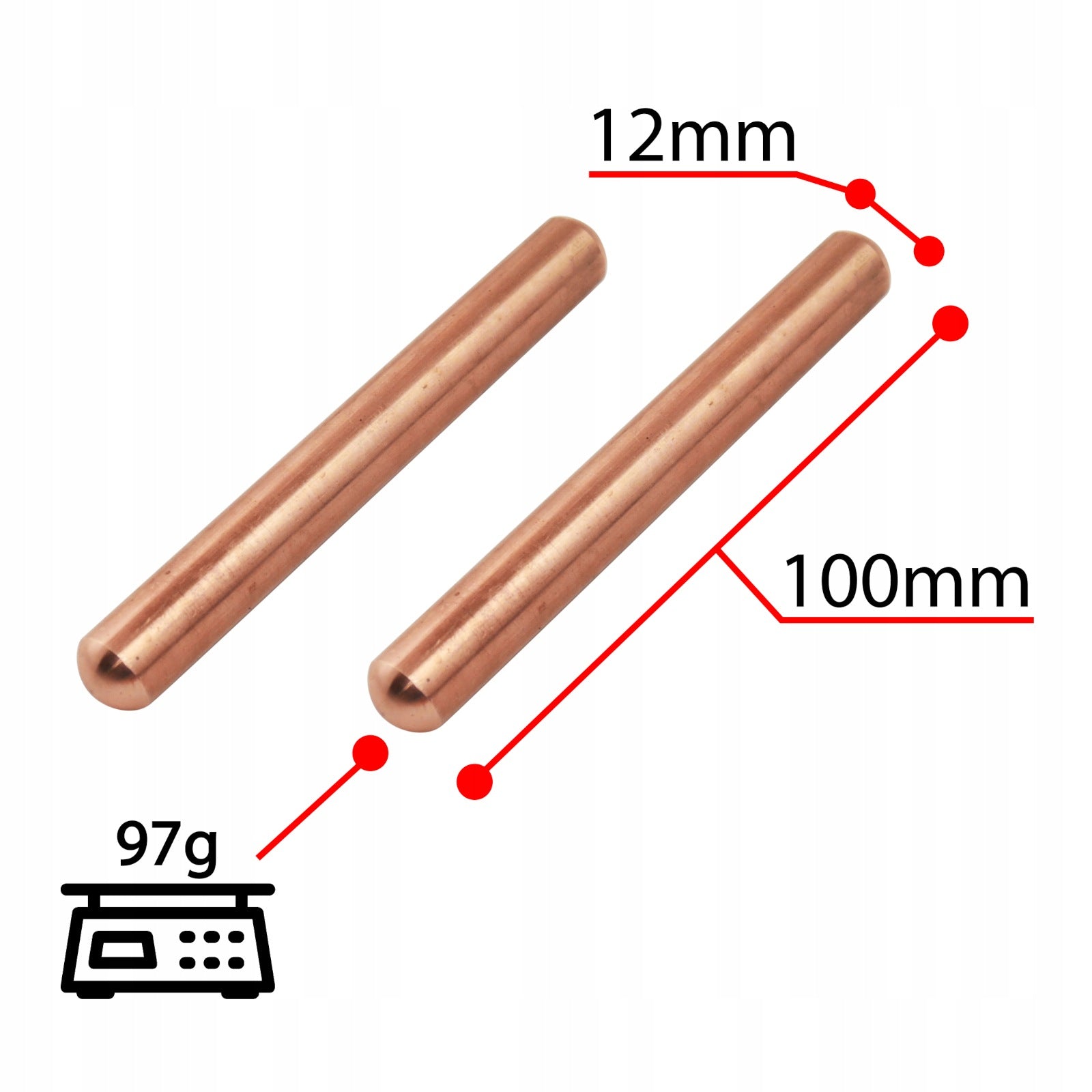

☑ The electrodes are durable and used by the tick welding machine for point welding of stainless steel and low carbon sheets. It is especially used for repairs of car bodies.

Dimensions:

• ✔ Length: 100mm
• ✔ Diameter: 12mm
• ✔ Weight: 97g

☑ Modular 20/Ti:

• Thickness: 0,6 + 0,6 | continuous welding: 380

• Thickness: 0,8 + 0,8 | continuous welding: 280

• Thickness: 1 + 1 | continuous welding: 200

☑ Modular 230/400:

• Thickness: 0,6 + 0,6 | continuous welding: 380
• Thickness: 0,6 + 0,6 | pulsation welding: 150

• Thickness: 0,8 + 0,8 | continuous welding: 280
• Thickness: 0,8 + 0,8 | pulsation welding: 115

• Thickness: 1 + 1 | continuous welding: 200
• Thickness: 1 + 1 | pulsation welding: 90

• Thickness: 1,2 + 1,2 | continuous welding: 130
• Thickness: 1,2 + 1,2 | pulsation welding: 65

• Thickness: 1,5 + 1,5 | continuous welding: 75
• Thickness: 1,5 + 1,5 | pulsation welding: 50

• Thickness: 2 + 2 | continuous welding: 42
• Thickness: 2 + 2 | pulsation welding: 35

Arms with electrodes:

• ⭐ XA1 L=120mm [standard] - cod. 803151
• ⭐ XA2 L=120mm - cod. 803150
• ⭐ XA3 L=120mm - cod. 803158
• ⭐ XA4 L=120mm - cod. 803155
• ⭐ XA5 L=140mm - cod. 803159
• ⭐ XA6 L=250mm - cod. 803152
• ⭐ XA7 L=350mm - cod. 803153
• ⭐ XA8 L=350mm - cod. 803154
• ⭐ XA9 L=500mm - cod. 803156

✅ Included:

• ✔ Digital Modular 230 Tick welding machine
• ✔ Set of arms with electrodes XA1 (L=120 mm)
• ✔ Additional electrodes 12mm - 2pcs
