Aprašymas
Trumpai apie prekę

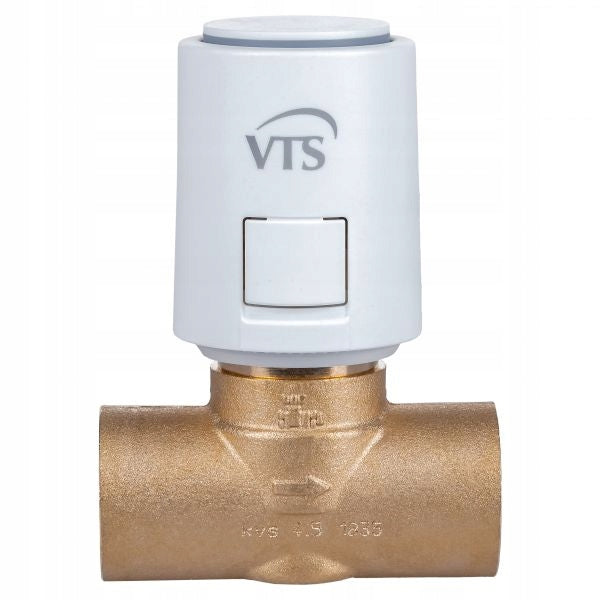

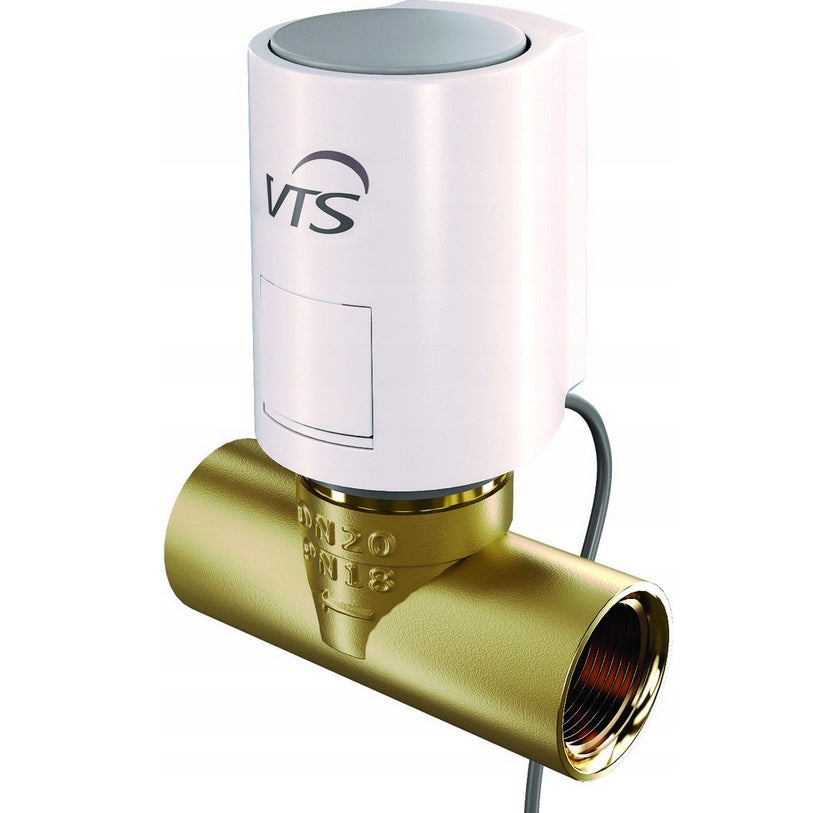

Prekė: Dvipusis vožtuvas VTS su 3/4" pavara VOLCANO šildytuvams. Kategorija: Oro šildytuvai.
- Gamintojas: VTS
- Modelis: VTS 1212042019
The VTS two-way valve is a key component of the system, ensuring the efficient functioning of Defender air curtains, Wing water curtains and Volcano heaters.
Principle of operation
The valve controls the supply of heating water to the heater based on the signal received from the thermostat, effectively regulating the ambient temperature.
- Manufacturer: VTS Group / VOLCANO
- Product: Valve with actuator
- Type: two-way
- Model: VA-VEH202TA
- Purpose: Volcano curtains and heaters
- Power supply voltage: 230 V AC +/- 10%
- Closing/opening time: 5 / 18 s
- Position without power: closed
- Degree of protection: IP20
- Working environment temperature: 0 > 60°C
- Power cord: length 50 cm, 3 x 0,75 mm2
- Electrical power consumption: 1W
- Degree of protection: IP 54
- Connection: 3/4" GW
- Flow rate kvs: 4,5 m3/h
- Working mode: two-position open/close
- Maximum pressure difference: 100 kP
- pressure class: PN 16
- Maximum temperature of heating medium: 93°C
- Ambient temperature: 0 > 60°C
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | VTS |
| Parametry | Kind | water |
| Parametry | Model | VTS 1212042019 |
| Parametry | Product weight with unit packaging | 1 kg |
| Parametry | Manufacturer code | 1-2-1204-2019 |
| Parametry | Energy efficiency class | brak klasy energetycznej |
| Parametry | Range of energy efficiency classes | no energy class |
| Parametry | Customs tariff code | 84818085 |
