Aprašymas
Trumpai apie prekę

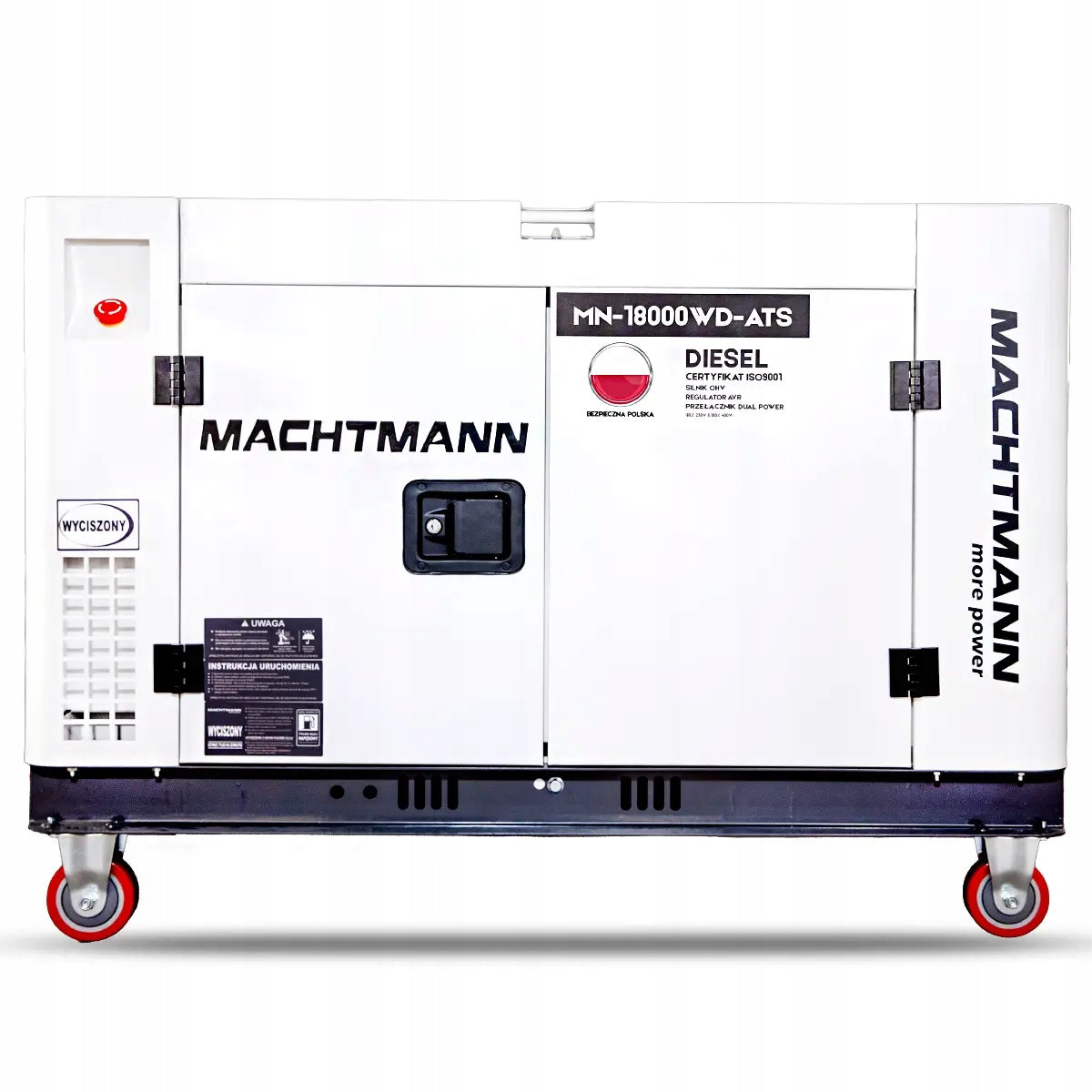

Prekė: Dyzelinis elektros generatorius Machtmann 18000WD, 18 kVA, 400V, trifazis, su ATS. Kategorija: Elektros generatoriai.
- Gamintojas: Machtmann
- Modelis: MN18000WD-ATS
- Įtampa: 400 V
Model: MN18000WD-ATS
Parameters:
- MAXIMUM POWER OF THE GENERATOR 14000W
- 2x 230V SOCKET (16A and 32A) + 12V SOCKET
- 1x 400V (32A) SOCKET
- AVR voltage regulation
- Mute design
- 100% Copper winding
TECHNICAL DATA:
- Producer: Machtmann
- Engine Type: 4-stroke OHV, air-cooled, 3-phase
- Engine: diesel type V
- Engine model: 2V95
- SmartGen control panel
- Fuel: Diesel
- Fuel tank: 30L
- Combustion: about 1,1L - 100% load
- Fuel Level Indicator: Yes
- Starting: E-START starter
- Voltmeter: yes
- AVR regulation: yes
- Weight: 320 kg
- Size: 124 cm x 67 cm x 74 cm

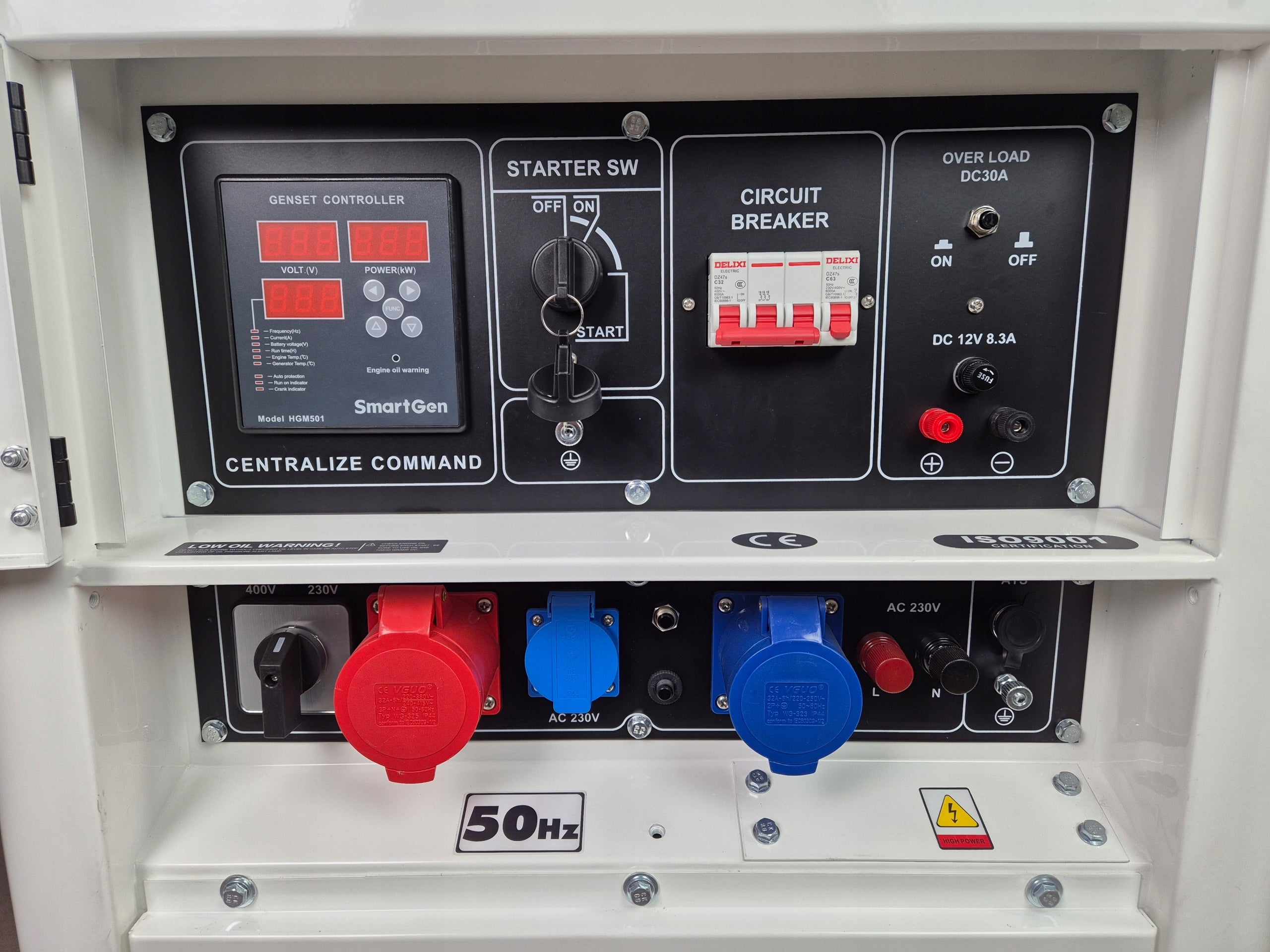

The front panel of the unit is equipped with a number of necessary outputs, indicators and switches:
✔ 2 sockets 230V
✔ 1 socket 400V
✔ Socket 12V/8A (rectifier)
✔ Termik 12V
✔ Ignition switch
✔ Residual current fuses
✔ Voltage indicator
The generating unit is equipped with an intelligent digital controller for controlling the unit. The module enables precise measurement of many parameters that can be configured using the controller. The device is intuitive and easy to use.
Specification:
- Display: LED Nixie Tube
- Operating panel: PET
- Digital input: 1
- Relay output: 2
- Analog input: 2
- Air conditioning system: 1P2W
- Alternator voltage: (30-360) V (ph-N)
- Alternator frequency: 50/60 Hz
- Interface programming: LINK
- Power supply: DC (9-18) V
- Operating temperature: -25/+70 °C
The unit is equipped with AVR voltage regulator enabling connection of any RTV-AGD mi.in equipment: such as: computer, refrigerator, CO furnace, TV and many others
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Machtmann |
| Parametry | Model | MN18000WD-ATS |
| Parametry | Kind | portable |
| Parametry | Generator type | three-phase |
| Parametry | Engine | 4-stroke |
| Parametry | Startup | electric |
| Parametry | Maximum power | 14000 W |
| Parametry | Nominal power of the alternator | 13000 W |
| Parametry | Engine power | 26 KM |
| Parametry | Gasoline tank capacity | 30 l |
| Parametry | Device weight | 320 kg |
| Parametry | Fuel type | diesel fuel |
| Parametry | Frequency | 50 Hz |
| Parametry | Product height | 90 cm |
| Parametry | Product width | 120 cm |
| Parametry | Product depth | 65 cm |
| Parametry | Average combustion | 2.8 l/h |
| Parametry | Number of 1-phase outlets | 2 |
| Parametry | Number of 3-phase outlets | 1 |
| Parametry | Supply voltage | 400 V |
| Parametry | Manufacturer code | MN-18000WD-ATS |
| Parametry | Packaging status | original |
| Parametry | Additional information | voltage regulation (AVR),12 V outlet |
