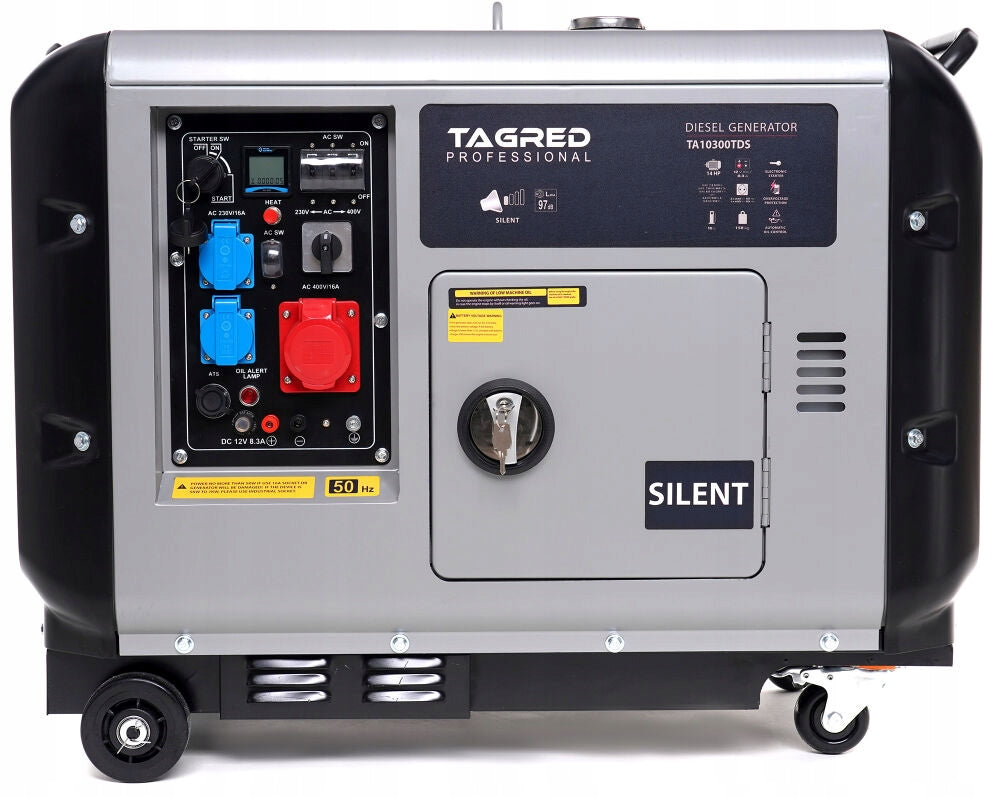

Dyzelinis elektros generatorius TAGRED 10300W 230/400V 14HP su AVR, tylus

Trumpai apie prekę

Prekė: Dyzelinis elektros generatorius TAGRED 10300W 230/400V 14HP su AVR, tylus. Kategorija: Elektros generatoriai.

• Gamintojas: Tagred
• Modelis: TA10300TDS

Advantages

⚡MAXIMUM GENERATOR POWER increased: 230V 6 kW (1p); 400V 7kW (~3p))

⚡ Reinforced engine of Japanese construction with a power of 10300 W (14hp )

⚡ Working comfort: additionally muted

⚡ COPPER stator winding

⚡ LATEST version of AVR electronic voltage stabilizer

⚡ The unit was made in the EURO 5 emission standards standard

⚡ Safe, IP23 rating

⚡ 2 litre bottles of Mobil Super oil

Composition of the set

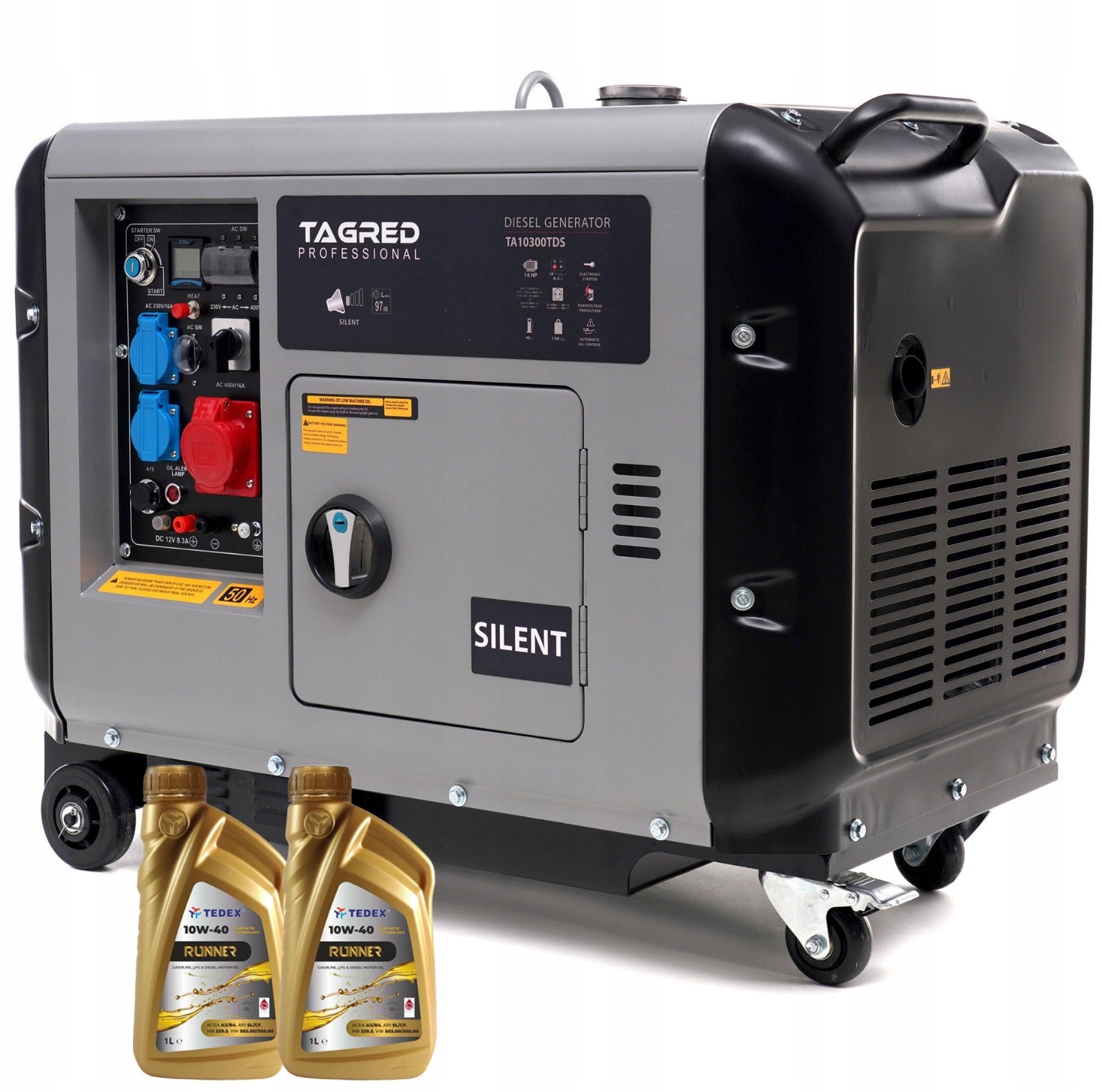

• Generator set Diesel TAGRED TA10300TDS
• 2 Liter Mobil Super Oil Bottles
• Accessories
• User manual in Polish

Technical data

• TA10300TDS
• Generator: synchronous
• Protection class: IP 23M
• Engine power:10300 W/14 HP
• Continuous power S1: 6500 W/400 V 3~; 5500 W/230 V ~
• Maximum power S2 5min. : Max. 7000 W/400 V 3~; Max. 6000 W/230 V~
• Continuous power (12 V d.c.): 100 W
• Rated voltage: 2x 230V~/1x 400V~/1x 12V d.c.
• Rated current: 23,91 A (230V~) / 9,36 A (400V 3~) / 8,3 A (12V d.c.)
• Frequency: 50Hz
• Capacity: 531 cc
• Fuel: Diesel
• Capacity of fuel tank: 16 liters
• Motor oil: 1,7 l (15W40)
• Weight: 158 kg
• Power factor cos : 1,0
• Power class: G1
• Maximum setting height (n.p.m.): 1000 m
• Battery data: 12 V / 36 Ah

Dimensions in the package:

• Width: 96 cm
• Depth: 58 cm
• Height: 74 cm

Dimensions without packaging:

• Width: 91 cm
• Depth: 53 cm
• Height: 71 cm

An absolute novelty in this type of 3-phase aggregate is that almost all power from 3-phases can be transferred to a 1-phase socket!!! In this model, with a maximum power of 400V, we get 7000W, so on the 230V socket we have at our disposal up to 6000W!!!

The professional Tagred TA10300TDS power generator is powered by a high-end high-power disel motor. It is a reliable solution that will protect your home, farm, or business with energy, perfect for construction sites. It will easily power tools, construction machinery (betony machine, welding machine), lighting, many types of electrical equipment.

The unit has AVR protection, thanks to which it is possible to safely power even delicate electronics, such as refrigerators, computers or phones.

Modern solutions, including numerous protections guarantee reliability of use, long, even long hours of operation (large fuel tank 16 l), It is worth mentioning that the generator set is equipped with a copper winding, a clear operator panel that indicates all important parameters of the generator operation. The muted generator housing with reduced noise emission provides greater comfort of use. A big advantage is the mobility of the generator, which has castors.

It cannot be overestimated that the TAGRED generator is equipped with candle heating and a relaxer for easy start-up.

Built-in glow plug in the intake system makes it easier to start the unit during low temperatures, allows you to work in difficult conditions!

Multitasking

The diesel generator set TAGRED generates a current of 230/400 V. The generator set has 3 sockets: 2 x AC 240 V and 1 x 400 V. Thanks to them you can power several different machines, even in parallel. The rated current is 23,91 A (230V~) / 9,36 A (400V 3~) / 8,3 A (12V d.c.). It is useful in all places without access to electricity, e.g. on construction sites, open spaces, etc.

Robust, powerful engine

1-cylinder, 4-stroke diesel engine with a high power of up to 14 hp, which is equipped with an electric start guarantees reliability of use!

Copper generator winding!

Generator - stator and rotor, made of the highest quality copper with very good electrical conductivity

Thanks to this, better work efficiency and reliability were achieved, the service life of the device was significantly extended.

Working comfort: additionally muted

The steel housing of the generator has been additionally muted - from the inside glued with a soundproofing mat.

Startup: E-Start from the ignition

The generator is started by automatic start-up, using a key. The set includes a starter power battery with a capacity of 36 Ah.

Security

Operational safety is ensured by IP23 protection and overload protection.

LATEST version of AVR electronic voltage stabilizer
