Dyzelinis generatorius 19kVA 15kW 400V Barracuda 15000 SILENT 2V95FE

Trumpai apie prekę

Prekė: Dyzelinis generatorius 19kVA 15kW 400V Barracuda 15000 SILENT 2V95FE. Kategorija: Elektros generatoriai.

• Gamintojas: Barracuda
• Modelis: B15000SD2v95
• Įtampa: 400 V

The generator is an efficient industrial source of electricity, equipped with a proven 2V95FE air-cooled two-cylinder diesel engine. Designed for use in the construction, industrial and emergency sectors.

The integrated SmartGen 501 controller provides precise control of operating parameters, and the ability to connect an automatic reserve switching system (ATS) makes it ready for operation in emergency power systems.

DOUBLE POWER technology (enhanced phase 230V) - allows you to obtain 100% of power on the socket 400V and 80% on the socket 230V - the solution used allows you to use the unit both on the construction site and in the household. DOUBLE POWER technology enables connection of high-power (400V) and single-phase (230V) power devices.

• solidly made - reinforced and muted housing
• low fuel consumption - 3l/h
• fuel tank capacity - 28 litres
• power unit 15kW - 19kVa
• incandescent candle

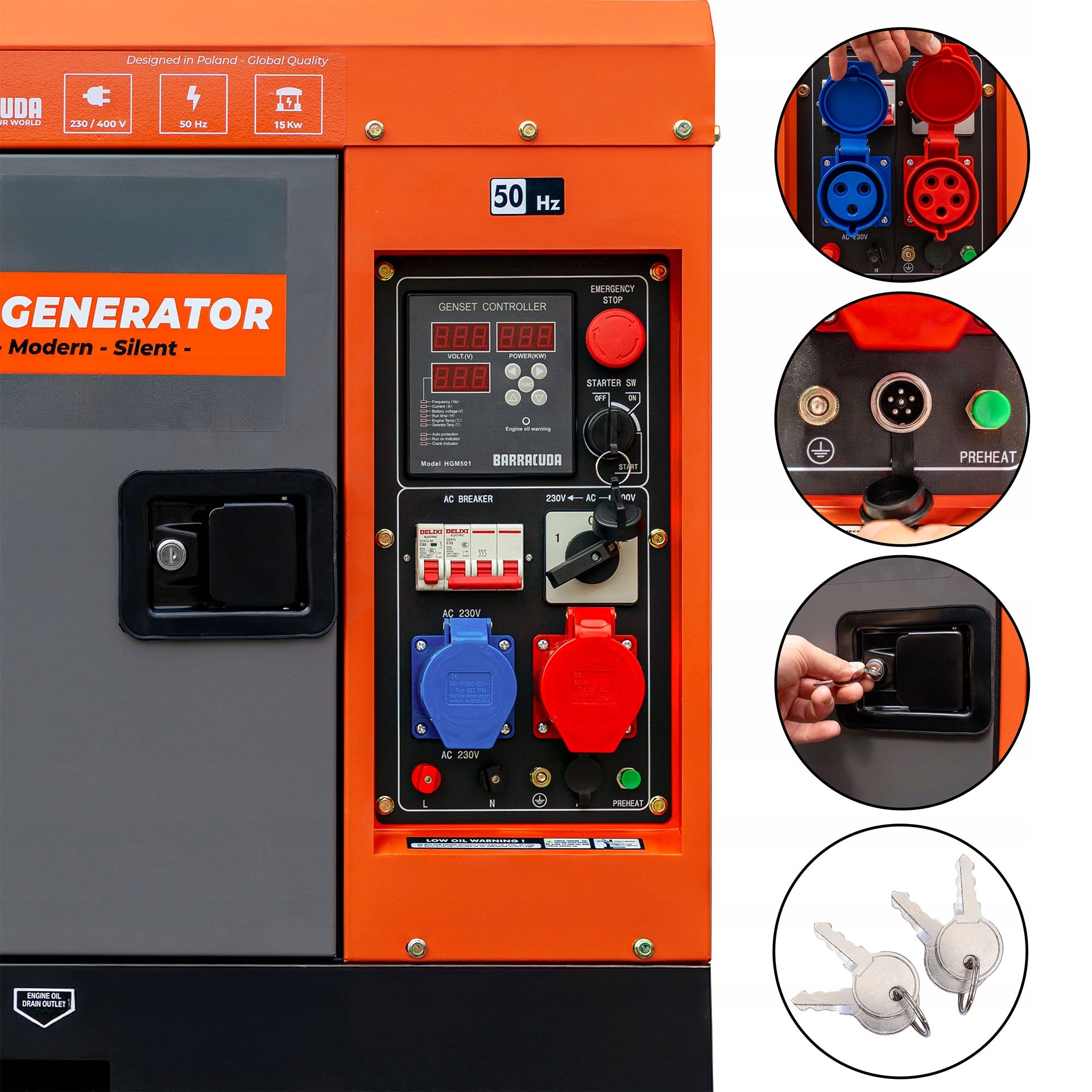

• SmartGen control panel
• enhanced phase 230V
• equipped with industrial sockets: 230V 32A and 400V 32A
• Multi-functional digital display
• digital power meter
• durable transport wheels
• Overload protection
• Pressure and oil level sensor
• Winding generator : copper

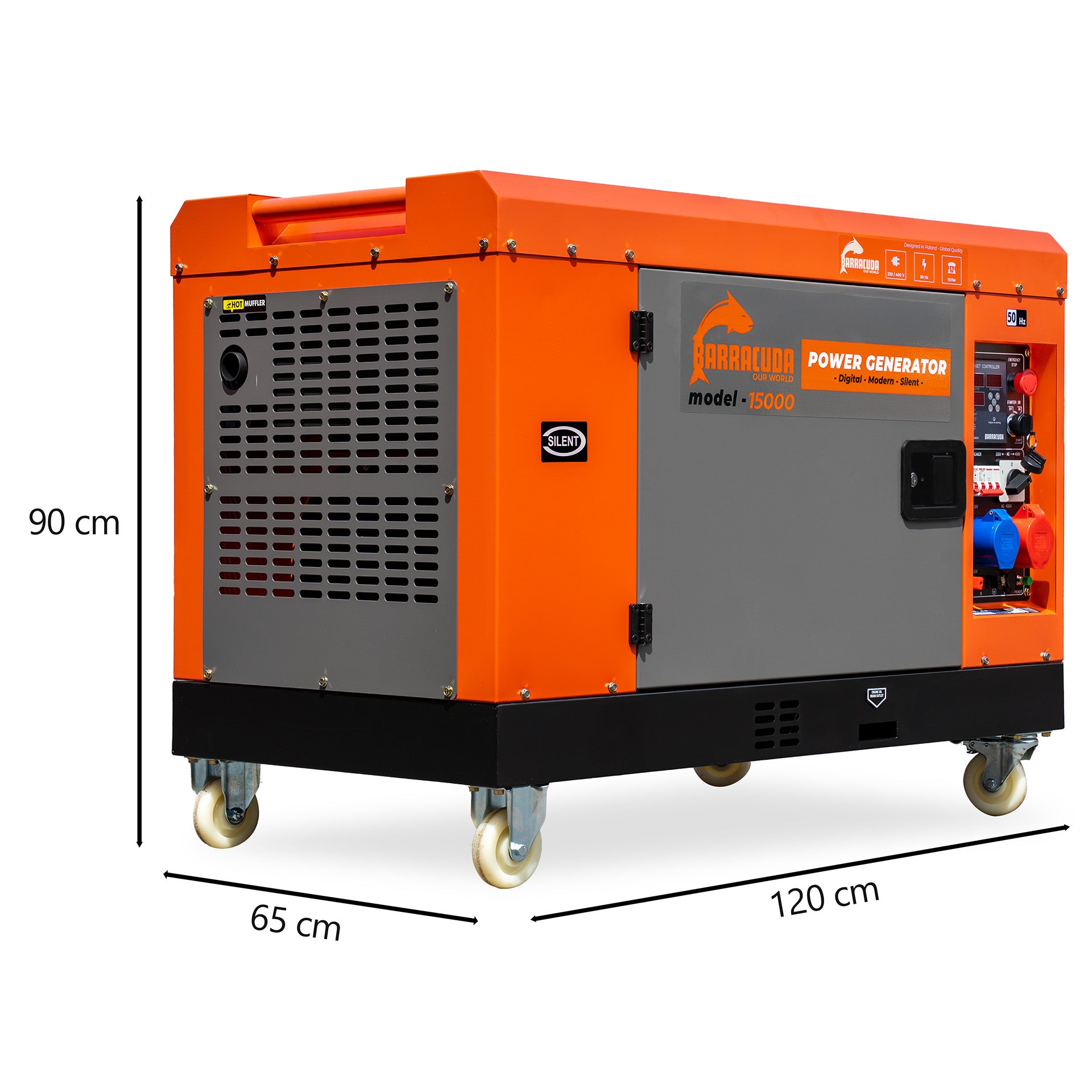

• Dimensions: 90x120x65
• Weight: 320 kg

Maximum socket load 230V 15kVA (12 kW) - 80% power (enhanced phase option), 400V 19kVA (15 kW) socket - 100% power

Barracuda generator sets are equipped with parts made of the highest quality m.in materials. copper generator, proven two-cylinder diesel engine 2V95FE (enhanced design), AVR voltage regulators.

• rated power: 14kW (17,5kVA) socket 400V
• Maximum power: 15kW (19 kVA) socket 400V
• rated power: 10kW (12,5kVA) socket 230V
• Maximum power: 12kW (15kVA) socket 230V
• voltage: three-phase (400V) and single-phase (230V)
• Frequency: 50 Hz
• tank capacity: 28 litres
• fuel type: diesel (diesel)
• possibility of exhaust gases outside the facility: yes
• mute: yes
• Volume: 74 dB
• DOUBLE POWER technology: yes (100% power on 400V socket, 80% power on 230V socket)
• AVR voltage regulator: yes
• type of start-up: electric
• Glow plug: yes
• oil sensor: yes
• oil pump: yes
• fuel level indicator: yes
• smartgen: yes
• power consumption indicator: yes
• Voltmeter: yes
• Multifunction display: yes
• Emergency switch: yes
• current protection: yes
• Battery: yes, 45Ah

• engine type: high-pressure diesel type V
• engine model: 2V95FE
• number of cylinders: 2
• Direct injection: yes
• type of cooling: air
• displacement: 1247 cm3
• Number of revolutions per minute: 3000rpm
• automatic speed control: yes
• oil level sensor: yes
• oil pressure sensor: yes
• fuel vent: yes
• type of timing: valve driven by a gear
• lubrication method: oil pump engine
• valve type: electromagnetic
• recommended oil: 10W40 semi-synthetic

• DOUBLE POWER technology (so-called enhanced phase - 100% of the power on the 400V socket and 80% of the power on the 230V socket) - standard three-phase generator sets available on the Polish market allow to obtain only 30% of the power of the unit at the 230V output.
• Control panel - SmartGen
• incandescent candle - aggregate is equipped with an incandescent candle that allows easy starting of the engine at low temperatures
• silenced housing - quiet operation of the 74dB unit (measured from 7 meters)
• durable wheels - set of 4 wheels (2 wheels with brake) allow you to transport the unit on any surface
• efficient two-cylinder diesel engine 2V95FE - average combustion at 3l/h
• two-cylinder DIESEL engine 25HP (1247 cm3)
• ATS/SZR socket - automatic start-up of the unit in the event of a power outage in the network, after the power returns, the unit automatically turns off.
• digital displays
• capacity fuel tank (28 liters) - allows hours of operation of the unit without adding fuel
• oil cooler
• emergency switch
• fuel supply venting system
• full transport wheels - high resistance to damage
• two sockets - 230V 32A; 400V 32A
• solid and muted housing

Glow plug – reliable start-up in all conditions

The BARRACUDA DIESEL 15000 SILENT generator set is equipped with a glow plug, which significantly improves the working culture of the diesel engine during start-up. This is a key component, especially at low temperatures, where standard diesel units may have difficulty ignition.

The glow plug heats the combustion chamber, thanks to which the engine reaches the optimal temperature for self-ignition of the fuel mixture‑air. The effect?

• faster and more reliable start-up,
• lower battery load,
• lower fuel consumption during take-off,
• stable operation from the first seconds,
• increased lifespan of the drive unit.

It is a solution used in professional construction and agricultural machinery, which confirms its reliability. Thanks to the glow plug, the BARRACUDA unit remains fully operational even in winter, which is especially important for emergency applications where immediate start-up counts.

The unit is equipped with AVR voltage regulator enabling connection of any RTV-AGD mi.in equipment: such as: computer, refrigerator, CO furnace, TV and many others

The generator used is made of copper.

Technology DOUBLE POWER (enhanced phase 230V) - allows you to obtain 100% of power on the socket 400V and 80% on the socket 230V - the solution used allows you to use the unit both on the construction site and in the household. DOUBLE POWER technology enables connection of high-power (400V) and single-phase (230V) power devices.

The generating unit is equipped with an intelligent digital controller for controlling the unit. The module enables precise measurement of many parameters that can be configured using the controller. The device is intuitive and easy to use.

Specification:

• Display: LED Nixie Tube
• Operating panel: PET
• Digital input: 1
• Relay output: 2
• Analog input: 2
• Air conditioning system: 1P2W
• Alternator voltage: (30-360) V (ph-N)
• Alternator frequency: 50/60 Hz
• Interface programming: LINK
• Power supply: DC (9-18) V
• Operating temperature: -25/+70 °C

Adapter made of flexible cable in rubber (H05RR-F) 3x2,5mm², total length approx. 50 cm, and a very durable socket and plug.

Technical data:

• Plugin: 32A 3P CEE,
• Number of poles: 3,
• Socket: polish - rubber with grounding via pin,
• cable: rubber OW 3*2,5 total length of the cable used in the adapter: 0,5m,
• nominal voltage: 230V,
• Direction of plugin input: straight ahead,
• degree of protection: IP44.

Is the unit equipped with a glow plug?

Yes. The unit has a glow plug that heats the combustion chamber before takeoff. Thanks to this, the diesel engine starts confidently even in winter.

Can the unit handle a welding machine or concrete mixer?

Yes. Thanks to DOUBLE POWER technology and full power per 400V, the unit easily powers power devices and high-power tools.

Can I connect electronic devices (computer, TV, refrigerator)?

Yes. The built-in AVR regulator stabilizes the voltage, making the unit safe for electronics.

Does the generator have an automatic start when the power goes out?

Yes, it has an ATS/SZR socket. After connecting the ATS module, the unit starts automatically.

What is the combustion of the unit?

The average burn is approx. 3l/h – this is one of the most economical models in this class.

Does the unit have a reinforced 230V phase?

Yes. This is a key advantage over the competition – as much as 80% of the power available on the 230V socket.

Can the unit be used indoors?

No. The unit must work outdoors or in a well-ventilated place with the possibility of exhaust fumes.

Are spare parts readily available?

Yes. The 2V95FE engine is common and serviced in most construction machinery workshops.

Does the unit have damage protection?

Yes. It has an oil level sensor, oil pressure sensor, overload protection and AVR.
