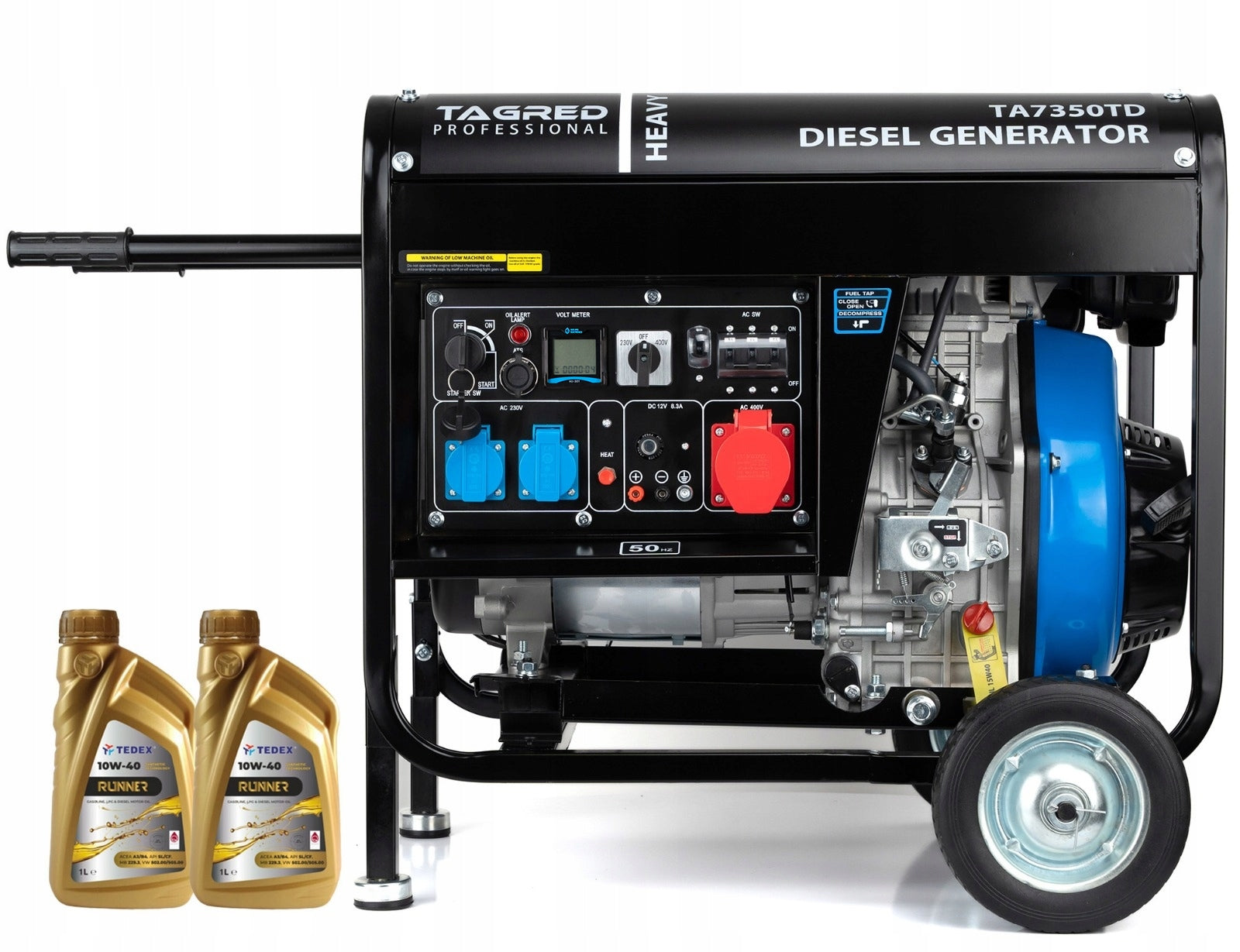

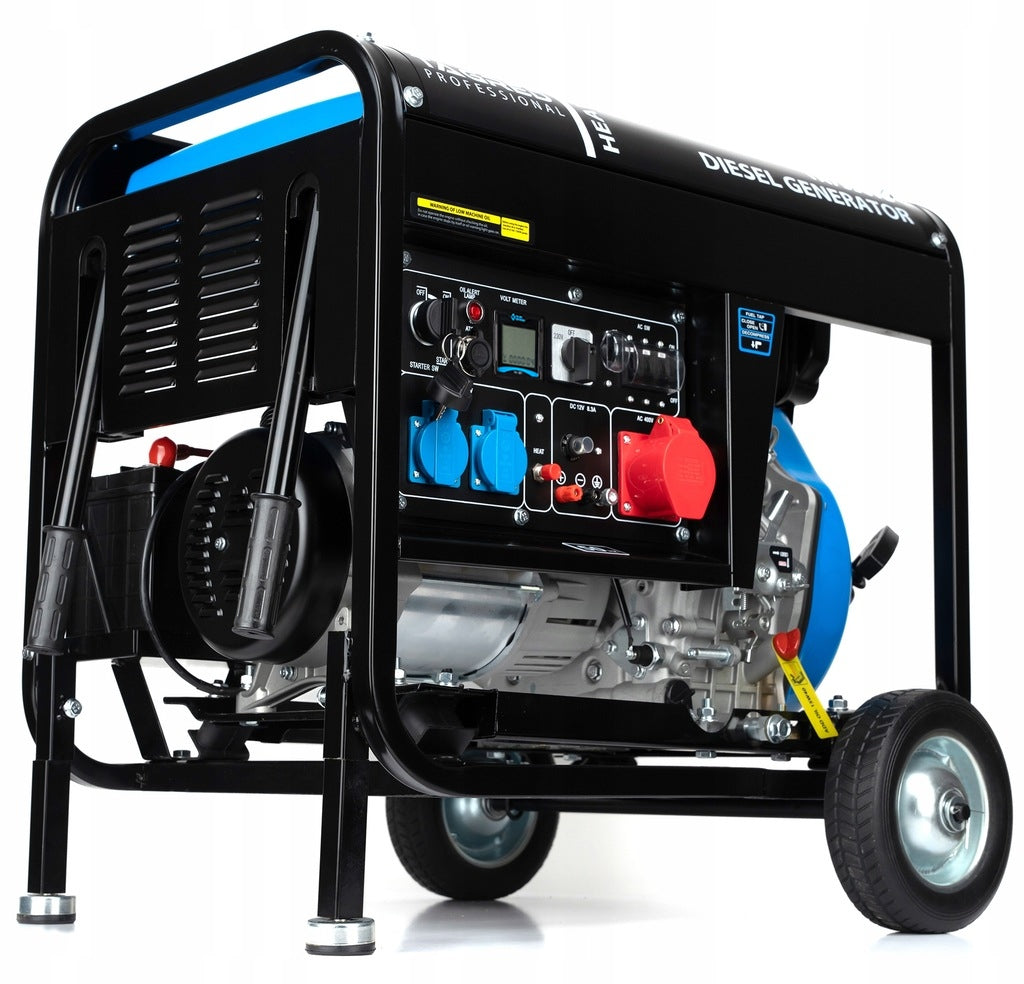

Dyzelinis generatorius 7350W, 230/400V, 5000W AVR

Trumpai apie prekę

Prekė: Dyzelinis generatorius 7350W, 230/400V, 5000W AVR. Kategorija: Elektros generatoriai.

• Gamintojas: Tagred
• Modelis: TA7350TD

With ATS automation function

Composition of the set

• Generator set Diesel TAGRED TA7350TD
• Accessories
• User manual in Polish

Technical data

• TA7350TD
• Generator: synchronous
• ATS; yes
• Protection class: IP 23M
• Maximum engine power: 7350 W/10 HP
• Continuous power S1: 4200 W/400 V 3~; 3000 W/230 V ~
• Maximum power S2 5min.: Max. 5000 W/400 V 3~; Max. 3300 W/230 V~
• Continuous power (12 V d.c.): 100 W
• Rated voltage: 2x 230V~/1x 400V~/1x 12V d.c.
• Rated Prad: 23,91 A (230V~) / 9,36 A (400V 3~) / 8,3 A (12V d.c.)
• Frequency: 50Hz
• Displacement: 531 cc
• Fuel: Diesel
• Fuel tank capacity: 12,5 liters
• Motor oil: 1,7 l (10W40)
• Power factor cos : 1,0
• Power Class: G1
• Maximum setting height (n.p.m.): 1000 m
• Battery Data: 12V / 36Ah

Dimensions of the unit ready for operation

• Width: 63
• Height: 69
• Length: 72
• Weight: 113 kg

Dimensions in the package:

• Width: 52
• Height: 72
• Length: 76
• Weight: 116 kg

Advantages

⚡MAXIMUM GENERATOR POWER increased: 230V 3300W (1p); 400V 5000W (~3p))

⚡ Reinforced engine of Japanese construction with 7350W (10hp)

⚡ Comfort of work

⚡COPPER stator winding

⚡LATEST VERSION OF AVR Electronic Voltage Stabilizer

⚡ The unit was made in the EURO 5 emission standards standard

⚡Safe, IP23

The professional Tagred TA7350TD power generator is powered by a high-end high-power disel motor. It is a reliable solution that will protect your home, farm, or business with energy, perfect for construction sites. It will easily power tools, construction machinery (betony machine, welding machine), lighting, many types of electrical equipment.

A big advantage is the mobility of the generator, which has castors.

It cannot be overestimated that the TAGRED generator is equipped with candle heating and a relaxer for easy start-up.

The built-in glow plug in the intake system makes it easier to start the unit during low temperatures, allows you to work in difficult conditions!

Multitasking

The diesel generator set TAGRED generates a current of 230/400 V. The generator set has 3 sockets: 2 x AC 240 V and 1 x 400 V. Thanks to them you can power several different machines, even in parallel. The rated current is 23,91 A (230V~) / 9,36 A (400V 3~) / 8,3 A (12V d.c.). It is useful in all places without access to electricity, e.g. on construction sites, open spaces, etc.

Solid, Powerful Engine

The **1-cylinder**, 4-stroke diesel engine with a high power output of up to 10 HP, equipped with an electric start, **guarantees reliable operation!**

Copper Winding in the GENERATOR!

The generator - **stator and rotor - are made of the highest quality** copper with very good electrical conductivity.

This results in better work efficiency and reliability, and significantly extends the **service life of the device.**

Startup: E-Start from the ignition

The generator is started by automatic start-up, using a key. The set includes a starter power battery with a capacity of 36 Ah.

Operational safety is ensured by IP23 protection and overload protection. Our unit has additional oversized protections, e.g. silencer with thermal protection
