Aprašymas
Trumpai apie prekę
Prekė: Dyzelinis generatorius Barracuda 12000 SILENT, 15 kVA, 12 kW, 400 V, su ATS. Kategorija: Elektros generatoriai.
- Gamintojas: Barracuda
- Modelis: B12000SD2v95+ATS
- Įtampa: 400 V

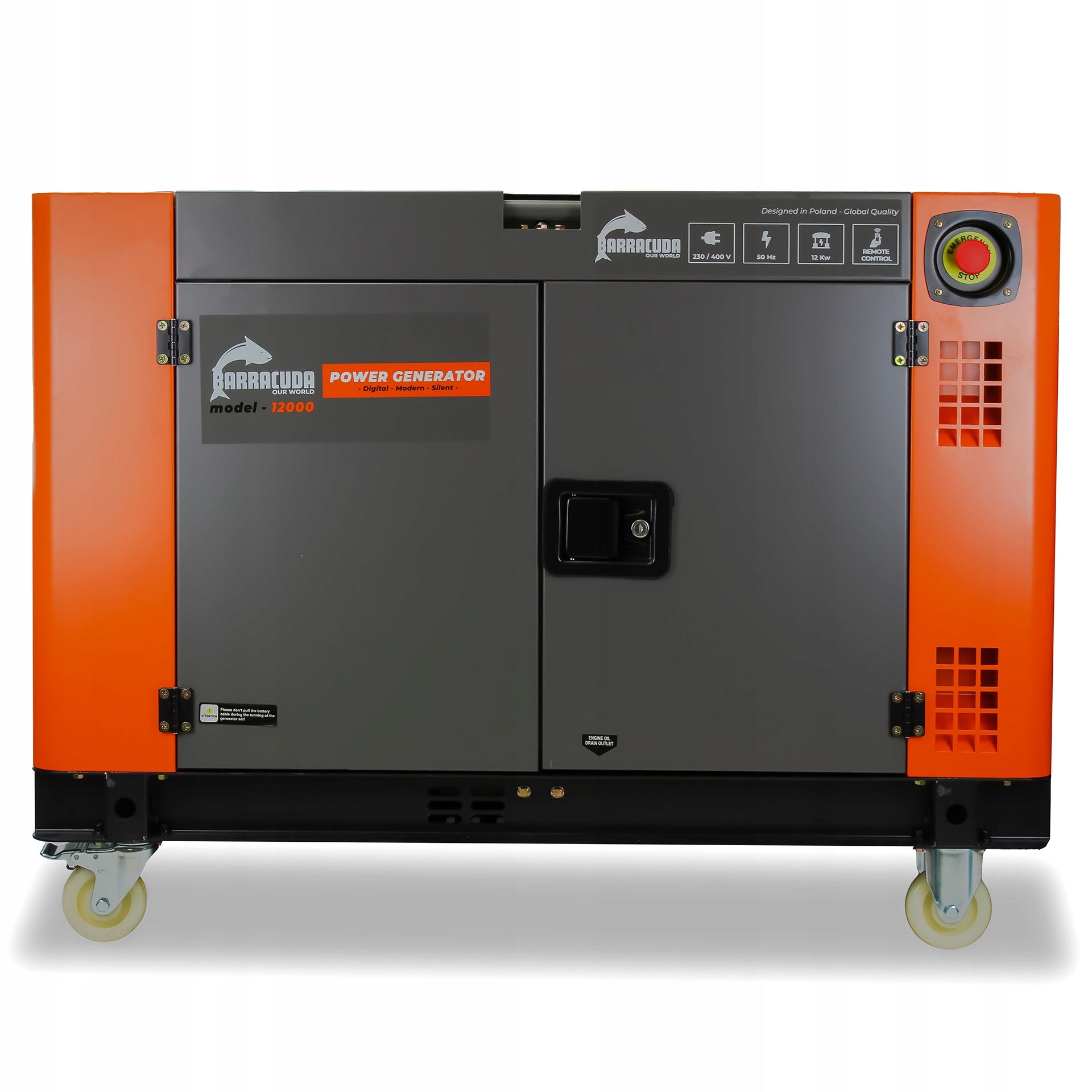

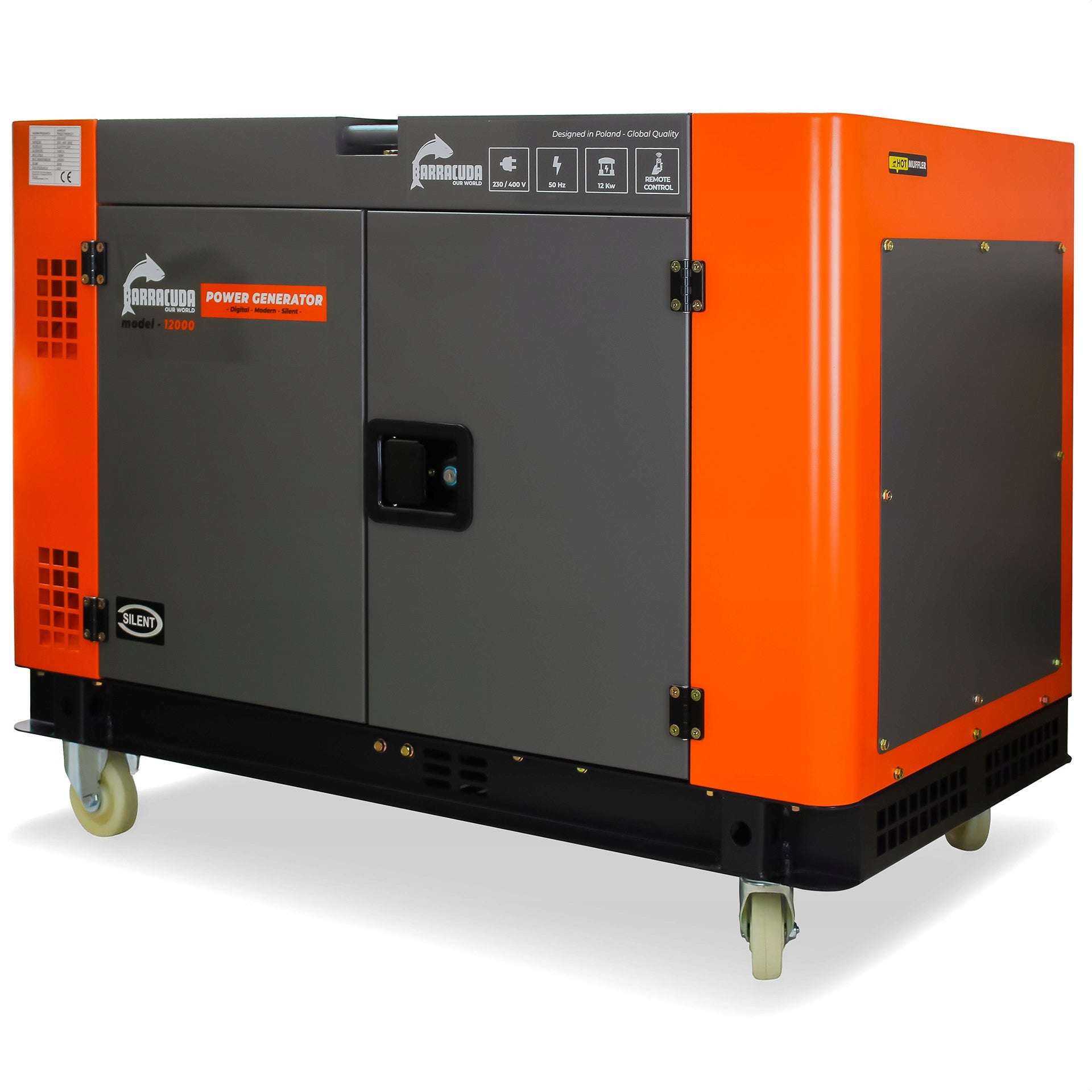

Generator set 15kVA 12kW 400V Barracuda 12000 SILENT DIESEL 2V92 FE with ATS module
15 kVA generator set (12 kW) 400V BARRACUDA DIESEL 12000 SILENT with reinforced phase 230V with diesel engine 2V92 20HP
DOUBLE POWER technology – full power 400V and reinforced phase 230V
DOUBLE POWER technology – full power 400V and reinforced phase 230V
DOUBLE POWER technology (enhanced phase 230V) - allows you to obtain 100% of power on the socket 400V and 80% on the socket 230V - the solution used allows you to use the unit both on the construction site and in the household. DOUBLE POWER technology enables connection of high-power (400V) and single-phase (230V) power devices.
The BARRACUDA generator set is ideal as a temporary power supply on the construction site to power: betoniers, welding machines, grinders and many other devices.
In the household for emergency supply of electronics and household appliances, as well as in the farm for servicing fans, milking machines, water pumps, etc.
Diesel engine 20KM – low combustion and high durability!
What distinguishes BARRACUDA generator sets from the competition
- DOUBLE POWER technology (so-called enhanced phase - 100% of the power on the 400V socket and 80% of the power on the 230V socket) - standard three-phase generator sets available on the Polish market allow you to get only 30% of the power of the unit at the 230V output.
- Control panel - SmartGen
- START-STOP system - keyless actuation of the unit (electric start-up)
- silenced housing - quiet operation of the 78dB unit (measured from 7 meters)
- durable wheels - set of 4 wheels (2 wheels with brake) allow you to transport the unit on any surface
- efficient two-cylinder diesel engine 2V92- average combustion of approx. 3l/h
- two-cylinder DIESEL engine 20HP (997 cm3)
- ATS/SZR socket - automatic start-up of the unit in the event of a power outage in the network, after the power returns, the unit automatically turns off.
- digital displays
- capacity fuel tank (28 liters) - allows hours of operation of the unit without adding fuel
- oil cooler
- emergency switch
- fuel supply venting system
- full transport wheels - high resistance to damage
- two sockets - 230V 16A; 230V 32A; 400V 16A; 400V 32A
- solid and muted housing
*ATS/ZR box is included with the unit
Aggregate for home, construction and farm!
Technical data:
- Rated power: 11,5 kW (14,4 kVA)
- Maximum power: 12 kW (15 kVA)
- voltage: three-phase (400V) and single-phase (230V)
- Frequency: 50 Hz
- tank capacity: 28 litres
- fuel type: diesel (diesel)
- possibility of exhaust gases outside the facility: yes
- mute: yes
- Volume: 78 dB
Engine parameters:
- engine type: high-pressure diesel type V
- engine model: 2V92
- number of cylinders: 2
- Direct injection: yes
- type of cooling: air
- displacement: 997 cm3
- Number of revolutions per minute: 3000rpm
- automatic speed control: yes
- oil level sensor: yes
- oil pressure sensor: yes
- fuel vent: yes
- type of timing: valve driven by a gear
- starter: 1,4 kW
- lubrication method: oil pump engine
- valve type: electromagnetic
- recommended oil: 10W40 semi-synthetic
AVR + copper generator – stable voltage for electronics!
Most important features:
- solidly made - reinforced and muted housing
- low fuel consumption - average 3l/h
- fuel tank capacity - 28 litres
- power unit 12 kW - 15 kVa
- START-STOP system
- SmartGen control panel
- enhanced phase 230V
- equipped with outputs: 230V 16A; 230V 32A; 400V 16A and 400V 32A
- Multi-functional digital display
- digital power meter
- durable transport wheels
- automatic start-up of the unit
- Overload protection
- Pressure and oil level sensor
- Winding generator : copper
- Dimensions: 90x120x65
- Weight: 350 kg
DOUBLE POWER technology – an advantage that standard aggregates do not offer
In most three-phase generators, the power on the 230V socket is only 30%. BARRACUDA offers up to 80% power, which allows you to power single-phase high-power devices such as pumps, compressors, power tools or household appliances. This is a real technological advantage, which translates into greater flexibility and comfort of use.
ATS socket – automatic emergency power supply!
Incandescent candle – reliable start-up in all conditions
The BARRACUDA DIESEL 12000 SILENT generator set is equipped with a glow plug, which significantly improves the working culture of the diesel engine during start-up. This is a key component, especially at low temperatures, where standard diesel units may have difficulty ignition.
The glow plug heats the combustion chamber, thanks to which the engine reaches the optimal temperature for self-ignition of the fuel mixture‑air. The effect?
- faster and more reliable start-up,
- lower battery load,
- lower fuel consumption during take-off,
- stable operation from the first seconds,
- increased lifespan of the drive unit.
It is a solution used in professional construction and agricultural machinery, which confirms its reliability. Thanks to the glow plug, the BARRACUDA unit remains fully operational even in winter, which is especially important for emergency applications where immediate start-up counts.
Stable voltage thanks to copper generator and AVR
The generator made of 100% copper ensures high load resistance and long service life. The AVR controller stabilizes the voltage, allowing you to securely connect electronic devices such as computers, refrigerators, TVs or controllers.
Diesel engine 20HP – durability, economy and reliability
The unit is equipped with a 2V92FE diesel engine with a capacity of 997 cm³, known for its high overload resistance and low combustion. This engine is used in professional construction machinery, which confirms its durability and reliability. The average combustion of 3l/h makes the unit one of the most economical in its class.
Control panel - SmartGen
The generating unit is equipped with an intelligent digital controller for controlling the unit. The module enables precise measurement of many parameters that can be configured using the controller. The device is intuitive and easy to use.
Specification:
- Display: LED Nixie Tube
- Operating panel: PET
- Digital input: 1
- Relay output: 2
- Analog input: 2
- Air conditioning system: 1P2W
- Alternator voltage: (30-360) V (ph-N)
- Alternator frequency: 50/60 Hz
- Interface programming: LINK
- Power supply: DC (9-18) V
- Operating temperature: -25/+70 °C

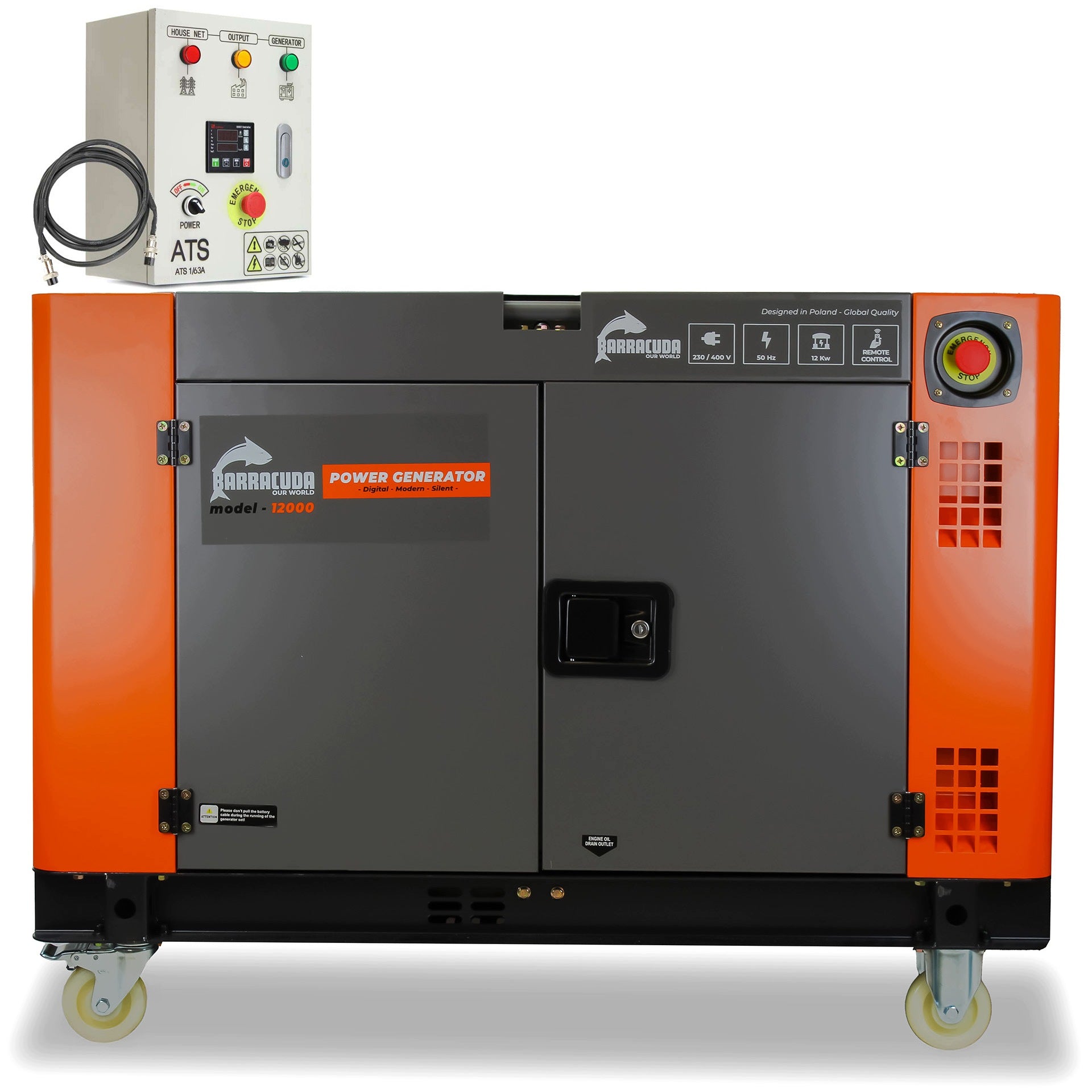

ATS SZR 63A 6PIN
The unit is equipped with a connector adapted to connect the SZR - ATS system. This system allows automatic start-up of the unit in the event of a power outage in the network, after the power returns, the unit automatically turns off.
ATTENTION!
The ATS/ SZR module is part of the set!
FAQ
Is the generator equipped with a glow plug?
Yes. The unit has a glow plug that heats the combustion chamber before takeoff. Thanks to this, the diesel engine starts confidently even in winter.
Can the unit handle a welding machine or concrete mixer?
Yes. Thanks to DOUBLE POWER technology and full power per 400V, the unit easily powers power devices and high-power tools.
Can I connect electronic devices (computer, TV, refrigerator)?
Yes. The built-in AVR regulator stabilizes the voltage, making the unit safe for electronics.
Does the generator have an automatic start when the power goes out?
Yes, it has an ATS/SZR socket. After connecting the ATS module, the unit starts automatically.
What is the combustion of the unit?
The average burn is approx. 3l/h – this is one of the most economical models in this class.
Does the unit have a reinforced 230V phase?
Yes. This is a key advantage over the competition – as much as 80% of the power available on the 230V socket.
Can the unit be used indoors?
No. The unit must work outdoors or in a well-ventilated place with the possibility of exhaust fumes.
Are spare parts easily accessible?
Yes. The 2V92FE engine is common and serviced in most construction machinery workshops.
Does the unit have damage protection?
Yes. It has an oil level sensor, oil pressure sensor, overload protection and AVR.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Barracuda |
| Parametry | Model | B12000SD2v95+ATS |
| Parametry | Kind | portable |
| Parametry | Generator type | three-phase |
| Parametry | Engine | 4-stroke |
| Parametry | Startup | electric |
| Parametry | Maximum power | 12000 W |
| Parametry | Nominal power of the alternator | 11500 W |
| Parametry | Engine power | 22 KM |
| Parametry | Gasoline tank capacity | 28 l |
| Parametry | Device weight | 350 kg |
| Parametry | Fuel type | diesel fuel |
| Parametry | Frequency | 50 Hz |
| Parametry | Operating time on the tank | 10 h |
| Parametry | Lc IEC noise level | 73 dB |
| Parametry | Product height | 65 cm |
| Parametry | Product width | 125 cm |
| Parametry | Product depth | 65 cm |
| Parametry | Average combustion | 3 l/h |
| Parametry | Number of 1-phase outlets | 2 |
| Parametry | Number of 3-phase outlets | 2 |
| Parametry | Supply voltage | 400 V |
| Parametry | Manufacturer code | B12000SD2v95+ATS |
| Parametry | Packaging status | original |
| Parametry | Customs tariff code | 85022020 |
| Parametry | Additional information | voltage regulation (AVR),12 V outlet |
