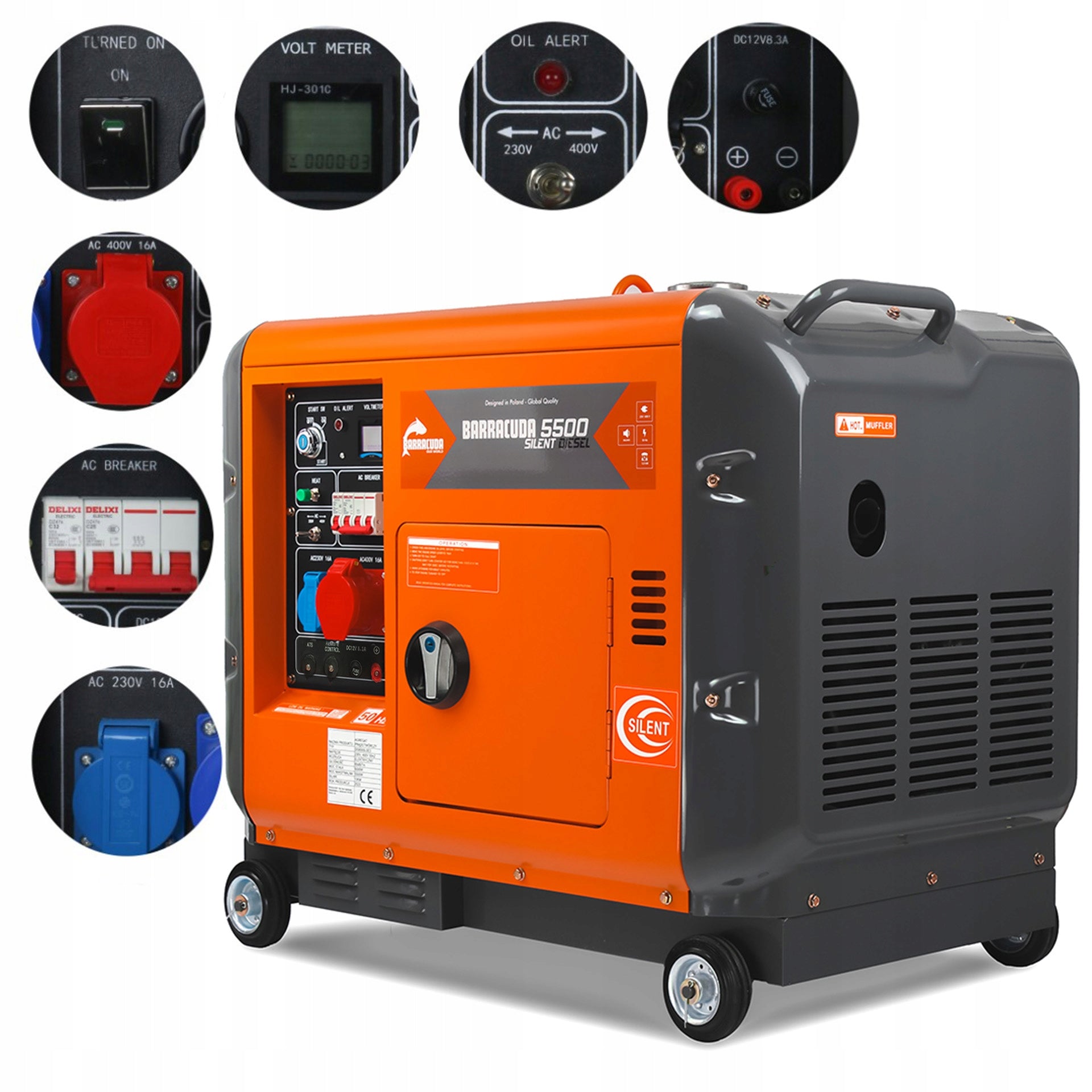

Dyzelinis generatorius BARRACUDA 5500 SILENT, 7kVA, 5,5kW, 230V/400V

Trumpai apie prekę

Prekė: Dyzelinis generatorius BARRACUDA 5500 SILENT, 7kVA, 5,5kW, 230V/400V. Kategorija: Elektros generatoriai.

• Gamintojas: Barracuda
• Modelis: B55003FSILENT
• Įtampa: 400 V

______________________________________

______________________________________

DOUBLE POWER Technology (Reinforced 230V Phase) – allows for 100% power on the 400V outlet and 80% on the 230V outlet. This solution enables the generator to be used on construction sites as well as in households. DOUBLE POWER technology allows for connecting high-power industrial (400V) and single-phase (230V) devices.

BARRACUDA generators are ideal for temporary power on construction sites to run: concrete mixers, welders, grinders, and many other devices.

In households, for emergency power for home electronics and appliances, as well as in farms for operating fans, milking machines, water pumps, etc.

______________________________________

Most three-phase generators offer only 30% power on the 230V outlet. BARRACUDA offers up to 80% power, allowing you to power high-wattage single-phase devices like pumps, compressors, power tools, or home appliances. This is a real technological advantage that translates to greater flexibility and user comfort.

______________________________________

• DOUBLE POWER technology (so-called reinforced phase - 100% power on 400V outlet and 80% power on 230V outlet) - standard three-phase generators on the Polish market provide only 30% of the generator's power on the 230V output.
• Quiet operation - the generator features sound insulation that significantly reduces noise levels.
• Fuel-efficient DIESEL engine - average consumption around 1l/h.
• ATS/SZR socket* - automatic generator start-up in case of a power outage; the generator automatically shuts down when power is restored.
• 10 HP DIESEL engine
• Copper alternator winding
• Glow plug - essential for easy generator starting.

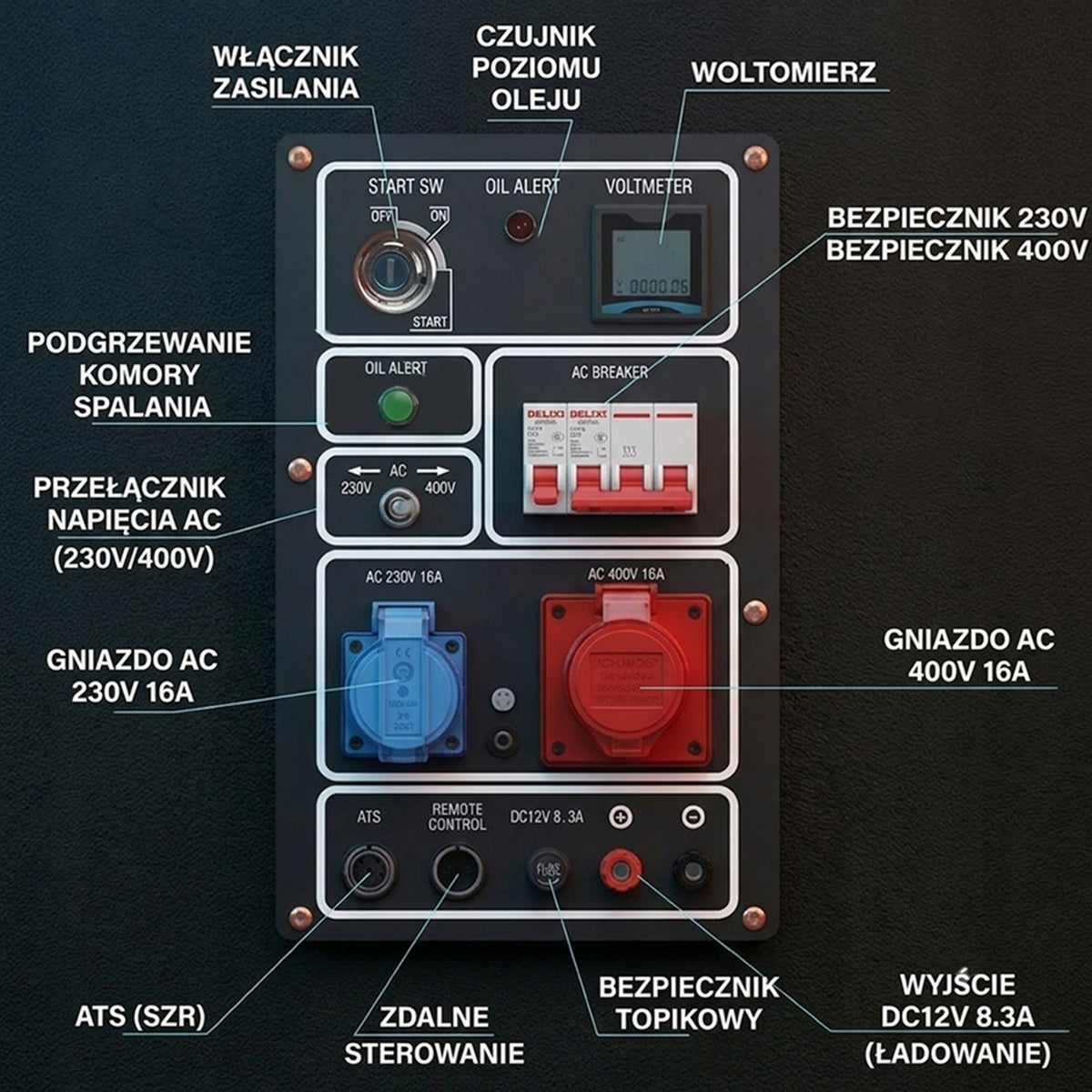

• Digital display - functions as a voltmeter, hour meter, and frequency indicator.
• Large fuel tank (16 liters) - allows for many hours of operation without refueling.
• Silicone wheels - a set of 4 silicone wheels allows for transport on any flat surface.
• Two sockets - 230V 16A; 400V 16A.
• 12V rectifier
• Easily available spare parts.
• Soundproof housing.

______________________________________

• Rated power: 5 kW (6.25 kVA)
• Maximum power: 5.5 kW (7 kVA)
• Voltage: three-phase (400V) and single-phase (230V)
• Frequency: 50 Hz
• Tank capacity: 16 liters
• Fuel type: diesel
• Possibility of exhaust venting outside the building: yes
• Soundproofing: yes

Engine Parameters:

• Engine type: diesel
• Number of cylinders: 1
• Direct injection: yes
• Cooling type: air
• Rotations per minute: 3000 rpm
• Automatic speed control: yes
• Oil level sensor: yes
• Oil pressure sensor: yes
• Timing type: gear-driven valve train
• Lubrication method: engine with oil pump
• Valve type: solenoid
• Recommended oil: 10W40 semi-synthetic

______________________________________

• DOUBLE POWER technology: yes (100% power on 400V outlet, 80% power on 230V outlet)
• AVR voltage regulator: yes
• Starting type: electric
• Oil sensor: yes
• Fuel level indicator: yes
• Digital display: yes
• Hour meter: yes
• Voltmeter: yes
• Frequency indicator: yes
• Circuit protection: C25 (for 400V) and C25 (for 230V)
• Battery: yes, 36Ah

______________________________________

• Solid construction - reinforced and soundproof housing
• Soundproof housing - quiet generator operation
• Low fuel consumption - average 1l/h
• Fuel tank capacity - 16 liters
• Generator power - 7kVA (5.5kW) 400V industrial socket; 6kVA (4.4 kW) 230V socket
• Reinforced 230V phase
• AVR voltage regulator
• Equipped with outputs: 230V 16A; 400V 16A, and 12V output
• Built-in digital meter (voltage, frequency, hours)
• Overload protection
• Oil pressure and level sensor
• Copper alternator winding
• Glow plug - essential for easy generator starting.

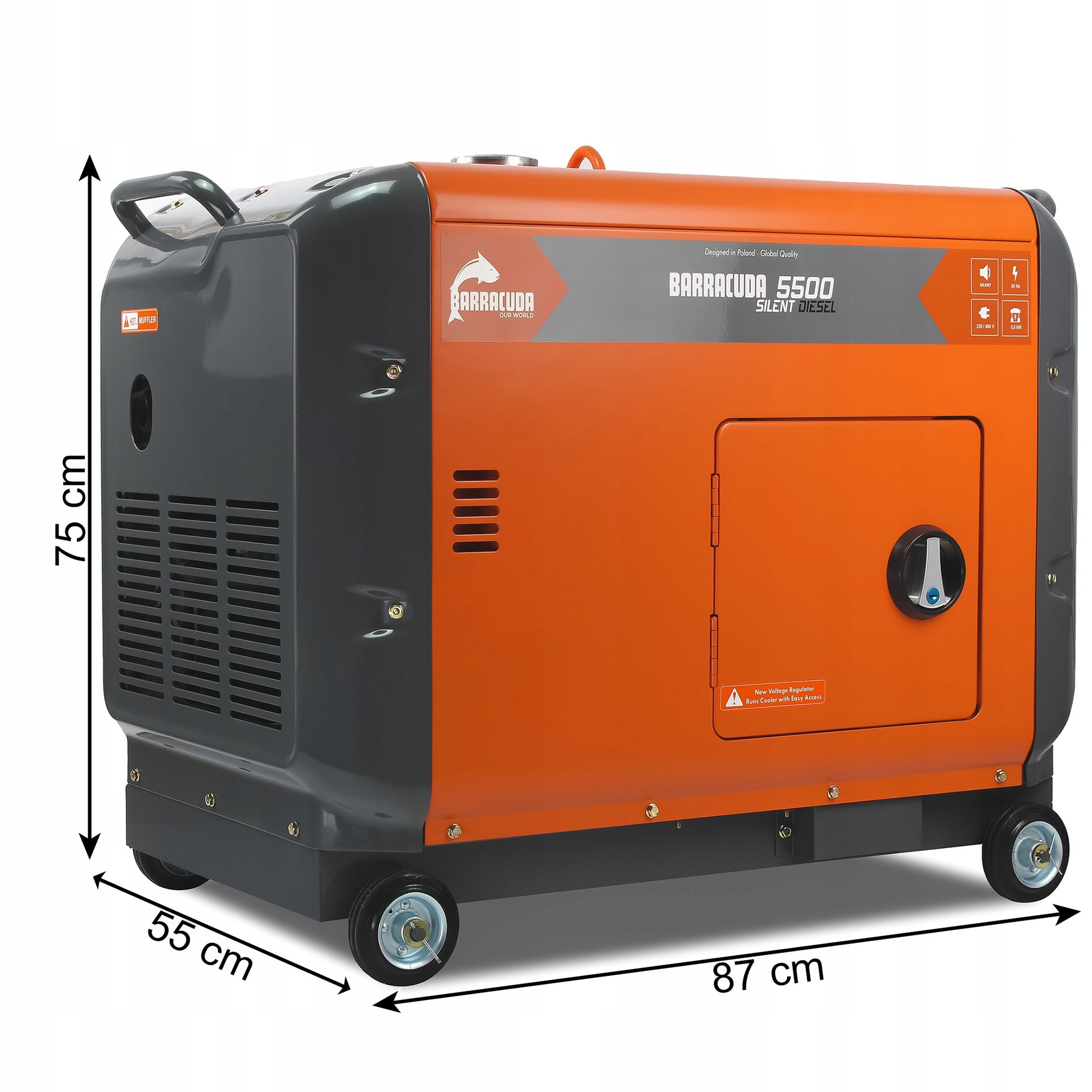

• Dimensions with wheels installed - 75/87/55 (H/W/D)
• Weight 140 kg

______________________________________

The BARRACUDA DIESEL 5500 SILENT generator is equipped with a glow plug, which significantly improves the operation of the diesel engine during startup. This is a crucial component, especially in low temperatures, where standard diesel engines may have ignition difficulties.

The glow plug heats the combustion chamber, allowing the engine to reach the optimal temperature for self-ignition of the fuel-air mixture. The result?

• Faster and more reliable starting,
• Less strain on the battery,
• Lower fuel consumption during startup,
• Stable operation from the first second,
• Increased engine lifespan.

This solution is used in professional construction and agricultural machinery, confirming its reliability. Thanks to the glow plug, the BARRACUDA generator remains fully ready for operation even in winter, which is particularly important for emergency applications where immediate startup is critical.

______________________________________

The installed alternator is made of copper.

It allows for maximum generator load up to 5.5kW (400V). Additionally, it has a charging rectifier output for, e.g., a battery. The built-in AVR voltage regulator allows connecting electronic devices such as computers, refrigerators, etc.

______________________________________

Possibility of remote generator start, e.g., via an inverter from a power bank to charge batteries.

______________________________________

The installed powerful and durable 10 HP engine is widely used globally in equipment such as rotary tillers, water pumps, compactors, and generators. Its high resistance to overload and increased durability of wear parts make the engine reliable in its class.

The installed alternator is made of 100% copper. It allows for maximum generator load up to 5.5 kW (7kVA) on the 400V outlet and 4.4 kW (6 kVA) on the 230V outlet (reinforced phase function).

Additionally, it has a charging rectifier output for, e.g., a battery. The built-in AVR voltage regulator ensures safe connection of electronic devices such as computers, refrigerators, etc.

The generator is equipped with an ATS system - automatic generator startup upon power failure.

The aggregate is equipped with a connector adapted to connect the SZR - ATS system. This system allows automatic start-up of the unit in the event of a power outage in the network, after the power returns, the unit automatically turns off.

*ATS module is not included with the unit

Is the generator equipped with a glow plug?

Yes. The unit has a glow plug that heats the combustion chamber before takeoff. Thanks to this, the diesel engine starts confidently even in winter.

Can the unit handle a welding machine or concrete mixer?

Yes. Thanks to DOUBLE POWER technology and full power per 400V, the unit easily powers power devices and high-power tools.

Can I connect electronic devices (computer, TV, refrigerator)?

Yes. The built-in AVR regulator stabilizes the voltage, making the unit safe for electronics.

Does the generator have an automatic start when the power goes out?

Yes, it has an ATS/SZR socket. After connecting the ATS module, the unit starts automatically.

What is the combustion of the unit?

The average burn is approx. 1l/h – this is one of the most economical models in this class.

Does the unit have a reinforced 230V phase?

Yes. This is a key advantage over the competition – as much as 80% of the power available on the 230V socket.

Can the unit be used indoors?

No. The unit must work outdoors or in a well-ventilated place with the possibility of exhaust fumes.

Are spare parts readily available?

Yes. The engine used is common and serviced in most construction machinery workshops.

Does the unit have damage protection?

Yes. It has an oil level sensor, oil pressure sensor, overload protection and AVR.
