Dyzelinis generatorius BARRACUDA 8000 OPEN AVR, 10 kVA (8 kW), 230V/400V

Trumpai apie prekę

Prekė: Dyzelinis generatorius BARRACUDA 8000 OPEN AVR, 10 kVA (8 kW), 230V/400V. Kategorija: Elektros generatoriai.

• Gamintojas: Barracuda
• Modelis: B80003FOPEN
• Įtampa: 400 V

Current generator - generator set 10 kVA (8 kW) 400V BARRACUDA DIESEL 8000 OPEN with reinforced phase 230V

DOUBLE POWER technology (enhanced phase 230V) - allows you to obtain 100% of power on the socket 400V and 80% on the socket 230V - the solution used allows you to use the unit both on the construction site and in the household. DOUBLE POWER technology enables connection of high-power (400V) and single-phase (230V) power devices.

The BARRACUDA generator set is ideal as a temporary power supply on the construction site to power: betoniers, welding machines, grinders and many other devices.

In the household for emergency power supply of electronics and household appliances, as well as in the farm for servicing fans, milking machines, water pumps, etc.

What distinguishes BARRACUDA generator sets from the competition:

• DOUBLE POWER technology (so-called enhanced phase - 100% power on the 400V socket and 80% power on the 230V socket) - standard three-phase generator sets available on the Polish market allow to obtain only 30% of the power of the unit at the 230V output
• START-STOP system - keyless actuation of the unit (electric start-up)
• remote control - the ability to turn on/off the unit from a distance of 90 meters (in open space)
• efficient DIESEL engine - average combustion of 0,8l/h
• ATS/SZR socket* - automatic start-up of the unit in case of power failure in the network, after returning power, the unit automatically turns off
• DIESEL engine 11 HP (496 cm3)
• copper winding of generator
• digit display - acting as a voltmeter, hour counter and frequency indicator
• capacity fuel tank (16 liters) - allows hours of operation of the unit without adding fuel
• transport wheels - set of 2 wheels allows you to transport the unit
• three sockets - 230V 16A; 230V 32A; 400V 16A
• 12V rectifier
• easily accessible spare parts
• durable frame

*ATS/ZR box is not included with the unit

Technical data:

• Rated power: 7 kW (8,75 kVA)
• Maximum power: 8 kW (10kVA)
• Voltage: (three-phase (400V) and single-phase (230V)
• Frequency: 50 Hz
• tank capacity: 16 litres
• fuel type: diesel (diesel)
• possibility of exhaust gases outside the facility: yes
• mute: yes

Engine parameters:

• engine type: diesel
• number of cylinders: 1
• Direct injection: yes
• type of cooling: air
• displacement: 496 cm3
• Number of revolutions per minute: 3000 rpm
• automatic speed control: yes
• oil level sensor: yes
• oil pressure sensor: yes
• type of timing: valve driven by a gear
• lubrication method: oil pump engine
• valve type: electromagnetic
• recommended oil: 10W40 semi-synthetic

Most important features:

• solidly made - reinforced frame
• low fuel consumption - average combustion 0,8l/h
• fuel tank capacity - 16 liters
• aggregate power - 10 kVA (8kW) power socket 400V; 8,75 kVA (7 kW) socket 230V
• enhanced phase 230V
• START-STOP system
• AVR voltage regulator

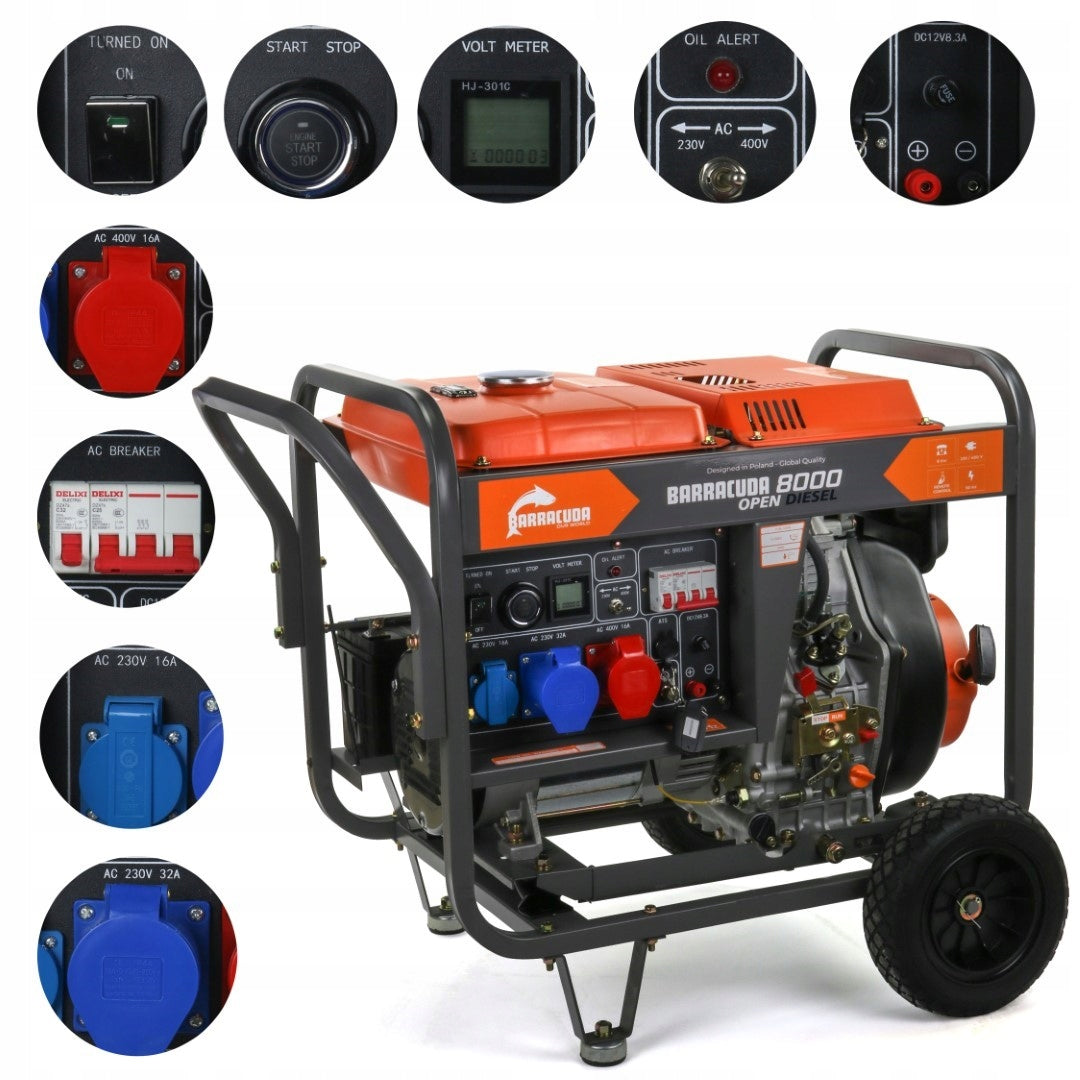

• equipped with outputs: 230V 16A; 230V 32A; 400V 16A and 12V output
• built-in digital counter (voltage, frequency, hours)
• two types of start-up: automatic and manual
• low combustion - average 0,8 l/h
• overload protection
• oil pressure and level sensor
• copper winding of generator

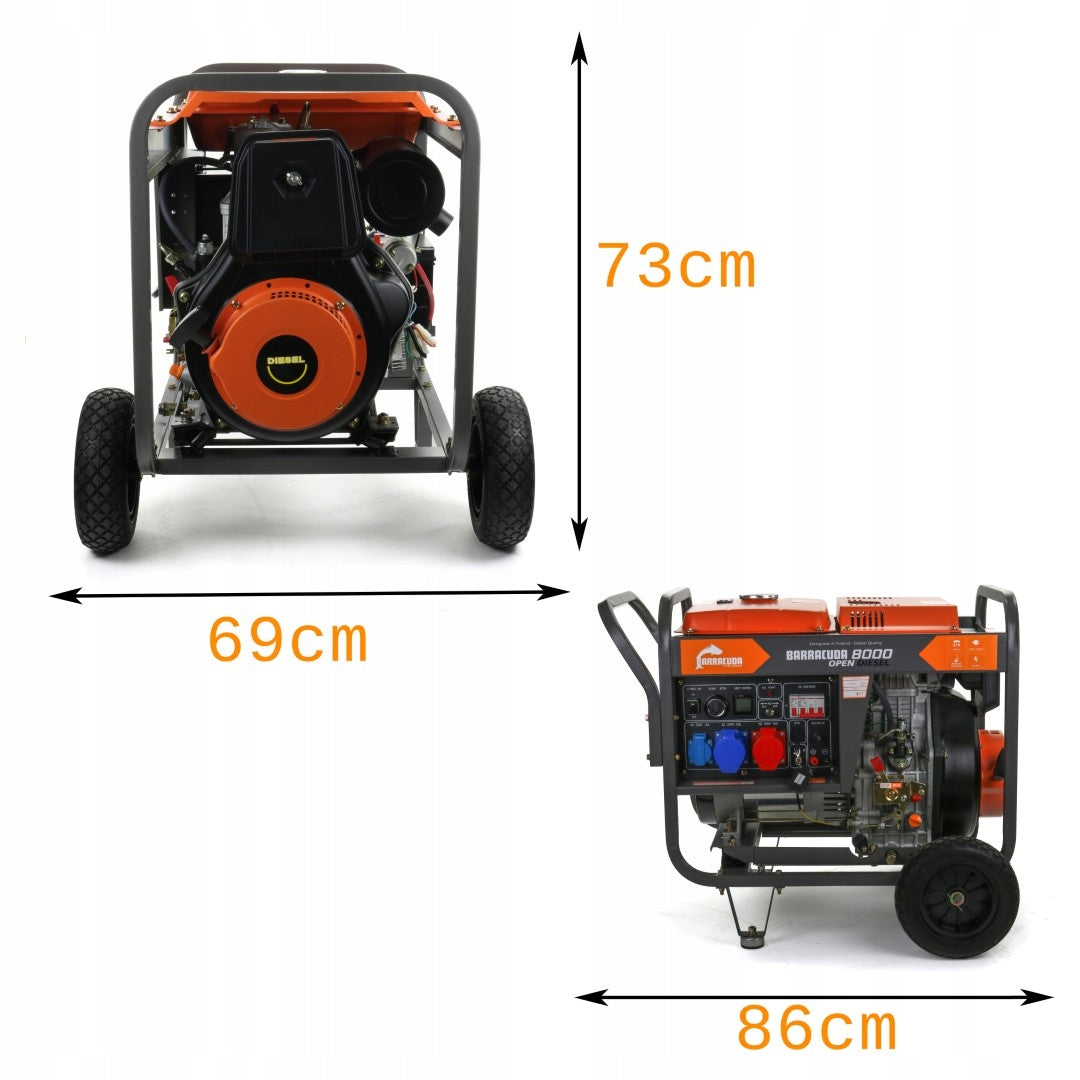

• Dimensions with mounted wheels - 73/86/69 (H/W/D)
• weight 134 kg

DOUBLE POWER technology – an advantage that standard aggregates do not offer

In most three-phase generators, the power on the 230V socket is only 30%. BARRACUDA offers up to 80% power, which allows you to power single-phase high-power devices such as pumps, compressors, power tools or household appliances. This is a real technological advantage, which translates into greater flexibility and comfort of use.

Glow plug – reliable start-up in all conditions

The BARRACUDA DIESEL 8000 OPEN generator set is equipped with a glow plug, which significantly improves the working culture of the diesel engine during start-up. This is a key component, especially at low temperatures, where standard diesel units may have difficulty ignition.

The glow plug heats the combustion chamber, thanks to which the engine reaches the optimal temperature for self-ignition of the fuel mixture‑air. The effect?

• faster and more reliable start-up,
• lower battery load,
• lower fuel consumption during take-off,
• stable operation from the first seconds,
• increased lifespan of the drive unit.

It is a solution used in professional construction and agricultural machinery, which confirms its reliability. Thanks to the glow plug, the BARRACUDA unit remains fully operational even in winter, which is especially important for emergency applications where immediate start-up counts.

Stable voltage thanks to copper generator and AVR

The generator made of 100% copper ensures high load resistance and long service life. The AVR controller stabilizes voltage, allowing you to securely connect electronic devices such as computers, refrigerators, TVs or controllers.

11 HP diesel engine – durability, economy and reliability

The unit is equipped with a 192FE diesel engine with a capacity of 496 cm³, known for its high overload resistance and low combustion. This engine is used in professional construction machinery, which confirms its durability and reliability. The average combustion of 0,8 l/h makes the unit one of the most economical in its class.

The aggregate is equipped with a connector adapted to connect the SZR - ATS system. This system allows automatic start-up of the unit in the event of a power outage in the network, after the power returns, the unit automatically turns off.

Is the unit equipped with a glow plug?

Yes. The unit has a glow plug that heats the combustion chamber before takeoff. Thanks to this, the diesel engine starts confidently even in winter.

Can the unit handle a welding machine or concrete mixer?

Yes. Thanks to DOUBLE POWER technology and full power per 400V, the unit easily powers power devices and high-power tools.

Can I connect electronic devices (computer, TV, refrigerator)?

Yes. The built-in AVR regulator stabilizes the voltage, making the unit safe for electronics.

Does the generator have an automatic start when the power goes out?

Yes, it has an ATS/SZR socket. After connecting the ATS module, the unit starts automatically.

What is the combustion of the unit?

The average burn is approx. 0,8 l/h – this is one of the most economical models in this class.

Does the unit have a reinforced 230V phase?

Yes. This is a key advantage over the competition – as much as 80% of the power available on the 230V socket.

Can the unit be used indoors?

No. The unit must work outdoors or in a well-ventilated place with the possibility of exhaust fumes.

Are spare parts readily available?

Yes. The 192FE engine is common and serviced in most construction machinery workshops.

Does the unit have damage protection?

Yes. It has an oil level sensor, oil pressure sensor, overload protection and AVR.
