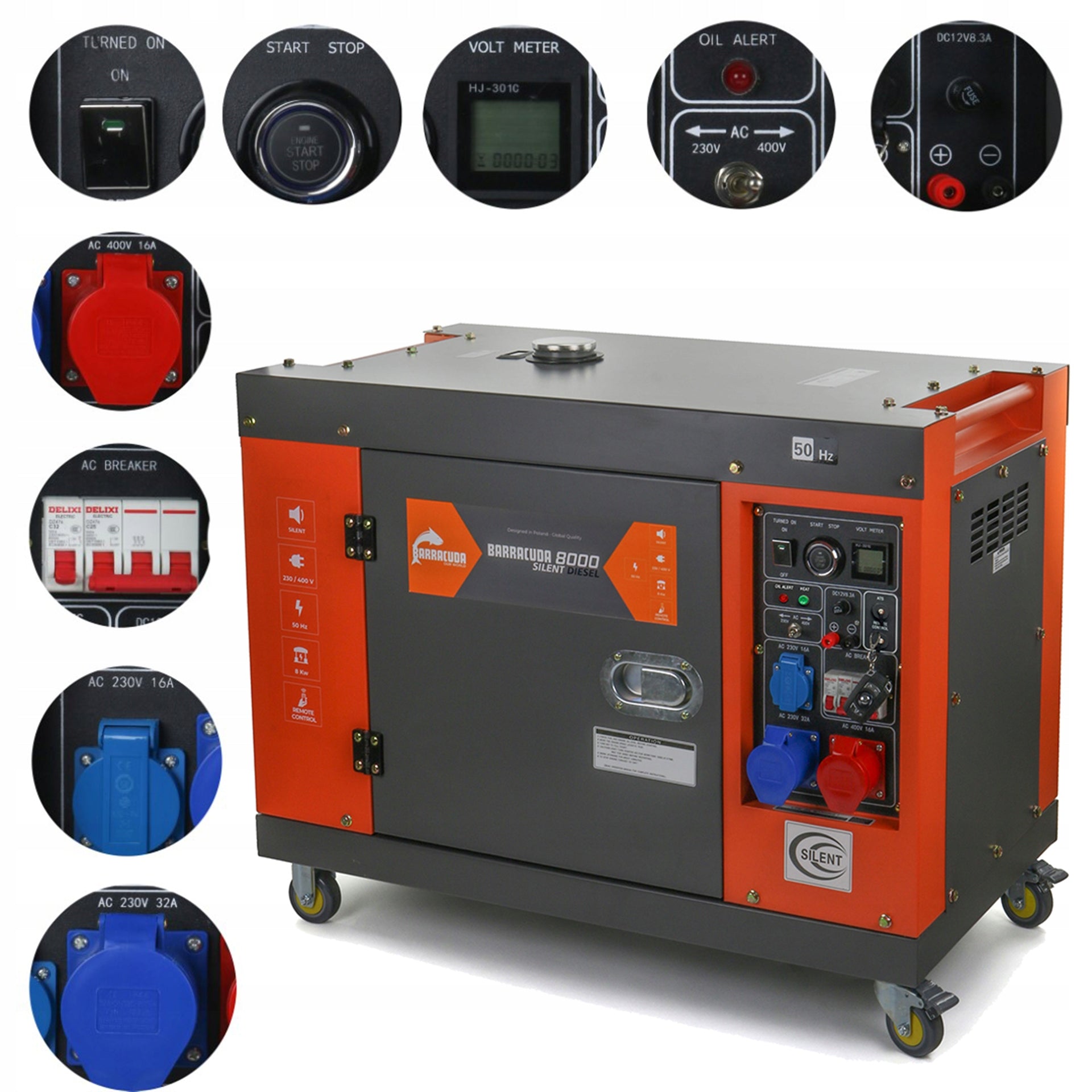

Dyzelinis generatorius BARRACUDA 8000 SILENT, 10 kVA, 8 kW, 230/400 V

Trumpai apie prekę

Prekė: Dyzelinis generatorius BARRACUDA 8000 SILENT, 10 kVA, 8 kW, 230/400 V. Kategorija: Elektros generatoriai.

• Gamintojas: Barracuda
• Modelis: B8000S
• Įtampa: 400 V

______________________________________

______________________________________

DOUBLE POWER Technology (Reinforced 230V Phase) - allows for 100% power at the 400V outlet and 80% at the 230V outlet. This solution enables the generator to be used both on construction sites and in households. DOUBLE POWER technology allows for connecting heavy-duty (400V) and high-power single-phase (230V) devices.

The BARRACUDA generator is ideal for temporary power on construction sites to power: concrete mixers, welding machines, grinders, and many other devices.

In households, it's suitable for emergency power for home electronics and appliances, as well as in farms for operating fans, milking machines, water pumps, etc.

______________________________________

Most three-phase generators offer only 30% power at the 230V outlet. BARRACUDA provides up to 80% power, allowing you to run high-power single-phase devices like pumps, compressors, power tools, or home appliances. This is a significant technological advantage that translates to greater flexibility and user convenience.

______________________________________

• DOUBLE POWER technology (so-called reinforced phase - 100% power at the 400V outlet and 80% power at the 230V outlet) - standard three-phase generators on the market typically provide only 30% of their power at the 230V output.
• START-STOP system - keyless generator start (electric start).
• remote control - ability to start the generator remotely, for example, via an inverter from a power bank to recharge batteries.
• quiet operation - the generator features sound insulation that significantly reduces noise levels.
• economical DIESEL engine - average fuel consumption of 0.8 L/h.

• ATS/SZR socket* - automatic start-up of the unit in case of power failure in the network, after returning power, the unit automatically turns off
• DIESEL engine 11 HP (496 cm3)
• copper winding of generator
• digit display - acting as a voltmeter, hour counter and frequency indicator
• capacity fuel tank (16 liters) - allows hours of operation of the unit without adding fuel
• silicone wheels - set of 4 silicone wheels (2 wheels with brake) allow you to transport the unit on any flat surface
• three sockets - 230V 16A; 230V 32A; 400V 16A
• incandescent candle - necessary for easy starting of the unit
• 12V rectifier
• easily accessible spare parts
• mute housing

______________________________________

• rated power: 7 kW (8.75 kVA)
• maximum power: 8 kW (10 kVA)
• voltage: (three-phase (400V) and single-phase (230V)
• frequency: 50 Hz
• tank capacity: 16 liters
• fuel type: diesel
• possibility of exhaust venting outside: yes
• sound insulation: yes

Engine Parameters:

• engine type: diesel
• number of cylinders: 1
• direct injection: yes
• cooling type: air
• displacement: 496 cm3
• rotations per minute: 3000 rpm
• automatic speed control: yes
• oil level sensor: yes
• oil pressure sensor: yes
• timing type: valve train driven by gear
• lubrication method: engine with oil pump
• valve type: solenoid
• recommended oil: 10W40 semi-synthetic

______________________________________

• DOUBLE POWER technology: yes (100% power at 400V outlet, 80% power at 230V outlet)
• AVR voltage regulator: yes
• keyless START-STOP system: yes
• remote control: yes
• start type: electric, manual
• oil sensor: yes
• fuel level indicator: yes
• digital display: yes
• hour meter: yes
• voltmeter: yes
• frequency indicator: yes
• circuit protection: C25 (for 400V) and 32 (for 230V)
• battery: yes, 36Ah

______________________________________

• robust construction - reinforced and soundproofed housing
• soundproofed housing - quiet generator operation
• low fuel consumption - average 1 L/h
• fuel tank capacity - 16 liters
• generator power - 10 kVA (8kW) 400V heavy-duty outlet; 8.75 kVA (7 kW) 230V outlet
• reinforced 230V phase
• START-STOP system
• remote control - ability to start the generator remotely, e.g., via an inverter from a power bank to recharge batteries
• AVR voltage regulator
• equipped with outlets: 230V 16A; 230V 32A; 400V 16A and a 12V outlet
• built-in digital meter (voltage, frequency, operating hours)
• two start types: automatic and manual
• overload protection
• oil pressure and level sensor
• copper alternator winding

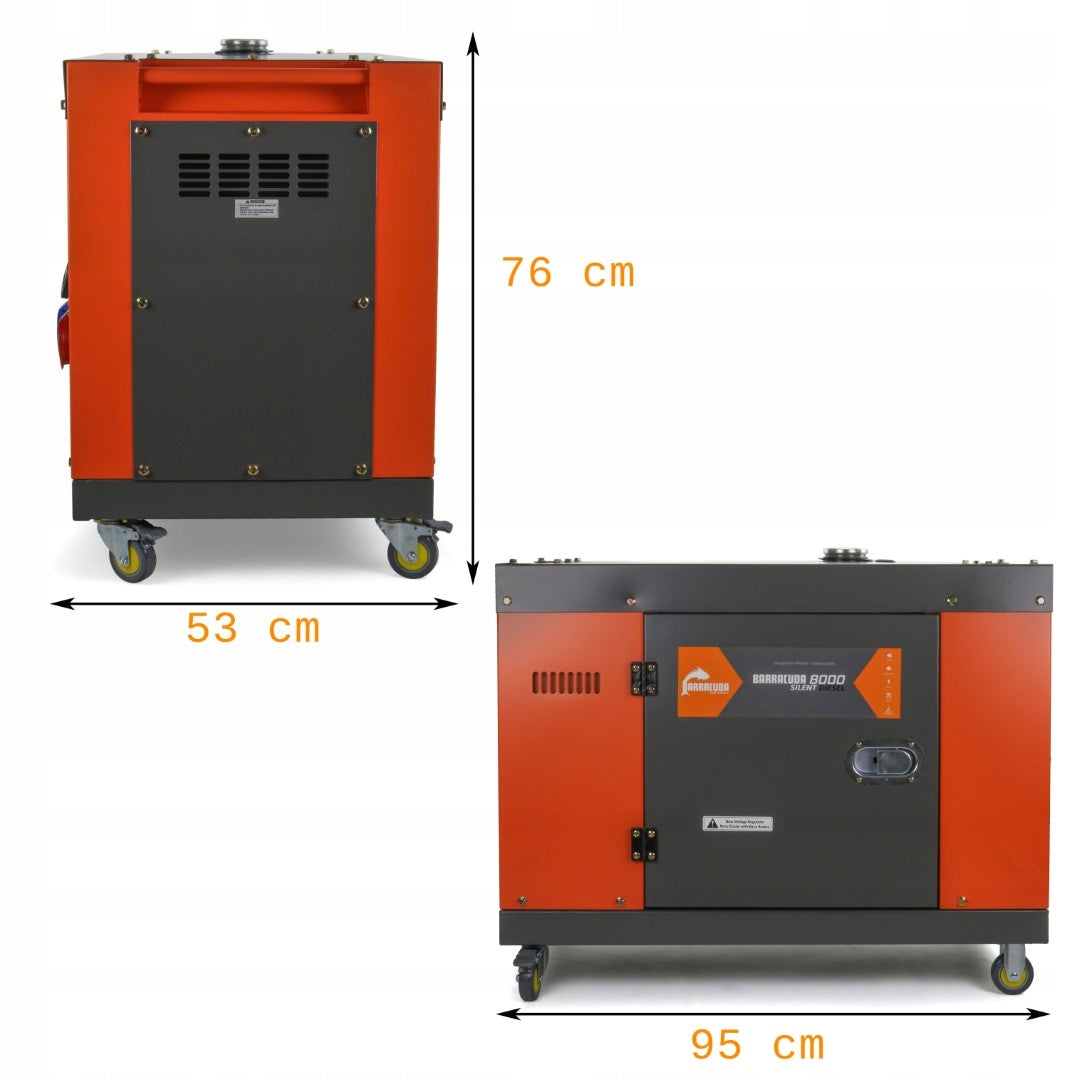

• Dimensions with wheels installed - 79/95/53 (H/W/D)
• Dimensions without wheels - 69/95/53 (H/W/D)
• weight 162 kg

______________________________________

The installed alternator is made of copper.

It allows for maximum generator load up to 8.0 kW (400V). Additionally, it has a rectified output for charging, e.g., a battery. The built-in AVR voltage regulator allows connecting electronic devices such as computers, refrigerators, etc.

______________________________________

The installed 192FE (11 HP) diesel engine with direct injection is characterized by exceptionally low fuel consumption and very smooth operation.

Used in devices such as tillers, water pumps, compactors, and power generators. It is known for its high resistance to overloads and tolerates operational errors like infrequent oil changes and maintenance. Spare parts for this engine model are readily available at any construction machinery service center.

______________________________________

The BARRACUDA DIESEL 8000 SILENT generator is equipped with a glow plug, which significantly improves the diesel engine's starting performance. This is a crucial component, especially in low temperatures, where standard diesel engines may have ignition difficulties. The glow plug heats the combustion chamber, allowing the engine to reach optimal temperature for fuel-air mixture auto-ignition. The result?

• faster and more reliable starting,
• less strain on the battery,
• lower fuel consumption during startup,
• stable operation from the first second,
• increased engine lifespan.

This solution is used in professional construction and agricultural machinery, confirming its reliability. Thanks to the glow plug, the BARRACUDA generator remains fully ready for operation even in winter, which is particularly important for emergency applications where immediate startup is critical.

______________________________________

Ability to start the generator remotely, e.g., via an inverter from a power bank to recharge batteries.

______________________________________

The generator is equipped with a connector for an ATS (Automatic Transfer Switch) system. This system allows the generator to start automatically in case of a power outage and shuts down automatically when the main power returns.

Is the generator equipped with a glow plug?

Yes. The unit has a glow plug that heats the combustion chamber before takeoff. Thanks to this, the diesel engine starts confidently even in winter.

Can the unit handle a welding machine or concrete mixer?

Yes. Thanks to DOUBLE POWER technology and full power per 400V, the unit easily powers power devices and high-power tools.

Can I connect electronic devices (computer, TV, refrigerator)?

Yes. The built-in AVR regulator stabilizes the voltage, making the unit safe for electronics.

Does the generator have an automatic start when the power goes out?

Yes, it has an ATS/SZR socket. After connecting the ATS module, the unit starts automatically.

What is the combustion of the unit?

The average burn is approx. 1l/h – this is one of the most economical models in this class.

Does the unit have a reinforced 230V phase?

Yes. This is a key advantage over the competition – as much as 80% of the power available on the 230V socket.

Can the unit be used indoors?

No. The unit must work outdoors or in a well-ventilated place with the possibility of exhaust fumes.

Are spare parts easily accessible?

Yes. The 192FE engine is common and serviced in most construction machinery workshops.

Does the unit have damage protection?

Yes. It has an oil level sensor, oil pressure sensor, overload protection and AVR.
