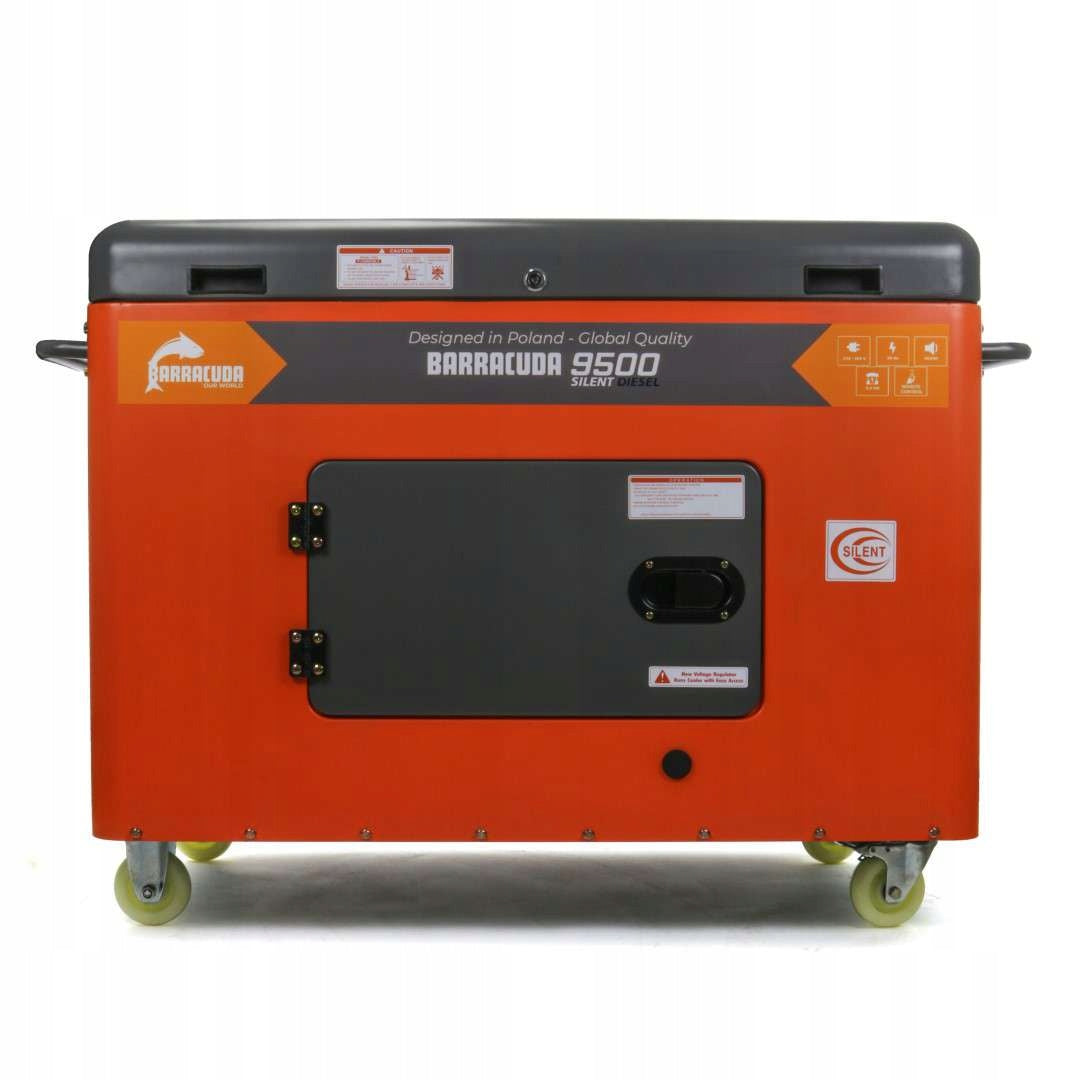

Dyzelinis generatorius BARRACUDA 9500 SILENT, 12kVA (9,5kW), 230V/400V

Trumpai apie prekę

Prekė: Dyzelinis generatorius BARRACUDA 9500 SILENT, 12kVA (9,5kW), 230V/400V. Kategorija: Elektros generatoriai.

• Gamintojas: Barracuda
• Modelis: B9500S

______________________________________

______________________________________

It allows you to obtain 100% power on a 400V socket and 80% on a 230V socket - the solution used allows you to use the generator both on construction sites and in the household. DOUBLE POWER technology enables the connection of high-power (400V) and single-phase (230V) devices .

The BARRACUDA generator is ideal as a temporary power supply on construction sites to power concrete mixers, welding machines, grinders and many other devices.

In the household for emergency power supply of electronics and household appliances, as well as on a farm for operating fans, milking machines, water pumps, etc.

______________________________________

In most three-phase generators, the power at the 230V socket is only 30%. BARRACUDA offers up to 80% power , which allows it to power high-power single-phase devices such as pumps, compressors, power tools and household appliances. This is a real technological advantage that translates into greater flexibility and comfort of use.

______________________________________

• DOUBLE POWER technology (so-called reinforced phase - 100% power at the 400V socket and 80% power at the 230V socket) - standard three-phase generators available on the Polish market allow for obtaining only 30% of the generator power at the 230V output
• START-STOP system - keyless start of the generator (electric start)
• remote control - the ability to remotely start the generator via an inverter from the power bank to recharge the batteries
• quiet operation - the generator has a soundproofing system that significantly reduces the level of generated noise
• large fuel tank (16 liters) - allows the generator to operate for many hours without adding fuel
• economical DIESEL engine - average fuel consumption of 0.8 l/h

• ATS/SZR socket* - automatic start-up of the unit in case of power failure in the network, after returning power, the unit automatically turns off
• DIESEL engine 13 HP (668 cm3)
• copper winding of generator
• digit display - acting as a voltmeter, hour counter and frequency indicator
• capacity fuel tank (16 liters) - allows hours of operation of the unit without adding fuel
• four transport wheels (including two swivel wheels with brakes) - high resistance to damage
• two sockets - 230V 32A; 400V 16A
• incandescent candle - necessary for easy starting of the unit
• AVR voltage stabilizer - allows connection to the aggregate of sensitive electronics such as computer, TV, etc.
• easily accessible spare parts
• 12V rectifier
• robust and durable frame

*ATS/ZR box not included

______________________________________

• rated power: **8.5kW (10.5kVA)**
• maximum power: **9.5kW (12kVA)**
• voltage: **three-phase (400V) and single-phase (230V)**
• frequency: **50Hz**
• tank capacity: **16 liters**
• fuel type: **diesel**
• possibility of exhaust venting outside: **yes**
• noise level: **67 dB**

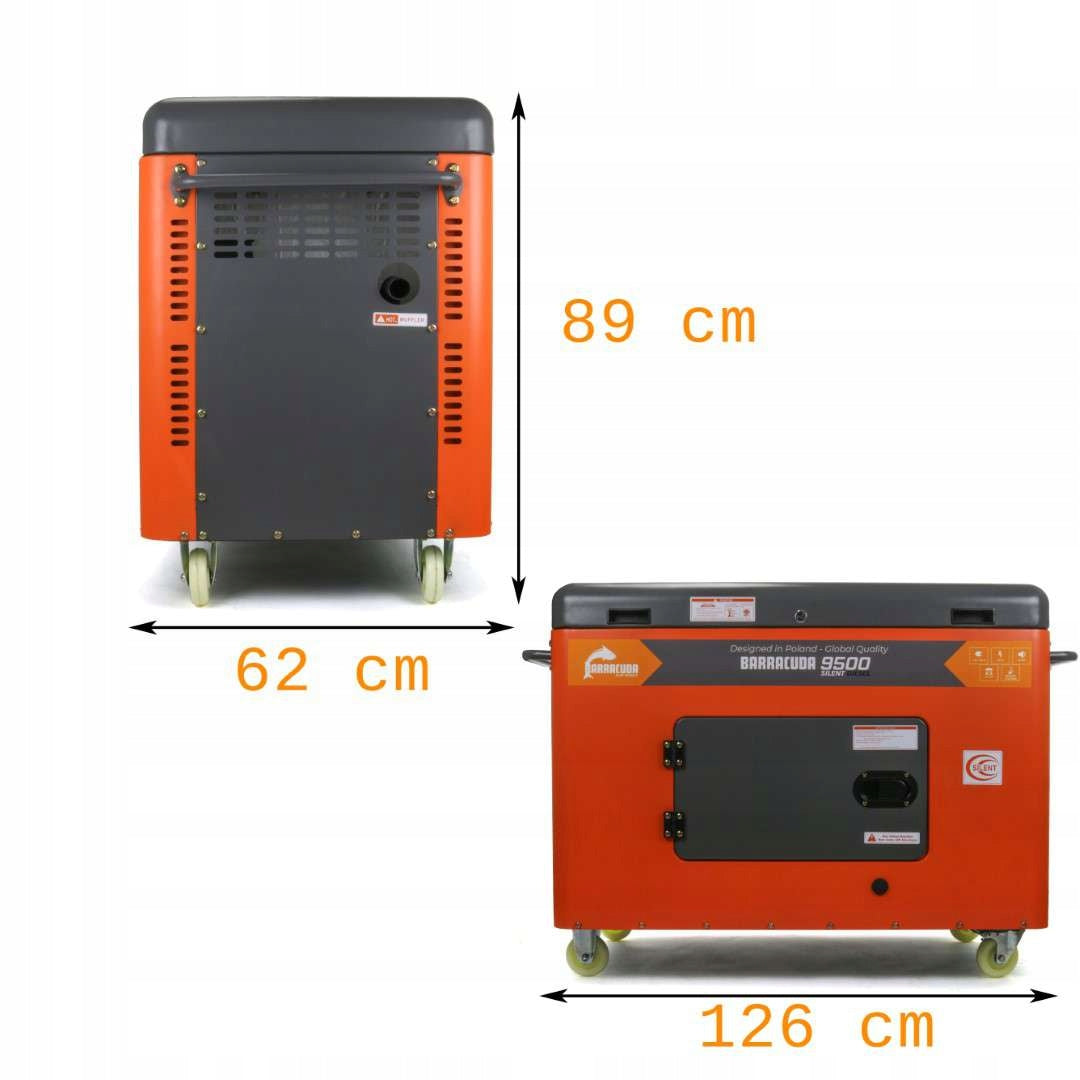

Dimensions:

• Height: **89cm**
• Width: **126cm**
• Length: **62cm**

______________________________________

• engine type: **diesel**
• number of cylinders: **1**
• direct injection: **yes**
• cooling type: **air**
• displacement: **668 cm3**
• rotations per minute: **3000 rpm**
• automatic speed regulation: **yes**
• oil level sensor: **yes**
• oil pressure sensor: **yes**
• combustion chamber preheater: **yes**
• recommended oil: 10W40 semi-synthetic

______________________________________

• robust construction - **reinforced and soundproofed housing**
• **low fuel consumption** - average consumption approx. 1 L/h
• **fuel tank capacity** - 16 liters
• **generator power** - 12 kVA (9.5 kW) 400V industrial socket; 10.5 kVA (7.5 kW) 230V socket
• **reinforced 230V phase** - 80% power on the single-phase socket (standard generators have only 30% power on the single-phase output)
• **START-STOP system** - easy and simple generator startup
• **AVR voltage regulator**
• equipped with outputs: **230V 32A; 400V 16A, and a 12V output**
• **remote control** - possibility to start the generator remotely via an inverter from a power bank to recharge batteries
• **built-in digital meter** (voltage, frequency, operating hours)
• **four transport wheels** - including two swivel wheels with brakes
• start type: **automatic**
• **soundproofed housing**
• **low fuel consumption** - average 1 L/h
• **overload protection**
• **oil pressure and level sensor**
• **combustion chamber preheater**
• **copper alternator winding**
• Dimensions with handle and wheels installed - **89/126/62 (H/W/D)**
• **weight: 180 kg**

______________________________________

• DOUBLE POWER technology: **yes (100% power on 400V outlet, 80% power on 230V outlet)** - standard three-phase generators available on the market typically provide only 30% of their power on the 230V output.
• AVR voltage regulator: **yes**
• keyless START-STOP system: **yes**
• remote control: **yes**
• start type: **electric**
• oil sensor: **yes**
• fuel level indicator: **yes**
• combustion chamber preheater: **yes**
• digital display: **yes**
• operating hours meter: **yes**
• voltmeter: **yes**
• frequency indicator: **yes**
• circuit protection: **C25 (for 400V) and C32 (for 230V)**
• battery: **yes, 36Ah**

______________________________________

The BARRACUDA DIESEL 9500 SILENT generator is equipped with a glow plug , which significantly improves the smooth operation of the diesel engine during starting. This is a key element, especially in low temperatures where standard diesel engines can have difficulty starting.

The glow plug heats the combustion chamber, allowing the engine to reach the optimal temperature for self-ignition of the fuel-air mixture. Effect?

• faster and more reliable start-up ,
• less load on the battery ,
• lower fuel consumption during take-off ,
• stable operation from the first seconds ,
• longer life of the drive unit .

This solution is used in professional construction and agricultural machines, which confirms its reliability. Thanks to the glow plug, BARRACUDA generator remains fully operational even in winter, which is particularly important in emergency applications where immediate start-up is essential.

______________________________________

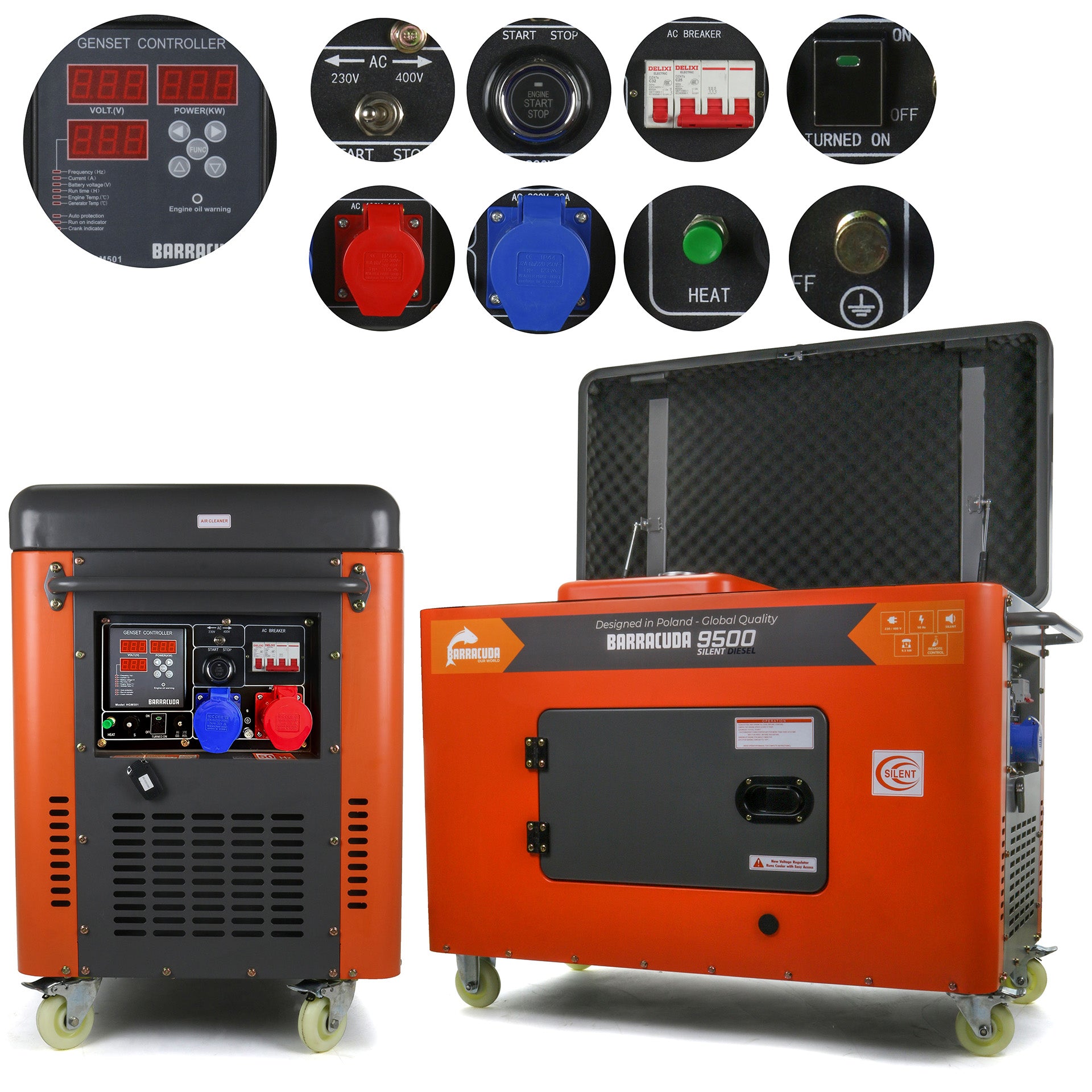

The generator is equipped with an **intelligent digital controller** for generator management. The module allows for **precise measurement of various parameters** that can be configured via the controller. **The device is intuitive and easy to use**.

Specifications:

• display: **LED Nixie Tube**
• operating panel: **PET**
• digital input: **1**
• relay output: **2**
• analog input: **2**
• air conditioning system: **1P2W**
• alternator voltage: **(30-360) V (ph-N)**
• alternator frequency: **50/60 Hz**
• interface programming: **LINK**
• power supply: **DC (9-18) V**
• operating temperature: **-25/+70 °C**

______________________________________

**Possibility to start the generator remotely, e.g., via an inverter from a power bank to recharge batteries.**

______________________________________

**The generator is equipped with a connector for connecting an SZR - ATS system.** This system allows the generator to start automatically in case of a power outage. When power is restored, the generator will shut down automatically.

Is the generator equipped with a glow plug?

Yes. The unit has a glow plug that heats the combustion chamber before takeoff. Thanks to this, the diesel engine starts confidently even in winter.

Can the unit handle a welding machine or concrete mixer?

Yes. Thanks to DOUBLE POWER technology and full power per 400V, the unit easily powers power devices and high-power tools.

Can I connect electronic devices (computer, TV, refrigerator)?

Yes. The built-in AVR regulator stabilizes the voltage, making the unit safe for electronics.

Does the generator have an automatic start when the power goes out?

Yes, it has an ATS/SZR socket. After connecting the ATS module, the unit starts automatically.

What is the combustion of the unit?

The average burn is approx. 1l/h – this is one of the most economical models in this class.

Does the unit have a reinforced 230V phase?

Yes. This is a key advantage over the competition – as much as 80% of the power available on the 230V socket.

Can the unit be used indoors?

No. The unit must work outdoors or in a well-ventilated place with the possibility of exhaust fumes.

Are spare parts easily accessible?

Yes. The 1100FE engine is common and serviced in most construction machinery workshops.

Does the unit have damage protection?

Yes. It has an oil level sensor, oil pressure sensor, overload protection and AVR.
