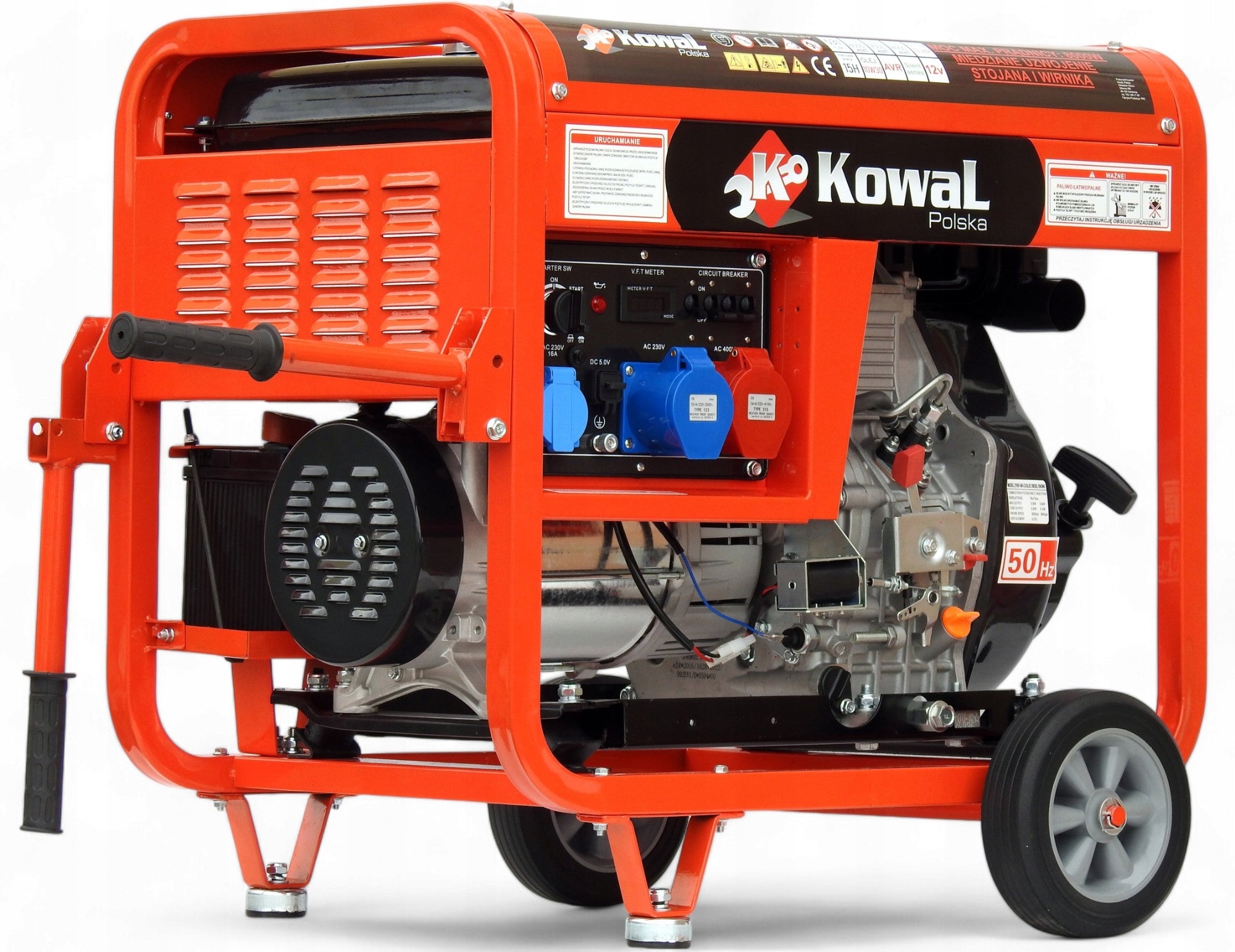

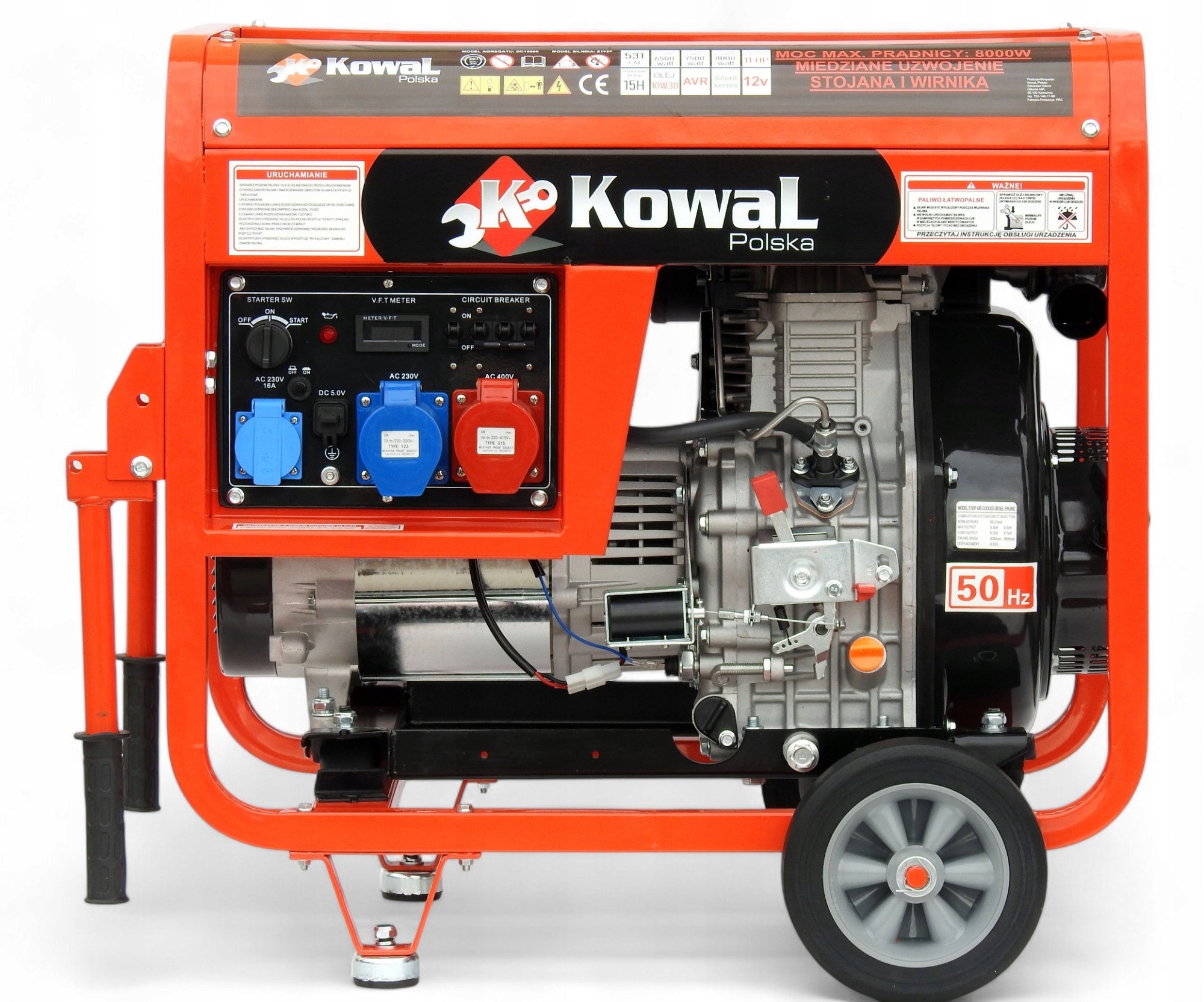

Dyzelinis generatorius BLACKSMITH, 8 kW, el. užvedimas, varis, dviguba galia, AVR

Trumpai apie prekę

Prekė: Dyzelinis generatorius BLACKSMITH, 8 kW, el. užvedimas, varis, dviguba galia, AVR. Kategorija: Elektros generatoriai.

• Gamintojas: Kowal Polska
• Modelis: A20 PRO
• Įtampa: 400 V

✅NEW DESIGN

✅NEW model with extended generator power max up to 8kW!

✅COPPER stator winding

✅COPPER rotor winding with metal fan

✅Engine operating power of 11HP!

✅New generation FUEL PUMP with increased pressure with brass seal

✅REINFORCED FRAME

✅ MAINTENANCE-FREE BATTERY with a capacity of 26aH!

✅EQUIPPED WITH SHORT-CIRCUIT FUSE

✅Obtained increased true power max. generator up to 8kW

✅PHASE DUAL POWER (6,5kW at 230V)

✅EQUIPPED WITH AVR voltage stabilizer

✅OUTPUT USB + USB PORT C

✅MUTED silencer chamber

✅NEW MODEL A20 equipped with an intelligent throttle system that automatically responds to load changes.

The stator and rotor account for nearly half of the value of the unit. Many companies only have a "copper" winding on the stator with a width of 100-130mm. A stator with a length of up to 160mm was used. Stand and rotor wound with fully copper wire. Copper generator and rotor cooperates with a professional engine with the symbol: Z195F DIESEL, which, on behalf of the KowaL Polska brand, is made of the highest quality spare parts as well as the main elements of składowych.tj: shaft, piston, connecting rod, fuel pump, fuel injection. Details later in the auction.

The latest model uses extended generators. The power of the unit increases directly in proportion to the length of the stator core that is in it - thanks to which the A20PRO model has reached the maximum power of 8KW! When connecting the same devices to the unit compared to other weaker models, this one is much less loaded and thus the life of the device is significantly extended and fuel combustion is reduced, which makes the generator more economical.

Thanks to the use of specially designed wiring used in blacksmith generators, the maximum output power at 230V is up to 6500W! This is an ideal compromise for users who need a three-phase unit and at the same time need very good parameters for 230V devices.

• Engine power: 11HP
• maximum power at 50Hz: 8000W
• Constant power at 50Hz: 7500 watt
• maximum power at 230V: 6500 watt
• Constant power at 230V: 6000 watt
• fuel: diesel
• fuel tank capacity about 15 L
• startup: electric and manual
• nominal voltage: 230/ 400V
• nominal frequency at 3000rpm: 50Hz
• built-in AVR
• weight with packaging approx. 125 kg
• built-in output: USB + USB C
• engine displacement approx. 531cc
• used oil 15w-40/10w-30
• oil pan capacity approx. 1,65 L
• oil condition equal to the lower edge of the infusion
• 1 replacement after 5 hours, then every 50.
• automatic regulation of rotation and voltage
• electronic voltmeter
• built-in hour counter
• Quiet engine operation
• Relaxer for easy start-up
• embedded on cushioning cushions
• high engine power
• high quality of workmanship
• engine speed approx. 3.000 r/min
• low combustion: approx. 1 L/h
• Please refer to the instruction manual before using!

✅new original look

✅built-in on-board computer

✅new generation silencer, quieter engine operation. Tolerates much better long intensive work

✅thicker frame

✅Reinforced fuel pump with increased pressure with brass gasket

✅Bold castings of the internal combustion engine body and stator base

✅third generation voltage regulator

✅new type of generator, more wound wire (DUAL POWER PHASE)

The blacksmith A20 PRO DIESEL aggregate uses a reinforced fuel pump with increased pressure. The fuel pump is one of the most important components of the engine. Increased pump pressure guarantees faster injection of fuel into the combustion chamber. The result is better engine dynamics and lower combustion. Additionally, a brass pump seal was used to increase strength.

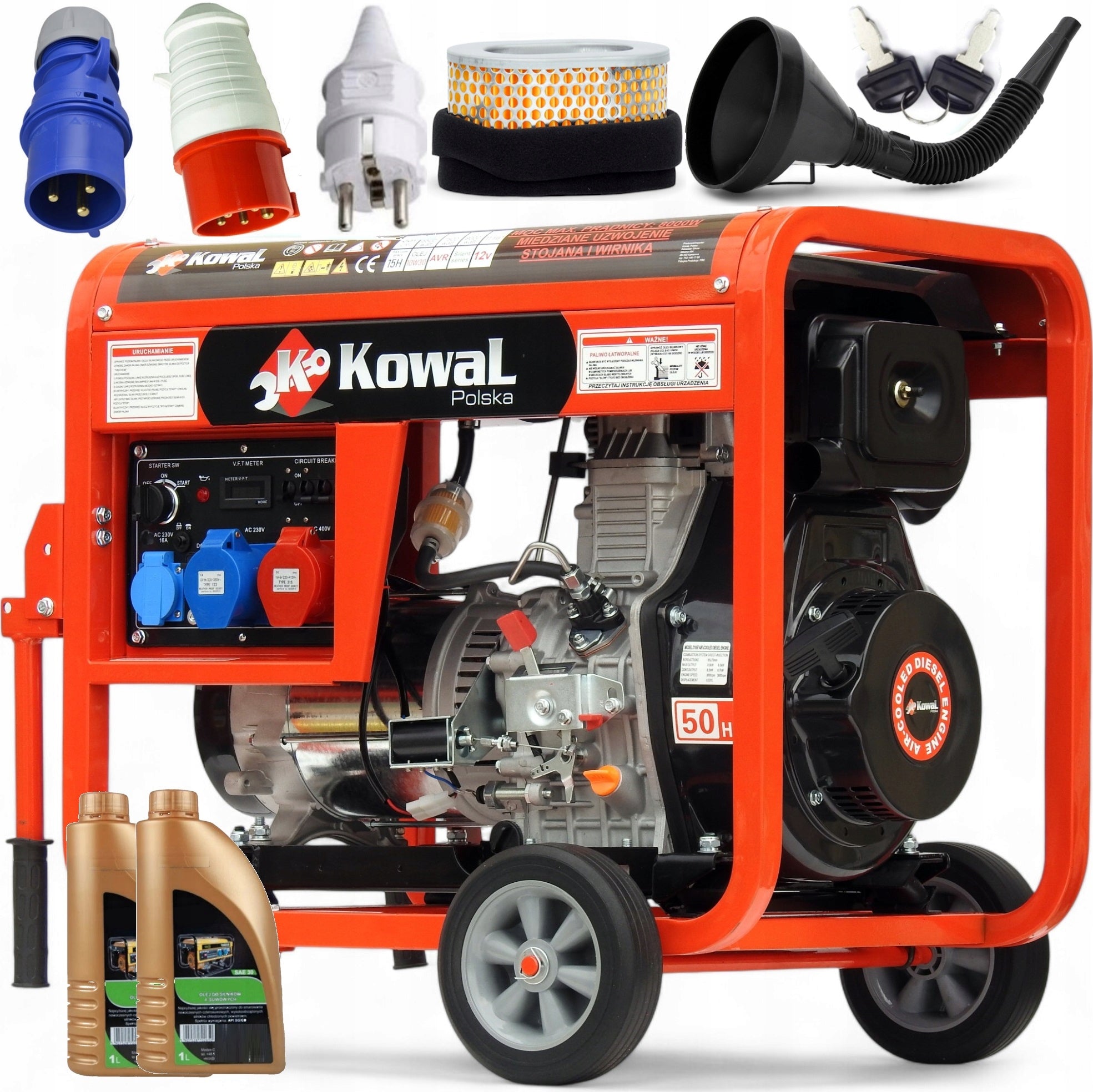

In the freebie you also get:

✅230v 16A plug

✅230v 32A plug

✅400v plug

✅Flat mounting keys

✅set of keys

✅practical fuel funnel

The high-quality battery guarantees trouble-free firing of the device even in the most difficult conditions!

It is fully maintenance-free - it is charged during the operation of the unit automatically without user intervention!

Robust wheels guarantee lightness in handling and practically no operation of the suspension system. Wheels in full (not pumped) are not prone to punctures or deformities.

The A20PRO model is equipped with an on-board computer with a screen on which information such as: voltage, frequency or lmotor hour switch are displayed! Operation is very easy to operate with just one button. From now on, you have complete control over the device!

The unit is equipped with an air filter with a double cartridge. This minimizes the risk of contaminants entering the engine, which significantly extends the life of the device.

IMPORTANT - solid silencer mount, guarantees its reliability. The direction of the exhaust outlet is exactly opposite to the working panel with sockets. All noise goes in the opposite direction from the potential workplace, which significantly reduces the real noise of the device.

1. On behalf of blacksmith, an additional external fuel filter is installed in the aggregate. It significantly reduces the risk of contamination of the fuel system.

2. Practical high-quality fuel funnel

Only with us! Included in the price second spare air filter!

✅2x 230v socket

✅400v socket

✅fuel filter (under fuel cap)

✅keys (2 pieces)

✅key for candles

✅flat keys for mounting

✅fuel funnel

✅air filter (extra)

✅wheels (2 pieces)

✅transport handles

✅double-sided screw driver (cross, flat)

✅ oil bottle for refill 1,2 L FREE (in two or one bottle)

✅2 anti-vibration feet

✅nuts and mounting screws

✅instruction PL

✅warranty card

✅Manufacturer's declaration of conformity

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Kowal Polska
Parametry	Model	A20 PRO
Parametry	Kind	portable
Parametry	Generator type	three-phase
Parametry	Engine	4-stroke
Parametry	Maximum power	8000 W
Parametry	Nominal power of the alternator	7500 W
Parametry	Engine power	11 KM
Parametry	Gasoline tank capacity	15 l
Parametry	Device weight	115 kg
Parametry	Fuel type	diesel fuel
Parametry	Frequency	50 Hz
Parametry	Operating time on the tank	15 h
Parametry	Product height	65 cm
Parametry	Product width	74 cm
Parametry	Product depth	50 cm
Parametry	Average combustion	1 l/h
Parametry	Additional information	voltage regulation (AVR)
Parametry	Number of 1-phase outlets	2
Parametry	Number of 3-phase outlets	1
Parametry	European emissions standard	EURO 5
Parametry	Supply voltage	400 V
Parametry	Manufacturer code	KowaL A20 PRO
Parametry	Product weight with unit packaging	125 kg
Parametry	Packaging status	original
Parametry	Startup	electric,manual
