Aprašymas
Trumpai apie prekę
Prekė: Dyzelinis generatorius CEDRUS DG7, 7.1 kW, 20 AG, 230/400V, AVR. Kategorija: Elektros generatoriai.
- Gamintojas: no brand
- Modelis: DG7E-3F
- Įtampa: 400 V
CEDRUS Poland
5903228182495

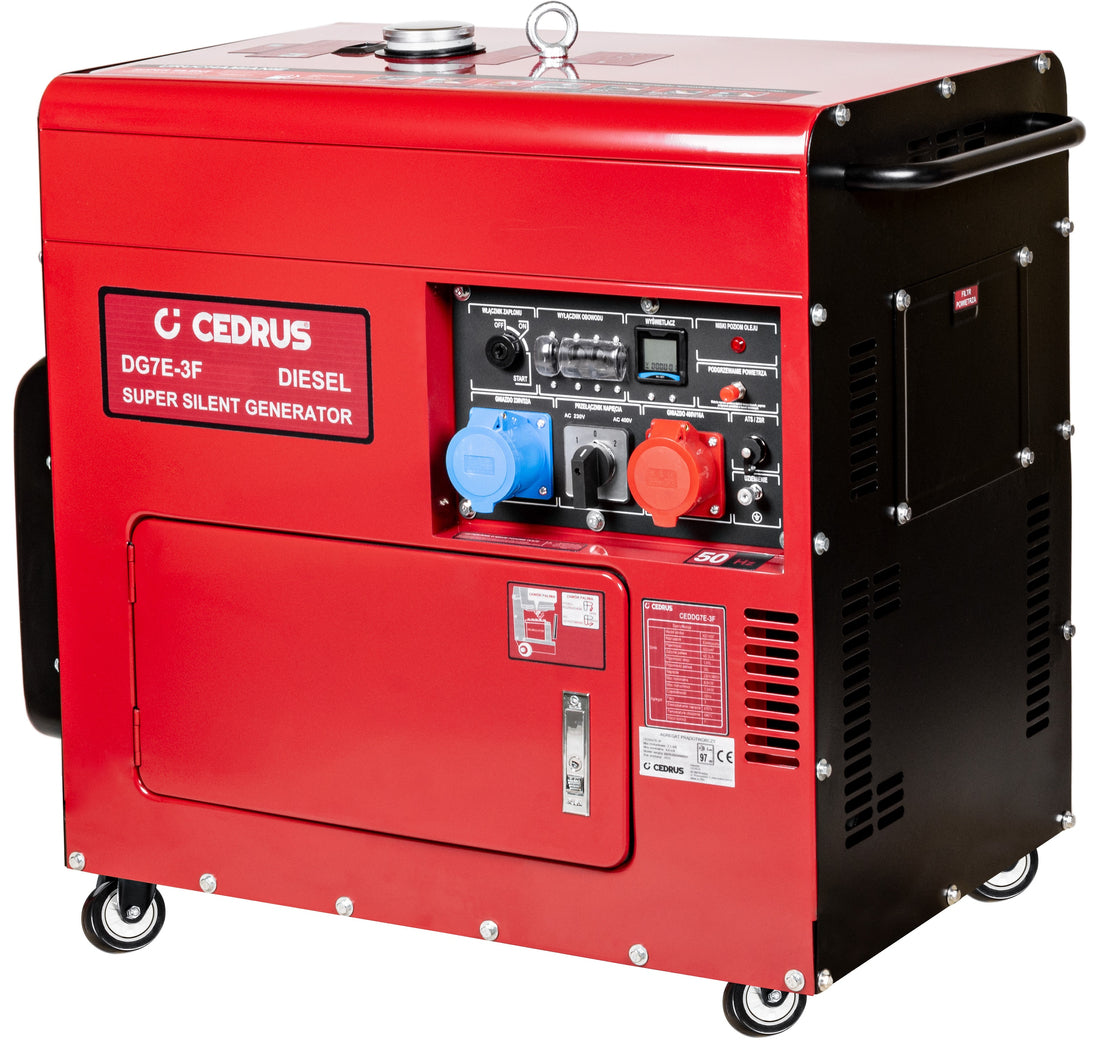

CEDRUS DG7E-3F GENERATOR SET with diesel engine is characterized by low noise. The model withstands significant loads that do not cause a decrease in power.
CEDRUS DG7E-3F GENERATOR 7.1kW / 12 HP 230/400V AVR
CEDRUS 7.1 kW KD195FC
DIESEL
MUTE VERSION SUPER SILENT
CEDRUS DG7E-3F is a built-in 3-phase current generator that can be equipped with ATS / SZR automation.
Thanks to the new design of the U-type air duct through which all the inlet and outlet air passes, the sound insulation effect is achieved.
Generator set Cedrus 7.1 kW KD195FC Diesel
Power generator with diesel engines are very often selected for the emergency power supply system. When AST (SZR) automation detects a voltage drop from the network, the unit will automatically start, and when the voltage in the network appears again, the unit will turn itself off.
Versatile use allows you to use the unit in various situations for hours. Specially designed three-phase generator with copper winding guarantees reliable operation.
The innovative Dual Power technology guarantees identical power output in both phases (230 V/380 V), which enables power supply to both single-phase and three-phase devices. The switch located on the control panel allows you to easily change the operating mode.
The fuel system venting system and engine heating function allow for easy starting even after a longer period of inactivity or at minus temperatures.
The CEDRUS DG7E-3F generator set in Super Silent with diesel engine can withstand significant loads that do not cause a decrease in power. It is ideal for emergency power supply of residential buildings, shops, companies where we particularly care about the comfort of use.
The device is equipped with a digital control panel that allows you to control the functions of automatic on and off, remote start and off, as well as measurement parameters. This model is compatible with the Automatic Reserve Switching (ATS) module.
Efficient Diesel Euro V engine - single-cylinder, air-cooled engine with a capacity of 532 cm3 generates a constant power of 6.6 kW (nominal power), and 7,1 kW (starting power). The unit is equipped with an electric starter. The total weight of the unit is 175 kg.
The AVR system provides voltage stabilization to protect powered receivers from voltage fluctuations.
The oil sensor will turn off the unit at low oil level, protecting the engine from seizure.
In addition, our units are equipped with circuit fuses.
Features of the DG7E-3F generator set:
- New canopy design with thicker base frame to increase the structural strength of the generator, while achieving the effect of sound insulation and vibration reduction.
- Generator made of 100% copper, class F insulation, high conversion efficiency, intelligent AVR controller ensures stable voltage and less distortion of voltage waveform.
- Electric starter
- Soundproofing Super Silent
- Digital control panel with motor-hour counter
- Stable operation and fuel savings of up to 15%
- The unit is powered by a diesel internal combustion engine, single-cylinder, air-cooled, 532 cm³, 3000 rpm with Euro V standard, which is satisfied with only about 2 liters of fuel per hour of operation.
- The maximum capacity of the tank is 30 liters
- Possibility to connect SZR automation
- AVR - automatic voltage stabilization
- Copper winding of generator
- Intelligent overload protection
- Electric start-up
- Oil level sensor with engine stop system
- Innovative DUAL POWER technology
- 2 operating modes: 230 V/ 380 V
- Soundproofing Super Silent
- Automatic fuel system vent
- Pre-start engine heating
- Metal fuel tank
- Bearing wheels
- Possibility of optional connection of the automatic switching system in case of power failure SZR / ATS
- The engine meets the latest EURO 5 emission standard, ensuring maximum comfort.
THE POSSIBILITY OF CONNECTING THE SZR MODULE (ATS) The unit is compatible with the automatic reserve switching module. SZR starts the unit in the event of a power failure or voltage drop in the primary network.

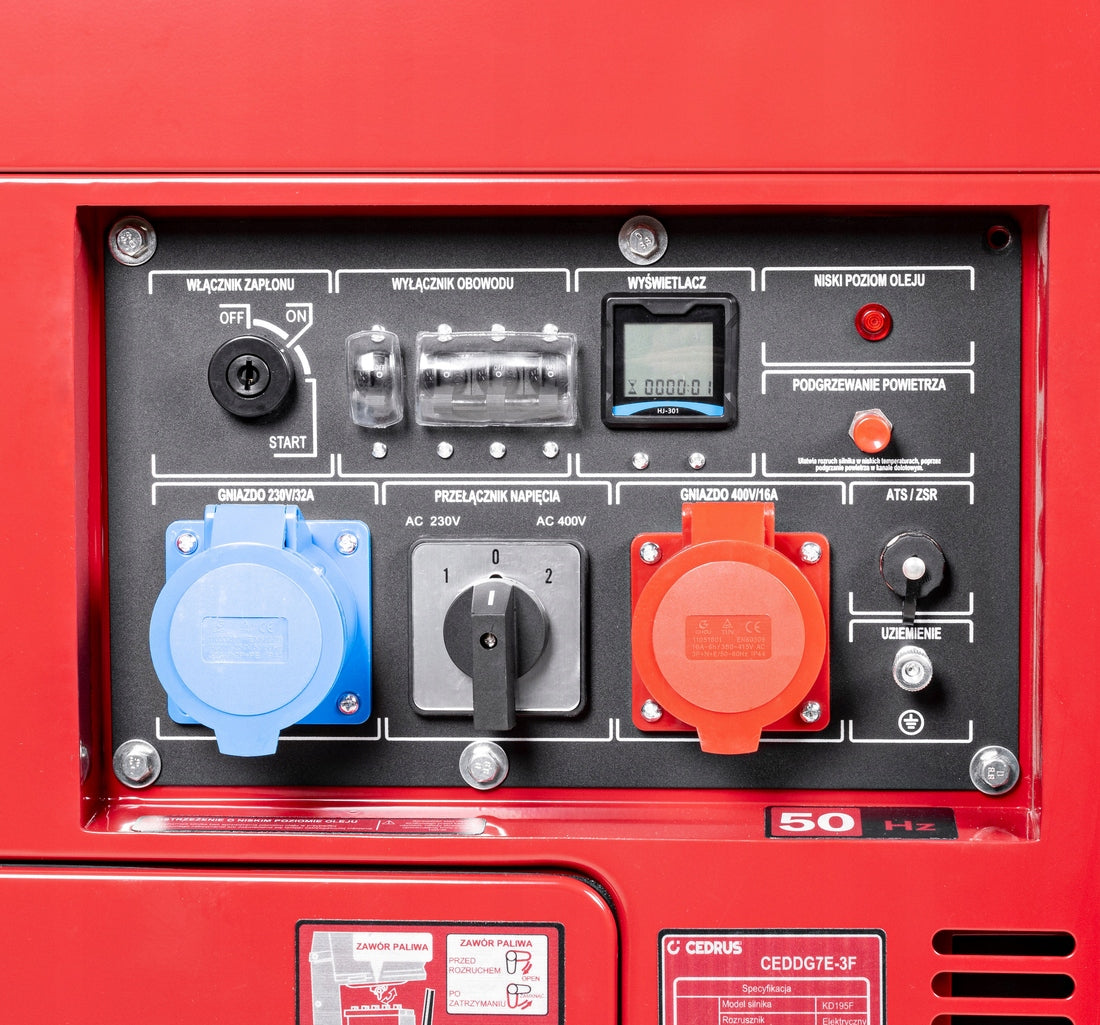

DIGITAL CONTROL PANEL
It is equipped with a microprocessor that allows you to control m.in. functions of automatic switching on and off, remote start-up, as well as shutdown in case of exceeding critical parameters. The digital display shows the current parameters, voltage and operating time (motor hours counter).
ENLARGED FUEL TANK
It allows you to extend the time of uninterrupted operation on one refueling.
SUPER SILENT SOUND-ABSORBING HOUSING
It reduces noise levels, which makes long-term use much more comfortable.
ELECTRIC START-UP
With a built-in electric starter and battery, the unit can be started by turning the key, without having to pull the cord.
DUAL POWER 230 V/380 V
The innovative Dual Power technology guarantees identical power output in both phases (230 V/380 V). The switch located on the control panel allows you to easily change the operating mode.
Technical data:
- Euro V diesel engine
- CEDDG7E-3F
- single cylinder
- air-cooled
- 667 cm3
- 3000 rpm /min
- electric start
- 3 phase generator 230V/400V 50Hz
- AVR
- copper winding
- max power 7,1 kW
- rated power 6,6kW
- DC socket 12V/8,3A
- fuel tank 30l
- dimensions 910*530*840 mm
- net weight 175 kg
- silent
- Optional ATS (SZR)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Model | DG7E-3F |
| Parametry | Kind | portable |
| Parametry | Generator type | three-phase |
| Parametry | Engine | 4-stroke |
| Parametry | Startup | electric |
| Parametry | Maximum power | 7100 W |
| Parametry | Nominal power of the alternator | 6600 W |
| Parametry | Engine power | 12 KM |
| Parametry | Gasoline tank capacity | 30 l |
| Parametry | Device weight | 175 kg |
| Parametry | Fuel type | diesel fuel |
| Parametry | Frequency | 50 Hz |
| Parametry | Lc IEC noise level | 97 dB |
| Parametry | Product height | 84 cm |
| Parametry | Product width | 53 cm |
| Parametry | Product depth | 91 cm |
| Parametry | Number of 1-phase outlets | 1 |
| Parametry | Number of 3-phase outlets | 1 |
| Parametry | European emissions standard | EURO 5 |
| Parametry | Supply voltage | 400 V |
| Parametry | Manufacturer code | CEDRUS DG7E-3F |
| Parametry | Product weight with unit packaging | 175 kg |
| Parametry | Packaging status | original |
| Parametry | Additional information | voltage regulation (AVR),12 V outlet |
