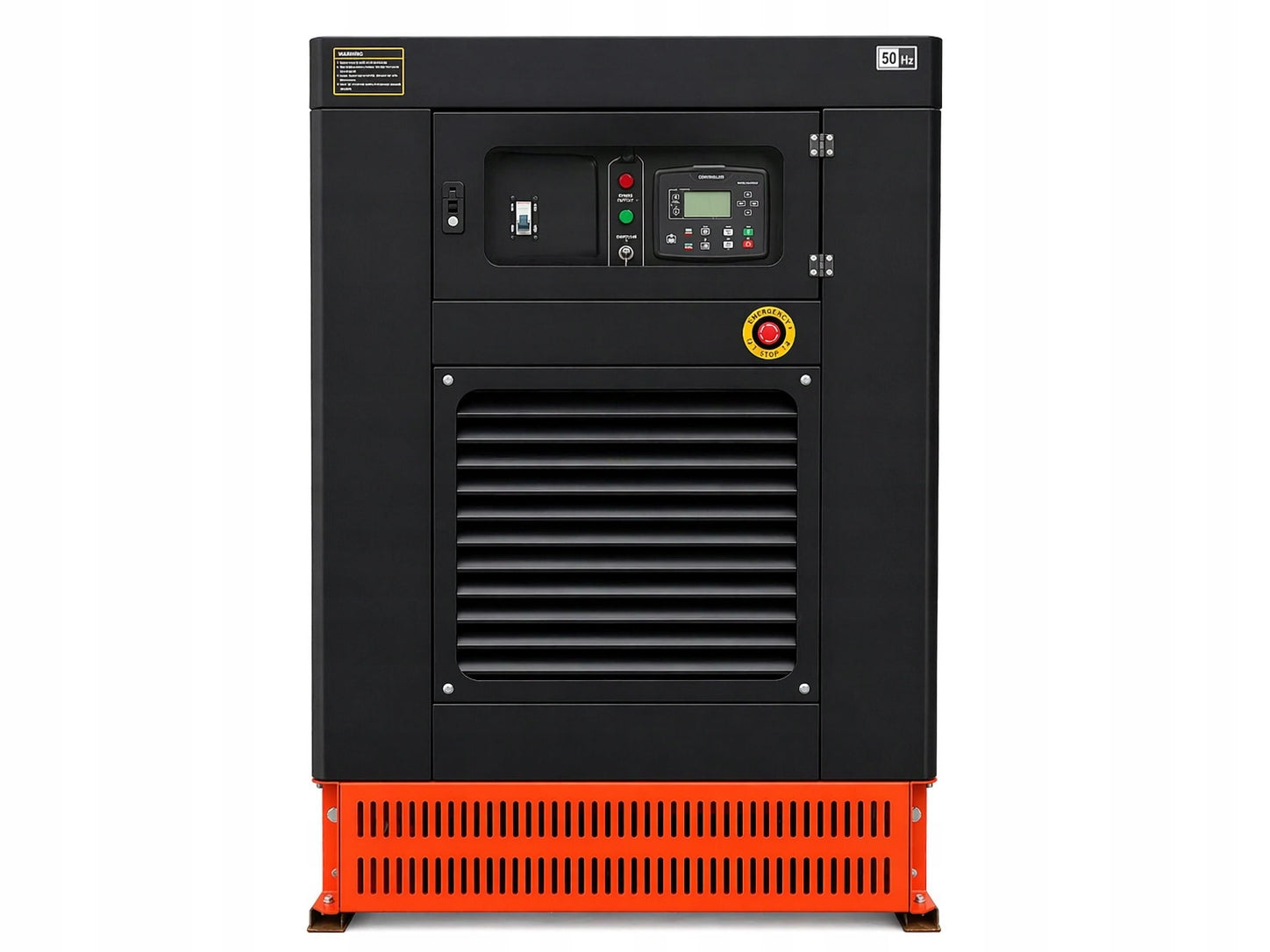

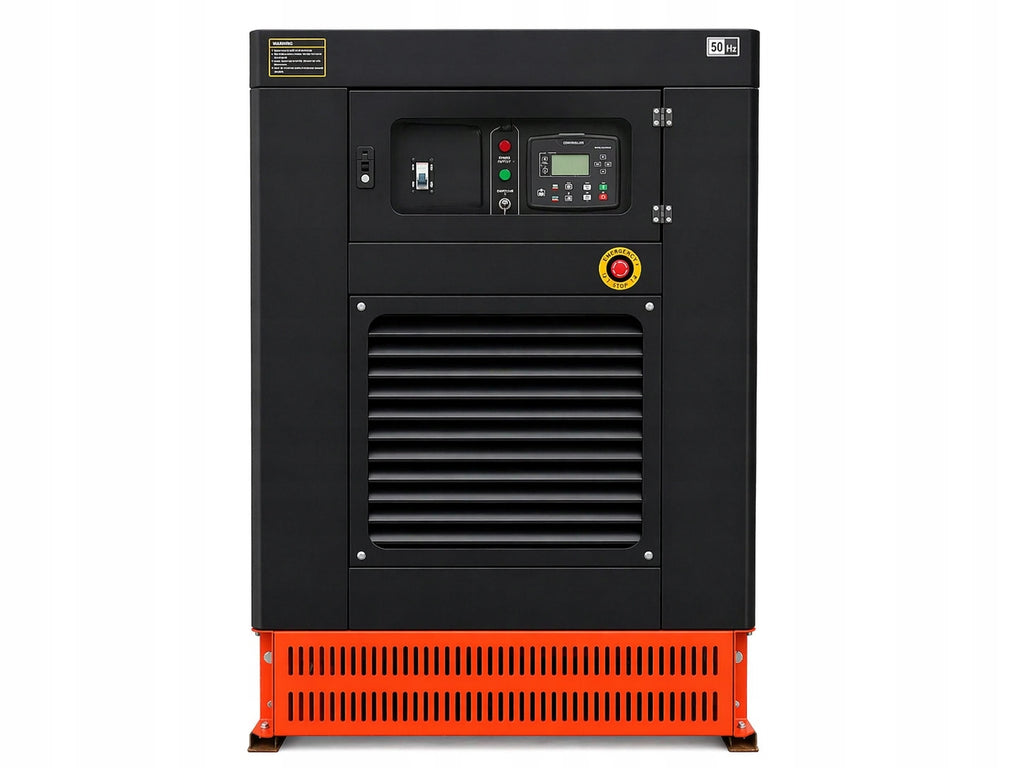

Dyzelinis generatorius Genezo GF2-100 KW, 100 kW, 3 fazių, su ATS SZR

Trumpai apie prekę

Prekė: Dyzelinis generatorius Genezo GF2-100 KW, 100 kW, 3 fazių, su ATS SZR. Kategorija: Elektros generatoriai.

• Gamintojas: Genezo
• Modelis: GF2-100 KW ATS
• Įtampa: 400 V

Three-phase diesel generator set 100kW with ATS: GF2-100 KW ATS

Industrial generator set GF2-100 KW ATS with a maximum power generated current of 130 kVA. It is powered by a four-cylinder turbocharged diesel engine, cooled by liquid.

The unit is ideal as an emergency and main power source in various types of workshops, offices, server rooms, wedding halls.

Specification

• Weight of aggregate:1700 kg
• Aggregate dimensions:2800x1100x1650 mm
• Fuel: Diesel
• Fuel tank:265L
• Rotation of the rotor:1500 rpm /min
• Maximum power:130kVA at 1500 rpm /min
• Output voltage:400V
• Power per 1 phase:43kVA
• Frequency:50 Hz
• Generator: self-excited COPPER
• Generator weight:311 kg
• Voltage stabilization under variable load (AVR)
• Fuel Level Indicator
• Elimination of vibrations with flexible aggregate frame washers

Generator Output Distribution Box

Professional output distribution box designed for safely distributing electrical power from a generator. This unit allows for convenient connection of single-phase and three-phase loads, ensuring protection for the installation and stable operation of powered devices.

The distribution box is equipped with overcurrent protection, power outlets, and a robust housing resistant to heavy use. It is suitable for industrial, construction, service applications, and emergency power supply.

Key Product Features

1. Safe Power Distribution

   The distribution box allows for organized and safe connection of power loads to the generator.

2. Single-Phase and Three-Phase Outlets

   The unit enables connection of various types of loads, both 230V and 400V.

3. Overcurrent Protection

   Built-in protection safeguards the installation and connected devices against overload and short circuits.

4. Robust Housing

   Durable housing protects internal components and ensures a long product lifespan.

5. Easy Operation

   A clear layout of outlets and protection devices facilitates quick and convenient device connection.

Engine

The engine is equipped with glow plugs and a heater for heating both engine oil and coolant at low temperatures. The motor is mounted on flexible sleepers that reduce system vibration during operation. The engine has a preheating system for the engine, an oil and coolant heater is installed. This solution is particularly helpful when the unit is to work in areas where temperatures are low.

Engine parameters:

• Engine power:140HP / 1500rpm
• Engine weight:490 kg
• Fuel Type: Diesel (Diesel)
• Engine displacement:7650 cc
• Liquid motor cooling: YES
• Powerful starter:6kW
• Lubrication system capacity:14,0L
• Fuel consumption: approx. 225g/kWh
• Engine Start: Electric
• Engine electrical installation:24V
• Batteries:2x100Ah 12V
• Direct injection into combustion chamber

Current operating parameters of the generator:

• single-phase voltage [V]
• interfacial voltage [V]
• frequency [Hz]
• current load of individual phases [V]
• active power consumption [Kw]
• reactive power consumption [kVar]
• apparent power consumption [Kva]
• COS power factor [Ø]

The unit is controlled by a multifunctional LCD display, which shows:

Current engine operating parameters:

• temperature [*C / *F]
• oil pressure [kPa/ Psi/Bar]
• fuel level in the tank [%]
• Rotational speed [rpm]
• battery voltage [V]
• battery charging voltage [V]
• motor hour counter [MTH]
• number of riots

AVR module

The AVR module is an electronic voltage regulator designed to stabilize the output voltage of the generator in the generator aggregate. Its task is to maintain the correct operating parameters of the generator and protect the connected receivers from voltage fluctuations.

The device supports stable and safe operation of the unit, especially when the load changes or when various electrical devices are connected to the unit.

The most important features of the product

1. Stabilization of the output voltage

   The AVR module helps maintain a stable voltage of the generator, which affects the proper operation of connected devices.

2. Protection of generators and receivers

   Regulator reduces the risk of malfunctioning devices resulting from voltage fluctuations.

3. Overload protection

   The module supports the safe operation of the electrical system of the unit under variable load.

4. Improving the quality of electricity

   AVR affects the stability of generator output parameters, which is important when powering equipment requiring equal voltage.

ATS automation

The SZR(ATS) device automates the start-up and extinguishing operations of the unit in the event of a voltage failure. The system does not require user intervention.

The generator is adapted to work in two modes:

MODE I - manual (turn the generator on and off manually)

MODE II - auto (turning the generator on and off via built-in ATS automation)

Current electrical parameters - external network parameters (only when the unit works with ATS):

• single-phase voltage [V]
• interfacial voltage [V]
• frequency [Hz]

The most important elements of the generator (stand and rotor) used in GENEZO generators are made of pure copper of the highest quality with high electrical conductivity. The use of high-quality copper allows for longer service life and higher efficiency - they need less energy from the internal combustion engine to generate the same amount of energy as those with aluminum windings.

There are many parameters that determine the selection of the right generator set (power demand, operating time, types of connected devices and many others).

We use high quality consumables and factory spare parts.

The first start-up is made and a detailed diagnosis of the engine and the operating parameters of the unit is carried out.

There are many parameters that determine the selection of the right unit (power demand, operating time, types of connected devices and many others). We use high quality consumables and factory spare parts.

Remote monitoring, GPS, GSM, MODBUS, Ethernet, RS485

The unit can be equipped with a system of remote monitoring and management of the device via the Internet. To use the full functionality, a dedicated mobile application and an active SIM card with data transmission are required.

The GSM module allows the device to communicate with the application and remote surveillance system. Thanks to this, the user can control the operation of the unit without the need for constant presence at the device.

The GPS module enables ongoing tracking of the location of the unit, which is particularly useful when working in the field, on construction sites, when renting equipment and during the transport of the device.

The mobile application allows you to view operating parameters and remote supervision in real time.

The device also supports MODBUS communication, which is an industrial standard for data exchange between the aggregate and external systems such as BMS, monitoring systems or industrial automation.

MODBUS enables the transmission of selected operating parameters, alarms and device states to the master system, which allows the integration of the unit with technical installations used in industrial, service, warehouse and energy facilities.

The availability of individual functions depends on the configuration of the controller, communication module and the supervision system used.
