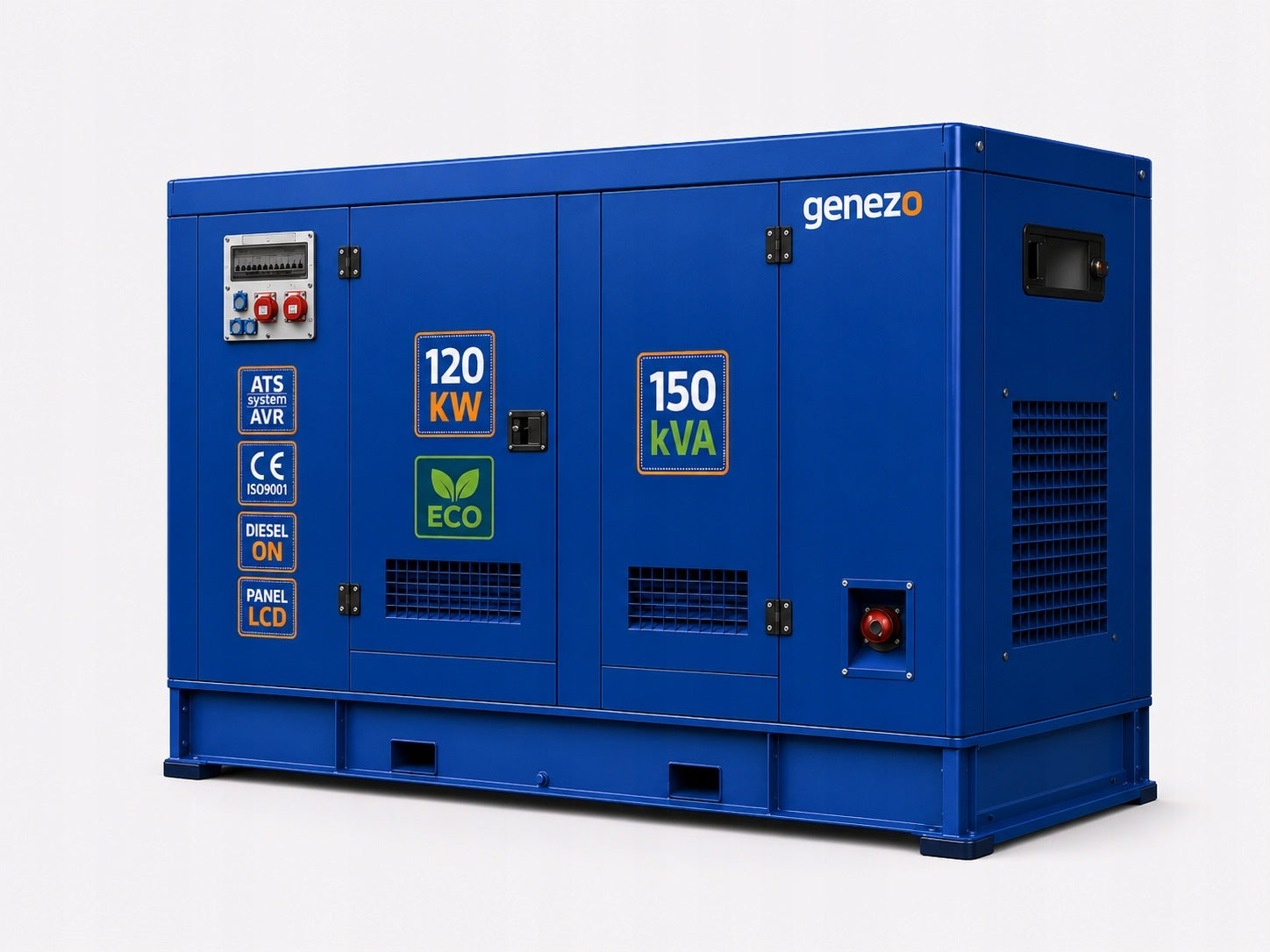

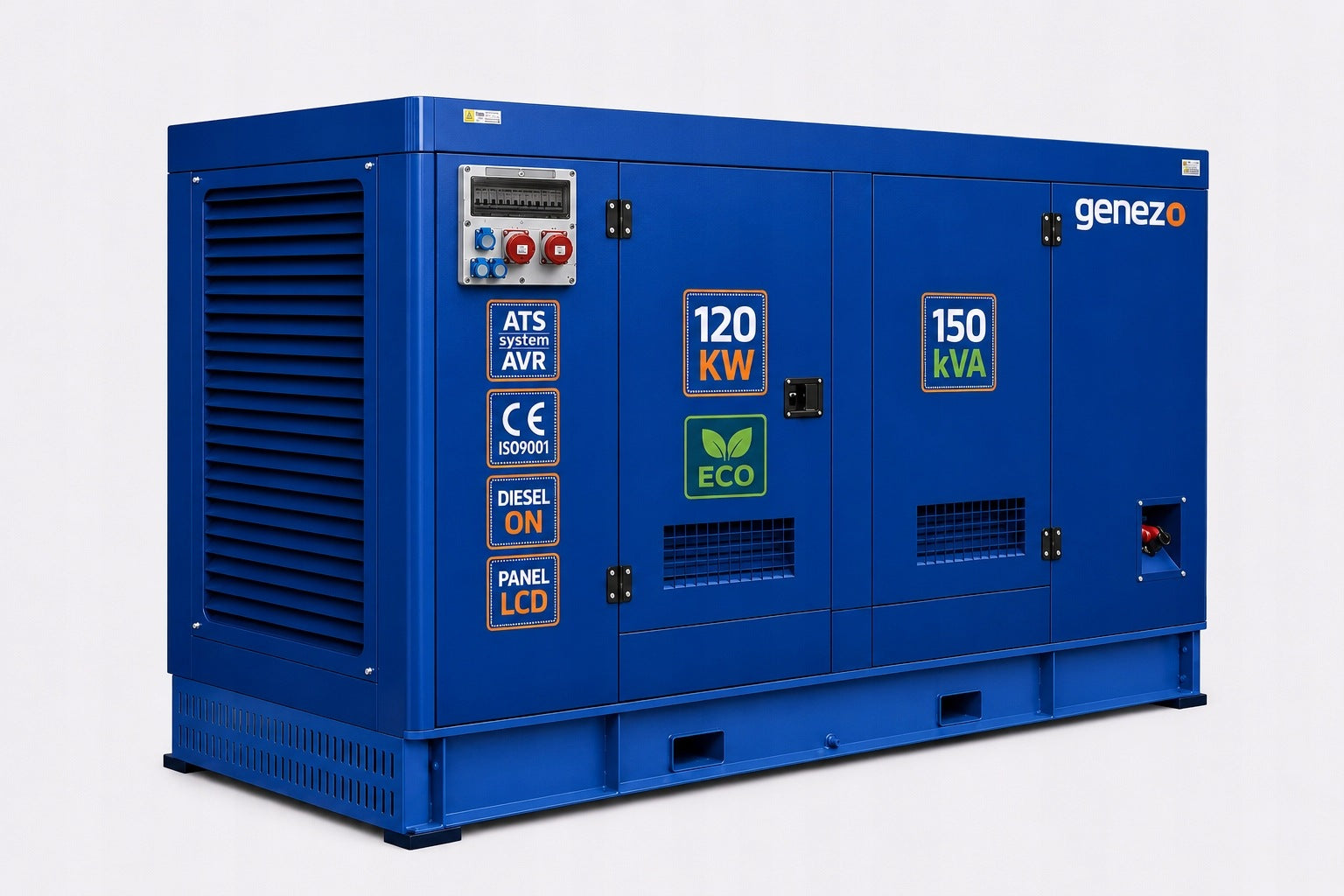

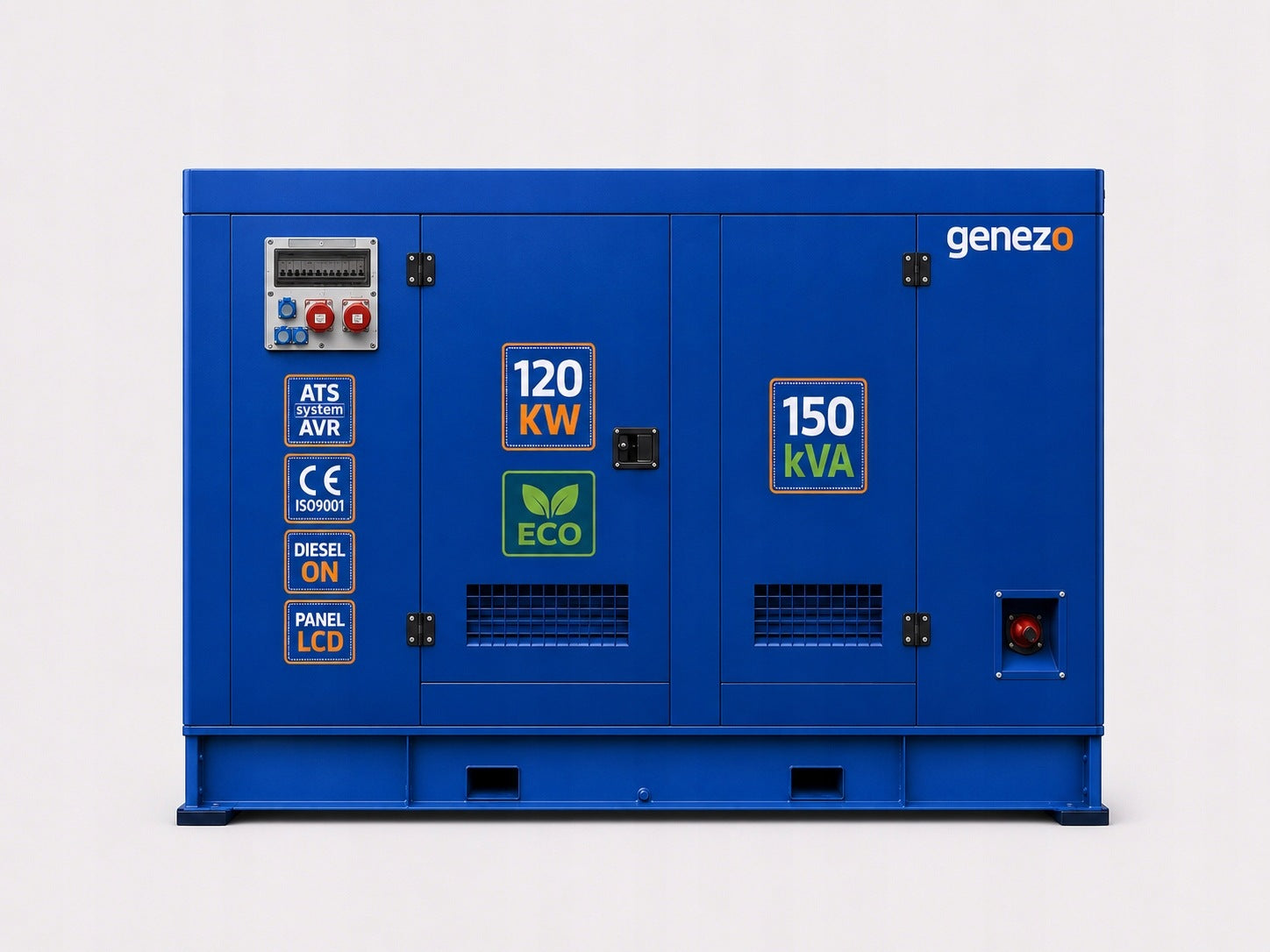

Dyzelinis generatorius Genezo GF2-120KW, 120 kW, 3 fazių, su ATS

Trumpai apie prekę

Prekė: Dyzelinis generatorius Genezo GF2-120KW, 120 kW, 3 fazių, su ATS. Kategorija: Elektros generatoriai.

• Gamintojas: no brand
• Modelis: GF2-120KW ATS

Three-phase diesel generator set 120 kW with ATS: GF2-120 KW ATS

Industrial generator set GF2-120KW ATS with a maximum power generated current of 130 kVA. It is powered by a four-cylinder turbocharged diesel engine, cooled by liquid.

The unit is ideal as an emergency and main power source in various types of workshops, offices, server rooms, wedding halls.

Specification

• Weight of aggregate:1900 kg
• Aggregate dimensions: 3000x1200x1650 mm
• Fuel: Diesel
• Fuel tank:265L
• Rotation of the rotor:1500 rpm /min
• Maximum power: 120 KW at 1500 rpm /min
• Output voltage:400V
• Power per 1 phase:40KW
• Frequency:50 Hz
• Generator: self-excited COPPER
• Generator weight:455 kg
• Voltage stabilization under variable load (AVR)
• Fuel Level Indicator
• Elimination of vibrations with flexible aggregate frame washers

Engine

The engine is equipped with glow plugs and a heater for heating both engine oil and coolant at low temperatures. The motor is mounted on flexible sleepers that reduce system vibration during operation. The engine has a preheating system for the engine, an oil and coolant heater is installed. This solution is particularly helpful when the unit is to work in areas where temperatures are low.

Engine parameters:

• YC6B205L - 6 cylinder Turbo Diesel

• Engine power:207HP / 1500rpm
• Engine weight: 700 kg
• Fuel Type: Diesel (Diesel)
• Liquid motor cooling: YES
• Powerful starter:6kW
• Lubrication system capacity:16,0L
• Fuel consumption: approx. 260g/kWh
• Engine Start: Electric
• Engine electrical installation:24V
• Batteries:2x100Ah 12V
• Direct injection into combustion chamber

SmartGen LCD controller

The unit is equipped with a professional SmartGen LCD controller, which allows convenient supervision over the operation of the device and control of the most important operating parameters.

The controller allows, among others:

1. automatic start and stop of the unit
2. monitoring of operating parameters
3. Voltage measurement
4. Frequency measurement
5. load control
6. history of alarms
7. overload protection
8. protection against oil pressure drop
9. protection against engine overheating
10. cooperation with ATS and SZR systems

• Current engine operating parameters:
• temperature [*C / *F]
• oil pressure [kPa/ Psi/Bar]
• fuel level in the tank [%]
• Rotational speed [rpm]
• battery voltage [V]
• battery charging voltage [V]
• motor hour counter [MTH]
• number of riots

Current operating parameters of the generator:

• single-phase voltage [V]
• interfacial voltage [V]
• frequency [Hz]
• current load of individual phases [V]
• active power consumption [Kw]
• reactive power consumption [kVar]
• apparent power consumption [Kva]
• COS power factor [Ø]

Current electrical parameters - external network parameters (only when the unit works with ATS):

• single-phase voltage [V]
• interfacial voltage [V]
• frequency [Hz]

ATS automation

The SZR(ATS) device automates the start-up and extinguishing operations of the unit in the event of a voltage failure. The system does not require user intervention.

The generator is adapted to work in two modes:

MODE I - manual (turn the generator on and off manually)

MODE II - auto (turning the generator on and off via built-in ATS automation)

The most important elements of the generator (stand and rotor) used in GENEZO units are made of pure copper of the highest quality with high electrical conductivity. The use of high-quality copper allows for longer service life and higher efficiency - they need less energy from the internal combustion engine to generate the same amount of energy as those with aluminum windings.

There are many parameters that determine the selection of the right generator set (power demand, operating time, types of connected devices and many others).

We use high quality consumables and factory spare parts.

Before shipment, each unit is flooded with oil, it is started mechanically and electrically tested.

Remote monitoring, GPS, GSM, MODBUS

Remote monitoring and management of the device is carried out via the Internet. To use the full functionality, a dedicated mobile application and an active SIM card with data transmission are required.

The GPS module allows you to track the location of the device on an ongoing basis, and the application allows you to view operating parameters and remote supervision in real time.

The device also supports MODBUS communication, which is an industrial standard for data exchange between the aggregate and external systems such as BMS, monitoring systems or industrial automation. MODBUS enables the transmission of selected operating parameters, alarms and device states to the master system.

AVR

The unit has electronic voltage regulation AVR AS440. The AVR system is responsible for stabilizing the output voltage during operation of the device.

This is particularly important when powering machines, industrial equipment, automation, technical installations and receivers requiring stable operating parameters.
