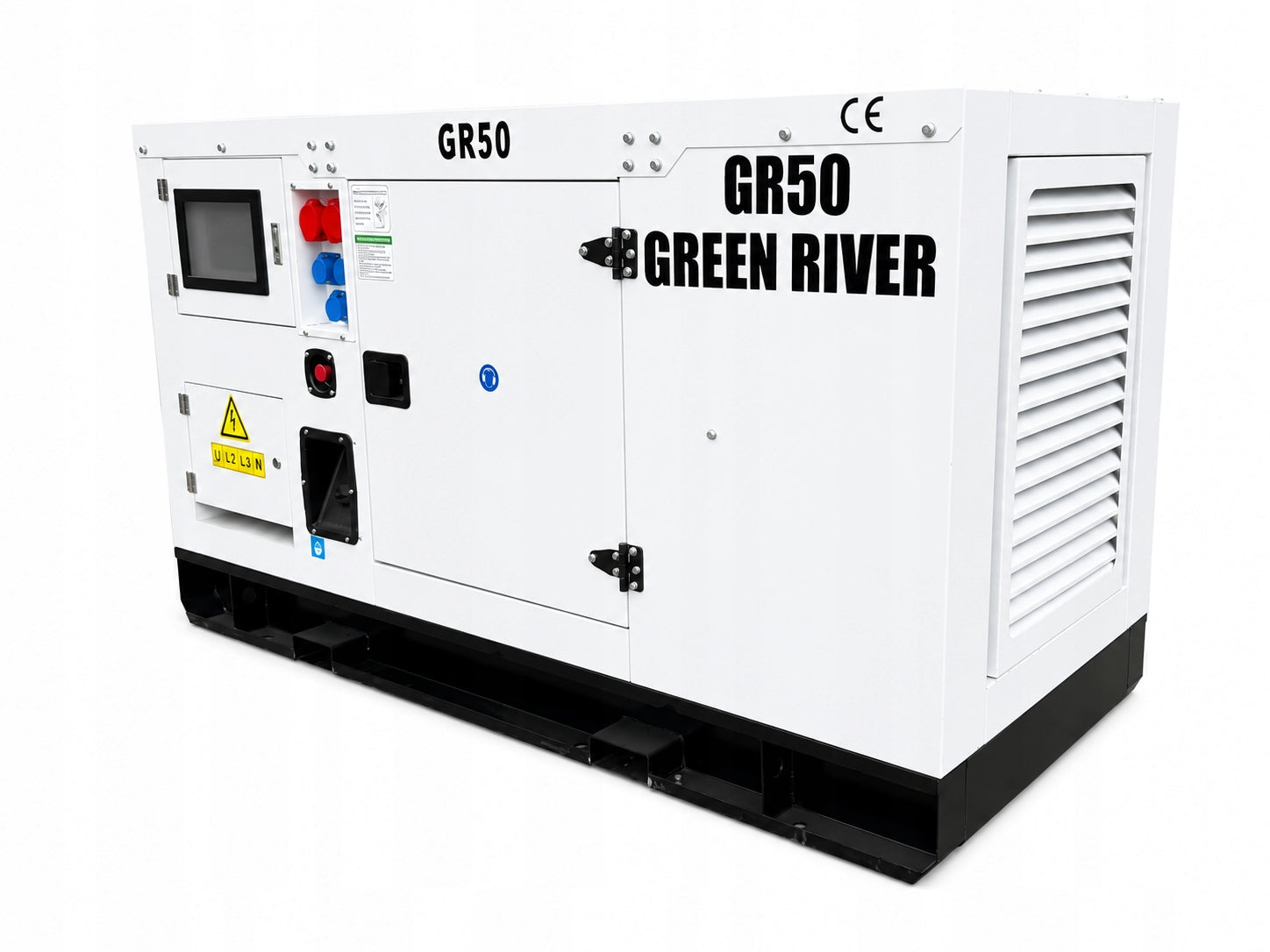

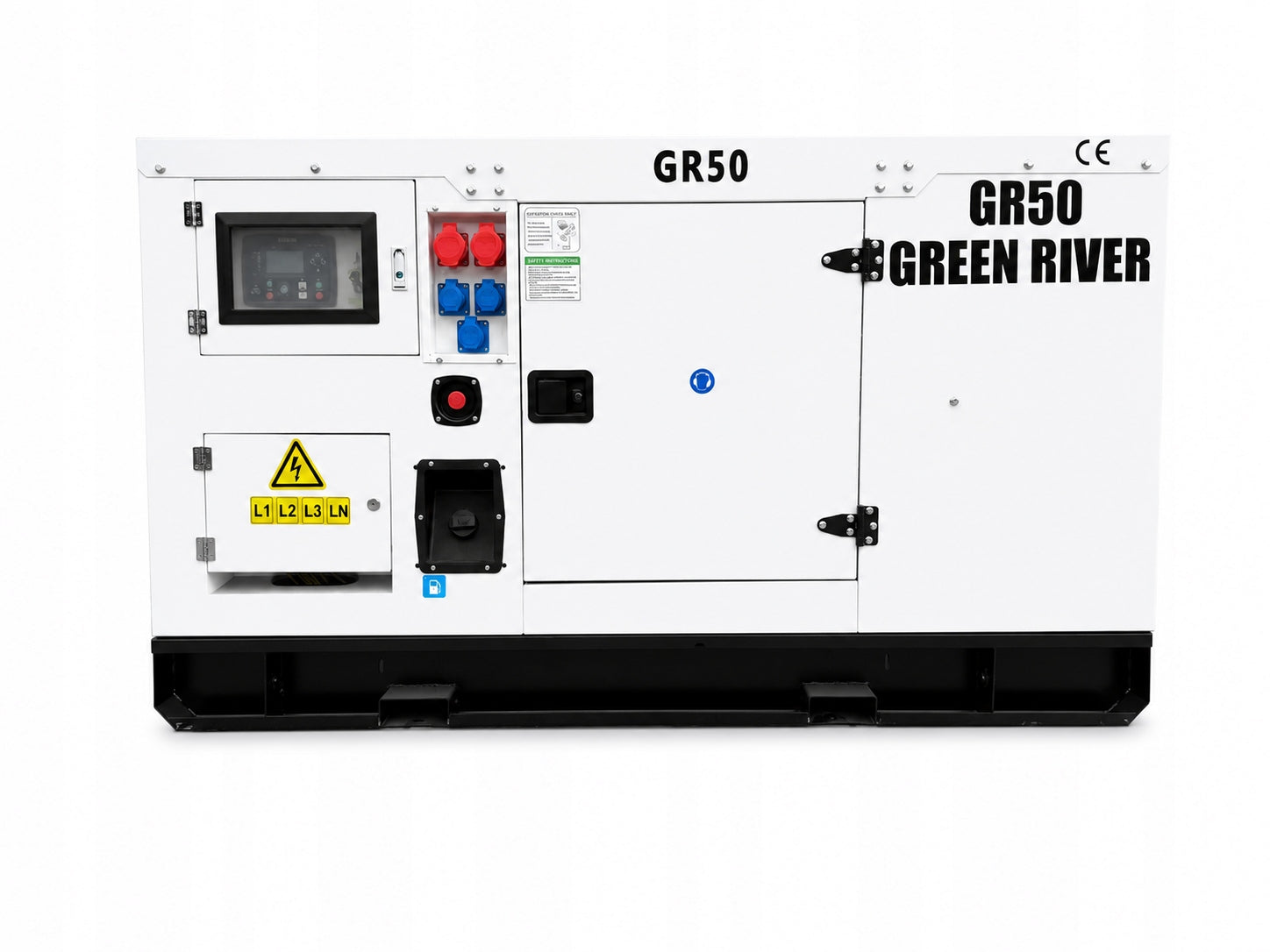

Dyzelinis generatorius Green River GR50/2, 50 kW (62,5 kVA)

Trumpai apie prekę

Prekė: Dyzelinis generatorius Green River GR50/2, 50 kW (62,5 kVA). Kategorija: Elektros generatoriai.

• Gamintojas: no brand
• Modelis: HT-W50GF

Three-phase diesel generator set 50KW with ATS WYPAS

Industrial generator set GR50+ with a maximum power generated current of 50KW- 62,5 kVA. It is powered by a four-cylinder turbocharged diesel engine, cooled by liquid. It has additional heating of coolants. Battery backup.

The unit is ideal as an emergency and main power source in various types of workshops, offices, server rooms, wedding halls.

Specification:

• Weight of aggregate:900 kg
• Aggregate dimensions:2200x960x1250 mm
• Fuel: Diesel
• Fuel tank:100L
• Rotation of the rotor:1500 rpm /min
• Maximum power:62,5 kVA at 1500 rpm /min
• Output voltage:400V/230V
• Frequency:50 Hz
• Electronic start-up
• Generator weight:350 kg
• Voltage stabilization under variable load (AVR)
• Fuel Level Indicator
• Elimination of vibrations with flexible aggregate frame washers
• liquid heating
• battery support
• heating of fuel

Engine

The engine is equipped with glow plugs and a heater for heating both engine oil and coolant at low temperatures. The motor is mounted on flexible sleepers that reduce system vibration during operation. The engine has a preheating system for the engine, an oil and coolant heater is installed. This solution is particularly helpful when the unit is to work in areas where temperatures are low.

Engine parameters:

• Engine power: 55 HP / 1500rpm
• Fuel Type: Diesel (Diesel)
• Number of cylinders 4
• Liquid motor cooling: YES
• Powerful starter:5kW
• Fuel consumption: approx. 226g/kWh
• Engine Start: Electric
• Engine electrical installation:24V
• Batteries:2x60Ah 12V
• Direct injection into combustion chamber
• Turbo

ATS automation

The SZR(ATS) device automates the start-up and extinguishing operations of the unit in the event of a voltage failure. The system does not require user intervention.

The generator is adapted to work in two modes:

MODE I - manual (turn the generator on and off manually)

MODE II - auto (turning the generator on and off via built-in ATS automation)

We provide service during the warranty period.

We have spare parts for aggregates.

Free delivery

There are many parameters that determine the selection of the right generator set (power demand, operating time, types of connected devices and many others). We will help you make the most optimal choice.

Green River service provides technical support during the purchase during operation, as well as after the warranty period. We use high quality consumables and factory spare parts.
