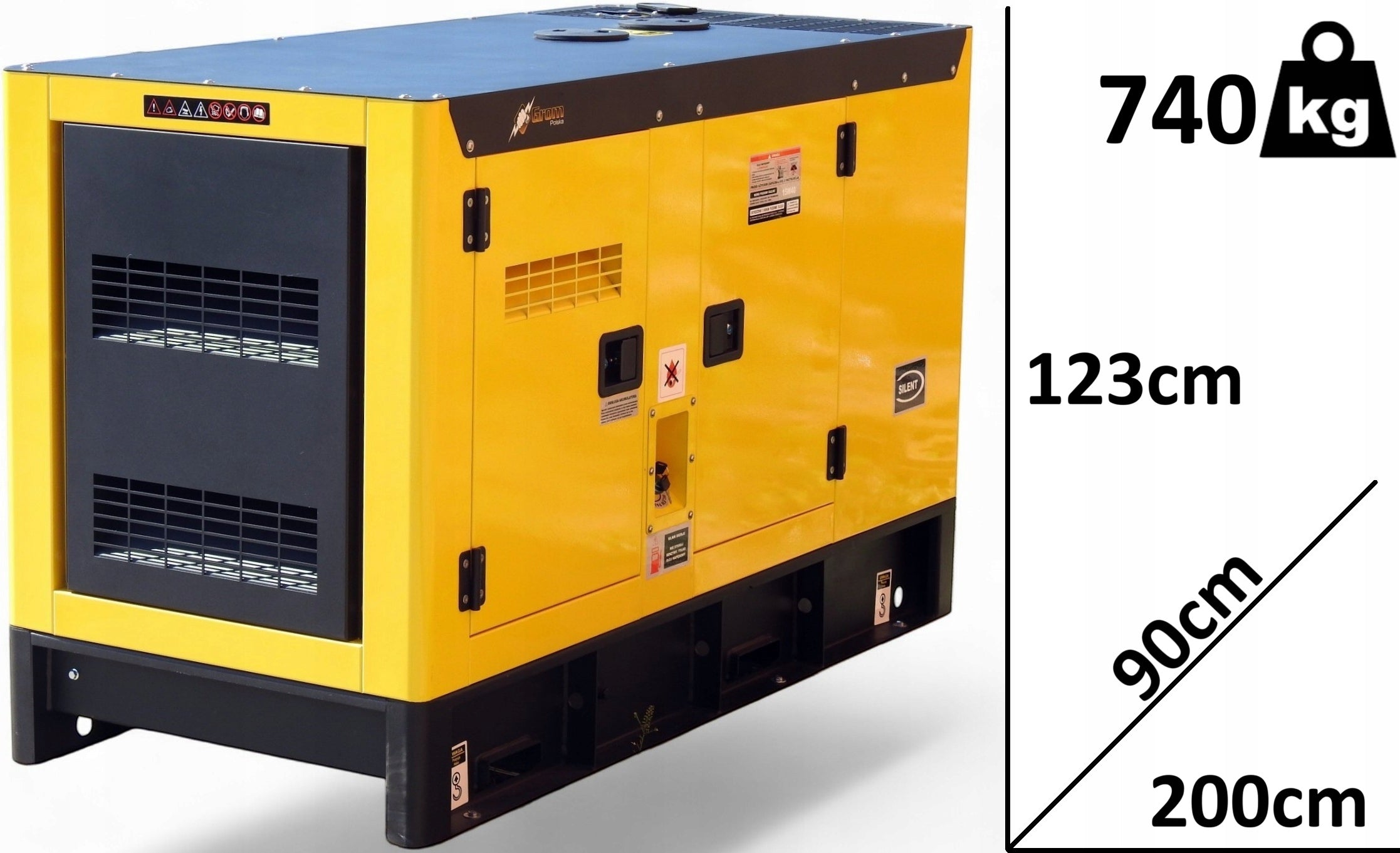

Dyzelinis generatorius GROM 20kW 25kVA su ATS, tylus

Trumpai apie prekę

Prekė: Dyzelinis generatorius GROM 20kW 25kVA su ATS, tylus. Kategorija: Elektros generatoriai.

• Gamintojas: Grom
• Modelis: A24
• Įtampa: 400 V

The production of GROM Poland aggregates is carried out exactly by the same designers who produce blacksmith Poland aggregates. Aggregates that hit the Polish market in thousands of units sold.The latest technological achievements, unique design and components made of the highest quality components -these features are concentrated in GROM Poland,are a guarantee of long-term and intensive use.

✅NEW DESIGN

✅COPPER stator winding

✅Engine operating power of 31.3HP!

✅SILENT - Mute housing reduces noise levels during operation

✅MAINTENANCE-FREE 12 V 350 A BATTERY

✅Obtained increased true power max. generator up to 20kW

✅BALANCED STATOR - equal power at each phase - very good stabilization with protection of each phase by SMARTGEN HGM6100N computer

✅EQUIPPED WITH AVR voltage stabilizer

✅NEW MODEL A24 equipped with an intelligent throttle system that automatically responds to load changes.

Stationary generator GROM A24 - industrial source of electricity, equipped with a proven 4-cylinder SIDA diesel engine with a capacity of 31,3HP, liquid-cooled. Designed to work in the construction, industrial and as a reliable emergency power supply for homes and businesses.

Applied advanced driver

SMARTGEN HGM6100N

in Polish provides precise control of operating parameters and full protection of all 3 phases. The possibility of cooperation with ATS automation makes the unit ready to work in backup power systems.

Unlike “dual power” solutions, this model has a balanced stator – each phase has the same power, which translates into stable voltage under uneven load and makes it a particularly good choice for emergency power supply of building installations (home/office/company).

The ability to cooperate with ATS automation allows you to automatically switch the power source in the event of a power failure.

The ATS/SZR box is part of the standard equipment.

Producer: Blacksmith Polish Brand: GROM Poland

• hp/kw engine power: 31,3/23
• maximum power at 50Hz: 20000W
• Constant power at 50Hz: 18000W
• maximum power at 230V: 3 x 6600W
• Constant power at 230V: 3 x 6000W
• fuel: diesel
• fuel tank capacity about 90 L
• Cylinder diameter x stroke: 90mm × 100 mm
• Engine model/type: SIDA 4BW21E, in-line 4-cylinder, liquid-cooled
• Fuel system: Injection fuel pump
• Mechanical speed control
• nominal voltage: 230/ 400V
• nominal frequency at 1500rpm: 50Hz
• weight with packaging approx. 740 kg
• engine displacement approx. 2550ccc
• used CD oil 10W/30
• oil pan capacity approx. 7,7 L
• automatic regulation of rotation and voltage
• electronic voltmeter
• embedded on cushioning cushions
• high quality of workmanship
• engine speed max. approx. 1500 r/min
• low combustion: approx. 0,22 l/kWh
• Please refer to the instruction manual before using it!
• AVR voltage regulator: yes
• type of start-up: electric
• Glow plug: yes
• oil sensor: yes
• oil pump: yes
• fuel level indicator: yes
• electronic voltmeter: yes
• power consumption indicator: yes
• built-in hour counter: yes
• Voltmeter: yes
• Multifunction display: yes
• Emergency switch: yes
• current protection: yes

Controller SMARTGEN HGM6100N (menu in Polish) – full control and safety 3 phases

The unit is equipped with a modern controller SMARTGEN HGM6100N in Polish – it is a “professional” class solution used in large industrial / stationary units. The panel is simple and easy to use, while providing full control over the operation of the device.

✅ Full monitoring and protection of all 3 phases (L1/L2/L3) – control of currents, voltages and loads at each phase

✅ Accurate information on the LCD screen and in Polish messages

✅ Safe operation under uneven load (typical in domestic and company installations)

✅ Cooperation with the ATS box

✅ Built-in hour counter

⭐The GROM A24 aggregate is equipped with an automatic power switch ATS AiSiKAI SKT2-100A/4P with a rated current of 100 A. The switch allows you to automatically switch the power supply between the network and the unit in the event of a power outage, which increases the convenience and safety of use. This solution is particularly useful in companies, workshops, farms and facilities requiring continuity of power supply.

Fuel system - Injection pump

Motor speed control - mechanical

Cylinder system - 4 in a row

What this gives in practice:

• Greater torque and better rotation retention under sudden loads (e.g. start of pumps, compressors).
• Less effort – with the same power of the unit, the engine does not have to work at the limit of possibilities, which promotes durability and stable operation.

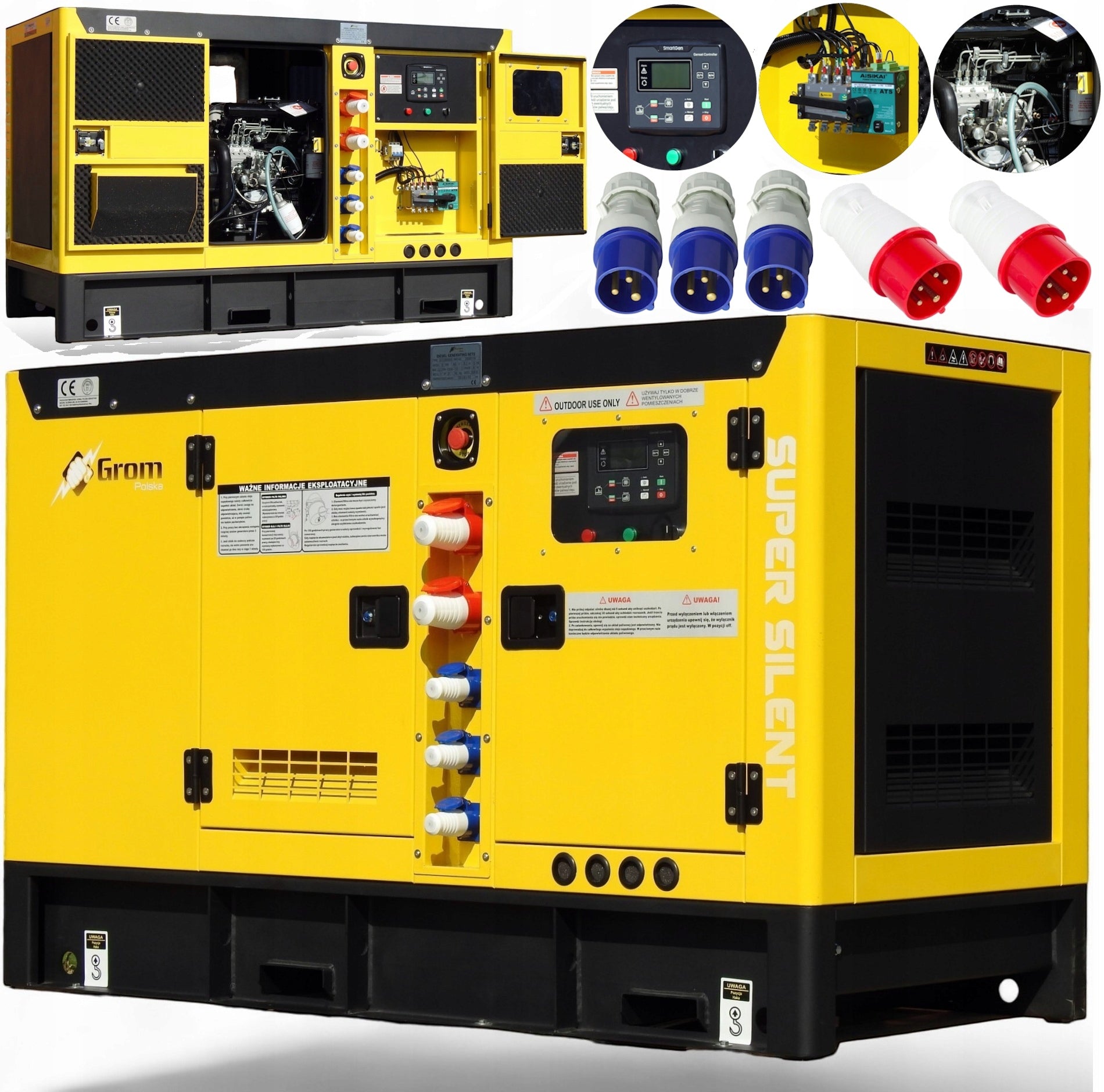

GROM A23 stands out with its multifunctional front panel , which gives you complete freedom in connecting both 3-phase installations and 230V receivers – without fiddling with adapters and without limiting the applications.

The panel includes:

• 2x socket 32A / 400V (3-phase),
• 3× socket 16A / 230V (standard receivers).

Additionally, the generator has connection terminals (terminal connectors: N, U, V, W) – a professional solution, from which the full maximum power of the generator is available, up to 20 kW . This makes the panel complete: from quick plug connection to solid installation/ATS connection at the terminals.

Thanks to the SMARTGEN HGM6100N controller, you can freely distribute the load between the phases , and the computer constantly monitors the parameters and makes sure that the generator is not overloaded .

Specifications
