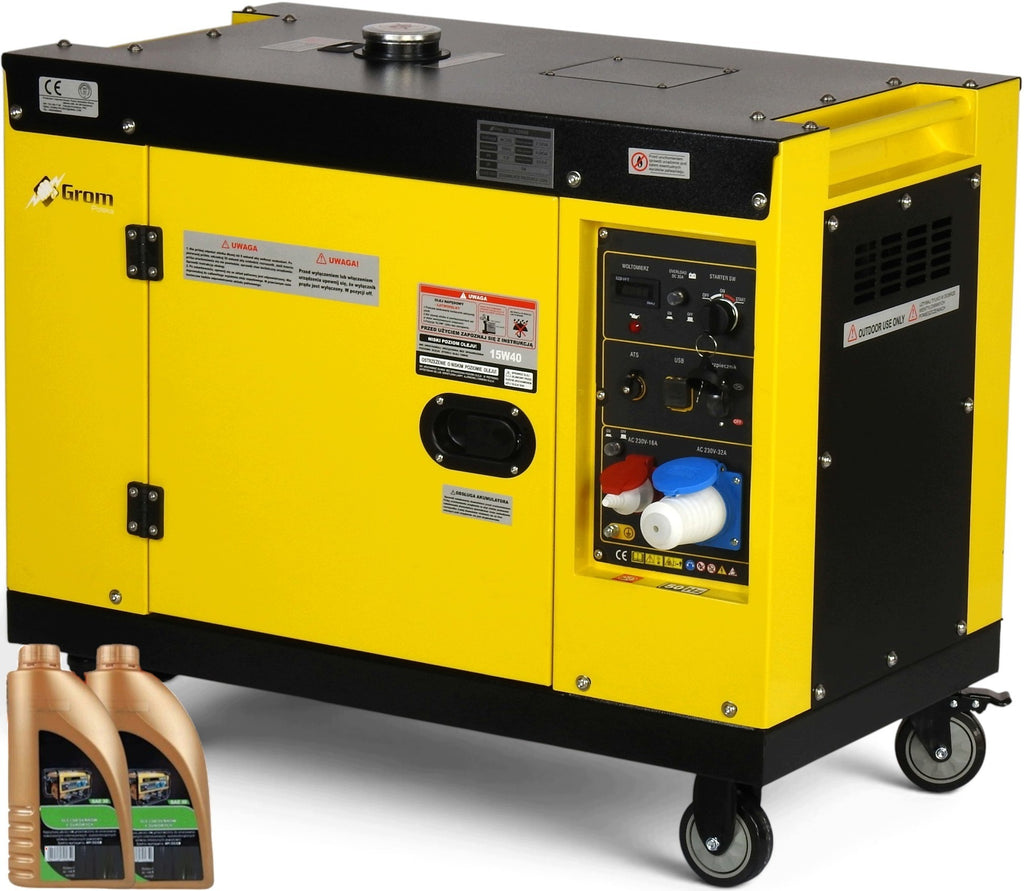

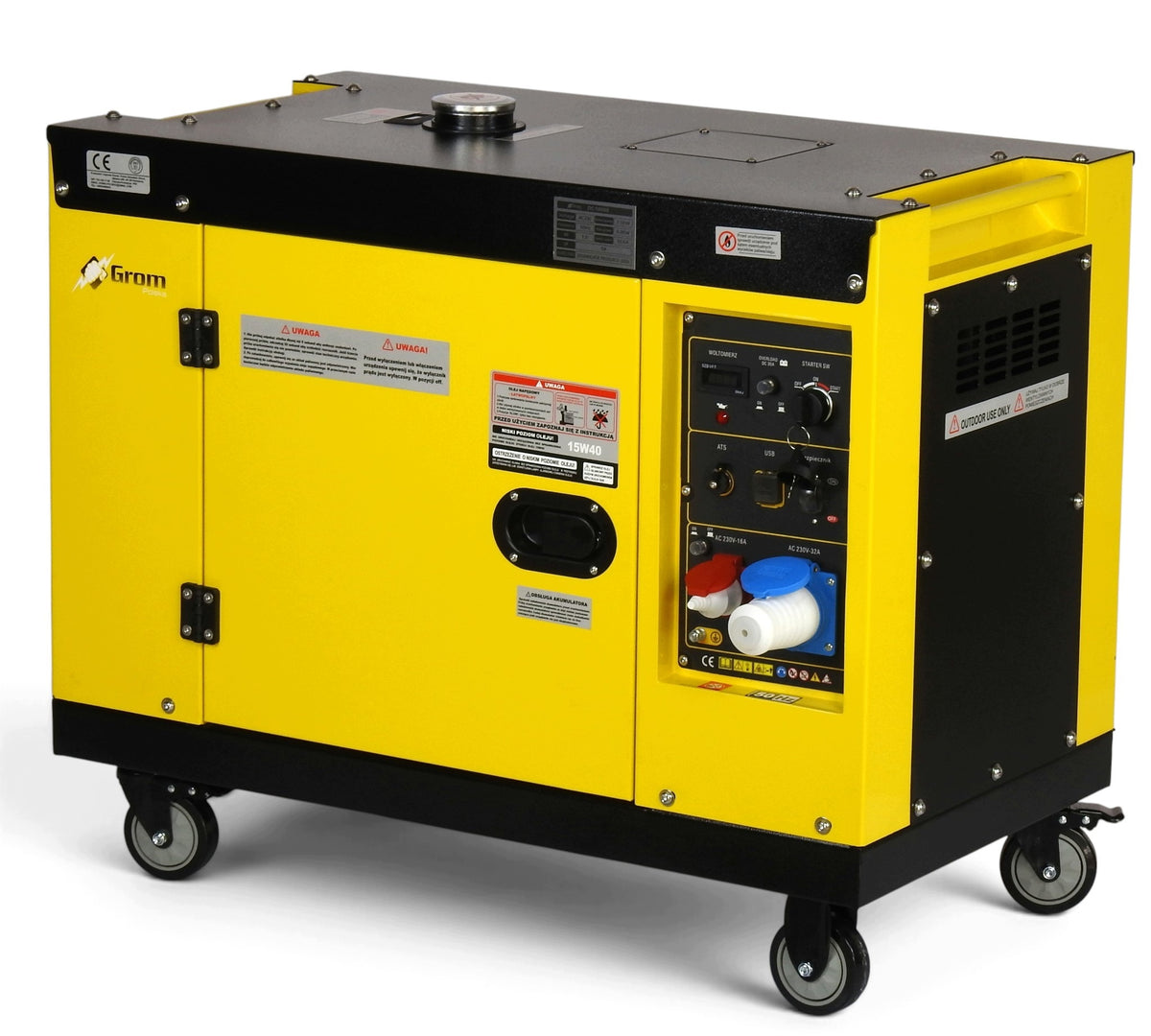

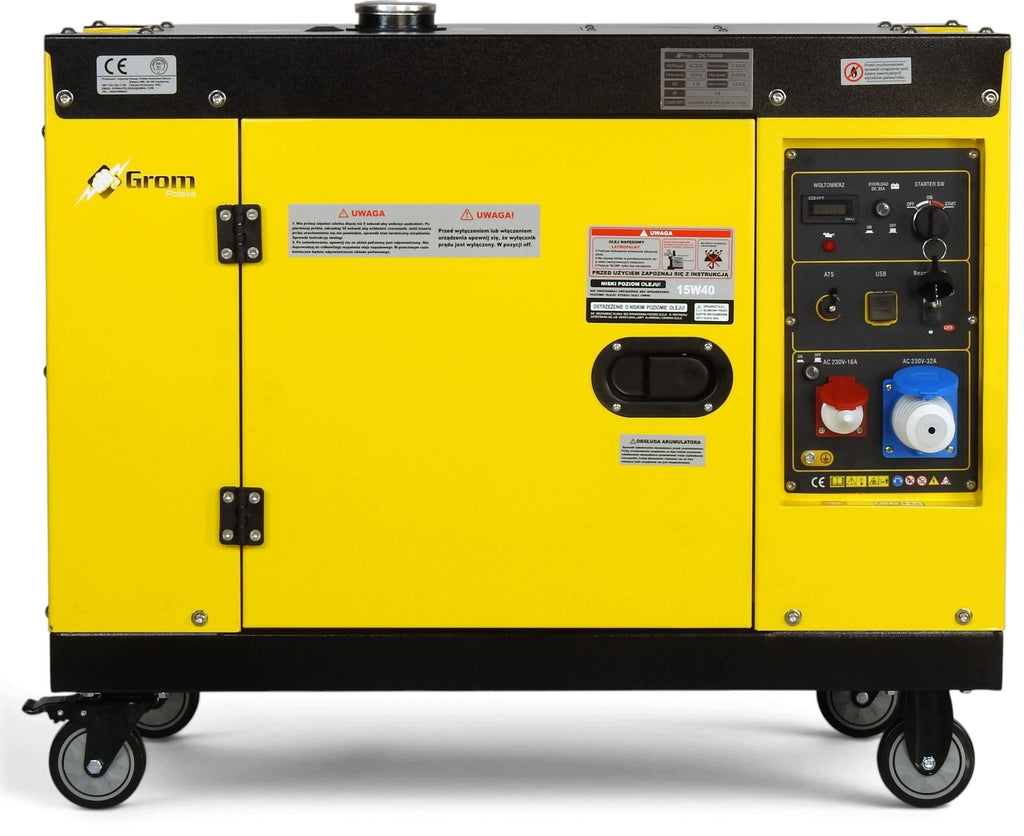

Dyzelinis generatorius GROM 8 kW, varinis statorius ir rotorius, tylus, AVR, ATS/SZR

Trumpai apie prekę

Prekė: Dyzelinis generatorius GROM 8 kW, varinis statorius ir rotorius, tylus, AVR, ATS/SZR. Kategorija: Elektros generatoriai.

• Gamintojas: Kowal Polska
• Modelis: A27
• Įtampa: 400 V

✅NEW DESIGN

✅NEW model with extended generator power max up to 8kW!

✅COPPER stator winding

✅COPPER rotor winding with metal fan

✅Engine operating power of 11HP!

✅New generation FUEL PUMP with increased pressure with brass seal

✅ MAINTENANCE-FREE BATTERY with a capacity of 26aH!

✅EQUIPPED WITH SHORT-CIRCUIT FUSE

✅Obtained increased true power max. generator up to 8kW

✅EQUIPPED WITH AVR voltage stabilizer

✅USB OUTPUT

✅NEW MODEL A27 equipped with an intelligent throttle system that automatically responds to load changes.

• Engine power: 11HP
• maximum power at 50Hz: 8000W
• Constant power at 50Hz: 7500 watt
• maximum power at 230V: 3 x 2700W
• Constant power at 230V: 3 x 2500W
• fuel: diesel
• fuel tank capacity about 15 L
• startup: electric
• nominal voltage: 400/230V
• nominal frequency at 3000rpm: 50Hz
• built-in AVR
• weight with packaging approx. 175 kg
• built-in output: USB
• engine displacement approx. 531cc
• used oil 15w-40/10w-30
• oil pan capacity approx. 1,65 L
• oil condition equal to the lower edge of the infusion
• 1 replacement after 5 hours, then every 50.
• automatic regulation of rotation and voltage
• electronic voltmeter
• built-in hour counter
• Quiet engine operation
• Relaxer for easy start-up
• embedded on cushioning cushions
• high engine power
• high quality of workmanship
• engine speed approx. 3.000 r/min
• low combustion: approx. 1,5 L/h
• Please refer to the instruction manual before using!

The stator and rotor account for nearly half of the value of the unit. Many companies only have a "copper" winding on the stator with a width of 100-130mm. A stator with a length of up to 160mm was used. Stand and rotor wound with fully copper wire. Copper generator and rotor cooperates with a professional engine with the symbol: Z195F DIESEL, which, on behalf of the KowaL Polska brand, is made of the highest quality spare parts as well as the main elements of składowych.tj: shaft, piston, connecting rod, fuel pump, fuel injection. Details later in the auction.

BALANCED STATOR – EQUAL POWER AT EVERY STAGE!

The unit has a balanced stator, thanks to which each of the three phases is evenly loaded and has the same power.

Unlike Dual Power generators, where one phase is stronger at the expense of the other two, a balanced stator provides:

• equal power at each phase,
• better stability of the unit,
• less risk of overloading and damage to the stator,
• better solution for emergency home power supply and three-phase installations.

It is a design focused on safe, stable and long-lasting operation, not maximum power only on one phase.

The AVR voltage regulator automatically stabilizes the output voltage, reducing its fluctuations and ensuring more even power supply parameters. Thanks to this, the A27 model works perfectly as an emergency source of energy at home, workshop, on the plot and for powering many devices requiring stable voltage.

The unit is equipped with the ATS/SZR function, allowing the device to be automatically started in the event of a power failure in the network. When the mains power returns, the system automatically switches the installation back to the network and turns off the unit.

*ATS box, not part of the set. The box is available in our offer at another auction.

The unit is equipped with a solid, closed housing with internal acoustic soundproofing. The damping material used from the inside reduces noise and vibration, providing a much higher comfort compared to classic aggregates in an open frame.

✅new original look

✅built-in on-board computer

✅new generation silencer, quieter engine operation. Tolerates much better long intensive work

✅silenced buildings

✅Reinforced fuel pump with increased pressure with brass gasket

✅Bold castings of the internal combustion engine body and stator base

✅third generation voltage regulator

✅new type of generator, more wire wound

The GROM A27 DIESEL aggregate uses a reinforced fuel pump with increased pressure. The fuel pump is one of the most important components of the engine. Increased pump pressure guarantees faster injection of fuel into the combustion chamber. The result is better engine dynamics and lower combustion. Additionally, a brass pump seal was used to increase strength.

1. Chrome fuel filler cap with built-in filter
2. Readable fuel level indicator in the tank
3. Solid transport handles located on both sides of the unit
4. Exhaust outlet adapted to connect the exhaust pipe

The high-quality battery guarantees trouble-free firing of the device even in the most difficult conditions!

It is fully maintenance-free - it is charged during the operation of the unit automatically without user intervention!

Robust wheels guarantee lightness in handling and practically no operation of the suspension system. Wheels in full (not pumped) are not susceptible to punctures or deformations, in addition, the wheels are equipped with brake.

The A27 PRO model is equipped with a clear on-board computer with a display that allows ongoing control of the most important parameters of the unit.

On the screen you can check m.in.:

• output voltage,
• current frequency,
• number of hours worked,
• time since last inclusion.

Operation of the device is extremely simple – all display functions are switched using the one button.

Thanks to this, you always have the most important parameters of the aggregate under control.

• 1 × plug 400 V / 16 A
• 3 × plug 230 V / 16 A

The unit is equipped with an air filter with a double cartridge. This minimizes the risk of contaminants entering the engine, which significantly extends the life of the device.

✅400v 16A socket

✅3 x 230v 16A socket

✅fuel filter (under fuel cap)

✅keys (2 pieces)

✅flat keys for mounting

✅wheels (4 pieces)

✅double-sided screw driver (cross, flat)

✅ oil bottle for refill 1,65 L FREE (in two or one bottle)

✅Assembly screws

✅instruction PL

✅warranty card

✅Manufacturer's declaration of conformity
