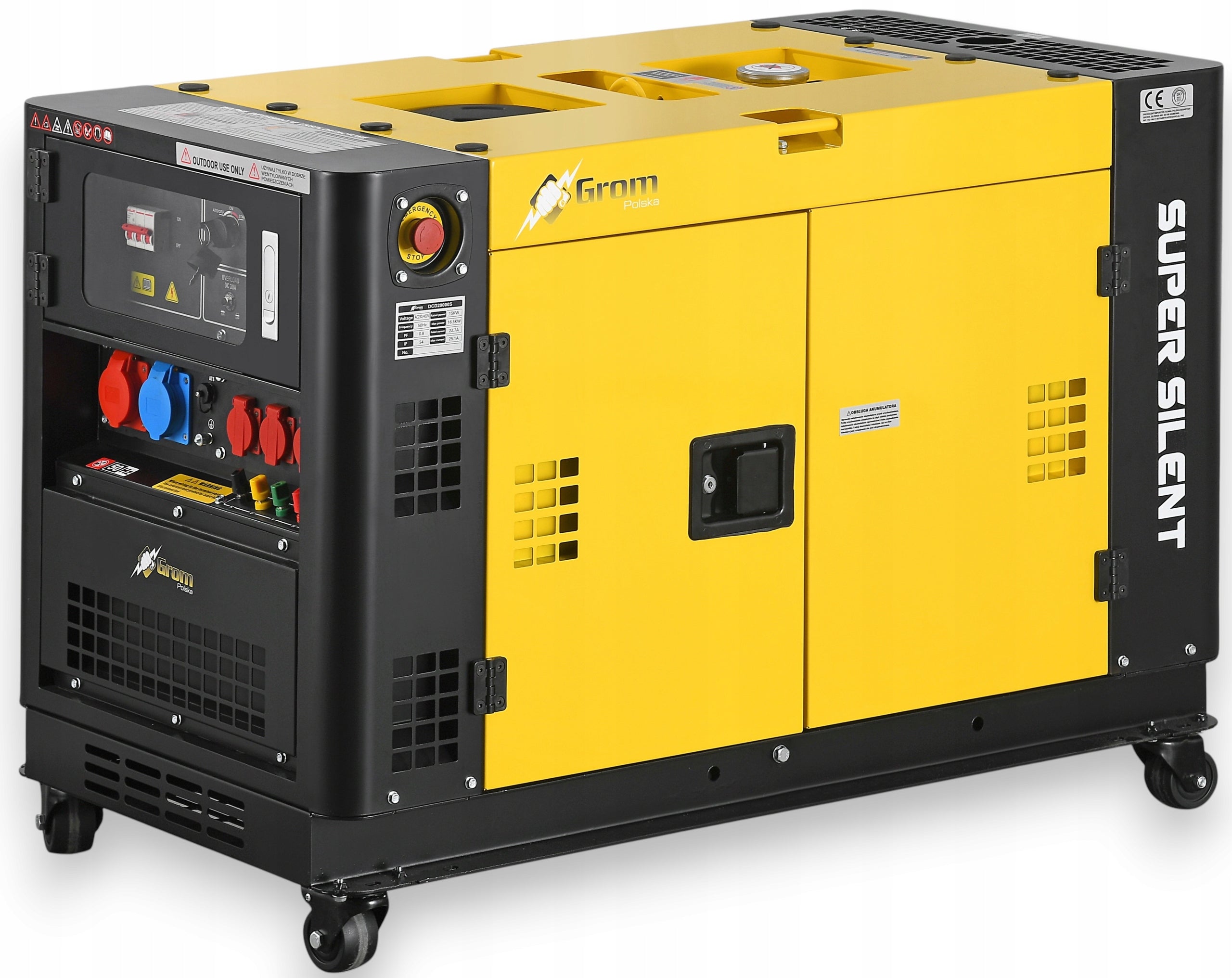

Dyzelinis generatorius GROM V2, 16500W, tylus, su ATS

Trumpai apie prekę

Prekė: Dyzelinis generatorius GROM V2, 16500W, tylus, su ATS. Kategorija: Elektros generatoriai.

• Gamintojas: Grom
• Modelis: A23
• Įtampa: 400 V

✅NEW DESIGN

✅COPPER stator and rotor winding

✅Engine operating power of 24.5HP!

✅New generation FUEL PUMP with increased pressure with brass seal

✅SILENT - Mute housing reduces noise levels during operation

✅MAINTENANCE-FREE 45ah BATTERY

✅Obtained increased true power max. generator up to 16.5kW

✅BALANCED STATOR - equal power at each phase - very good stabilization with protection of each phase by the GDU/GCU4000 computer

✅EQUIPPED WITH AVR voltage stabilizer

✅NEW MODEL A23 equipped with an intelligent throttle system that automatically responds to load changes.

Generator GROM A23 - industrial source of electricity, equipped with a proven two-cylinder diesel engine HD2V95F-A, air-cooled. Designed to work in the construction, industrial and as a reliable emergency power supply for homes and businesses.

The applied advanced controller GDU/GCU4000 in Polish provides precise control of operating parameters and full protection of all 3 phases. The possibility of cooperation with ATS automation makes the unit ready to work in backup power systems.

Unlike “dual power” solutions, this model has a balanced stator – each phase has the same power, which translates into stable voltage under uneven load and makes it a particularly good choice for emergency power supply of building installations (home/office/company).

The ability to work with ATS automation allows you to automatically switch the power source in the event of a power outage.

*The ATS/SZR box is not part of the standard equipment. It is possible to purchase separately

• hp/kw engine power: 24.5/18
• maximum power at 50Hz: 16500W
• Constant power at 50Hz: 15000W
• maximum power at 230V: 3 x 5500W
• Constant power at 230V: 3 x 5000W
• fuel: diesel
• fuel tank capacity approx 26 L
• Cylinder diameter x stroke: 95 × 88 mm
• Engine model/type: HD2V95F-A V-twin, two-cylinder, air-cooled
• nominal voltage: 230/ 400V
• nominal frequency at 3000rpm: 50Hz
• weight with packaging approx. 340 kg
• engine displacement approx. 1247ccc
• used oil 15w-40
• oil pan capacity approx. 3,8 L
• oil condition equal to the lower edge of the infusion
• 1 replacement after 50 hours, then every 250h.
• automatic regulation of rotation and voltage
• electronic voltmeter
• embedded on cushioning cushions
• high quality of workmanship
• engine speed approx. 3.000 r/min
• low combustion: approx. 3 l/h
• Please refer to the instruction manual before using!
• AVR voltage regulator: yes
• type of start-up: electric
• Glow plug: yes
• oil sensor: yes
• oil pump: yes
• fuel level indicator: yes
• electronic voltmeter: yes
• power consumption indicator: yes
• built-in hour counter: yes
• Voltmeter: yes
• Multifunction display: yes
• Emergency switch: yes
• current protection: yes

GDU/GCU4000 controller (in Polish) – full control and safety of 3 phases

The unit is equipped with a modern GDU/GCU4000 in Polish – it is a “professional” class solution, also used in several times larger stationary units. The panel is simple and easy to use, while providing full control over the operation of the device.

✅ Full monitoring and protection of all 3 phases (L1/L2/L3) – control of currents, voltages and loads at each phase

✅ Accurate information on the LCD screen and in Polish messages

✅ Safe operation under uneven load (typical in domestic and company installations)

✅ Cooperation with the ATS box

✅ Built-in hour counter

The GROM A23 aggregate uses a reinforced fuel pump with increased pressure. The fuel pump is one of the most important components of the engine. Increased pump pressure guarantees faster injection of fuel into the combustion chamber. The result is better engine dynamics and lower combustion. Additionally, a brass pump seal was used to increase strength.

The GROM A23 has a two-cylinder HD2V95F-A diesel engine with a larger capacity than many competing units.

What this gives in practice:

• Greater torque and better rotation retention under sudden loads (e.g. start of pumps, compressors).
• Less effort – with the same power of the unit, the engine does not have to work at the limit of possibilities, which promotes durability and stable operation.

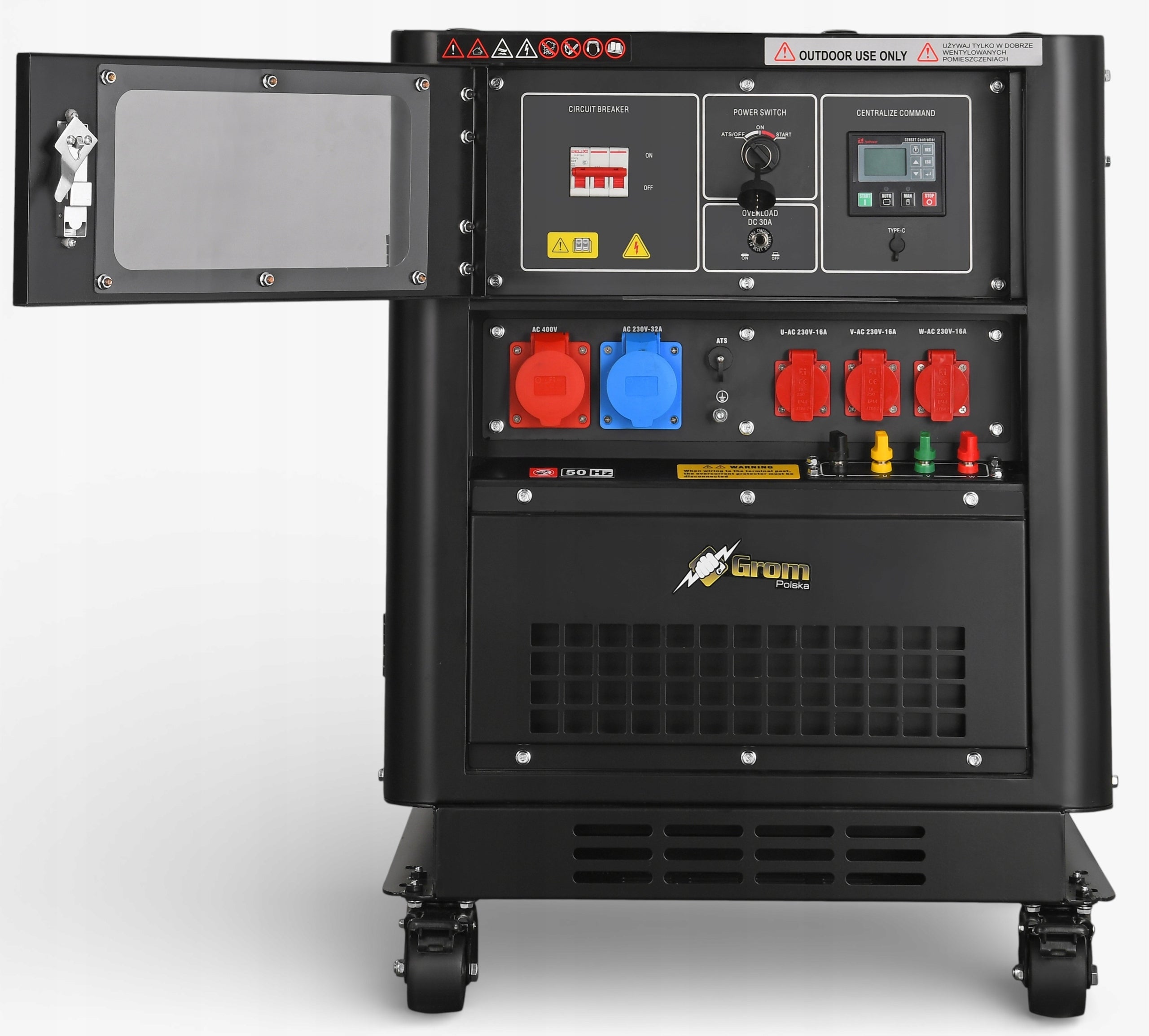

GROM A23 stands out with its multifunctional front panel , which gives you complete freedom in connecting both 3-phase installations and 230V receivers – without fiddling with adapters and without limiting the applications.

The panel includes:

• 32A / 400V socket (3-phase),
• 32A / 230V socket (single-phase high-power),
• 3× socket 16A / 230V (standard receivers).

Additionally, the generator has connection terminals (terminal connectors: N, U, V, W) – a professional solution, from which the full power of the generator is available, up to 16.5 kW . This makes the panel complete: from quick plug connection to solid installation/ATS connection at the terminals.

Thanks to the GDU/GCU4000 controller, you can freely distribute the load between the phases , and the computer constantly monitors the parameters and makes sure that the generator is not overloaded .

The high-quality battery guarantees trouble-free firing of the device even in the most difficult conditions!

It is fully maintenance-free - it is charged during the operation of the unit automatically without user intervention!

Specifications
