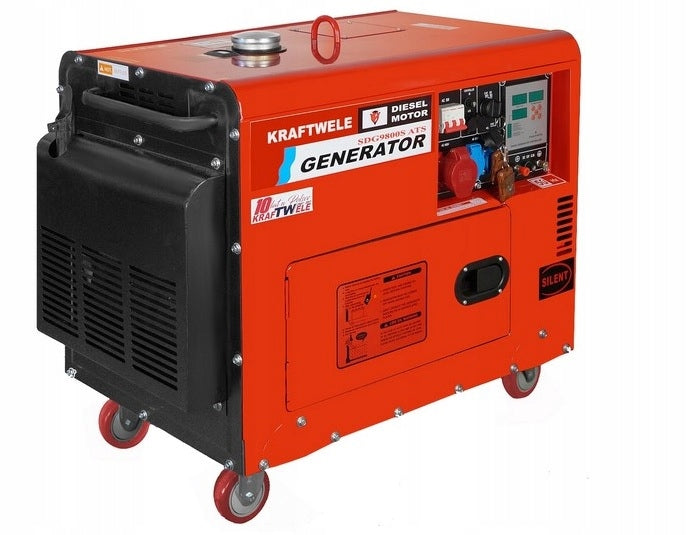

Dyzelinis generatorius SDG9800S, 9,8 kW, 3 fazių, tylus

Trumpai apie prekę

Prekė: Dyzelinis generatorius SDG9800S, 9,8 kW, 3 fazių, tylus. Kategorija: Elektros generatoriai.

• Gamintojas: KrafTWele
• Modelis: SDG9800S 3F
• Įtampa: 400 V

pecification of goods:

MODEL: SDG9800S 3F (SILENT VERSION)

ENGINE: DIESEL 18KM

EQUIPPED WITH ELECTRIC STARTER

- TOTAL NOMINAL POWER: 9,5KW

- MAXIMUM TOTAL POWER: 9,8KW

- ENGINE: DIESEL

- TYPE: SDG

- GENERATOR: BRUSH,

SELF-EXCITED, SYNCHRONOUS TYPE H3 9800

- WEIGHT: 184 KG

- TABLE: 2 230V OUTPUTS, 1 12V OUTPUT, 1400V OUTPUT

- TANK CAPACITY: 16L

- COMBUSTION: L/MTH

0% - 0,7

30%-1,2

50%-1,4

70%-1,6

90%-1,8

- HOUSING: LACQUERED METAL

SUSPENSION:

- UNIT MOUNTED ON A VIBRATION-ABSORBING CRADLE.

- SWIVEL TRANSPORT WHEELS WITH LOCK, MAKING IT EASY TO MANEUVER THE DEVICE.

CONTROL FUNCTIONS:

- SWITCHING ON / OFF THE UNIT.

- CHANGE THE MANUAL / AUTOMATIC MODE.

- LOCK THE DEVICE WITH A CODE.

CONTROL FUNCTIONS:

- MOTOR HOURS COUNTER.

- VOLTMETER (V).

- AMMETER (A).

- 12V BATTERY CHARGING VOLTAGE

DIMENSIONS: LENGTH. 875 mm W 540 mm H705 mm

• The generator is double muted which gives the result of very quiet operation (Silent function)

• The unit has a voltmeter,
• 12V rectifier function

THE NEW SDG 9800 S SERIES IS EQUIPPED WITH FULL VOLTAGE AND FREQUENCY STABILIZATION AVR. THE GENERATOR SETS ARE ADDITIONALLY EQUIPPED WITH AN ELECTRONIC "DIGITAL" DISPLAY AND A RADIO SYSTEM THAT ALLOWS YOU TO TURN THE DEVICE ON/OFF AT A DISTANCE USING A RADIO REMOTE CONTROL.

Type of installation:

- BUILDING OF THE "SILENT" TYPE UNIT - MUTED.

- A GENERATOR SET MOUNTED ON A STRUCTURAL PLATE ENABLING PERMANENT INSTALLATION.

- THREE-STAGE EXHAUST SYSTEM FOR REDUCED ENGINE VOLUME.

- HOLES IN THE EXTERNAL BODY, FACILITATING ACCESS TO THE COMPONENTS OF THE UNIT.

- FRONT FLAP EQUIPPED WITH A LOCK.

- TRANSPORT HANDLE PLACED FROM ABOVE.

- HANDLES PLACED ON THE SIDE WALLS, ALLOWING EASY MANEUVERING OF THE UNIT.

The presented photos are for illustrative purposes only. Devices may differ from the original due to different deliveries of goods. You will receive the latest information after contact by phone or e-mail.
