Dyzelinis generatorius TAGRED 7350W, 230/400V, 5000W, AVR, tylus, su 2x alyva

Trumpai apie prekę

Prekė: Dyzelinis generatorius TAGRED 7350W, 230/400V, 5000W, AVR, tylus, su 2x alyva. Kategorija: Elektros generatoriai.

• Gamintojas: Tagred
• Modelis: TA7350TDS

Professional Tagred power generator powered by a high-end high-power disel motor. It is a reliable solution that will protect your home, farm, or business with energy, perfect for construction sites. It will easily power tools, construction machinery (betony machine, welding machine), lighting, many types of electrical equipment.

A big advantage is the mobility of the generator, which has castors. It is worth emphasizing the great comfort of the device. The TAGRED unit has been further silenced. The steel housing of the generator is from the inside glued with a soundproofing mat.

It cannot be overestimated that the TAGRED generator is equipped with candle heating and a relaxer for easy start-up.

The built-in glow plug in the intake system makes it easier to start the unit during low temperatures, allows you to work in difficult conditions!

Multitasking

The diesel generator set TAGRED generates a current of 230/400 V. The generator set has 3 sockets: 2 x AC 240 V and 1 x 400 V. Thanks to them you can power several different machines, even in parallel. The rated current is 23,91 A (230V~) / 9,36 A (400V 3~) / 8,3 A (12V d.c.). It is useful in all places without access to electricity, e.g. on construction sites, open spaces, etc.

Solid, Powerful Engine

The **1-cylinder**, 4-stroke diesel engine boasts a high power output of 10 HP and features an electric start, **guaranteeing reliable performance!**

Copper Engine Windings!

The alternator – specifically the **stator and rotor – are made from the highest quality** copper, offering excellent electrical conductivity.

This results in improved working efficiency and reliability, significantly **extending the service life of the generator.**

The steel housing of the generator was additionally muted - from the inside glued with a soundproofing mat.

Startup: E-Start from the ignition

The generator is started by automatic start-up, using a key. The set includes a 20 Ah starter power battery.

Operational safety is ensured by IP23 protection and overload protection. Our unit has additional oversized protection. Here we see a silencer with thermal protection

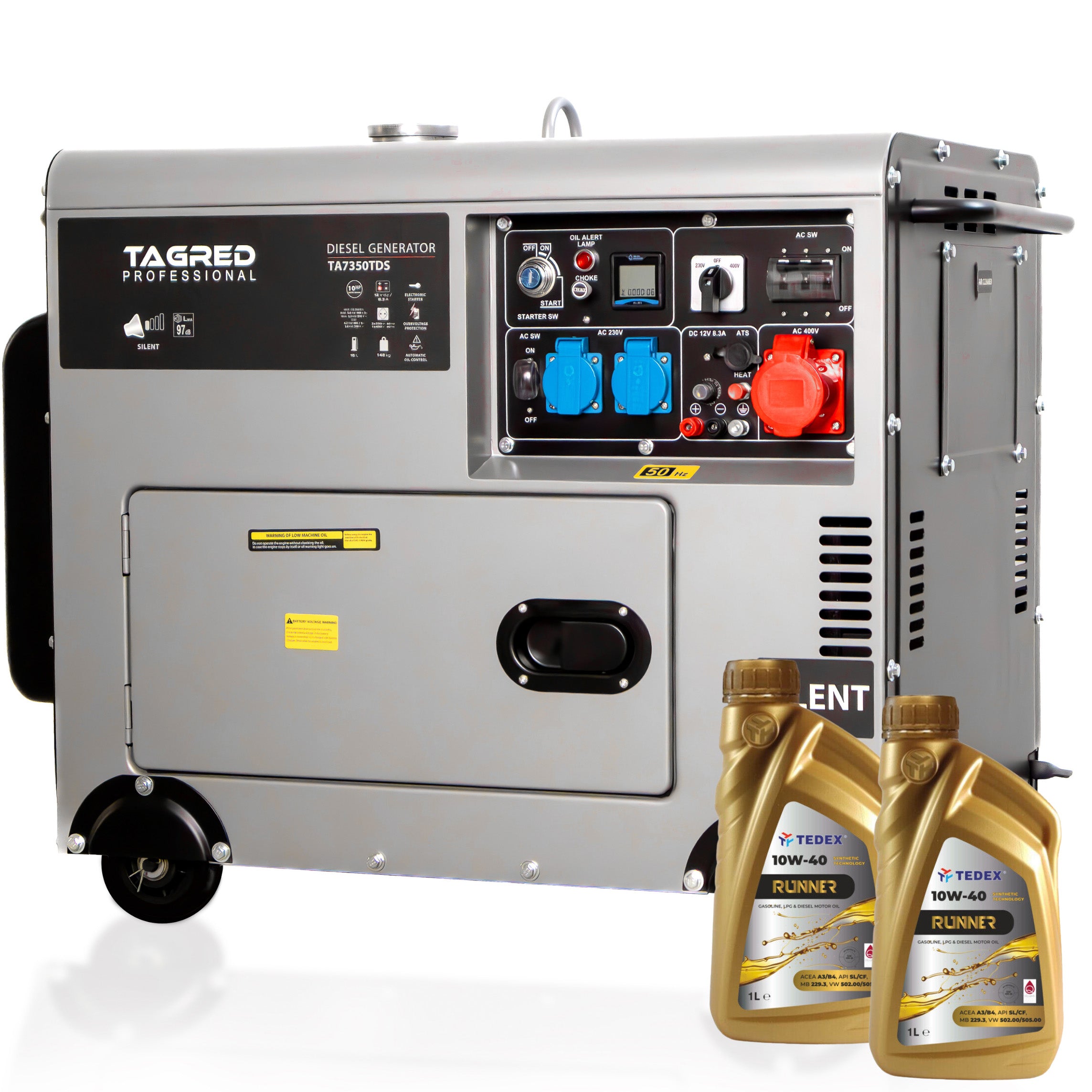

Composition of the set

• Generator set Diesel TAGRED
• 2 liter bottles of Tedex oil
• Accessories
• User manual in Polish

Technical data

• Model: TA7350TDS
• Engine displacement: 418 cc
• Engine power: 10 HP / 7350 WATT
• Rotary speed: 3000 rpm. /min
• Engine type: 1-Cylinder Diesel
• Start: E-Start from the ignition
• Fuel: diesel
• Oil: 10w40
• Fuel tank capacity: 16 L
• Oil tank capacity: 1,75 L
• Burning: 2,5 L/h
• Built-in fuel level viewfinder
• Built-in voltage indicator: Voltmeter
• Nominal power 230v: 3kW
• Maximum power 230v: 3,3 kW
• Nominal power 400v: 4,2 kW
• Maximum power 400v: 5kW
• Socket: 2 x 230V / 50 Hz
• Permanent current: 12V / max. 8,3 A
• Power factor: cos φ1
• Mute generator housing: steel, glued from the inside with soundproofing mat
• Starter battery: 20 Ah
• Power factor: cos φ1
• Protection rating: IP23M
• Socket "ATS" - YES
• Type of generator winding: copper
• Acoustic power level in dB (A): 97
• Large transport wheels built into the housing: 4 pcs
• Hands: transport

Dimensions

Dimensions in the package:

• Width: 95 cm
• Depth: 55 cm
• Height: 82 cm
• Weight: 160 kg

Dimensions without packaging:

• Width: 91 cm
• Depth: 53 cm
• Height: 75 cm
• Weight: 148 kg
