Dyzelinis vandens siurblys 6,5 AG, 36 000 l/val., 2", su 0,6 l alyvos

Trumpai apie prekę

Prekė: Dyzelinis vandens siurblys 6,5 AG, 36 000 l/val., 2", su 0,6 l alyvos. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: TAGRED
• Modelis: TA551

The TAGRED diesel engine is the perfect equipment for hard work!

A very durable pump that meets strict safety standards is irreplaceable for pumping out water in places where there is no access to electricity.

It will work, for example for construction work, it will help during major flood disasters.

High engine power 6,5HP! translates into pumping efficiency: 36000 l/h. Our pumps are irreplaceable for pumping clean and dirty water (irrigation of fields and meadows, pumping of flooded rooms, water reservoirs, construction excavations, etc. ). High quality of workmanship, proven design and high engine power ensure satisfaction with the operation of the device. Motopump has low vibration system.

Composition of the set

• Motopump
• Suction basket,
• 2 clamps,
• 2 stubs,
• key to candles,
• 4 rubber legs.
• engine oil

Technical data

• Model: TA551
• Nominal power: 4,8KW/6,5HP
• Engine Type: 4 stroke engine
• Tank capacity: 3,6 l
• Connection: 52 mm - 2"
• Capacity: 600l/min
• Fuel Type: Unleaded Petrol 95
• Lifting height: 30m
• Maximum suction depth: 8m
• Starting: Manual

Dimensions:

• Length: 470mm
• Width: 380mm
• Height: 370mm
• Weight: 22kg / with 24kg carton

Why is it worth it?

• Powerful motor of Japanese OHV design dedicated by TAGRED for this type of pump
• Bold engine body castings
• Motor equipped with a decompressor for easy start-up
• Silencer of the latest generation
• Low vibration system
• Proven design
• Smooth rotation adjustment
• Durable turbine

Unique innovations of TAGRED motor pumps that determine their superiority over competitive solutions

1 Engine of Japanese OHV design with 6,5 HP

A robust high-power motor, which is characterized by a high working culture, is a guarantee of trouble-free use of the equipment. The engine has: thicker body castings, reinforced valves, decompression for easy start-up, carburetor with adjustable speed / efficiency, oil level sensor.

It is worth emphasizing that the engines used in Tagred motor pumps are not overclocked. Our engine running at full power is never overloaded, which ensures trouble-free and economical operation, consumes less fuel.

2. Durable, additionally muted silencer

3. Return of the transfer of water coming out of the turbine in a direction not colliding with the surface of the silencer.

This solution gives maximum operational safety, because there is no possibility of contact between the exhaust hose and the heated silencer.

4. A new way to fix the rotor on the motor shaft with a wedge and central screw

It gives us a reliable combination of elements and ensures long-lasting, trouble-free operation. In competitive pumps, the rotor is usually wound on a thread protruding from the motor shaft, which causes frequent defects, for example, damage to sealants and even damage to the motor shaft itself caused by the unscrewing rotor, which generates high repair costs.

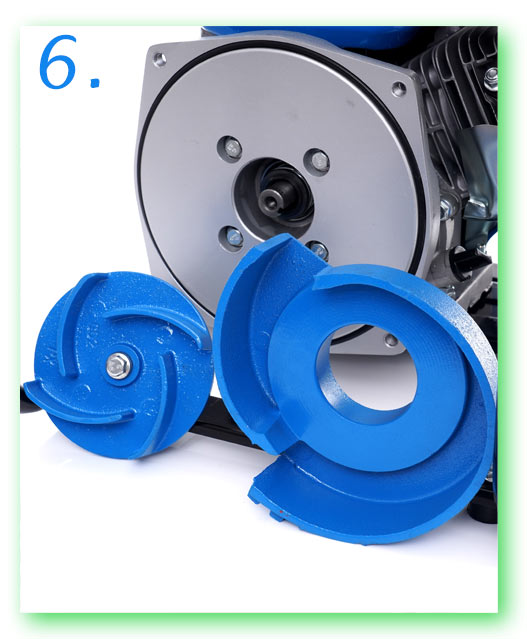

5. and 6. Enlarged, reinforced turbine with a maximum capacity of 36000Ll/h!

Specifications
