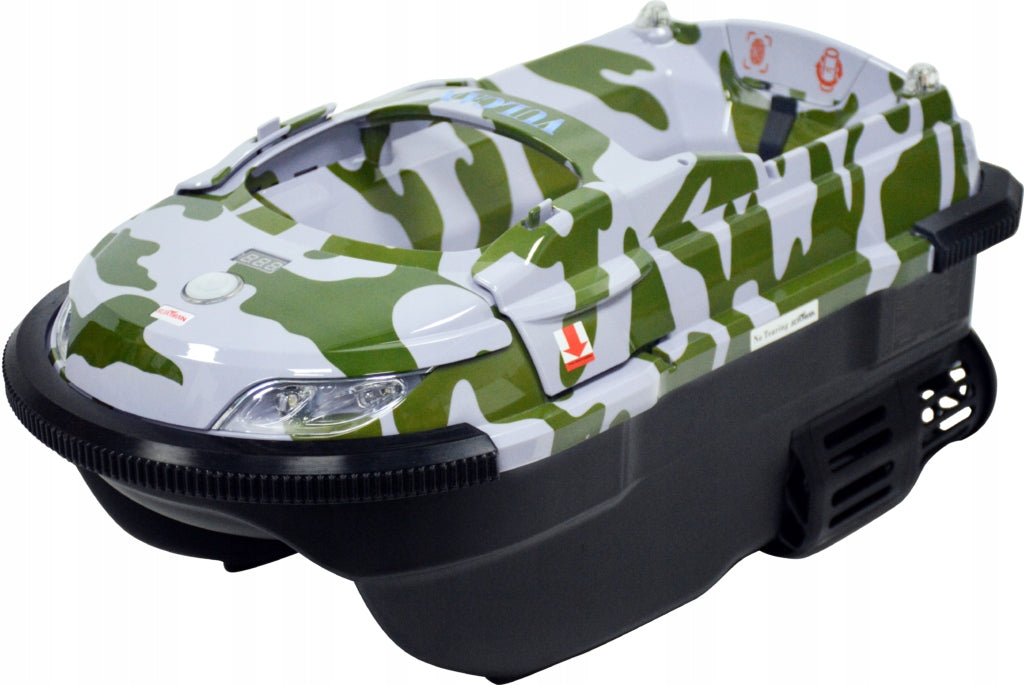

Echolotas Boatman Vulcan SONAR + Sn4

Trumpai apie prekę

Prekė: Echolotas Boatman Vulcan SONAR + Sn4. Kategorija: Masalinės valtėlės.

• Gamintojas: Boatman
• Modelis: Vulcan Sonar
• Svoris: 5000 g

• Boat weight:5 KG
• Hull size 520×297×231 mm
• Top-loading kit
• Pack of 575×342×270 mm
• Number of Metal Drain Flap: 2
• Capacity of the bait chamber 3 kg
• Additional removable handle so as not to get your hands dirty in the bait
• Bait chamber dimension: 35 x 19 x 8 cm so you can use very long rigs
• Number of metal trigger flaps 2 – opened individually or together
• Control range up to 500 m
• Turn radius ±1 m
• Radio operating frequency 2,4 GHz
• 3 Flow speeds set from the remote control
• Boat switch protected by silicone cover
• Power Supply: 2x Li-ion 7.4V / 12Ah (Total 24Ah)
• Automatic course correction
• WATERPROOF REMOTE CONTROL

Vulcan Sonar provides excellent visibility even in complete darkness:

Powerful LED headlights: Bright white lights on the front and red lights on the back allow you to immediately determine the direction of the boat from a long distance.

Remote control: You can turn the lighting on and off directly from the remote control, saving energy during the day.

Orientation on the water: The lights are placed so as not to blind the angler, and at the same time clearly signal the position of the boat on the water surface.

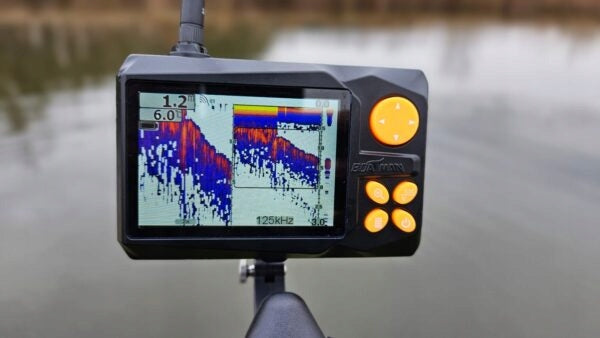

• 3,5 inch TFT LCD colour display – readable in all conditions
• Resolution: 65536 colors
• Chirp – Compressed High Intensity Radar Pulse
• ZOOM on details (possibility to enlarge the selected bottom scanning area)
• Possibility to choose 3 color modes
• Battery indicator in the sonar
• Range indicator between boat and screen
• Water temperature
• Depth: Range from 1 -40 m
• Working range up to 300 m
• Frequency 2,4 Ghz
• Built-in Li Po battery
• Working time after charging up to 3 hours
• USB charging port – C
• Cone frequency 125 Khz
• Bottom shaping with hardness
• Fish residence rate with depth and size of fish
• Settings of sensitivity, depth range, operating frequency...
• menu in Polish, English, Russian, Dutch, Czech, Chinese, French
• Water-resistant housing
• Stable connectivity even in bad weather conditions
• Screen holder for sonar on remote control
• Convenient and simple operation

• Continuous use time: 2-5 hours (in a mixed cycle) according to the selected speed and outside temperature
• The remote is backlit
• Large easy-to-read display
• Battery charging time in the boat: up to 10 hours
• Usage time: up to 5 hours
• Charging time: 4 hours at USB – C output.
• Remember to use the charger for the remote control up to 5 V -1 A

Category:

• Parameters, Technical details

Dimensions and Weight:

• Boat dimensions, 520 x 297 x 231 mm

• Net weight, ca. 5kg (with batteries)
• Material of hull, ABS plastic

SN4 echo sounder:

• Sonar type, Integrated professional SN4 sonar (125 kHz)

• Display, Color bottom image on sonar screen
• Sonar range, Up to 300 meters
• Working depth, From 0,6 m to 40 meters (accuracy 0,1 m)
• Analysis functions, Fish identification (3 sizes), bottom hardness, water temperature

Drive and Power:

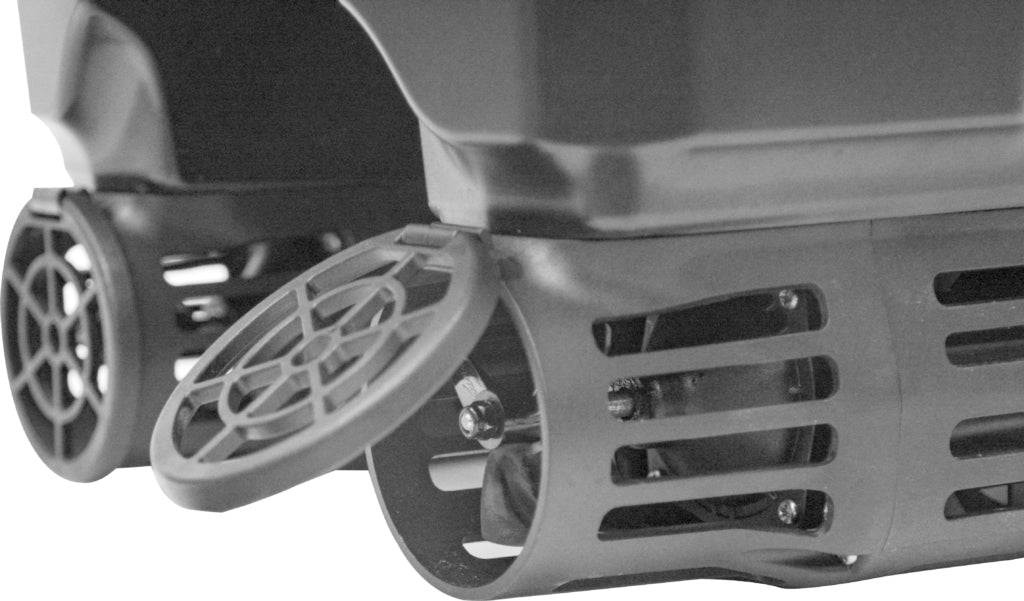

• Motors, High-speed jet engines

• Speed, Up to 80 m/min (3 modes: High / Medium / Low)
• Rotor protection, Special shields against aquatic vegetation and fishing lines
• Wave Resistance, Class 4

Power Supply:

• Boat batteries, 2x Li-ion 7.4V / 12Ah (Total 24Ah)

• Working time, Up to 5 hours (depending on the speed of flow)
• Mounting System, Plug-In System (Cableless Battery Sockets)

The baiting system:

• Chamber capacity, 3 kg

• Loading type, Top-Loading (instant loading from above)
• Release, Servo system

Lighting:

• LED system, Front reflector, 2x rear red (also directional), side lights

• Signaling, Pulsation of diodes at drop and voltage alarms

Control (RC):

• Control range, Up to 500 meters

• Waterproof, IPX6 remote control (completely resistant to downpour)
• Interface, Intuitive menu, one-handed operation, backlit LCD
