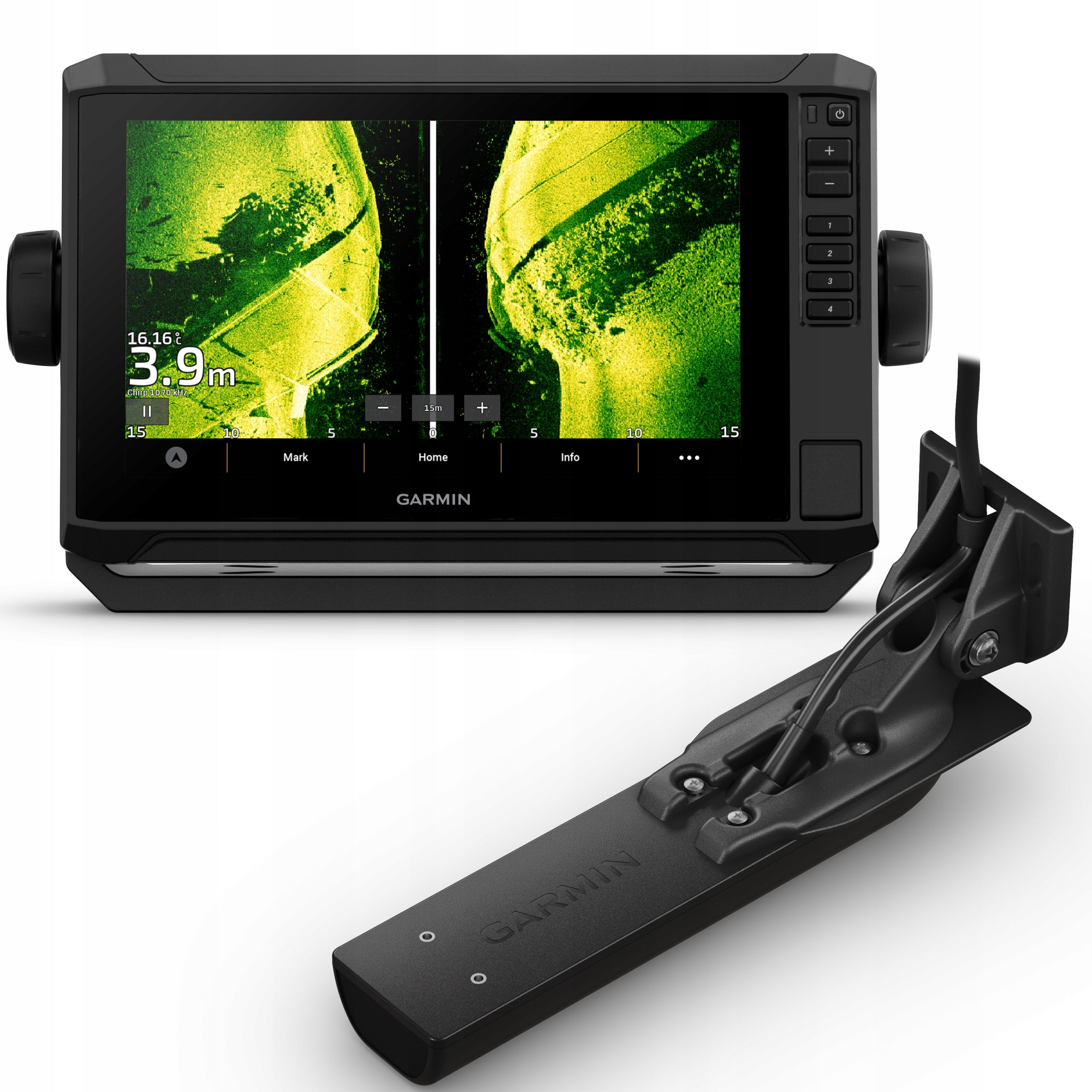

Echolotas Garmin Echomap UHD2 92sv su GT56UHD-TM keitikliu, suderinamas su Livescope

Trumpai apie prekę

Prekė: Echolotas Garmin Echomap UHD2 92sv su GT56UHD-TM keitikliu, suderinamas su Livescope. Kategorija: Echolotai.

• Gamintojas: Garmin
• Modelis: 92SV

The subject of the offer is a new Echo Sounder with GPS Garmin Echomap UHD2 92sv with GT56UHD-TM converter

CATALOG NUMBER 010-02687-01

Main features:

• Color multi-touch screen 9" WSVGA 1024 x 600 pixels
• Menu in Polish and metric system
• rich color palette of the displayed image
• 10 position very bright screen backlight
• possibility of vertical and horizontal division of the screen up to 3 windows
• Supported traditional frequencies: 50/77/83/200 kHz and CHIRP (low, medium and high frequencies)
• realistic lower scan CHIRP ClearVü 260/455/800 kHz and UHD ClearVü 800/1000/1200kHz
• realistic side scanning CHIRP SideVü™ 260/455/800 kHz and UHD SideVü 800/1000/1200kHz (depending on the transducer)
• built-in precision GPS: marking positions up to 5000 points, drawing the trace traveled, boat speed, the ability to read maps
• Quickdraw Contours allows you to create your own bathymetric maps in HD quality while swimming
• Instructions in electronic form uploaded to the device
• max. current consumption 1,5A
• supply voltage 10-20V DC
• Operating temperature -15°C to +55°C
• waterproof housing class IPX 7
• micro SD memory card slot up to 32 GB
• ability to read maps: Garmin Navionics+, Garmin Navionics Vision+, BlueChart g3 HD and BlueChart g3 Vision HD available in my other auctions
• Built-in Wi-Fi module that allows you to pair with the free ActiveCaptain application, control the Force bow motor and communicate with other selected Garmin Echomap plotters

By purchasing this product you get:

• sonar screen

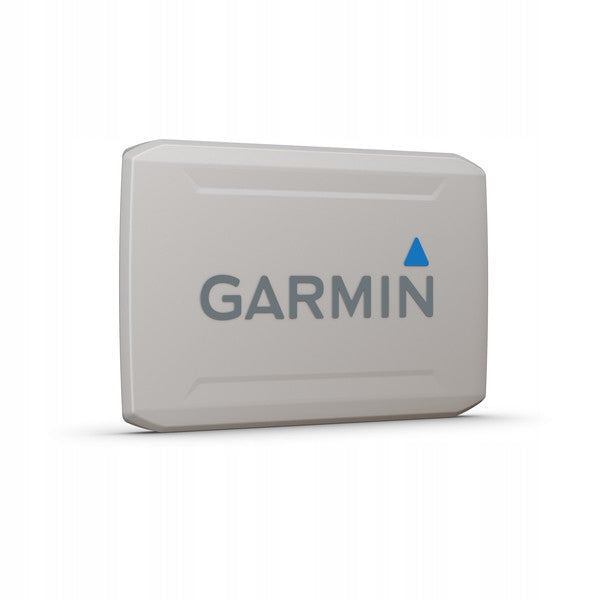

• screen protector
• tilt-turn stand
• GT56UHD-TM converter
• fixed transducer attachment to transoms
• attachment of the transducer to the electric motor
• power cable with fuse and for data transmission
• installation instructions in Polish
• 2-year warranty

Main features of the Garmin GT56UHD-TM converter:

• classic imaging CHIRP 150-240 kHz 350W beam width (-3dB) 24-16 degrees
• realistic bottom scan UHD ClearVü CHIRP 455 kHz (425 – 485 kHz), 800 kHz (790 – 850 kHz), 1000 kHz (940 – 1100 kHz) 500W
• realistic side scanning UHD SideVü 455 kHz (425 – 485 kHz), 800 kHz (790 – 850 kHz), 1000 kHz (940 – 1100 kHz) 500W
• max. range classic imaging 244 m fresh water
• max. range realistic lower ClearVü 122 m
• Side scanning SideVü 152 m
• measurement of water temperature in the transducer
• number of 12-pin contacts
• cable length 7,62 m

Other parameters:

• Supported frequencies: 50/77/200 kHz and ClearVü/SideVü 260/455/800/1000/1200 kHz
• Identification of fish symbols - an advanced feature showing fish as icons of different sizes with the ability to display the depth at which they are located
• Color Line - allowing you to determine the hardness of the bottom

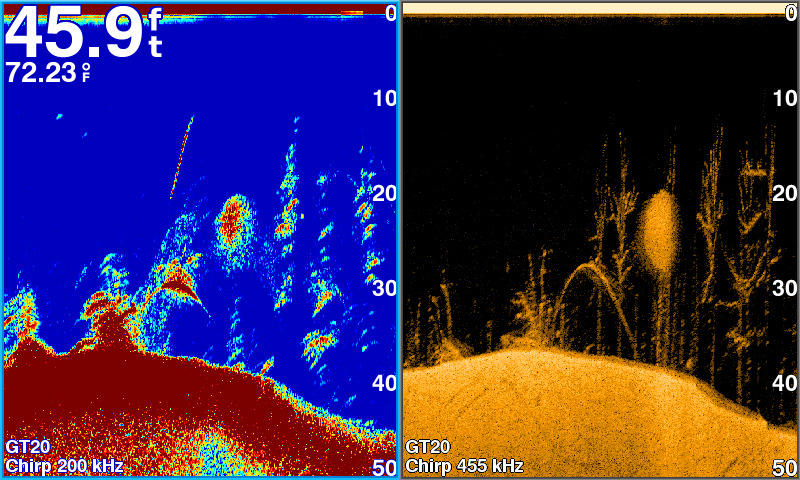

• ClearVü - provides an almost photographic representation of the bottom and objects in the water under the boat
• SideVü™ - so-called side scanning provides almost photographic representation of the bottom and objects located on both sides of the boat up to 150 m
• HD-ID™ - increased image resolution for increased object discrimination efficiency
• Zoom - function allows you to enlarge fragments of water tone and automatically track the bottom
• Sonar history browsing function - scrolling backwards to several screens of the recorded image
• Smooth Scalling™ - smooth image scaling when changing depth range
• Ultrascroll™ - display of fish shoals at higher boat speed
• AutoGain technology - reduces clutter, increases achieved goals
• A-scope - real-time display of fish flowing through the transducer beam
• Adjustable depth line - depth measurement of underwater objects
• Alarms: shallow water, deep water, battery voltage
• Fish alerts: all fish, medium and large fish, only large fish
• GPS alerts: arrivals, exits, anchorages
• Internal settings memory - the device remembers the last settings even after turning off
• Water temperature recording and graph

The descriptions in this listing, the HTML code of the listing, and the artwork are the property of Canoe. According to the "Act of 4 February 1994 on Copyright and Related Rights", any use of these materials in whole or in fragments without the consent of the owner is prohibited.

Echomap UHD2 echo sounder with DownVü and SideVü scanning sonar

The Echomap UHD2 with UHD drivers scans the bottom in Ultra High-Definition ClearViü and SideVü quality. This gives us a crystal clear picture of the situation under and around the boat. The device also supports the traditional Garmin CHIRP sonar for clear distinction between underwater objects.

With the Echomap UHD2 92sv, finding fish has never been easier. Mark your places so you can get back to them, as well as bridges for boats and docks. It is also possible to share points and routes with other STRIKER and echoMAP multifunction devices. Thanks to the Smooth Scaling function, switching between depth ranges does not cause any interruptions in the displayed image. The story scroll function in sonar allows you to view sonar images backwards to mark route points that may have been missed. Additionally, the sonar is equipped with a built-in sonar screen that displays speed data. Includes tilt-turn handle, transom and trolling motor installation brackets, software and cables.

Position and direction updated 5 times per second

The 5Hz GPS receiver with short response time refreshes position and direction 5 times per second for smooth movement on the screen. Now you can quickly and easily observe up to 5000 accurate points, so you can find your way to your “secret” fishing spots.

Take echoMAP with you

When you want to get off the boat, you can easily disconnect the echoMAP device and hide it in a safe place. You do not have to fight with wiring when connecting and disconnecting the device, because all cables are connected directly to its holder. This allows the Echomap device to be quickly connected to power and to the holder – and disconnected just as quickly.

Quickdraw Contours lets you create your own HD maps

This feature allows you to create real-time bathymetric maps while swimming. Create personalized HD fishing maps on the screen with isobaths every 30 cm. Customize them to your needs. These maps are yours – they are yours. Keep the data to yourself or share it with the Quickdraw community in Garmin Connect™. Maps can be freely colored. We choose the color and set our own depth ranges.

ActiveCaptain application

Echomap UHD2 92sv has a built-in Wi-Fi module that allows you to pair it with the free, universal ActiveCaptain app. After the case, you can view notifications from your phone directly on the screen. It is also possible to use the Quickdraw Contours community and share your maps and download new map data. ActiveCaptain also allows you to download updates for your fishing echo sounder via Wi-Fi.

SUPPORT FOR SONAR

This navigation plotter supports multiple Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning echo sounder for real-time observation of everything around the boat.

NETWORK SUPPORT

If multiple compatible ECHOMAP UHD2 or ECHOMAP Ultra2 devices are available on the boat, you can, among other things, share information such as sonar readings, user data and maps wirelessly over Wi-Fi.

COMPATIBILITY WITH FORCE™ OUTBOARD ENGINES

Take control of the most efficient and powerful outboard engine on the market, as well as route to selected points, navigate tracks and more – from the navigation plotter screen.
