Echolotas Humminbird HELIX 7 CHIRP SI GPS G4

Trumpai apie prekę

Prekė: Echolotas Humminbird HELIX 7 CHIRP SI GPS G4. Kategorija: Echolotai.

• Gamintojas: Humminbird
• Modelis: HELIX 7 CHIRP SI GPS G4

OVERVIEW

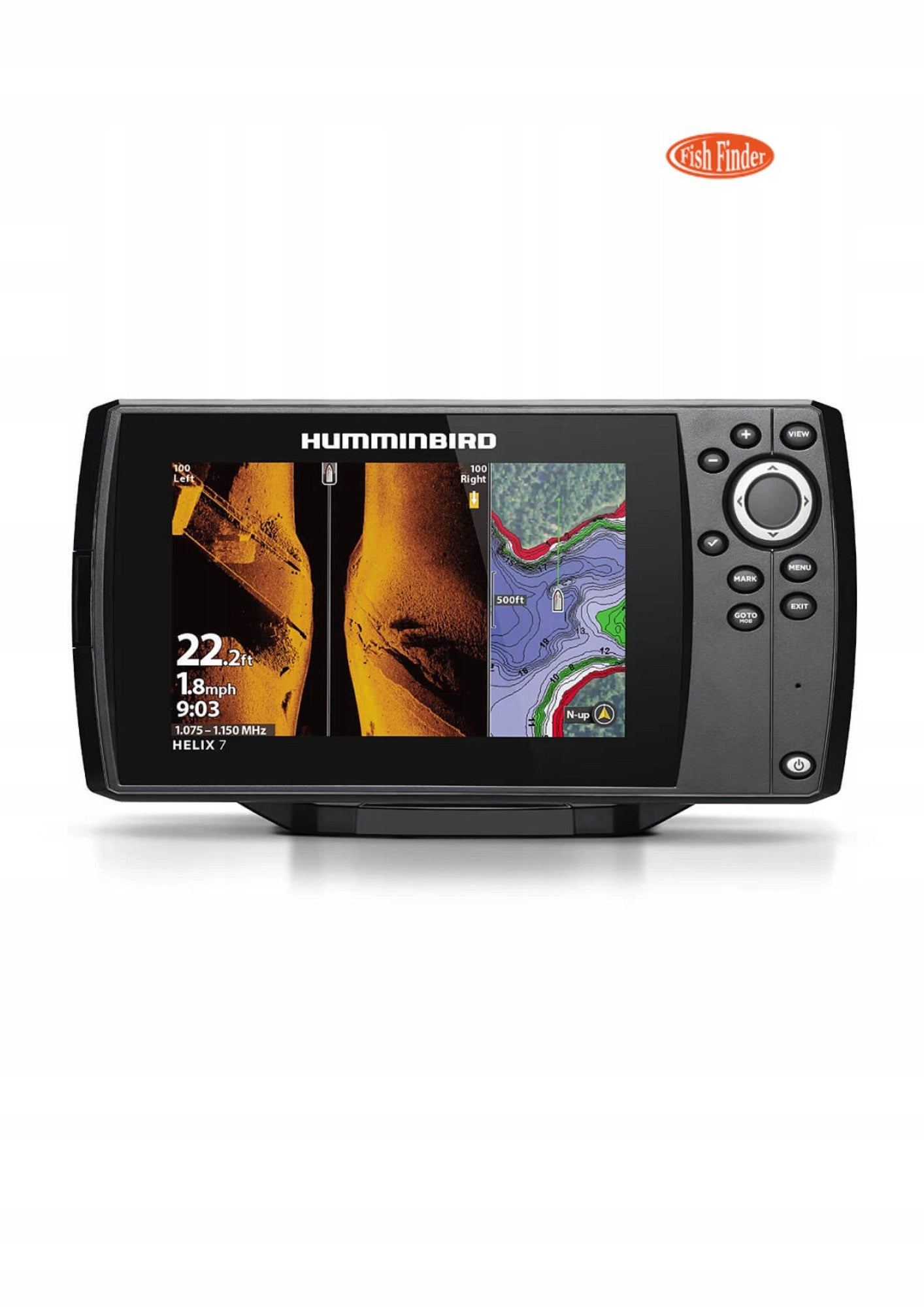

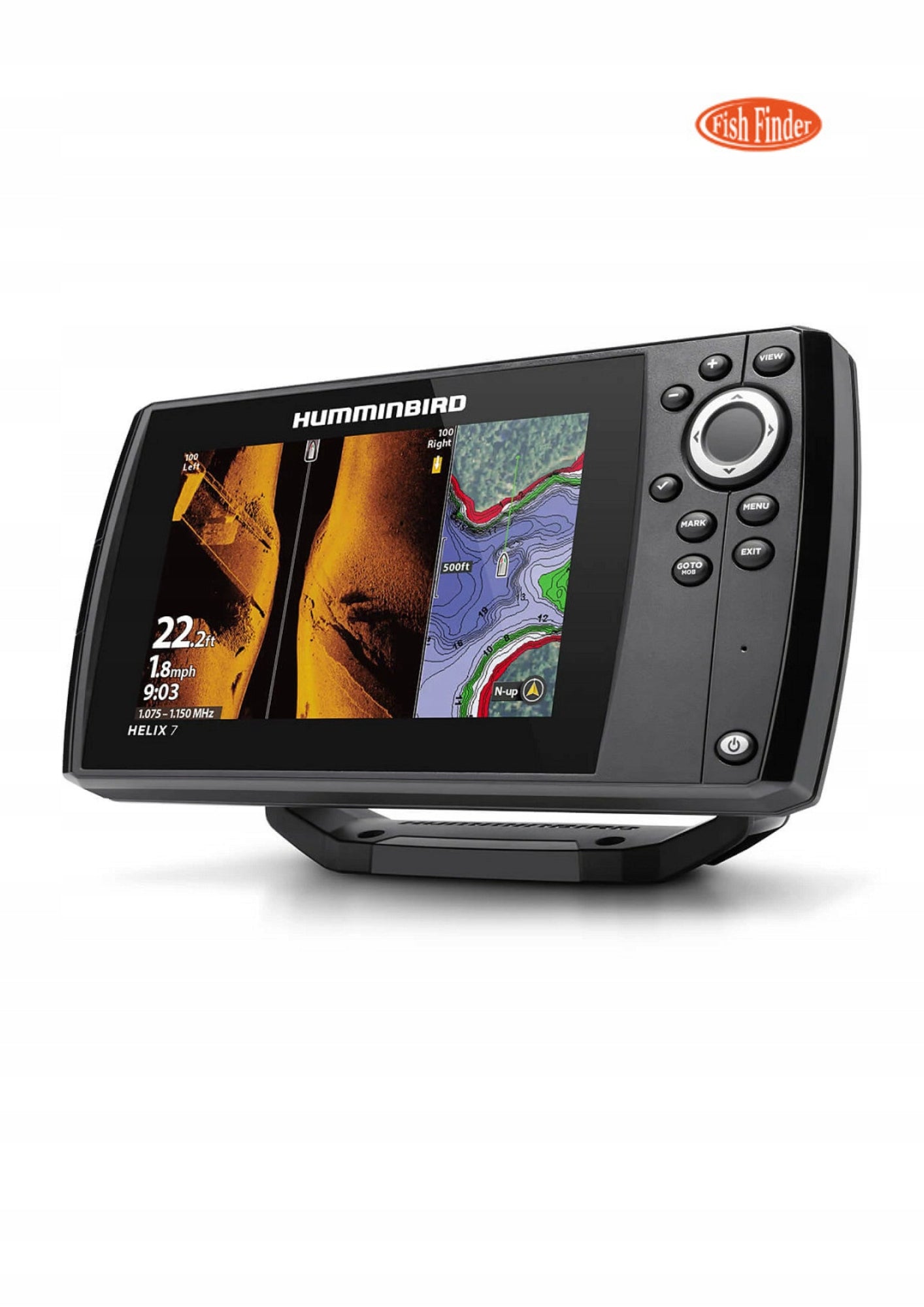

The HELIX 7 CHIRP SI GPS G4 echo sounder has built-in CHIRP Side Imaging, CHIRP Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, internal GPS and Humminbird Basemap. The upgraded 7-inch high-resolution display provides the best view from multiple preloaded split-screen view options, so you'll never miss a fish.

High-resolution display

Lateral imaging

A razor-thin, high-frequency beam that creates images-like images of structures, vegetation, and fish.

CHIRP stands for “compressed high-intensity radar pulse”. Covering a wide range of frequencies, CHIRP provides more accurate, detailed data on fish, structure and bottom.

Dual-band CHIRP sonar – Covering a wide range of frequencies, CHIRP provides more accurate, detailed information about fish, structure and bottom.

Precise GPS ensures accurate positioning, which means more accurate navigation points and boat positioning for better fishing.

Humminbird Base Map - Based on freshwater data from LakeMaster and NOAA, these maps provide a clear view of the underwater terrain. Identify battles, day markers, threats, marinas, and countless other navigation aids and places of interest. You will also see contours, depth markings and, in the case of coastal areas, point probing.

Map water while driving the boat and store data in the sonar or import it into AutoChart PC.

Single Micro SD slot

LakeMaster Lake Maps features unparalleled, easy-to-read contours, highlighted depth ranges, scrollable lake lists, and more.

These maps include all LakeMaster features with one key addition: high-resolution aerial photography of lakes, ensuring visibility of docks, buildings and structures.

SmartStrike cards combine High Definition LakeMaster lake map data and extensive search algorithms to help you find a pattern and locate fish at any time of the year.

CoastMaster maps provide unparalleled coastal and marine fishing performance.

Track other ships with Humminbird's state-of-the-art AIS technology. Eliminates risk and guesswork from navigating high traffic channels or poorly visible seas.

Set the direction or turning pattern and maintain the route you choose, regardless of speed or sea and wind conditions.

• Object number: 411590-1
• Series: HELIX
• Display size — diagonal: 7"
• View pixel matrix: 1024H x 600V
• Sonar-Standard: Dual Spectrum CHIRP, CHIRP Down Imaging, CHIRP Side Imaging
• Sonar coverage: 20°, 42°, 60° and (2) 86° at -10dB
• Sonar-option: 53 kHz, 50/low Airmar CHIRP
• CHIRP — supported frequencies: 83/200 (75-155/130-250 kHz), full mode (150-220 kHz), narrow mode (180-240 kHz), wide mode (140-200 kHz)
• Supported sonar frequencies: 50/83/200/455/800 kHz
• Deep-sonar: 1200 feet (standard converter), 3500 feet (50 kHz optional)
• CHIRP — Supported imaging frequencies: 455 kHz (420-520 kHz), 800 kHz (790-850 kHz)
• Depth imaging: 400 feet (455 kHz), 125 feet (800 kHz)
• Side-to-side imaging: 800 feet (455 kHz), 250 feet (800 kHz)
• Interface: Keyboard control
• Features: Built-in GPS, Built-in Mapping, Dual Spectrum CHIRP, Down Imaging, Side Imaging
• Memory card slot: Single microSD card
• Compatible with: AIS, Autopilot, Minn Kota US2 Sonar
• Power consumption: 800 mA
• Power Input: 10,8-20 V DC
• Inter-peak output power: 4000 watts
• RMS output power: 500 watts
• Screenshot: Included
• Sonar recording: Included
• Install-Standard: Gimbal
• Install-Standard size: 10,54" wide. x 5,8" H x 3,68" D.
• Install-optional size: 10,54" wide. x 5,44" H x 1,13" D.
• Place of transducer assembly: Bolt
• GPS Charts: Included
• GPS tracking: Included
• Compatibility with LakeMaster: TAk
• Compatibility Coast Master: TAk
• Compatibility of Navionics Gold/HotMaps: TAk
• Platinum Navionics + Compatibility: TAk
• Platinum compatibility: TAk
• GPS compatibility with direction sensor: TAk
• Update Software: TAk
• Display preset keys: No
• X-Press Menu System: TAk
• Custom digital reading: TAk
• Custom view selections: No
• Display grayscale colors: 16-bit
• Display Size: - 7"
• Speed: Included
• Temperature: Built-in
• Temperature alarm: TAk
• Temperature chart: TAk
• Transducer included: XNT 9 HW SI T
• Compatible with HDMI: No
• Live MEGA compatibility: No
• UPC: 0082324056123

Keyboard control: Master HELIX at the touch of a button. Access preloaded views from a user-friendly menu system, operated with software buttons that allow you to reliably operate the sonar in all conditions.

CHIRP Side Imaging: Filter out noise and clutter for a clearer picture of the world below and on both sides of the boat. The CHIRP Digital Sonar side imaging sonar processing means you'll see fish and structures on the left and right sides of the boat, so you can spend less time searching and more time fishing.

CHIRP Down Imaging: Filter out noise and clutter for a clear view under the boat. Processing CHIRP digital sonar from Down Imaging sonar means you’ll see very detailed information, making finding fish simple and easy.

Dual Spectrum CHIRP Sonar: Before you start throwing, find out what’s out there with highly detailed fish arches and a clear view of the structure holding the fish and bottom. Powered by our proprietary Low-Q CHIRP converter, the Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide mode for maximum coverage and Narrow mode for focusing on the smallest details.

Internal GPS and Humminbird Base Map: Our improved base map provides a clear view of the underwater terrain and surrounding points of interest, so you can fish and navigate with complete confidence. Identify buoys, day markers, gambling, marinas, contours, depth markers and much, much more. Includes maps of more than 10 000 lakes and coastal coverage of the continental United States

Premium Map Compatibility: Humminbird provides the most complete range of premium map options for anglers around the world. Get a complete picture of the world below with optional maps from Humminbird’s LakeMaster® and CoastMaster™ products, as well as compatible Navionics® maps of your choice.

AutoChart Live: Create real-time maps of your fisheries with access to patented Humminbird® LakeMaster® features. Mapping depth contours, bottom hardness and vegetation while riding a boat. It comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards, providing virtually infinite AutoChart Live mapping capacity.

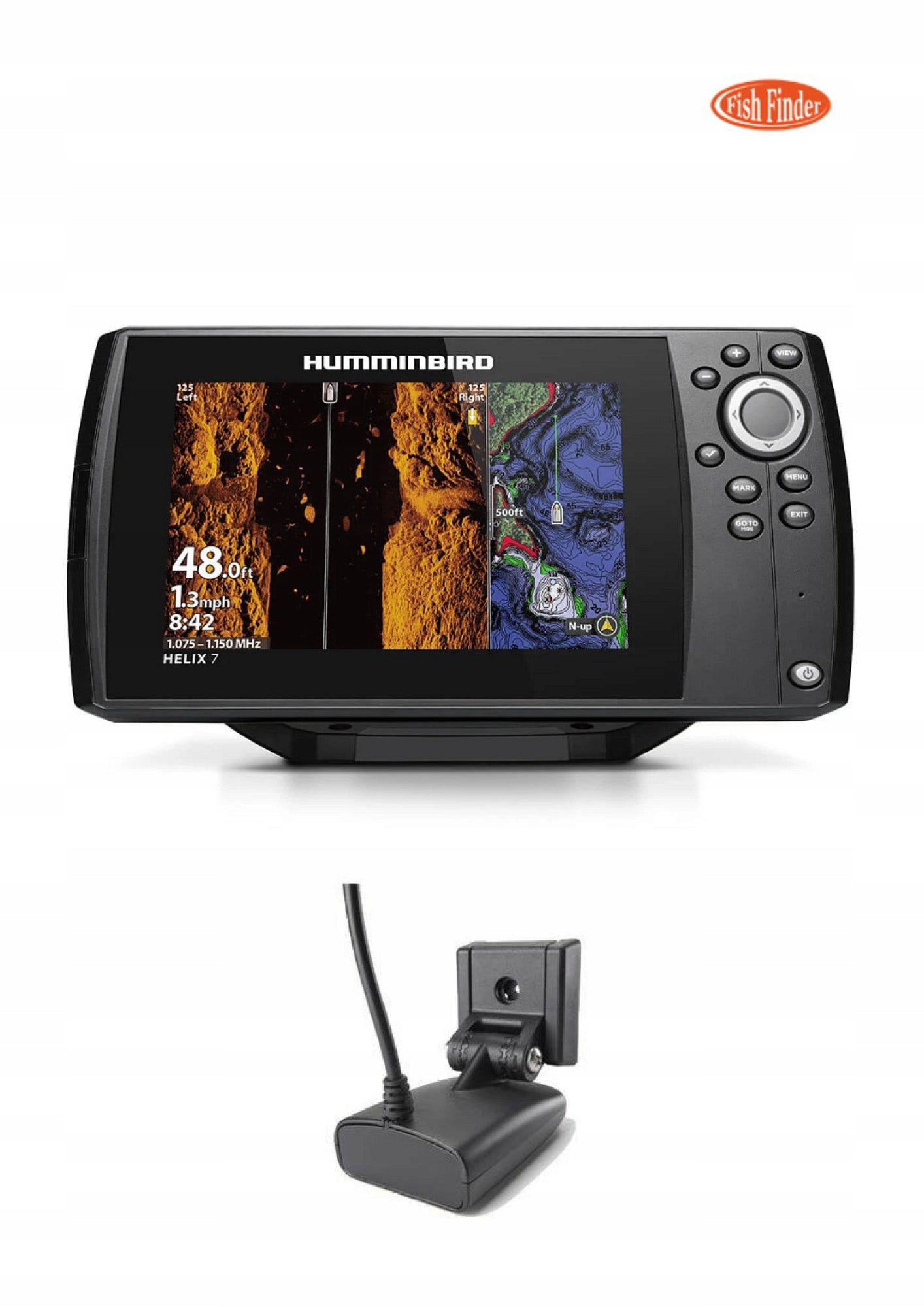

Includes control head, transom mounted transducer, power cable, gimbal mounting bracket and mounting hardware.
