Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: 3 eur
Aprašymas
Trumpai apie prekę
Prekė: Ekskavatoriaus, buldozerio ir greiderio valdymo sistema LEVELER DIGGER RC LAMIGO. Kategorija: Lazeriniai gulsčiukai.
- Gamintojas: Lamigo
- Modelis: DIGGER RC
- Svoris: 3.1 kg

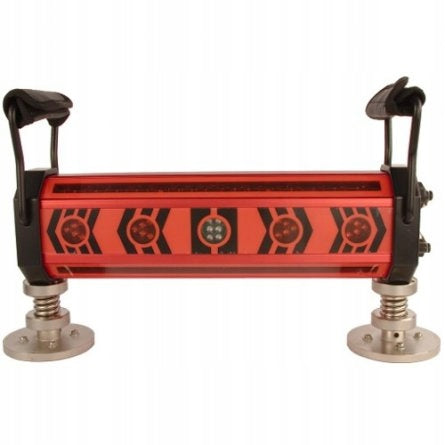

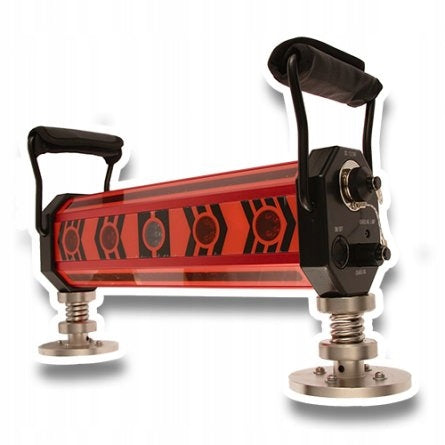

Digger RC is a laser detector mounted directly on a construction machine. It detects in 360° the plane emitted by the rotational laser and shows the operator whether it is too high, too low or perfectly horizontal.
Thanks to this, the operator does not have to get out of the cabin or check the height manually. He sees everything on an ongoing basis on the repeater in the cabin.
What is it for?
The Digger RC allows you to control the height and drop at:
- excavations
- land planting
- ballasts
- foundations
- parking lots
- roads
- levelling of the site
You mount it on:
- excavators
- bulldozer
- equalizer
- chargers

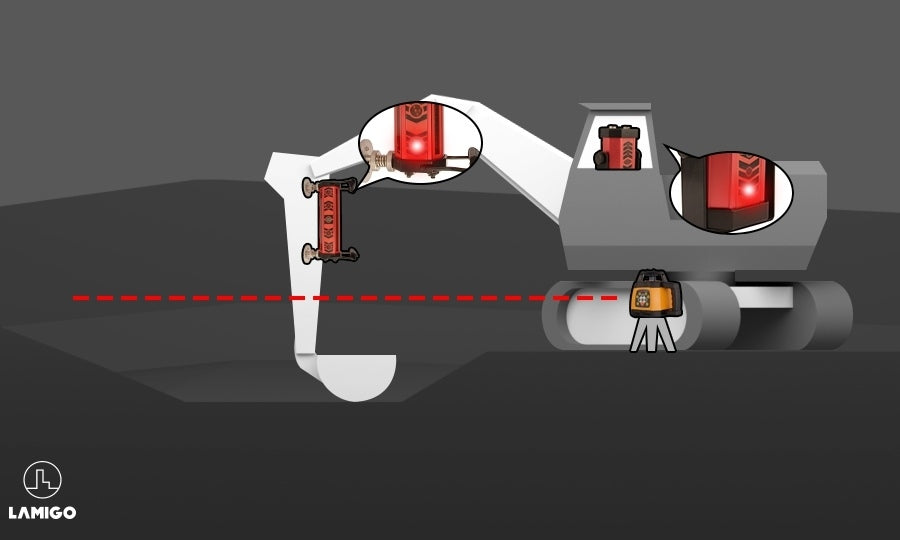

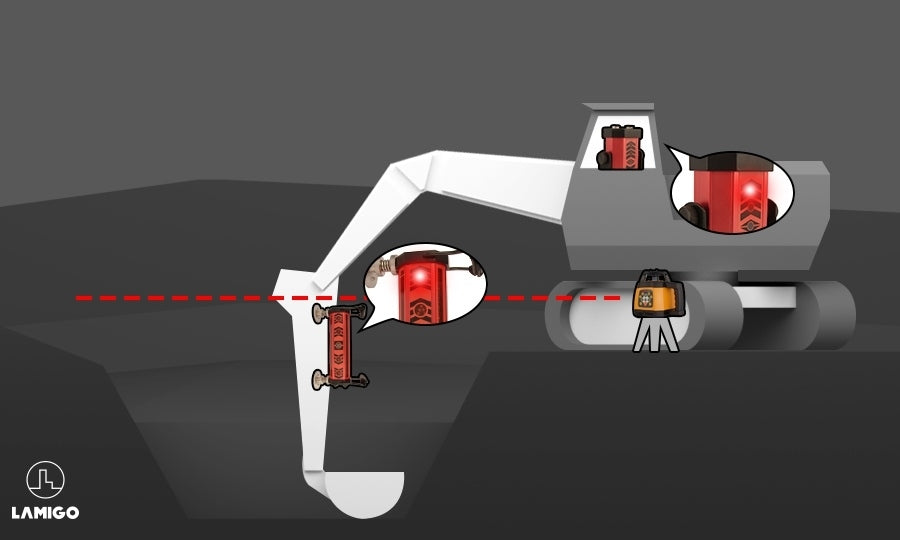

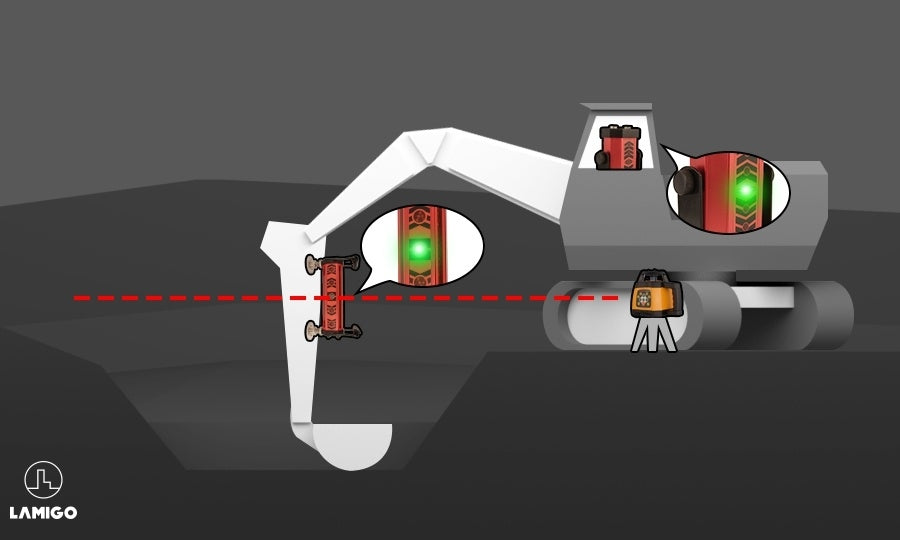

How does it work?
A rotary laser (any manufacturer) creates a reference plane.
Digger RC receives it and shows the operator in real time:
- whether it is above the level
- whether below
- whether exactly in the axis
No need to leave the machine or use stakes.
The most important advantages
Works with lasers from different manufacturers
It is not assigned to a single brand.
Visibility 360°
He picks up the beam from all sides.

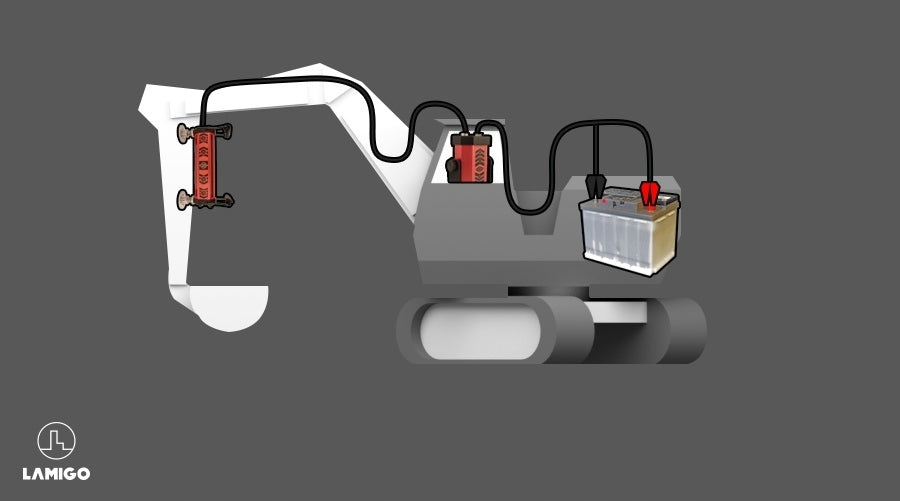

Power supply from the machine or from your own battery
It can work:
- from batteries
- or from a 12 to 24 V installation
Magnetic handle
Quick installation without drilling.
Repeat in the cabin
The operator can see everything without leaving the chair.

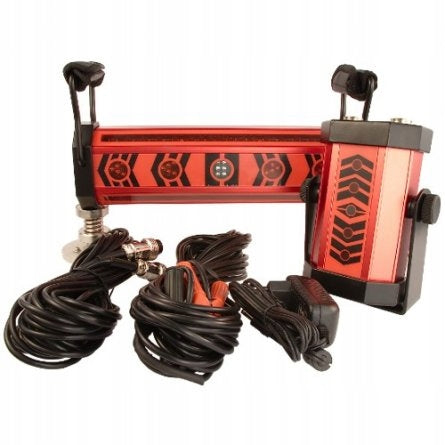

What's in the kit?

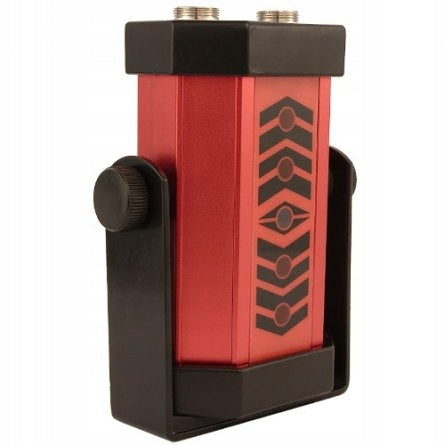

✔ Digger RC detector
✔ magnetic holder
✔ repeater to the operator's cabin
✔ connection cables 10 m
✔ charger
✔ instructions
Technical data
- Parameter: Value
- Accuracy (precision mode): ±2 to ±10 mm
- Accuracy (coarse mode): ±5 to ±23 mm
- Internal power supply: NiMH 7,2 V / 2500 mAh
- External power supply: 12 V or 24 V from the machine
- Working time: approx. 40 hours
- Temperature range: –20°C to +50°C
- Dimensions: 376 × 180 × 49 mm
- Weight: 3,1 kg
- Attachment: magnetic holders
Check available levelers on our auctions
We offer a full range of rotary lasers and levelers that work with the Digger RC system. Take a look at our auctions and choose a laser perfectly suited to your machine and type of work.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Lamigo |
| Parametry | Model | DIGGER RC |
| Parametry | Power supply | rechargeable battery |
| Parametry | Maximum working range | 250 m |
| Parametry | Measurement accuracy (+/-) | 2 mm |
| Parametry | Weight | 3.1 kg |
| Parametry | Manufacturer code | 135102 |
| Parametry | EAN (GTIN) | 5904238930236 |
| Parametry | Batteries included | yes |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
