Elektrinė gervė 1,6T, 12V, su lynu, tinkama keturračiams

Trumpai apie prekę

Prekė: Elektrinė gervė 1,6T, 12V, su lynu, tinkama keturračiams. Kategorija: Keltuvai.

• Gamintojas: Dragon Winch
• Modelis: dwh3500

HIGHLANDER series - when speed matters

Main features of the winch:

• Pull 1588 kg (3500 lbs)

• Voltage 12V

• Engine power 1,6 HP

• Rope length 15 m

• 3-speed transmission made of high-quality steel

• Relay type container

• automatic brake

Consumer Laurel - thanks to high recognition and high quality products, winner of the consumer award.

ISO 9001 certificate - confirmed the highest quality of materials used and constantly improved processes of improving the quality of products.

Declaration of conformity CE - our products meet the requirements of the so-called directives. The "New Approach" of the European Union.

100% Dragon Winch - the original is only one. Confidence and reliability for many years, as well as technical support and competent advice and express service.

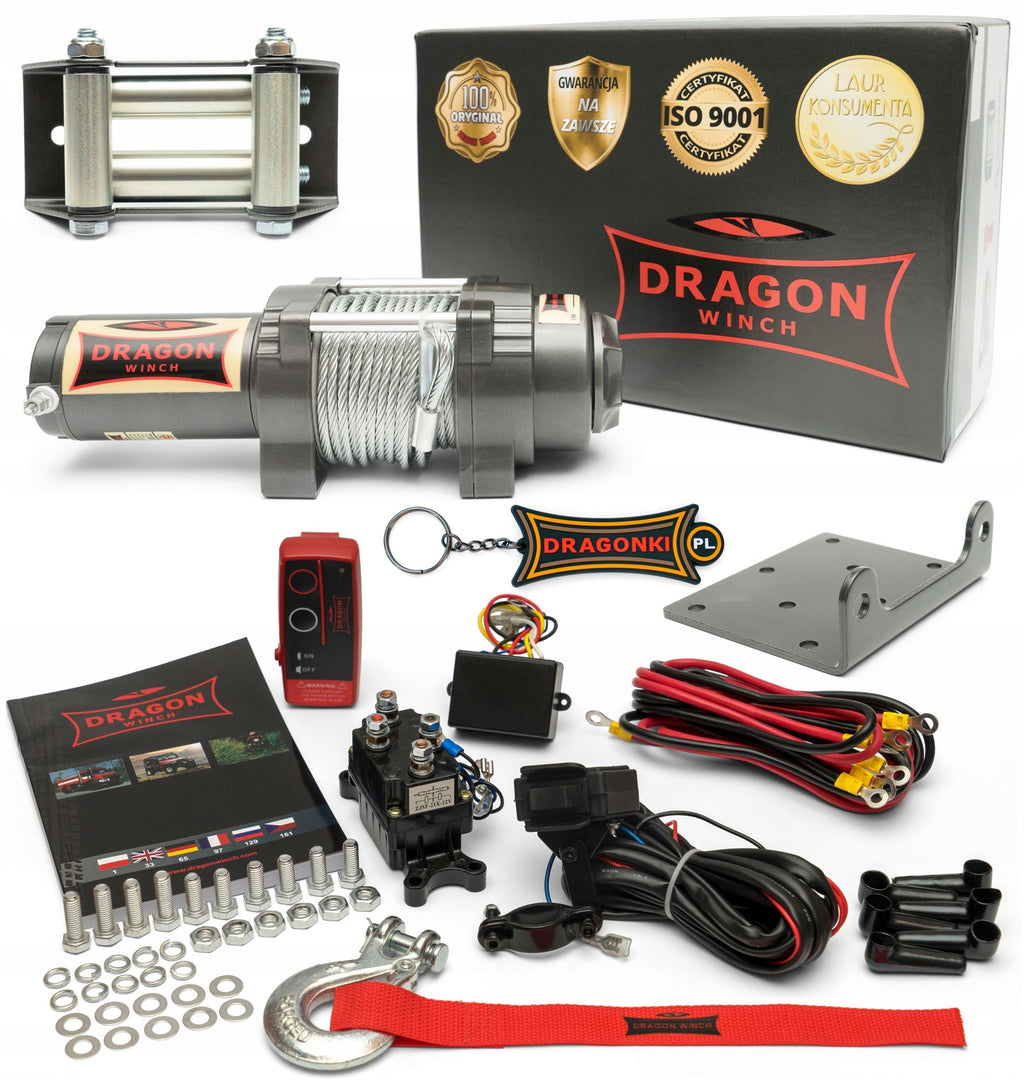

• Roller guide

• Cables and screws

• Rope with hook

• Relay 200 A

• Controller on cable with handle

• Wireless remote control with receiver

• Universal mounting plate

• Instruction in Polish

• Unique 3D keychain measuring 3cm x 8cm

• For those who are looking for a powerful winch without having to break the bank.

• Its design allows for a variety of mounting options, making it ideal for quads, ploughs, and buggy vehicles.

• Winch with a modern look, proven performance and legendary reliability from Dragon Winch.

• The new sealing system provides a high degree of resistance to water, dust and other contaminants.

• 3-stage planetary transmission with a new design for efficient and reliable operation.

• The control is carried out independently using a cable remote control or thanks to a wireless remote control with a range of 30 meters.

• Highlander winch series - low gear ratio and powerful motors, which guarantees fast work when winding and unwinding the rope

Guarantee of quadruple protection against:

• water

• mud

• snow

• sand

Ergonomic wireless remote control with an extended range of up to 40 meters. Equipped with an on/off switch and a hole for hanging on a leash. Powered by one A23 battery.

In addition, the set includes a "cradle" controller connected with wires. Mounted with a handle.

• Application of quady extreme, UTV, light cars - rear of vehicle

• Voltage 12 V

• Power 1,6 HP

• Pull 3 500 lb / 1 588 kg or 7 000 lb / 3 176 kg - using a block

• Transmission three-stage planetary transmission

• Reduction 136 : 1

• Type of brake automatic

• Length of wire rope 15 m

• Guide 4-roll

• Dimensions (L. x W. x H ) 347 mm x 114 mm x 120 mm

• Mounting screw spacing 124 mm x 76 mm

• Weight 11 kg

Rolling speed of the rope (first layer of rope on the drum)

• 1. Rope load in kg

• 2. Rope speed m/min.

• 3. Power consumption in A

Drawing force depending on the rope layer

• 4. Layer of rope

• 5. Pulling rope in kg

• 6. Number of rope on the drum in meters

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Dragon Winch
Parametry	Power supply	rechargeable battery
Parametry	Maximum load capacity	0 t
Parametry	Lifting height	0 m
Parametry	Rope diameter	0 mm
Parametry	Manufacturer code	dwh3500
Parametry	EAN (GTIN)	5903140654902
Parametry	Batteries included	no
