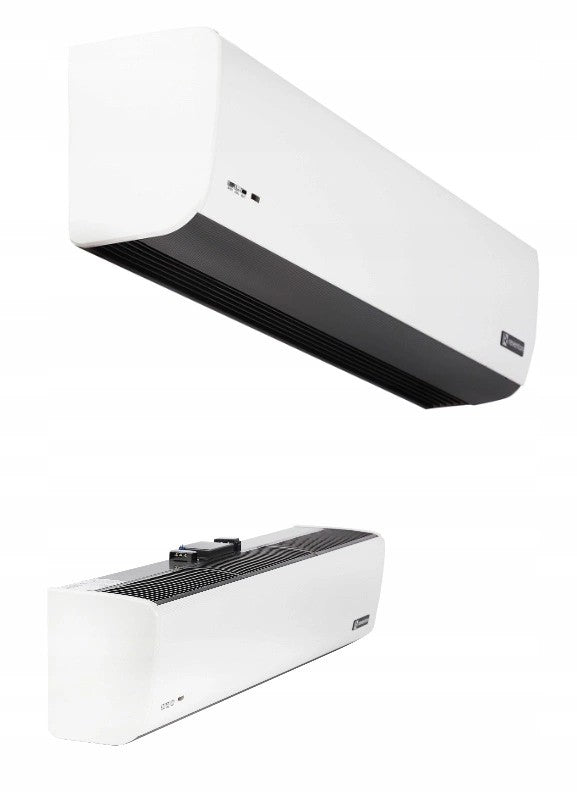

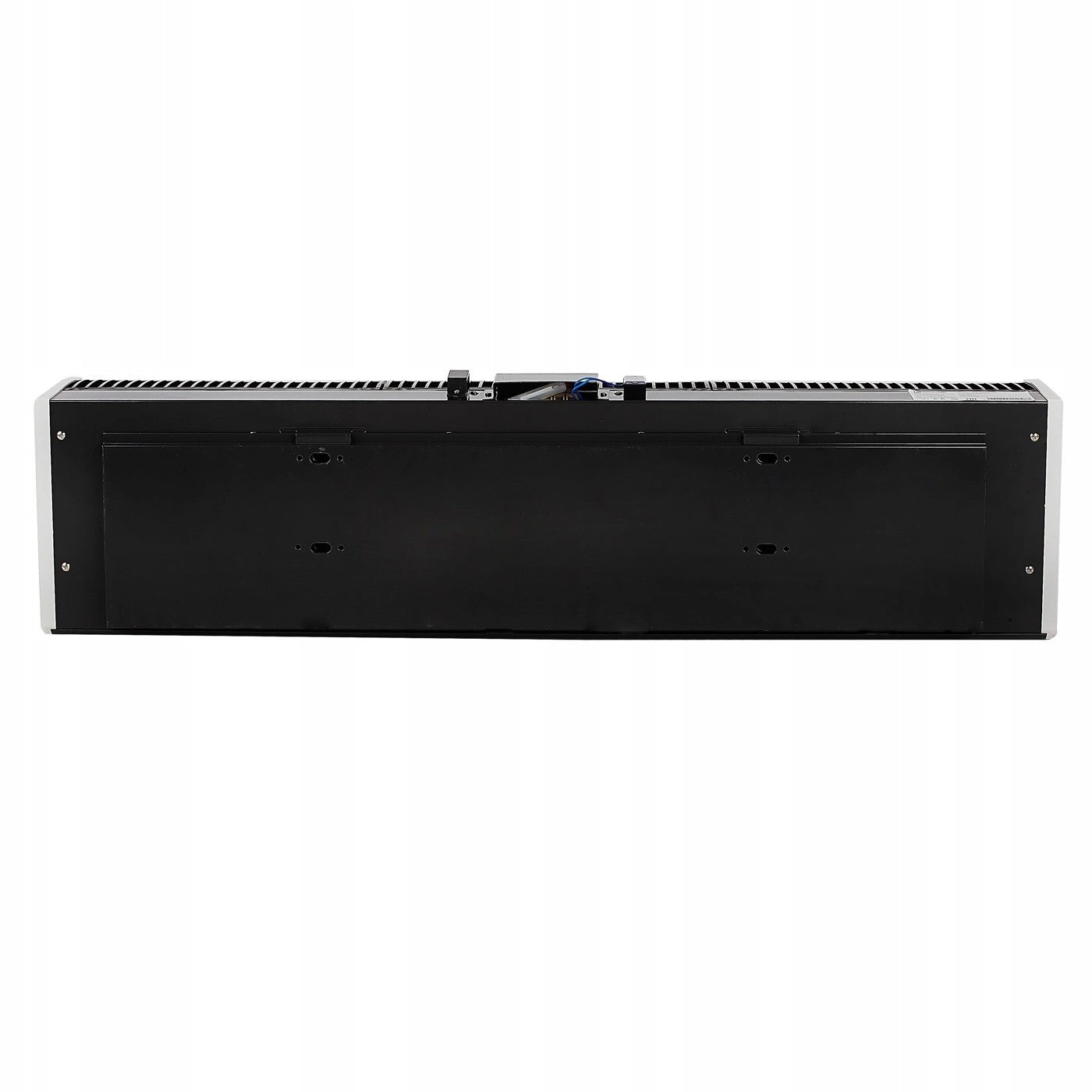

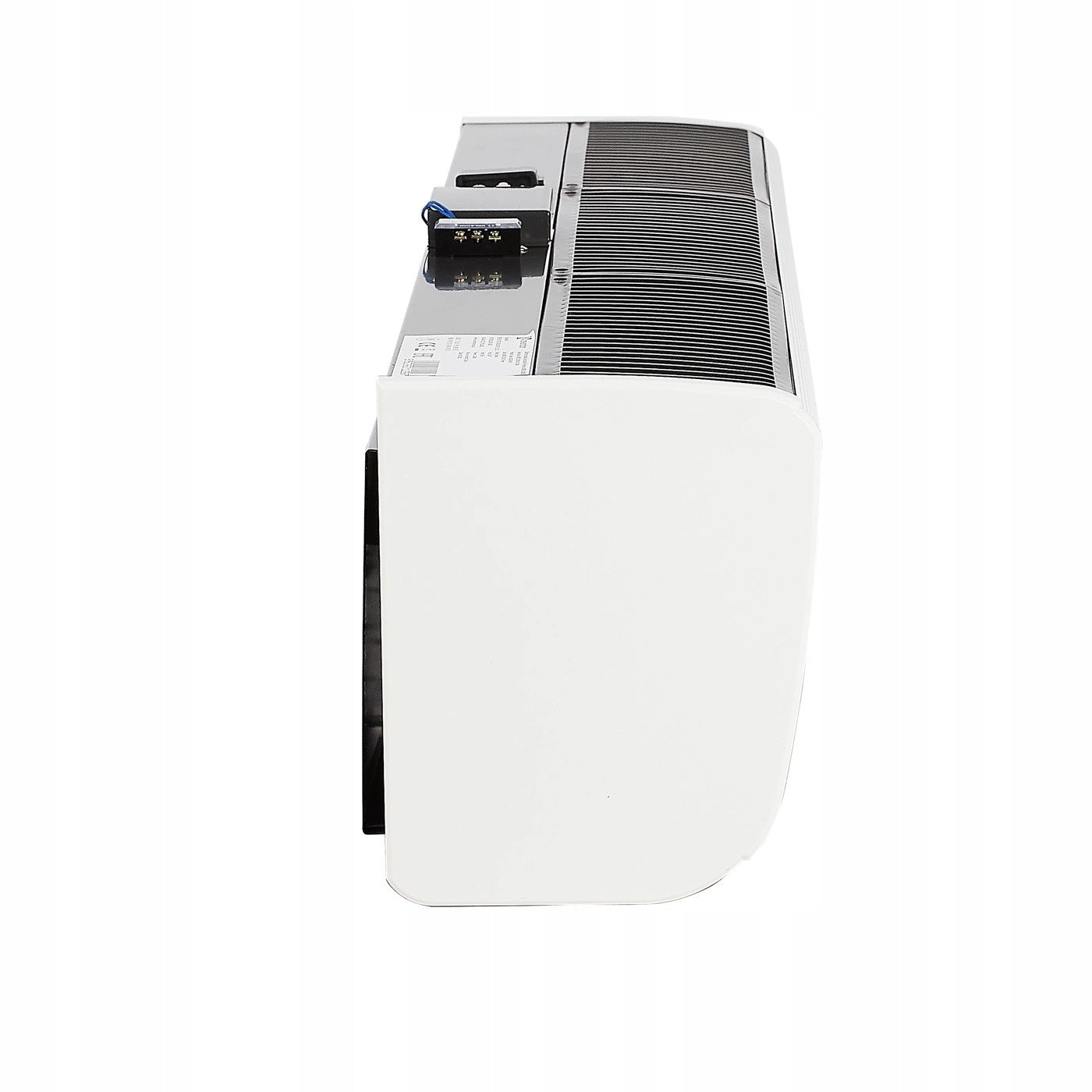

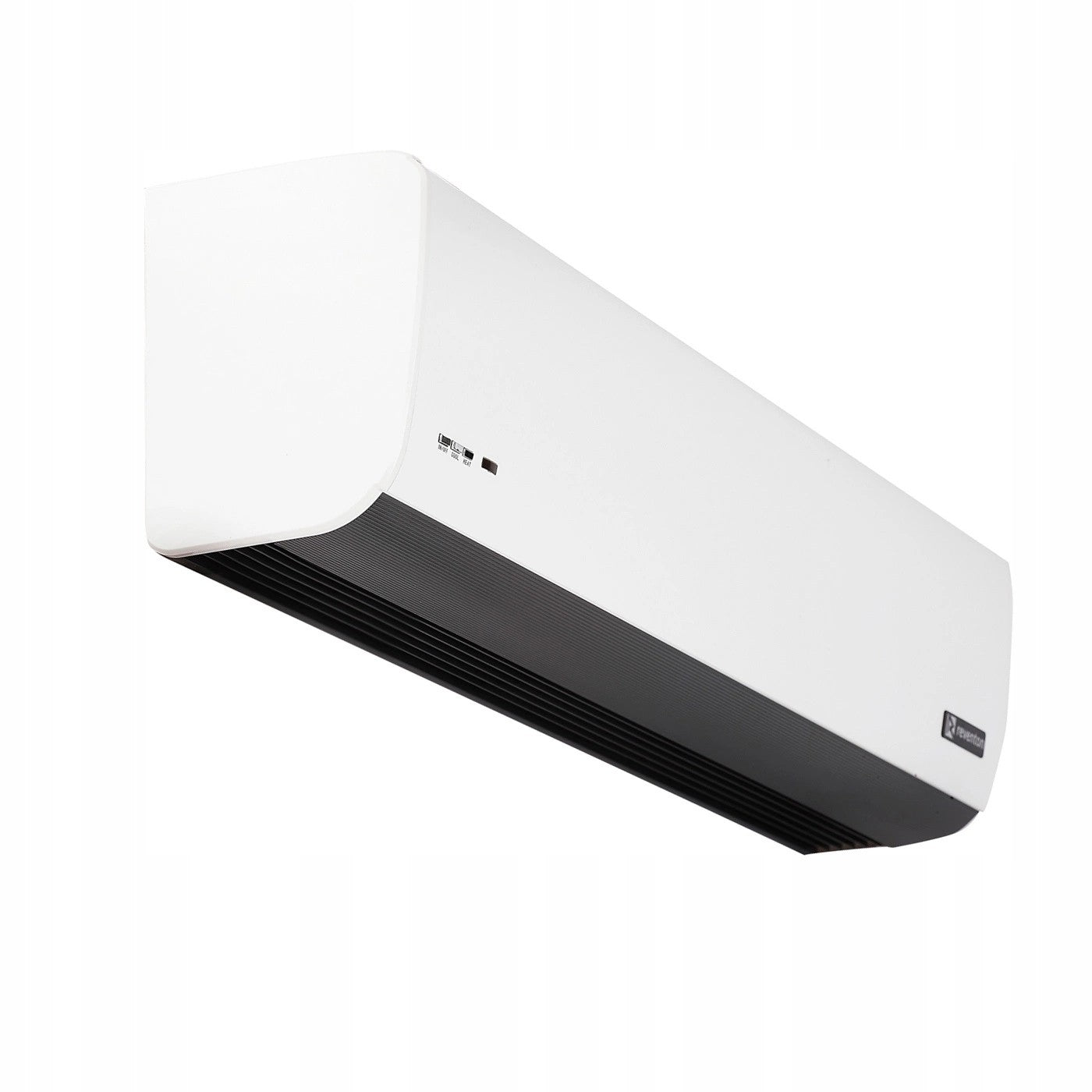

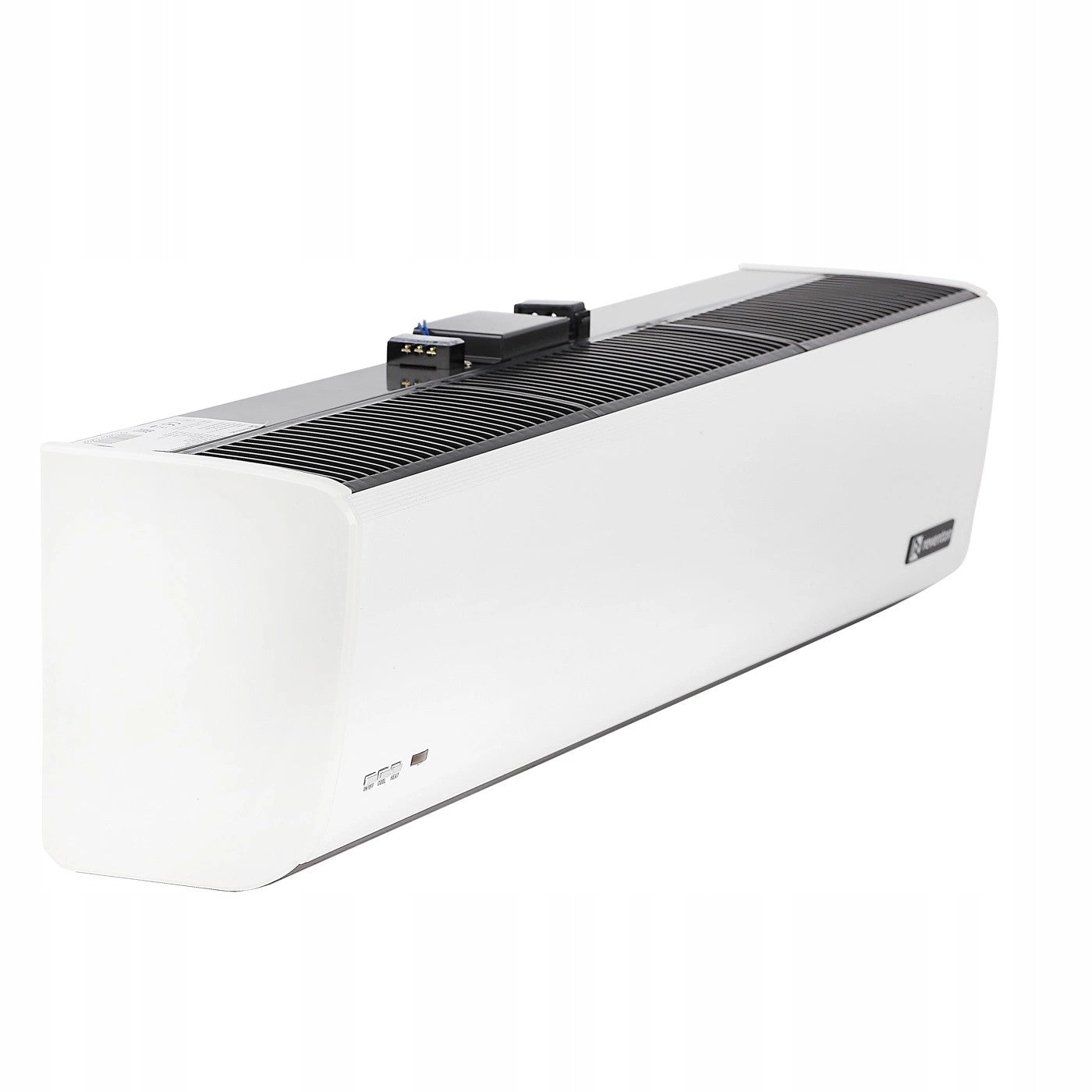

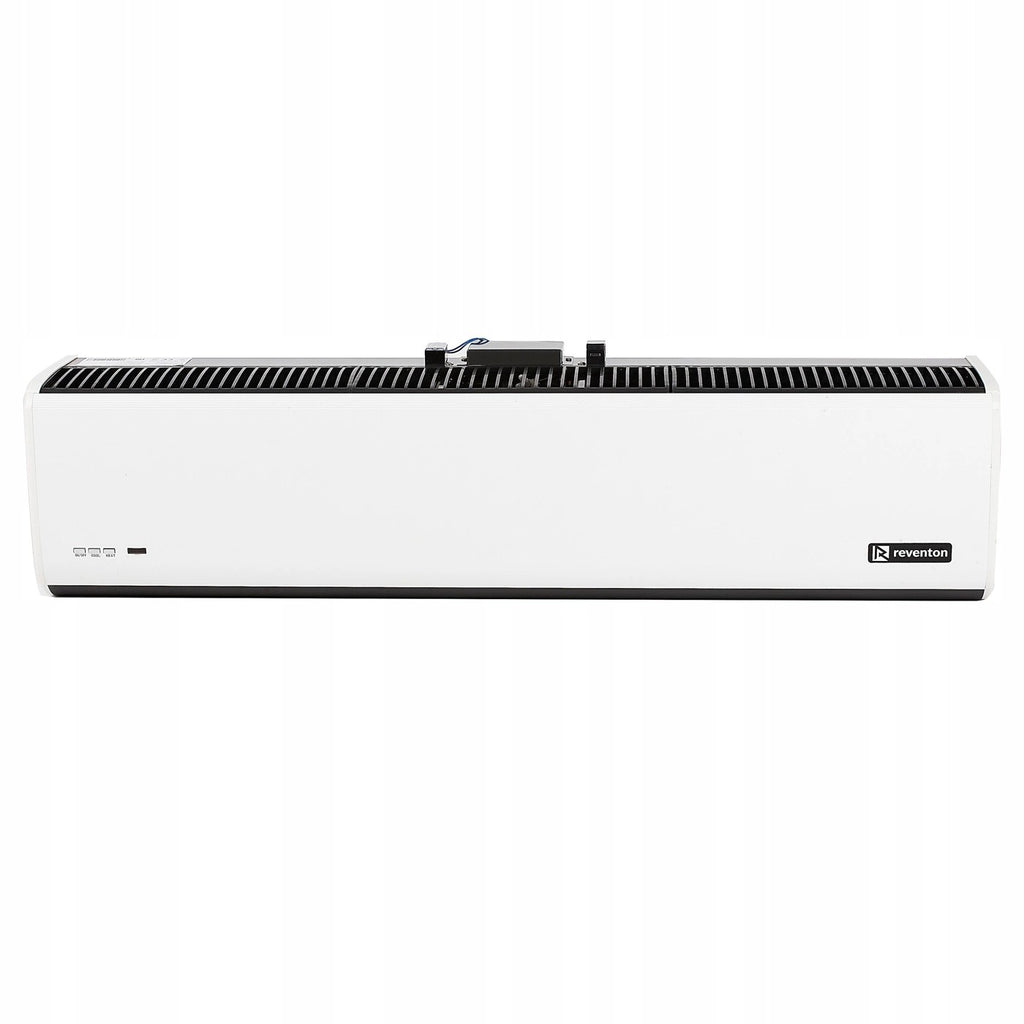

Elektrinė oro užuolaida AC100EN1P 230V

Trumpai apie prekę

Prekė: Elektrinė oro užuolaida AC100EN1P 230V. Kategorija: Oro užuolaidos.

• Gamintojas: Reventon
• Modelis: AERIS AC100EN1P
• Galia: 280 W

PACKAGE CONTENTS:

• Electric Curtain
• Mounting panel
• Door sensor

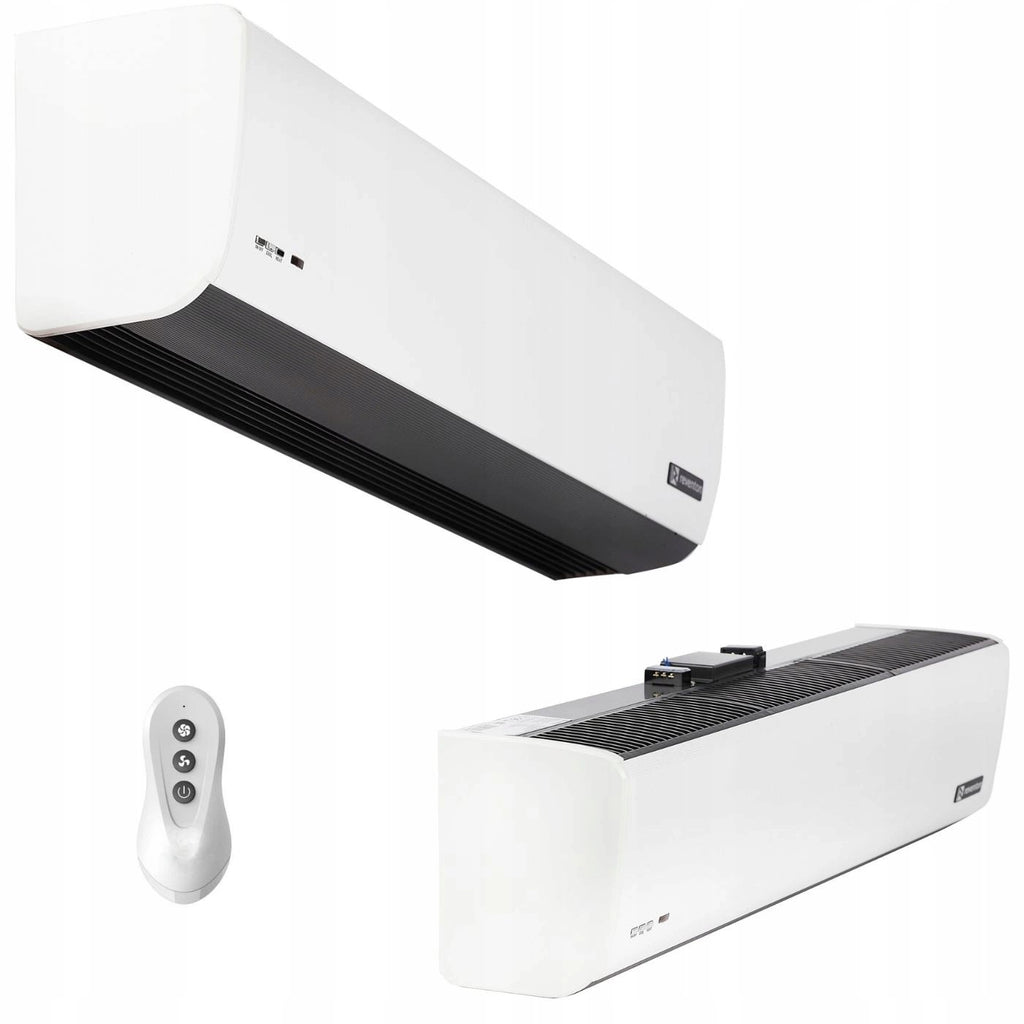

• Remote
• Operating instructions with warranty card

Electric air curtain is a modern solution enabling effective protection against heat, cold, dust and insects from the outside. In winter, electric air curtains prevent warm air from escaping from inside the building / room, while in summer they retain warm or hot air coming from the outside, thus allowing you to maintain comfortable conditions in the room in terms of temperature. Curtains provide fresh air and positively affect the conditions inside the building / room.

The AERIS air curtain is a device equipped with electric heaters that heat the air flowing through it. The device protects against heat losses resulting from opening and closing the entrance door to the building. For this reason, the device is most often installed in places of entry/exit from the building, which facilitates the achievement and maintenance of thermal comfort and provides protection against dust and insects coming from the outside.

Electric air curtain – application:

Electric air curtains is a proposal dedicated primarily to shops, supermarkets, hotels, restaurants, offices, as well as office or warehouse spaces. Curtains are therefore used both commercially, in public facilities and in administrative space.

The solution, which is an electric door air curtain, will work wherever we want to provide comfortable conditions in terms of air temperature. The proposed curtains can be mounted above the door on concrete or wooden walls and under the ceiling.

Electric air curtain – basic advantages:

• intended for installation above or along the door opening,
• durable plastic housing,
• remote control, mounting panel and door sensor included,
• effective protection against dust and insects from the outside,
• high economics of the device,
• contemporary design.

Characteristic:

• durable metal housing, powder coated,
• possible operation in thermostatic mode, continuous or using a door sensor,
• mounting panel and door sensor included,
• three-stage fan speed control,
• durable powder coated steel housing,
• easy installation,
• modern design.

Our offer also includes a water air curtain.

TECHNICAL DATA:

Heater power [kW]

III HEATING STAGE - 6

II HEATING STAGE - 4

AND HEATING STAGE - 2

Rated heater current [A]

III HEATING STAGE - 27,3

Maximum airflow [m³/h]

II GEAR - 1770

AND GEAR - 1450

Maximum air speed [m/s]

II GEAR - 11

AND GEAR - 9

Curtain range [m]

II GEAR - 3

Heater supply voltage [V] /Heater supply frequency [Hz]

230/50

Engine supply voltage [V] /Heater supply frequency [Hz]

230/50

Engine power [W]

II GEAR - 280

AND GEAR - 220

Engine rated current [A]

II GEAR - 1,22

AND GEAR - 0,96

Isolation class / Degree of protection IP [-]

E/IP 20

Net weight [kg]

16,5

Volume [dB]

II GEAR - 61

AND GEAR - 59
