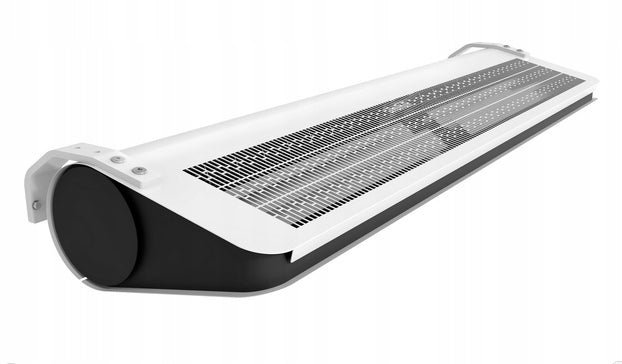

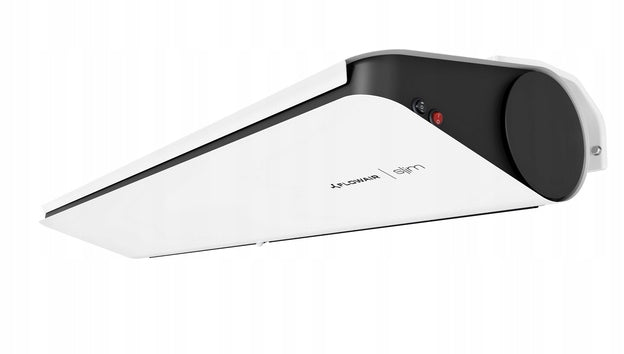

Elektrinė oro užuolaida Flowair SLIM E-150

Trumpai apie prekę

Prekė: Elektrinė oro užuolaida Flowair SLIM E-150. Kategorija: Oro užuolaidos.

• Gamintojas: Flowair
• Modelis: 56133
• Galia: 9000 W

>> FITTINGS -- RADIATORS -- BOILERS -- PUMPS -- TANKS -- < <

Power: 9 kW

MAX. RANGE: 3,2 m

#ID : 56133

EAN : 5901679561333

Short description:

Slim air curtains are high-quality devices that allow you to create an air barrier in the plane of the door opening and reduce losses resulting from the inflow of cold air from the outside in the winter, as well as the entry of warm air into the air-conditioned room in the summer.

The Slim curtain is designed to be almost silent. Thanks to the unique design and components used, in silent mode, the level of noise generated does not exceed the intensity of the conversation sound.

Slim is available in three lengths: 1 m, 1,5 m and 2 m, three versions: with water heat exchanger, with electric heaters and without heat exchanger (so-called. cold).

As standard, the curtain is available in two color versions: white with black elements and black.

The device is equipped with a motion sensor that activates the curtain when motion is detected in the environment. Thanks to this, the curtain itself knows when to work. No additional door sensor or automation is needed for operation.

Purpose:

Slim is the narrowest air curtain on the market, matched with design, colors, range and size up to 99% of doors.

The curtain will work both on medium-sized facilities such as sports halls, supermarkets, shopping centers, as well as in smaller rooms such as shops, hotels, offices, restaurants, etc. The devices can be mounted both vertically and horizontally.

Control:

As standard, the curtain has built-in switches that allow automatic adjustment of the device relative to the signal from the motion sensor.

The curtain is also adapted to control via TS automation or intelligent T-box controller.

Slim curtain advantages — 4i solution

• INTELLIGENT – intelligence in saving

  Plug&play – the device has built-in control enabling automatic operation relative to the signal from the motion sensor. This lets the curtain know when to work. Built-in buttons on the side of the curtain allow you to easily and quickly change the mode of operation.

• IMPROVING AIR — improves air quality

  The design of the Slim curtain allows for full protection against unwanted air inflow over the entire width of the door opening. The device is designed to work with an external filter module, which improves air quality and protects the device from the ingress of dirt and other contaminants.

• INVISIBLE — discretion in action

  The Slim Curtain has been designed in such a way that it does not catch the eye. It works quietly even on the highest gear.

• IDEAL – tailored to your business

  The device fits 99% of door openings – it is the narrowest curtain on the market, the length of which is equal to 1m, 1,5m, 2m.

Technical data:

Power supply [V/Hz] : 230/50 or 3 x400 / 50

Max. Power consumption [kW] : 0,195

Max. Drainage [A] : 0,8

IP : 20

Connection [``] : --

Capacity [m3/h](1) : 1250-2200

Sound pressure level 5m [dB(A)](2) : 40-54

Sound pressure level 3m [dB(A)](2) : 41-55

Sound power level [dB(A)](3) : 56-70

Heating power [kW](4) : 3-9

Max. temp. heating water [oC] : --

Max. Operating pressure [MPa] : --

Temperature increase (T)[oC](4) : 6,0-32,0

Weight of the device [kg] : 19,6

Range [m](1) : 3,2

Housing: steel

Color: White with Black Elements

(1) According to ISO 27327-1;

(2) Sound pressure level is given for a room with average sound absorption capacity, volume 1500m3; directional coefficient Q=2;

(3) Sound power level according to ISO 27327-1;

(4) Slim W, power and temperature range specified for parameters: III fan gear, temp. heating medium 40/30oC temp. at the inlet to the device 20oC — III fan gear, temp. heating medium 110/90oC temp. at the inlet to the device 0oC; Slim E power range for operation at 1N 230/50 for operation at 3N 400/50.
