Elektrinė oro užuolaida Reventon AERIS 200EN-3P 400V

Trumpai apie prekę

Prekė: Elektrinė oro užuolaida Reventon AERIS 200EN-3P 400V. Kategorija: Oro užuolaidos.

• Gamintojas: Reventon
• Modelis: AERIS 200EN-3P
• Galia: 16 W

Producer: Reventon

Condition: new

Packaging: original

Origin: official distribution

Warranty: manufacturer

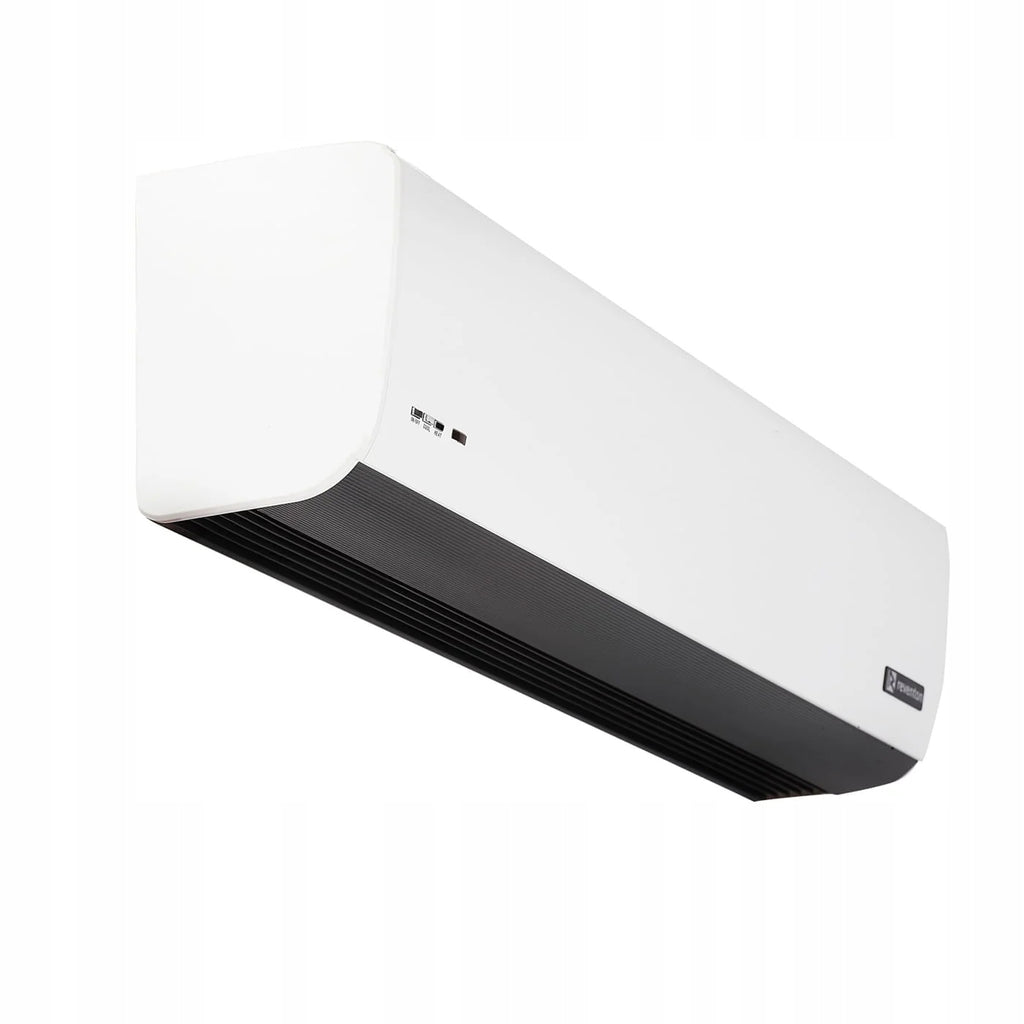

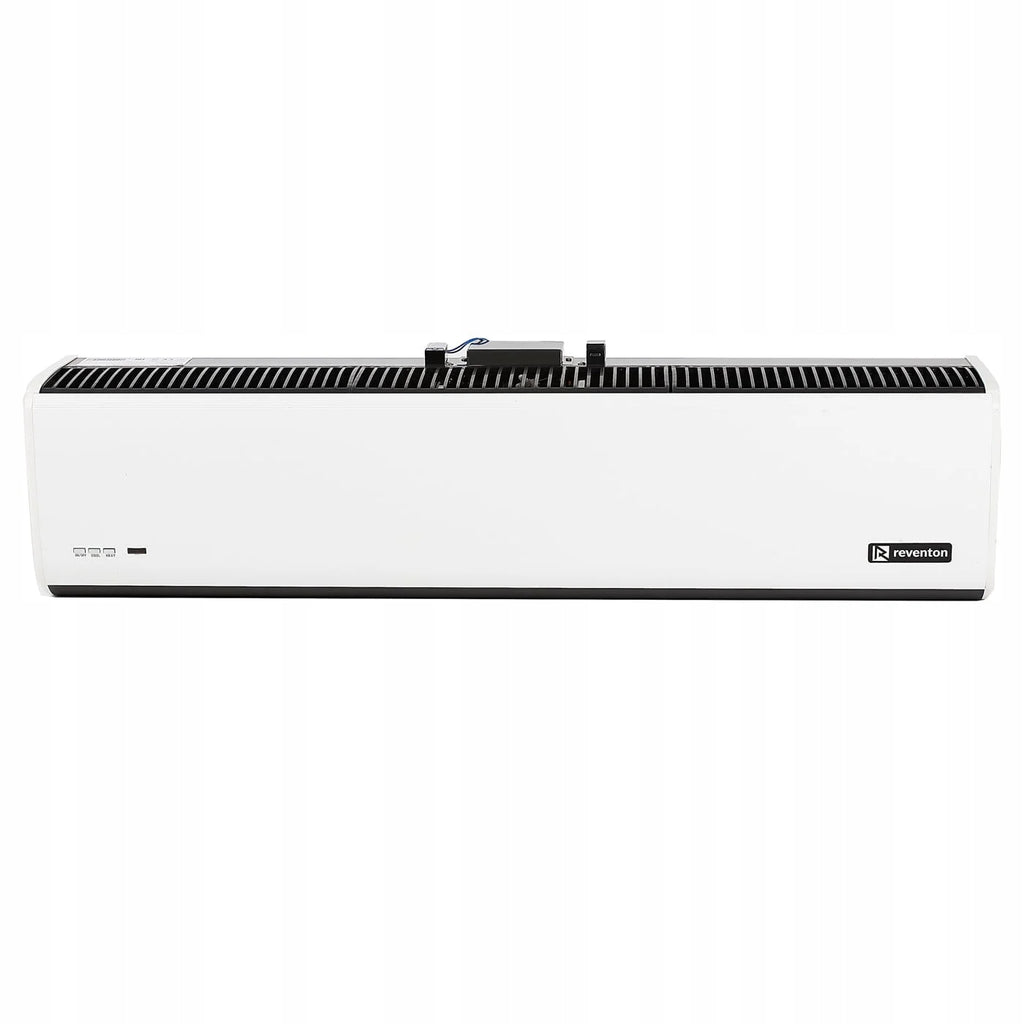

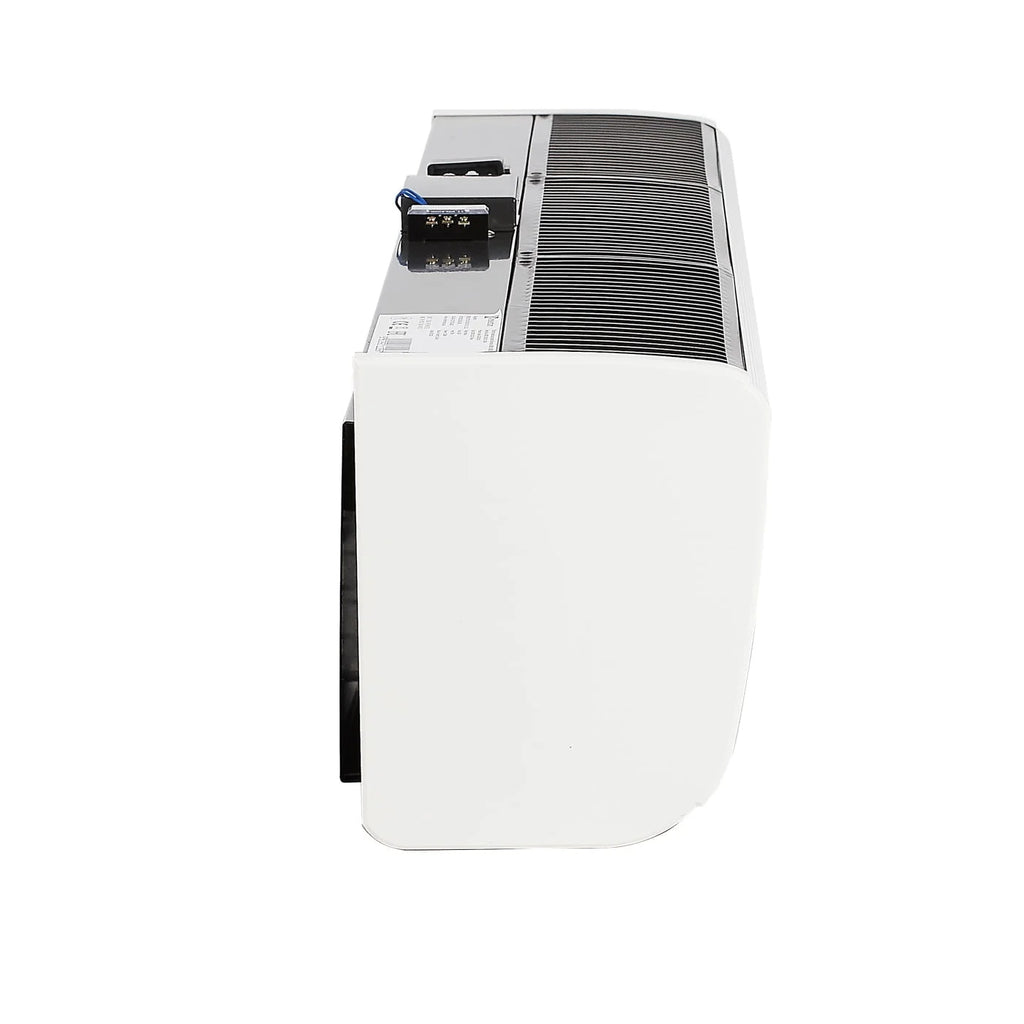

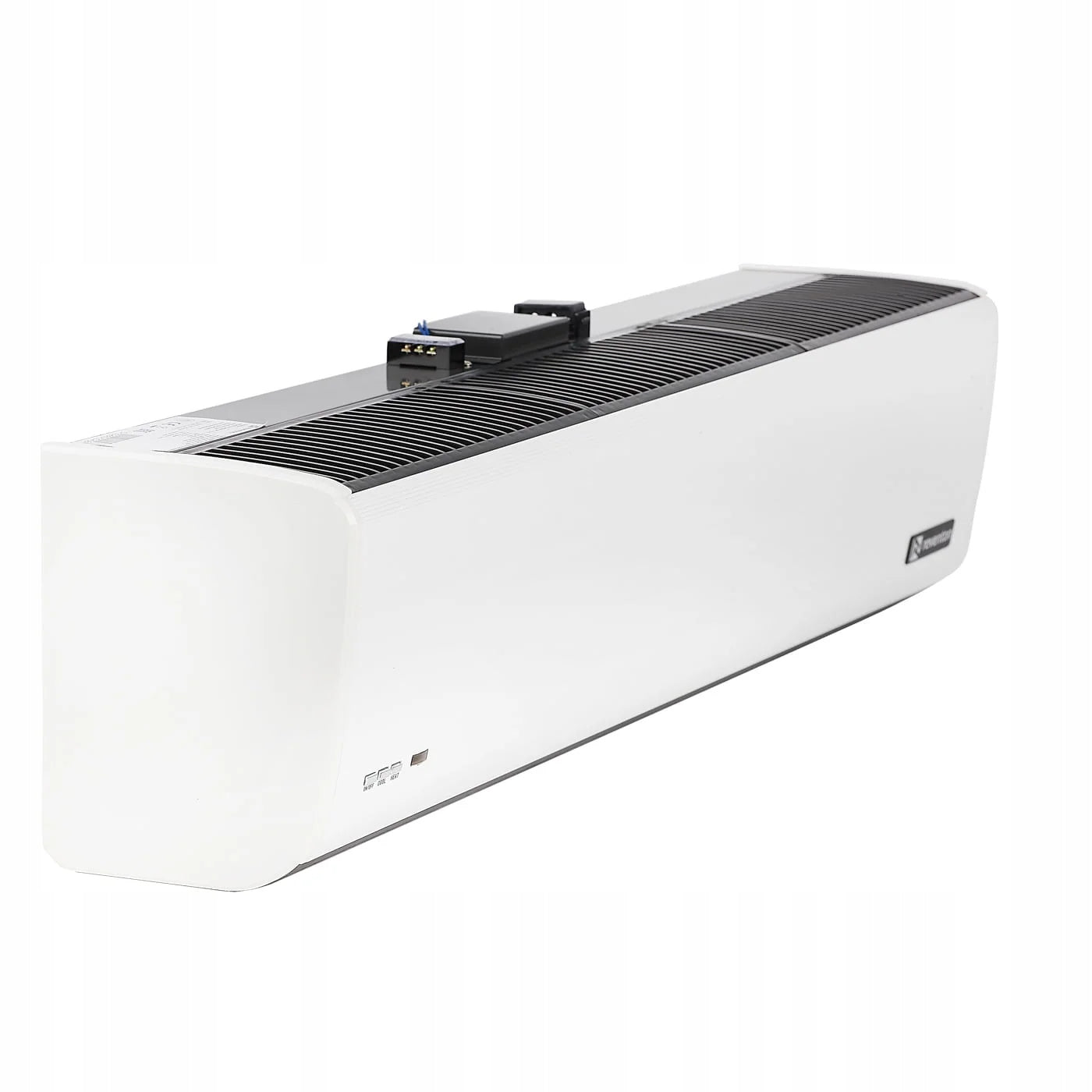

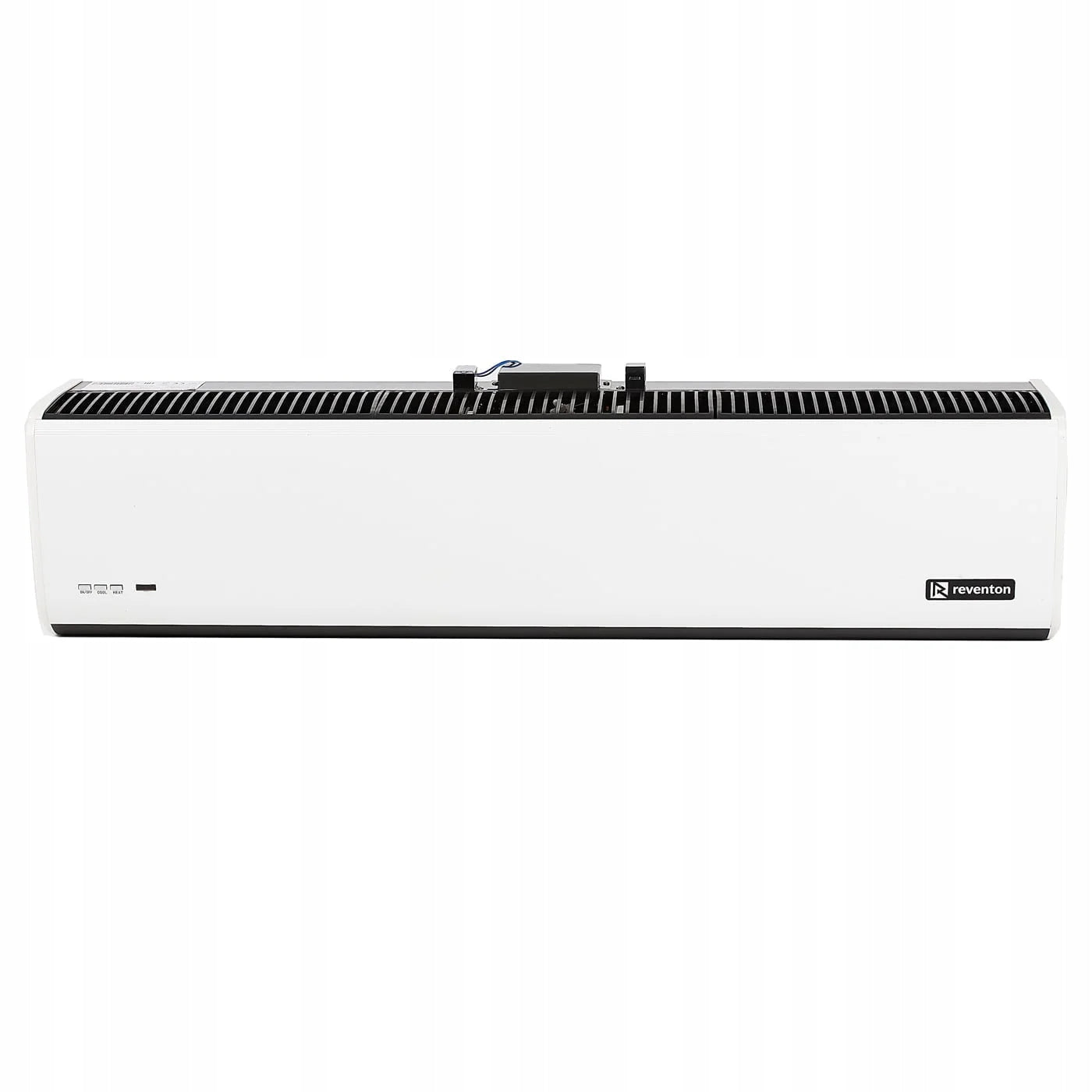

Reventon AERIS 200EN-3P 400V electric air curtain

The AERIS series air curtain is designed for installation above or along the entrance door. The device is equipped with electric heaters that heat the air flowing through it. The product is intended for installation in facilities with a three-phase installation (400 V). During operation, the air curtain creates a barrier that prevents heat loss through the opening door. It also protects the room from insects and dust entering its interior.

Application

Reventon AERIS 200EN-3P 400V electric air curtain can be used in places such as:

• restaurants,
• hotels,
• shopping malls,
• offices,
• railway stations,
• other public utilities.

Parameters

Power range: 2 - 12 kW

Range: 3 m

Weight: 15 - 29 kg

Housing: plastic

Additional information:

• The curtain is available in five sizes: 90 cm, 100 cm, 120 cm, 150 cm and 200 cm.

Control

• 3-stage fan speed regulation.
• Can operate in continuous, thermostatic or door sensor mode.

Advantages

• durable powder-coated metal housing,
• mounting panel and door sensor included,
• effective protection against dust and insects from the outside,
• labor economics,
• easy assembly.

Technical data

AERIS 90EN-3P AERIS 100EN-3P AERIS 120EN-3P AERIS 150EN-3P AERIS 200EN-3P Product code AC90EN3P AC100EN3P AC120EN3P AC150EN3P AC2003N3P Heater power [kW*]

heating stage 3/2/1

8 6 / 4/ 2 10 10 / 7 / 3.5 12 / 8 / 4 Rated current of the heater [A] 11.5 3 x 9.1 14.5 3 x 15.2 3 x 18.2 Maximum air flow [m3/h]

3rd gear/2nd gear/1st gear

1600 / 1450 / 1300 1450 / 1300 2400 / 2150 / 1950 2150 / 1900 2900 / 2600 Maximum air speed [m/s]

3rd gear/2nd gear/1st gear

11 / 10 / 9 9 / 8 11 / 10 / 9 9 / 8 9 / 8 Curtain range [m] 3 3 3 3 3 Heater supply voltage/frequency [V/Hz] 400/50 400/50 400/50 400/50 400/50 Motor supply voltage/frequency [V/Hz] 230/50 230/50 230/50 230/50 230/50 Motor power [W]

3rd gear/ 2nd gear/ 1st gear

260 / 230 / 200 270 / 230 380 / 355 / 330 350 / 290 580 / 460 Rated motor current [A]

3rd gear/ 2nd gear/ 1st gear

1.13 / 1.00 / 0.87 1.17 / 1.00 1.65 / 1.54 / 0.43 1.52 / 1.26 2.52 / 2.00 Insulation class / Protection class IP E / IP20 E / IP20 E / IP20 E / IP20 E / IP20 Net weight [kg] 15.5 15 19 21 21 Volume [dB***]

3rd gear/ 2nd gear/ 1st gear

61 / 60 / 59 58 / 56 62 / 61 / 60 59 / 57 - / 65 / 63





Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Reventon
Parametry	Kind	with electric heater
Parametry	Power	16 W
Parametry	Product height	24.7 cm
Parametry	Product width	200 cm
Parametry	Product depth	21.8 cm
Parametry	Maximum mounting height	3 m
Parametry	Additional information	remote control included
Parametry	Product weight with unit packaging	34 kg
Parametry	Manufacturer code	AERIS 200EN-3P
