Elektrinė oro užuolaida Reventon AERIS 90EN-3P 400V

Trumpai apie prekę

Prekė: Elektrinė oro užuolaida Reventon AERIS 90EN-3P 400V. Kategorija: Oro užuolaidos.

• Gamintojas: Reventon
• Modelis: AC90EN3P
• Galia: 8 W

Electric air curtain is a modern solution enabling effective protection against heat, cold, dust and insects from the outside. In winter, electric air curtains prevent warm air from escaping from inside the building / room, while in summer they retain warm or hot air coming from the outside, thus allowing you to maintain comfortable conditions in the room in terms of temperature. Curtains provide fresh air and positively affect the conditions inside the building / room.

Electric air curtain – application

Curtains are therefore used both commercially, in public facilities and in administrative space.

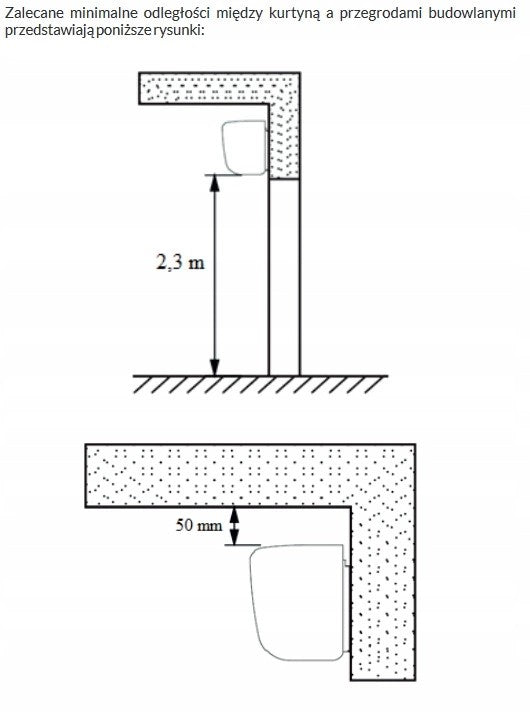

The solution, which is an electric door air curtain, will work wherever we want to provide comfortable conditions in terms of air temperature. The proposed curtains can be mounted above the door on concrete or wooden walls and under the ceiling.

Electric air curtain – basic advantages

Air curtain with electric heater is a solution:

• energy-saving,
• solid (durable metal housing),
• Quick and easy to assemble.

Characteristic

• Durable metal housing, powder coated.
• Available in 5 dimensions: 90, 100,120, 150 and 200 cm.
• Possible operation in thermostatic mode, continuous or using a door sensor.
• Mounting panel and door sensor included.
• For the 100EN-3P and 200EN-3P models, the remote control is also included.
• Three-stage fan speed control.
• Durable powder coated steel housing.
• Easy installation.
• Modern design.

CONTENTS OF THE PACK

- electric curtain

- User manual with warranty card

- mounting panel

- door sensor

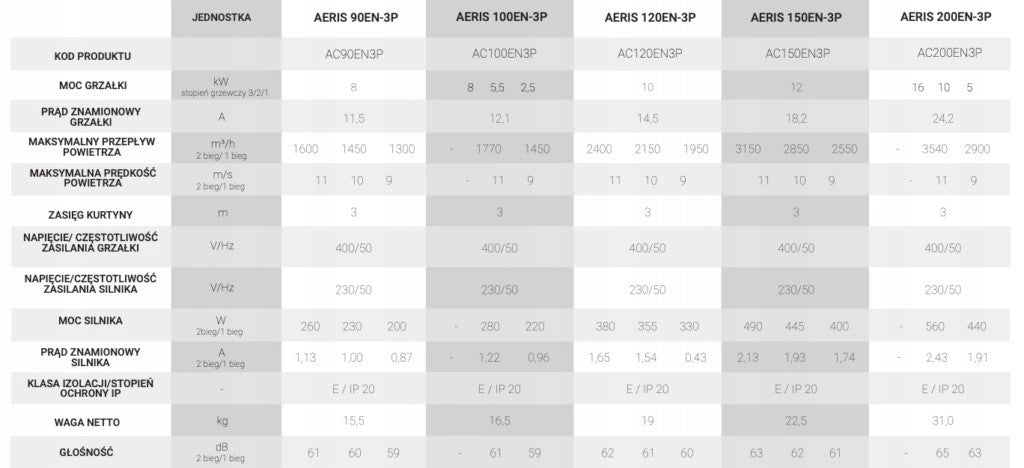

TECHNICAL DATA:

Heater power [kW]

8

Rated heater current [A]

11,5

Maximum airflow [m³/h]

III GEAR - 1600

II GEAR - 1450

AND GEAR - 1300

Maximum air speed [m/s]

III GEAR - 11

II GEAR - 10

AND GEAR - 9

Curtain range [m]

3

Heater supply voltage [V] /Heater supply frequency [Hz]

400/50

Engine power supply voltage [V] /Engine power supply frequency [Hz]

400/50

Engine power [W]

III GEAR - 260

II GEAR - 230

AND GEAR - 200

Engine rated current [A]

III GEAR - 1,13

II GEAR - 1,00

AND GEAR - 0,87

Isolation class / Degree of protection IP [-]

E/IP 20

Net weight [kg]

15,5

Volume [dB]

III GEAR - 61

II GEAR - 60

AND GEAR - 59

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Reventon
Parametry	Kind	with electric heater
Parametry	Power	8 W
Parametry	Product height	24.7 cm
Parametry	Product width	90 cm
Parametry	Product depth	21.8 cm
Parametry	Maximum mounting height	3 m
Parametry	Product weight with unit packaging	19.5 kg
Parametry	Manufacturer code	AC90EN3P
