Elektrinė oro užuolaida STRONG SLIM, 9000 W, horizontali ir vertikali montavimo galimybė

Trumpai apie prekę

Prekė: Elektrinė oro užuolaida STRONG SLIM, 9000 W, horizontali ir vertikali montavimo galimybė. Kategorija: Oro užuolaidos.

• Gamintojas: Flowair
• Modelis: 56133
• Galia: 9000 W

Electric door curtain with a width of 1,5 meters and a maximum heating power of 9,0kW with built-in automation system (performance adjustment, motion sensor).

It has a 3-speed fan, the maximum airflow is up to 2200m3/h.

QUALITY ON 5! ⭐⭐⭐⭐⭐

✅SPECIFICATION:

• Power supply: 230/50 or 3x400/50
• Max. power consumption: 0,195kW
• Max. Power consumption: 0,8A
• IP: 20
• Performance: 1250-2200m3/h
• Sound pressure level 5m: 40-54dB(A)
• Sound pressure level 3m: 41-55dB(A)
• Acoustic power level: 56-70dB(A)
• Heating power: 3kW when connected 230/50V - 9kW when connected 3x400/50
• Temperature increase (T): 6,0-32,0°C
• Weight of the device: 19,8kg
• Range: up to 4m
• Width: 150cm
• Height: 19,9cm
• Depth: 44,3cm

✅Can be mounted in vertical or horizontal position.

SUPPORTS ARE COMPLETED SEPARATELY.

WHY SLIM CURTAIN! AMAZING FEATURES!

✅INTELLIGENT — intelligence in saving

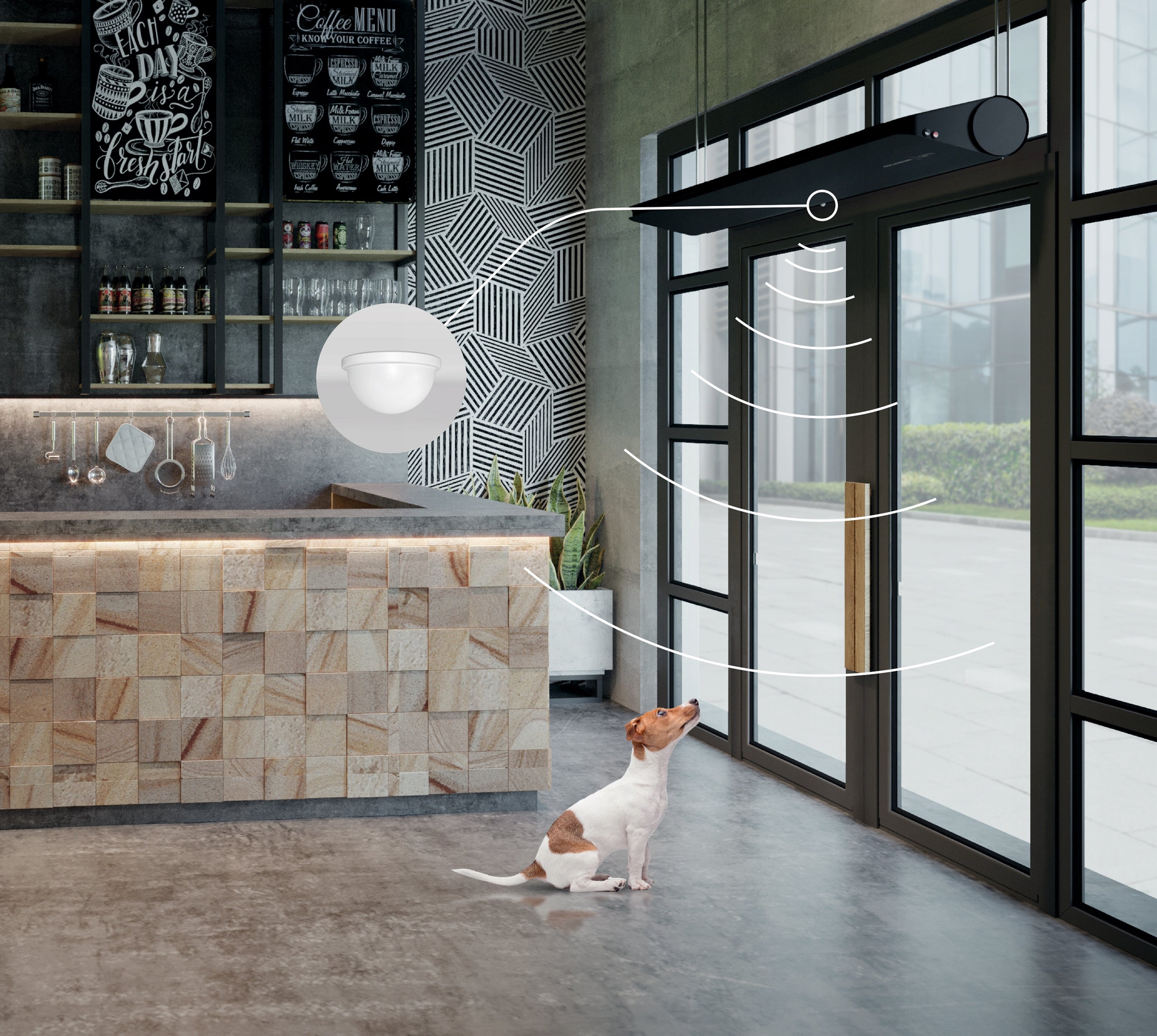

Plug&play – the device has built-in control enabling automatic operation relative to the signal from the motion sensor. This lets the curtain know when to work. Built-in buttons on the side of the curtain allow for easy and quick change of the operating mode.

✅IMPROVING AIR — improves air quality

The design of the Slim curtain allows for full protection against unwanted air inflow over the entire width of the door opening. The device is adapted to work with an external filter module, which improves air quality and protects the device against the ingress of dirt and other contaminants.

✅INVISIBLE — discretion in action

The Slim curtain has been designed in such a way that it does not catch the eye. Works quietly even on the highest gear.

✅IDEAL - tailored to your business - the device fits 99% of door openings

✅CARE FOR DETAILS

The color of the curtain is due to the powder coating process obtained with the latest technologies, which allows for a flawlessly vibrant and durable color

Timeless and versatile design means that the curtain will fit most interiors!

✅HORIZONTAL AND VERTICAL MOUNTING

The Slim curtain can be mounted using mounting brackets (directly to concrete partitions) or on pins at the glass door, creating almost one invisible line with the door leaf. However, if the space above the door is less than 25 cm, vertical installation is also possible, also with the help of mounting brackets (the same as for horizontal mounting).

✅EASE OF USE!

The SLIM E-150 air curtain is equipped with convenient controls:

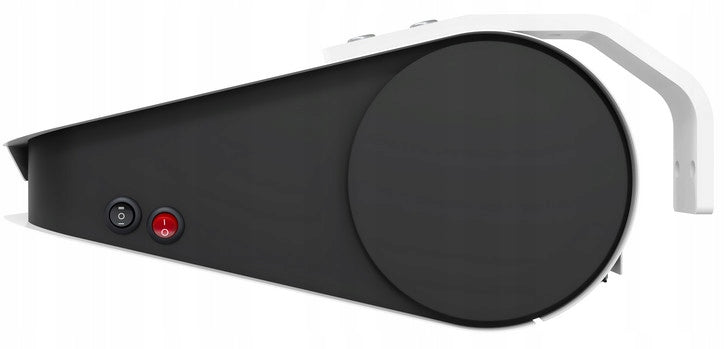

• built-in on the side of the curtain switch and blowing power switch (high/low) and heating function switch:

✅WHY SLIM CURTAIN BY FLOWAIR?

• Built-in control system
• Built-in motion sensor included/
• Unique design, small size, low weight/
• Silent operation of the rotor of the German manufacturer/
• Easy and quick installation with brackets
• Parameters confirmed by accredited laboratories.
• Fast heating heaters.

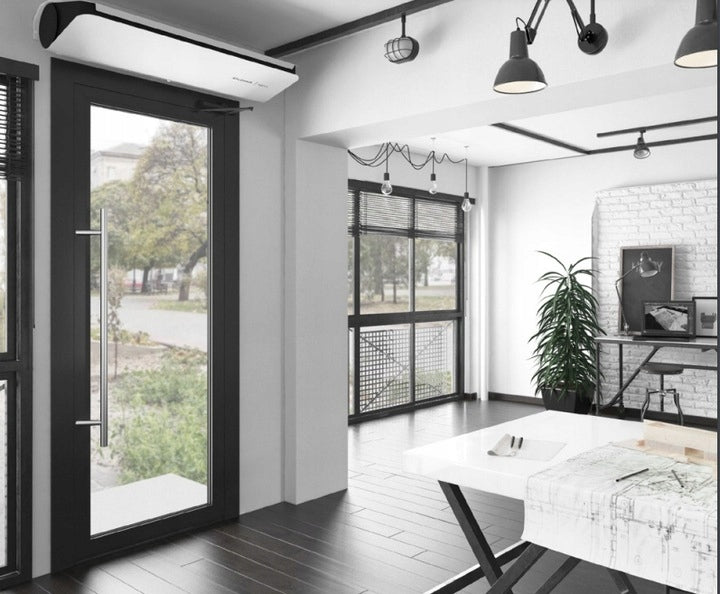

✔ Slim curtains are adapted for horizontal installation above the door opening, without limiting the space inside the room.

It is possible to mount the curtain using mounting brackets (directly to concrete partitions) or on pins at the glass door, creating almost one invisible line with a door leaf. However, if the space above the door is less than 25 cm, vertical installation is also possible, also with the same mounting brackets as for horizontal installation.

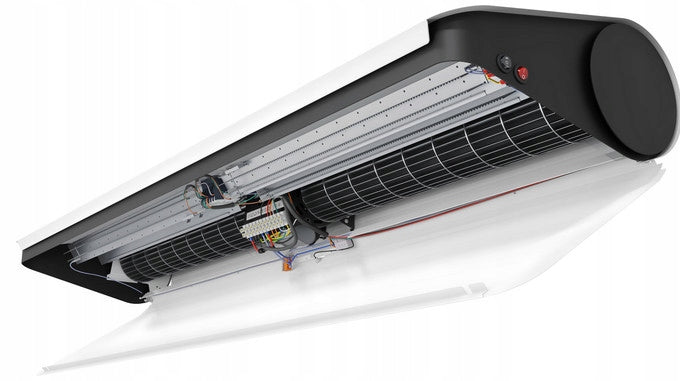

✔Access to the interior of the curtain for installation and service purposes is provided by an easily opened tilting bottom plate:

Specifications
