Elektrinė oro užuolaida su vandens šilumokaičiu VTS WING II E150AC

Trumpai apie prekę

Prekė: Elektrinė oro užuolaida su vandens šilumokaičiu VTS WING II E150AC. Kategorija: Oro užuolaidos.

• Gamintojas: VTS
• Modelis: WING E150 (AC)
• Galia: 12000 W

Curtain WING E150 AC basic information:

• Engine: AC
• Max. door width (1 device): 1,5 [m]
• Max. door height: 3,7 [m]
• Max. air efficiency: 3150 [m3/h]
• Heating power range: 4/12 or 8/12 [kW]
• Supply voltage: ~400/3/50 [V/ph/Hz]
• Power of electric heaters: 4 i 8 [kW]
• Rated current of electric heaters: 6/11,3/max.17,3 [A]
• Engine power (AC): 0,375 [kW]
• Rated current (AC motor): 1,7 [A]
• Device weight: 32,0 [kg]
• Degree of protection: IP20
• Manufacturer: VTS

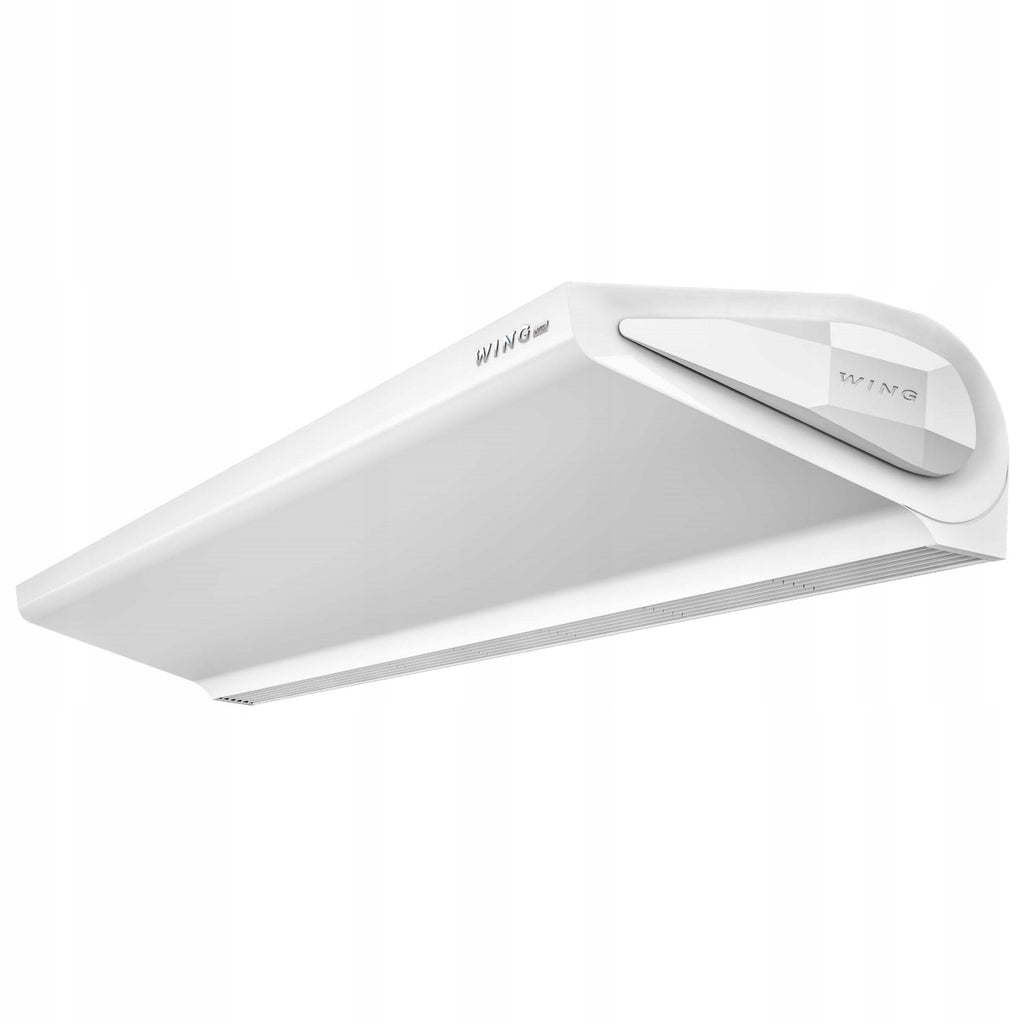

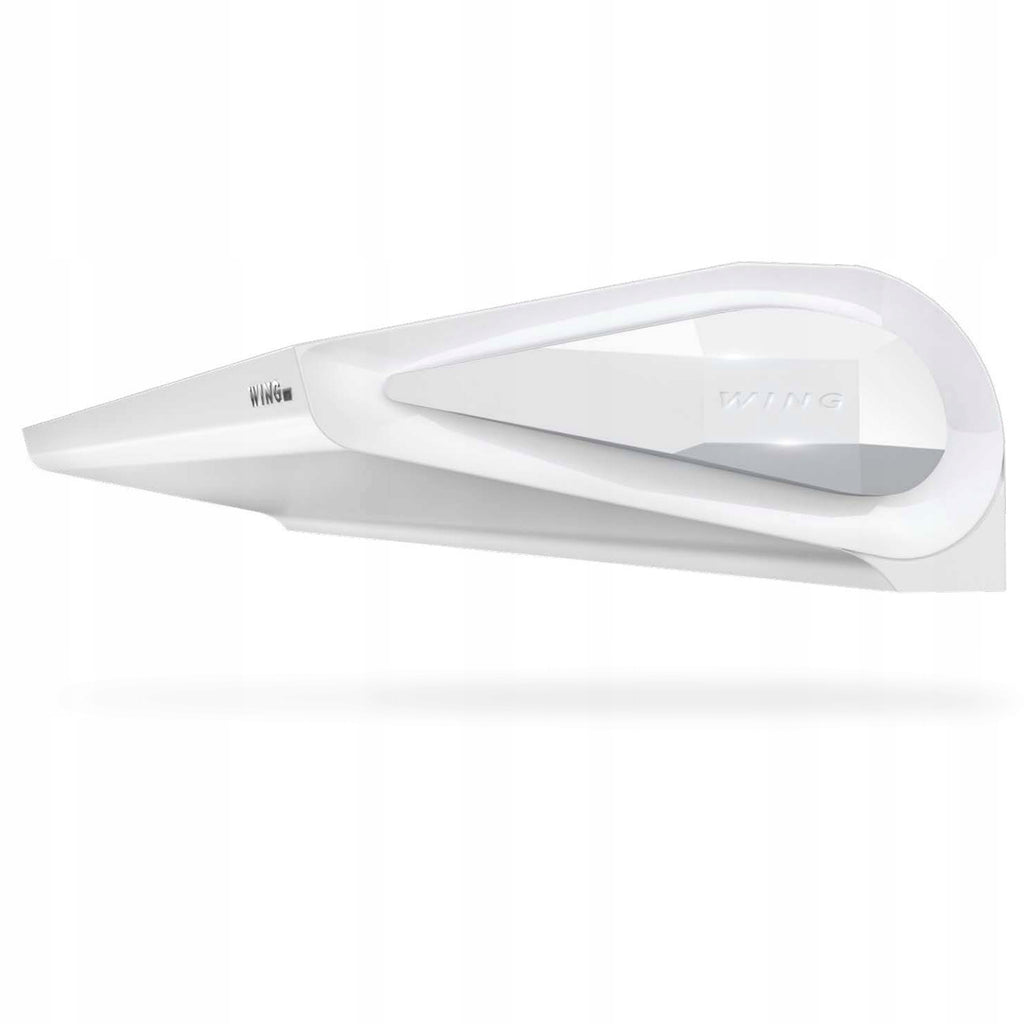

The WING air curtain is a new generation device, created with a passion for lightness of form and modern design. Minimalistic shape of the housing resembles a beautiful, and at the same time perfect in its simplicity glider wing.

Its task is to create an air barrier that isolates two environments: external and internal.

Outside, the air curtain stops:

• warm or cold air (depending on the season)
• dust
• insects
• exhaust gases and smoke
• Bad smells

Inside, however, the air curtain allows us to stop:

• heated or cooled air - depending on the demand
• clean, pollution-free air

Thanks to the use of an air curtain, the user saves, above all, his money due to the reduction of heat or cold losses.

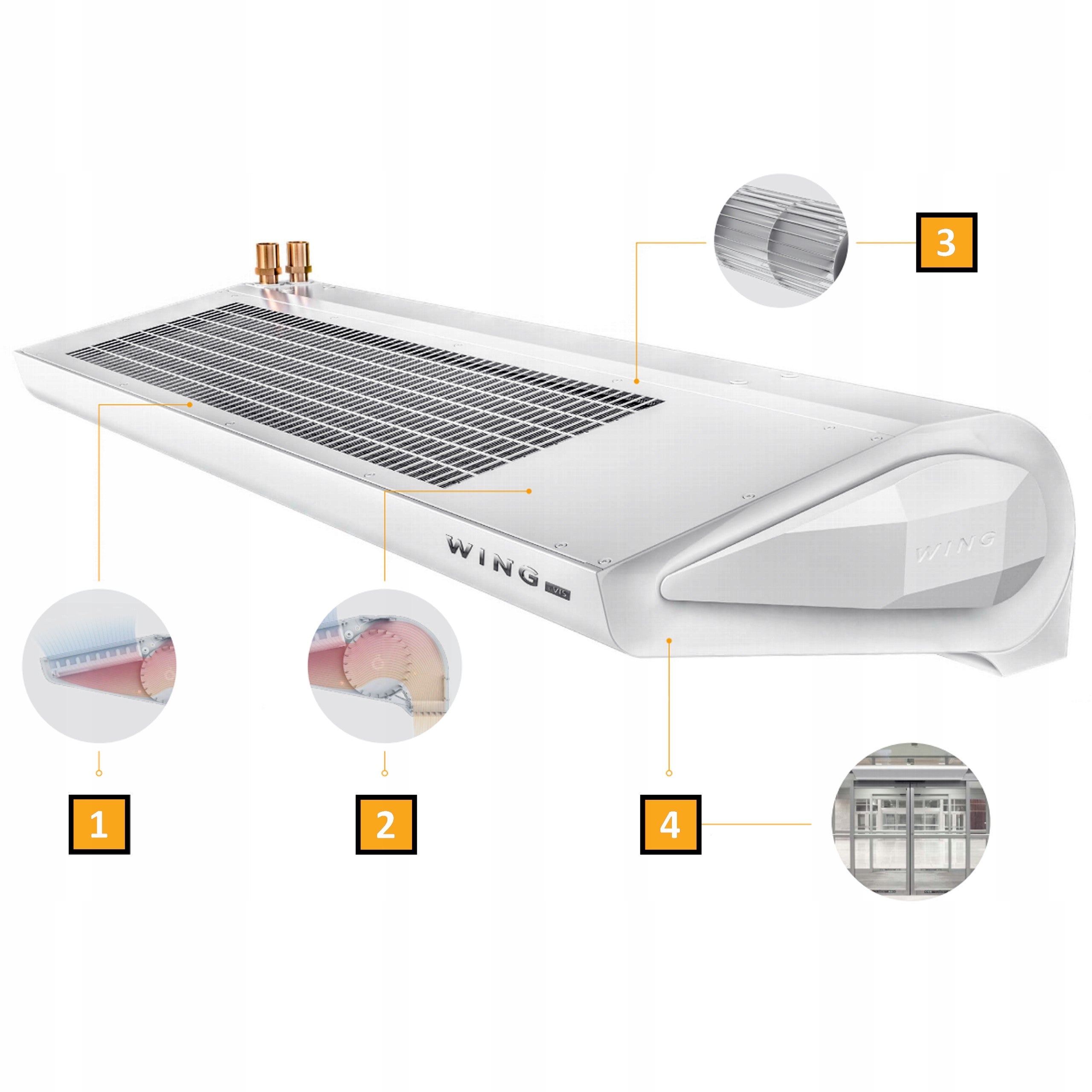

1. Low air intake resistance - a larger air intake area allows you to fully use the power of the heat exchanger.
2. Optimal airflow - the special design of the steering wheels provides a 20% increase in the range of the air stream compared to traditional solutions.
3. Silent operation - the design of the device stabilizing the flow entrusts effectively reduces the level of sound emitted to the environment.
4. Adaptation to the object - electronically adjustable motor power allows you to easily adjust the device to the dimensions of the protected hole and the acoustic requirements of the object.

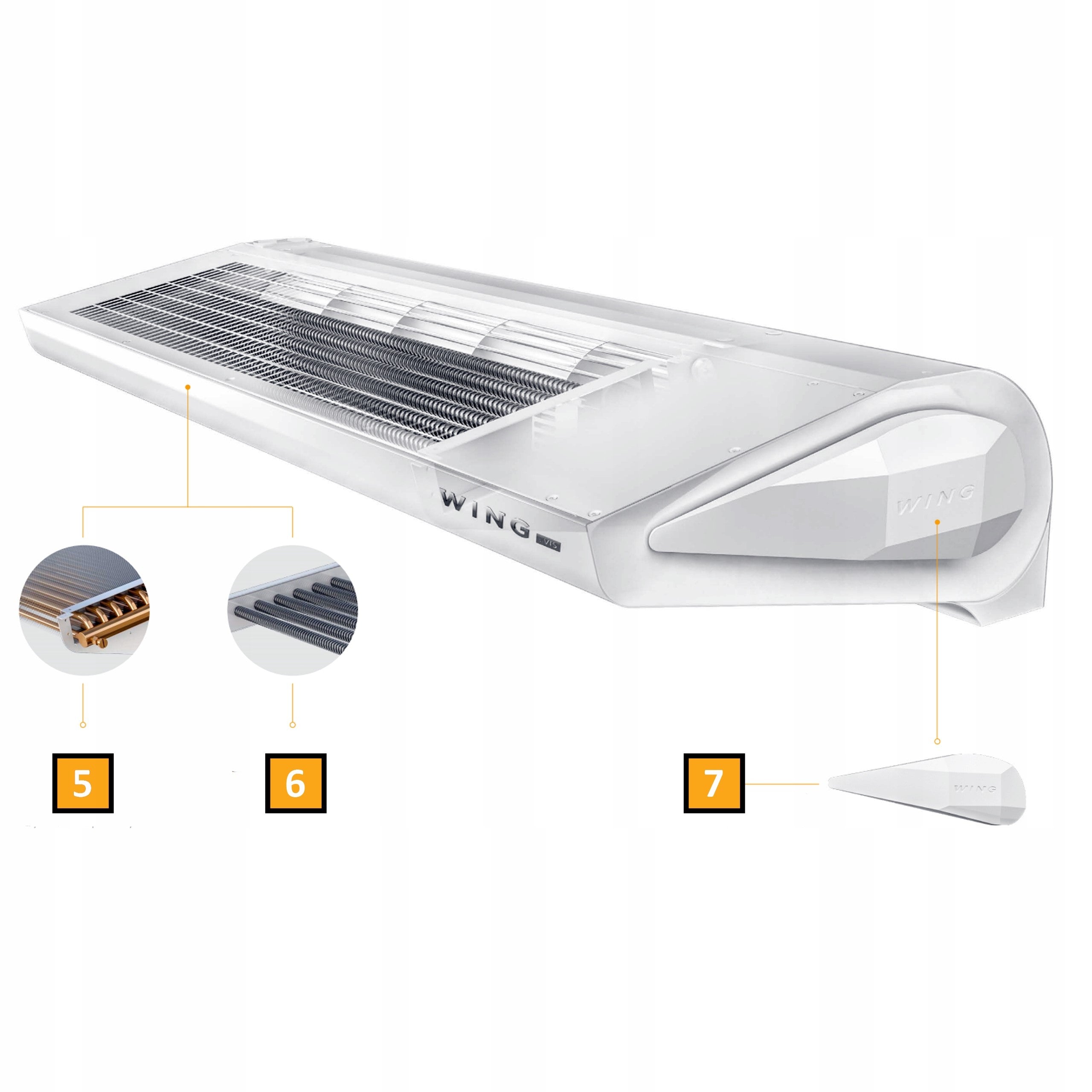

5. Water heater* - a high-performance double-row water heater is adapted to supply a low-parametric factor.

6. Electric heater* - low-temperature high-power heater ensures safe operation of the device without the need for a fan runout. Asymmetrical distribution of heating power ensures its adjustment to the individual needs of the user.

7. Combination of functionality and design - the characteristic crowning of the side cover in the shape of a diamond cut covering the inlet of the engine cooling system also performs an inspection function.

*depending on the type of air curtain (electric or water)

8.

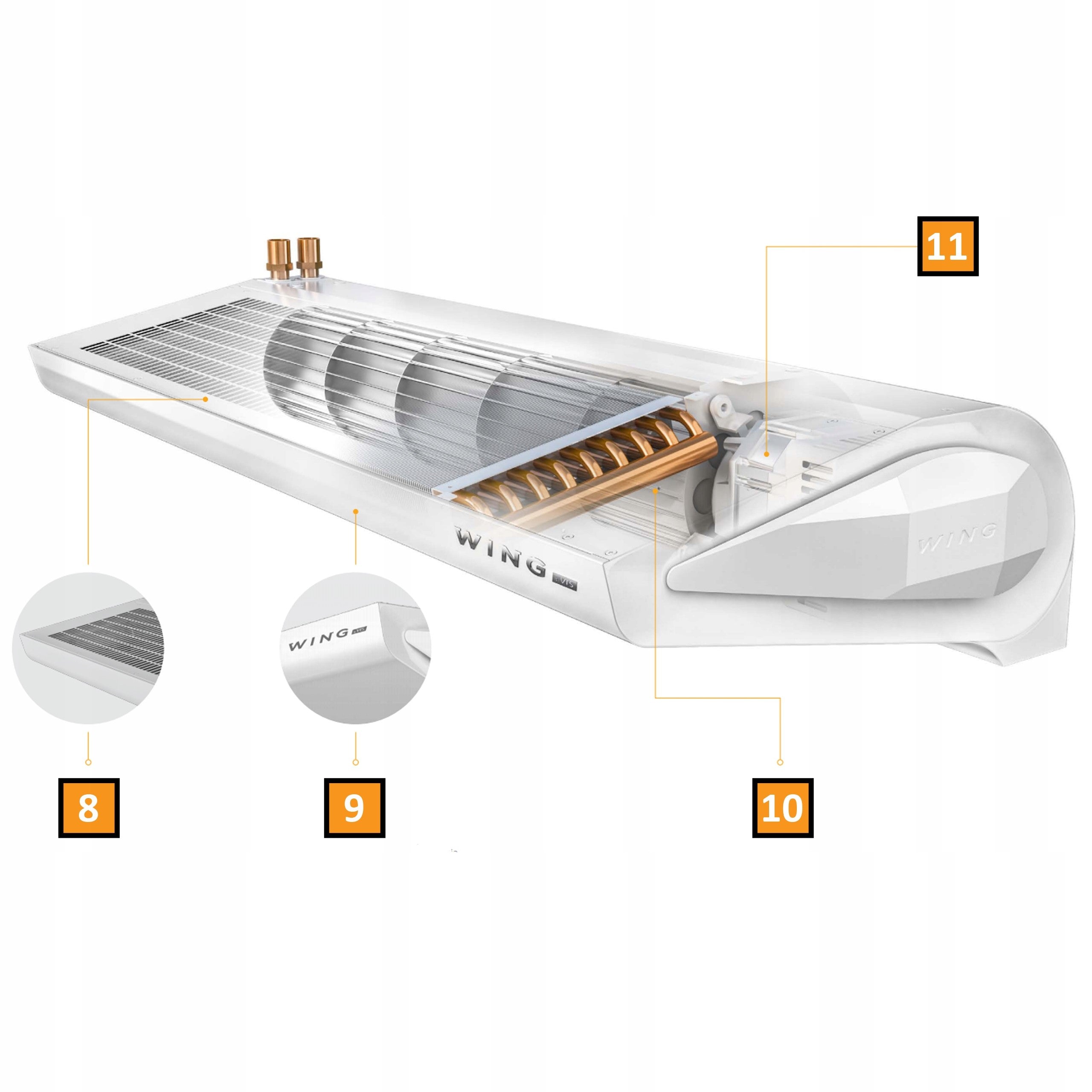

9. Galvanized steel housing - double coating (galvanized + powder coating) provides long-lasting corrosion protection and consistent aesthetic qualities. This allows it to be used in both industrial and highly representative facilities.

10. High efficiency - high heating power is the result of the use of a heater with a large heat transfer area placed in a homogeneous air stream.

11. Electricity saving - modern motor and fan design provide savings of up to 40% of electricity compared to traditional solutions.

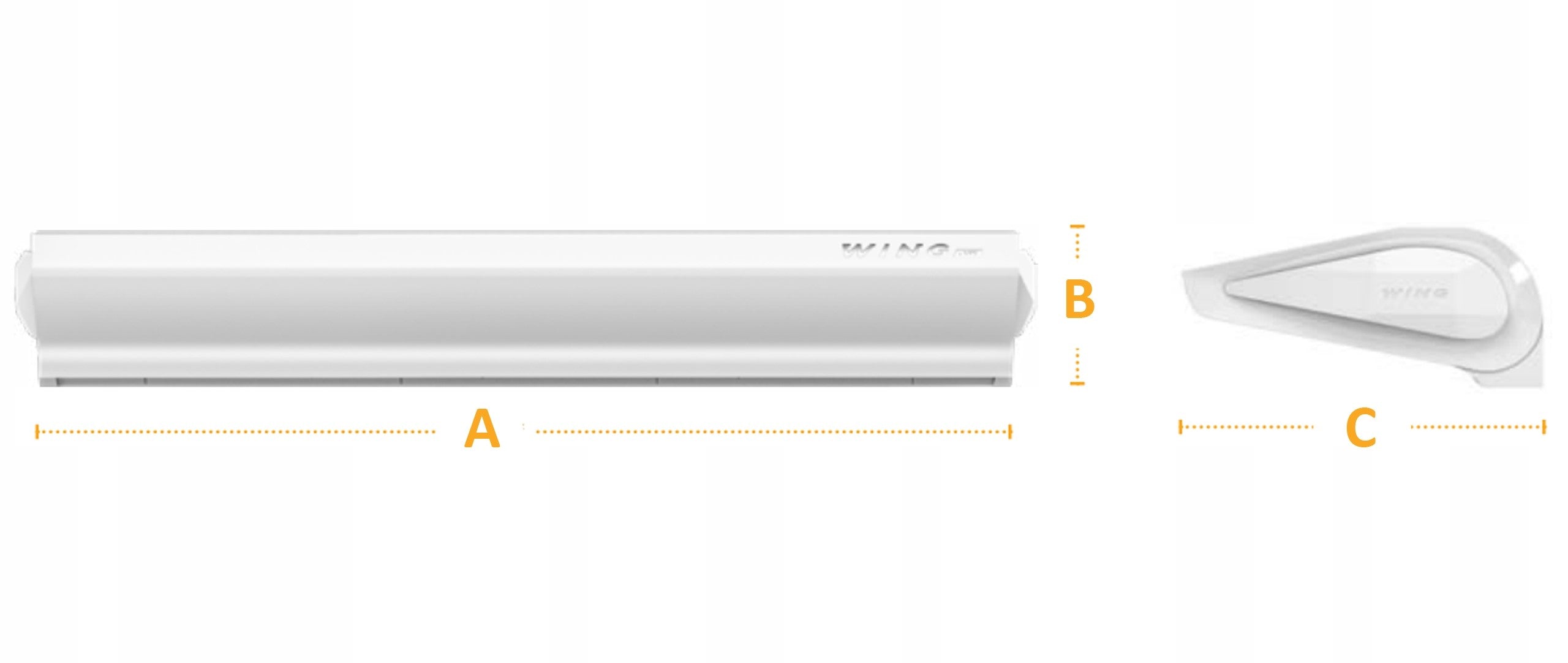

A - 1582* mm

B - 210 mm

C - 465 mm

* does not include side covers

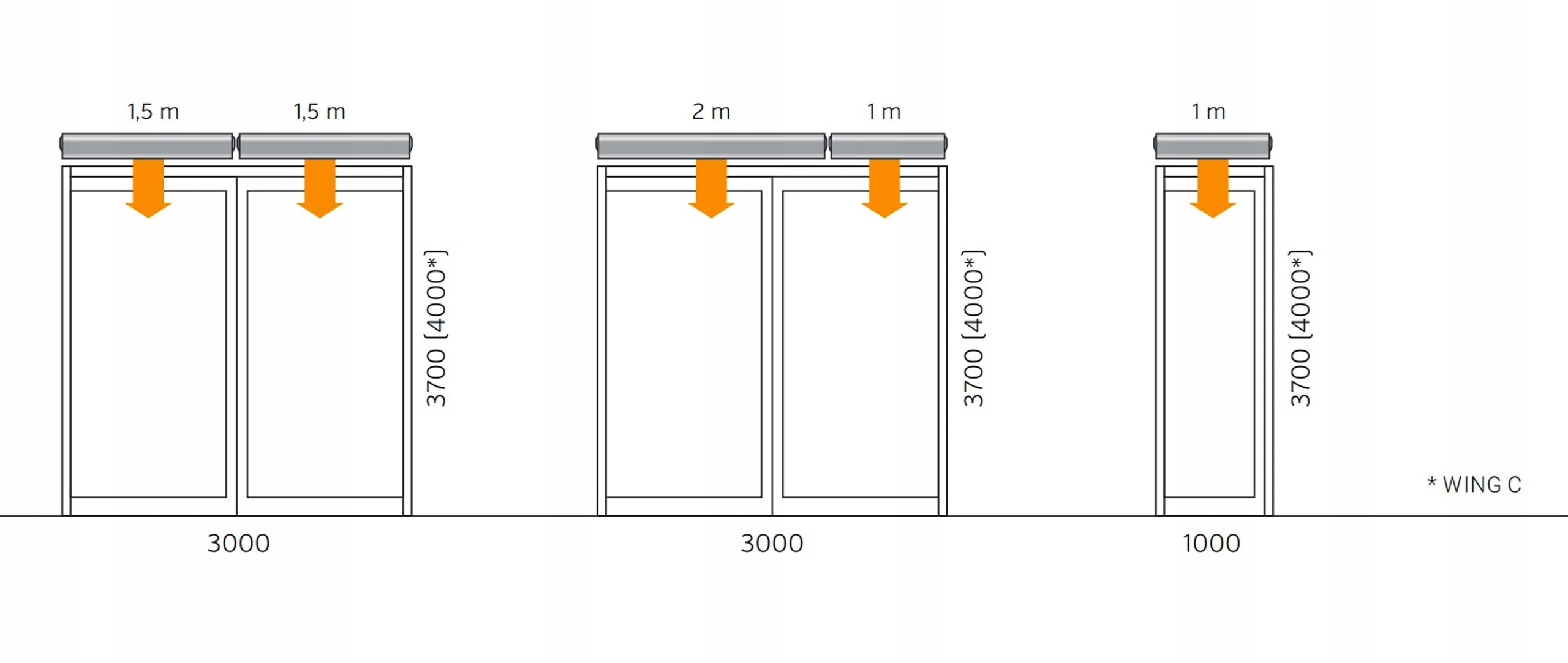

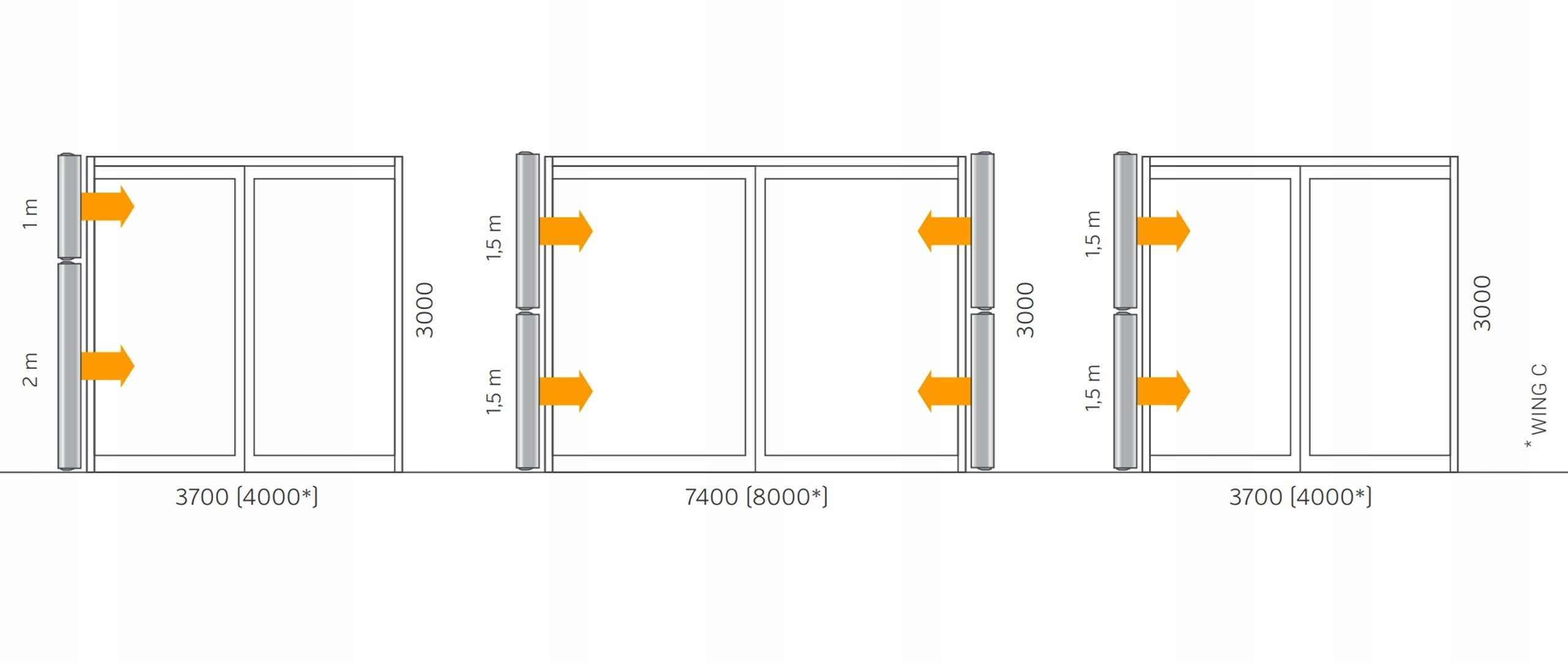

WING air curtains can be mounted horizontally or vertically*. Thanks to its slim shape, extremely low housing height and tilted air intake, it can be mounted in a very limited space above the door, without affecting its performance.

* WING W, WING C (WING E electric curtains cannot be mounted vertically)

Properly designed dedicated handles and mounting points allow easy installation.

The maximum installation height is 4 m. The minimum distance of the air outlet from the curtain from the ceiling is only 30 cm [C].

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	VTS
Parametry	Kind	with electric heater
Parametry	Power	12000 W
Parametry	Product height	21 cm
Parametry	Product width	158.2 cm
Parametry	Product depth	46.5 cm
Parametry	Maximum mounting height	3.7 m
Parametry	Product weight with unit packaging	30.5 kg
Parametry	Manufacturer code	WING E150 (AC)
Parametry	Packaging status	original
