Elektrinė oro užuolaida VTS EUROHEAT WING E100

Trumpai apie prekę

Prekė: Elektrinė oro užuolaida VTS EUROHEAT WING E100. Kategorija: Oro užuolaidos.

• Gamintojas: WING
• Modelis: 1-4-2801-0253
• Galia: 2 W

Product Description

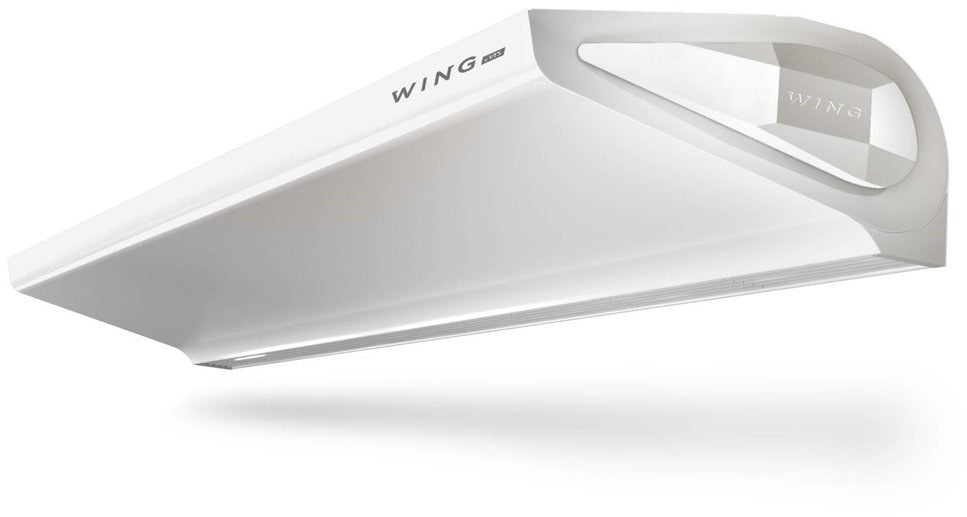

WING E100 – Air curtain with electric heaters.

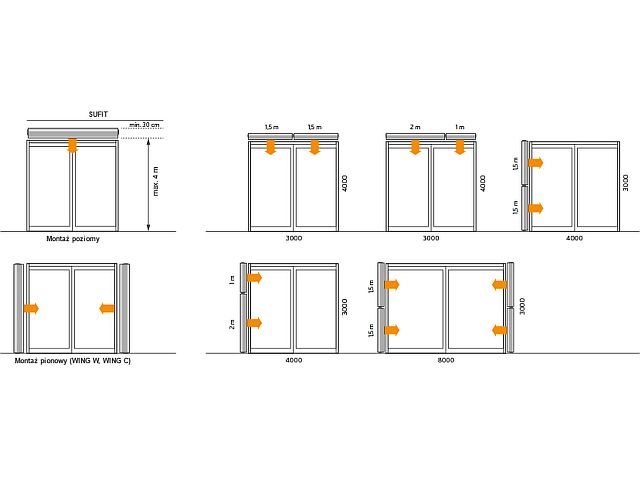

Each WING air curtain, whether with water or electric heating, can be mounted vertically or horizontally. Thanks to its slim shape, extremely low housing height and tilted air intake, it can be mounted in a very limited space above the door, without affecting performance. Medical facilities, hotels, public facilities, restaurants, commercial facilities. The larger air intake area allows for full use of the power of the heat exchanger and the special design of the handlebars provides an increase in the range of the air stream by 20% compared to traditional solutions.

A template is printed on each package of the WING curtain, containing the spacing of the creations and a leveling line. Simply cut the template off the age of the carton and you can proceed with assembly.

Curtain WING E100 – electric

maximum door width (1 device) m 1

maximum door height (vertical flux range) m 3,7

maximum air output m³/h 1850

heating power range kW 2/6 or 4/6

supply voltage V/ph/Hz ~230/1/50 for 2kW ~400/3/50 for 2/4/6kW

power of electric heaters kW 2 and 4

rated current of electric heaters A 3/6/max.9

Engine power (AC motor) kW 0,18

rated current (AC motor) A 1,3

Engine power (EC engine) kW 0,15

rated current (EC motor) A 1,1

weight of the device (without water) kg 27,5

degree of protection IP 21

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	WING
Parametry	Kind	with electric heater
Parametry	Power	2 W
Parametry	Product width	100 cm
Parametry	Maximum mounting height	4 m
Parametry	Manufacturer code	1-4-2801-0253
