Elektrinio dviračio konversijos rinkinys 250W 36V, 20" priekinis ratas

Trumpai apie prekę

Prekė: Elektrinio dviračio konversijos rinkinys 250W 36V, 20" priekinis ratas. Kategorija: Vairams.

• Gamintojas: Innovibe

Suitable for 20-inch bike. It can be mounted as a drive unit on the front wheels of types of two-wheeled, mountain, beach and off-road bikes. It is suitable for cyclists who like challenges, DIY beach modification and off-road bikes.

Specification

• Materials: Aluminum, Iron, Copper, Magnetic Steel
• Process: Baking paint
• Color: Silver, Black
• Style: Modern
• Assembly Required: Yes
• Installation of Posituon:
• Wheel Size: 20 inches
• Engine Type: Brushless Toothless Motor
• Handbrake type: disc brakes / V-brakes
• Voltage: 36 V
• Power: 250W
• Empty speed: 43km / 26.72mile / h
• Loading speed: 35-38km / 21.75-23.61mile / h
• Gear Adjustment: 3 Gears
• Assistant: 5 Magnetic Point Assist Sensor, Pedal Assist Sensor
• Brake lever: power cut-off brake lever
• The Throttle: The Finger Chasm
• Display: SW-810 LED Display
• Wiring mode: waterproof wire for output motor, common wiring for others
• Efficiency: ≥82%
• Climbing Angle: 12°
• Rated Speed: 440PRM
• Rated rotational power: 40N. m
• Open Front Fork Size: Approx. 100mm / 3,94 in
• Load capacity: ≤140kg / 308,64 lb
• Brake Line Length: 1,8m/5,9ft
• Engine diameter: 14,25 cm / 5,61 in
• Engine width: 10 cm/3,94 in
• Package Size: 51 * 50 * 24 cm / 20,08 * 19,7 * 9,45 in
• Gross weight: 6.05 kg / 13.34 lbs
• Net weight: 5,75 kg / 12,68 lbs

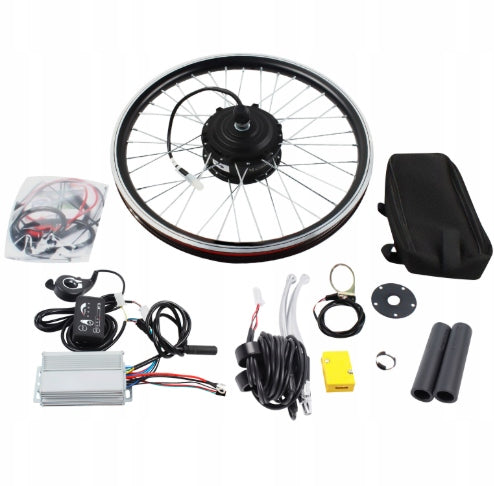

Package included

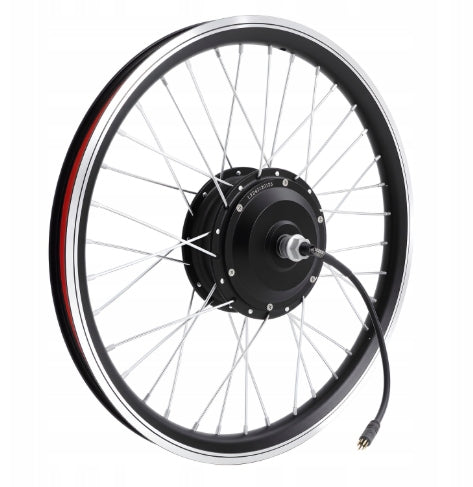

• 1 * Front Engine Wheel
• 1 * Controller
• 1 * Brake lever off
• 1 * LED display
• 1 * Gas Duct
• 1 * Power Sensor
• 1 * Controller Bag
• 1* English manual
• 1 * 7 Rotary wheel speed
• Other mounting accessories

Comments

Please note that this product is only suitable for two-wheeled bikes and not for tricycles or multi-wheeled bikes.

This package does not include batteries, chargers or tires. Please bring your own DC36V lead-acid or lithium battery, suitable charger and 20 inch tires.

Keep in mind that the size of the amperage determines the capacity of the battery, which in turn determines how long the battery will last. The battery interface (not included) must match the interface of our controller.

Please note that when connecting the controller to wires, make sure you connect the correct colors to the controller. Otherwise, the controller may be broken.

Please note that the battery power and voltage (not included) should be compatible with our kit. During installation, make sure that the wiring is not reversed. Otherwise, it may damage the product.

This product is not waterproof, please do not ride in the rain.

Please allow slight color difference caused by shooting light and 1-3cm error due to manual measurement and make sure you don't mind before ordering.

Details

LED Display: Displays the necessary information such as power display, speed display, fault indicator, total mileage, single mileage, current speed, average speed, maximum speed, gear display and other status and data, so you can charge over time and visually track the working status.

Controller bag: You can use it to store your controller and secure it on your bike for easy use.

Connection box: It can prevent the wiring joints from being exposed to the outside, making the wiring safer.

Main features

• High-grade material: This product is mainly made of aluminum, iron, copper and magnetic steel, with a baking paint process that is resistant to rust, scratches and breakage, and can be used for a long time.
• Successful design: The pedal assist sensor (PAS) can sense the rhythm of the pedal and adjust the motor speed accordingly. It allows you to ride an electric bike without gas reaction, which helps with long journeys and reduces wrist pain.
• High efficiency: With a 250W brushless and gearless motor with speeds up to 26,72mph and engine performance of over 82%, it provides stable speeds, responsive braking and direction change control compared to brushed motors, so you can keep going.
• High efficiency: With 40N torque. m and nominal speeds of 440RPM, this product can climb 12° slopes, allowing you to apply it to more terrain in everyday life.
• Superior load-bearing performance: High-end materials and carefully processed wheel can hold up to 308,64 pounds, supporting most ordinary adults and bicycle frames without worrying about deformation or falling.
• High safety: The brake lever can cut off the engine power during emergency braking to stop the bike in time and ensure safe riding.
• Enjoy the ride: Transforms your bike into an electric bike that is both efficient and convenient, allowing you to fully enjoy the ride while commuting to and from work and on short trips.
• Complete Set: This set includes the full range of accessories you need to convert your bike without having to buy them separately. The matching kit will give you a more consistent and stable performance.
• Simple operation: Simply control the speed with the branch, and its battery indicator lights can quickly check the battery level, making it c
