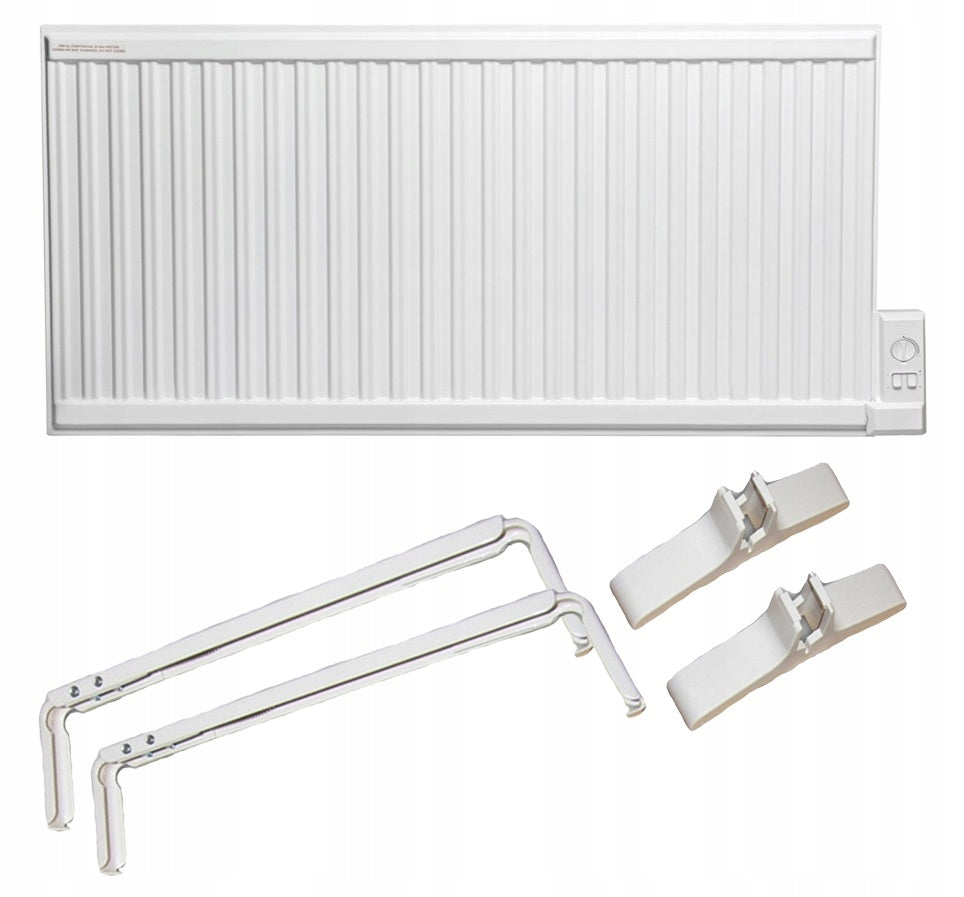

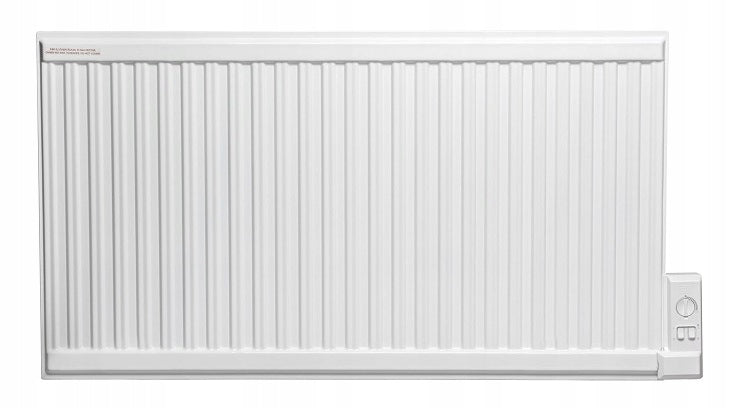

Elektrinis aliejinis radiatorius EKO OLEJAK, 1250 W, 138x60 cm, baltas

Trumpai apie prekę

Prekė: Elektrinis aliejinis radiatorius EKO OLEJAK, 1250 W, 138x60 cm, baltas. Kategorija: Elektriniai šildytuvai.

• Gamintojas: Elpe
• Modelis: GRZEJNIK PANELOWY OLEJOWY ELEKTRYCZNY 138x60

Extremely popular in Scandinavian countries, they definitely enter the Polish market, displacing old rib oils.

The new technology means saving space, electricity and order in the room.

Modern technology of a very sensitive to temperature fluctuations electronic thermostat saves electricity consumption and increases heating efficiency and thus saves electricity by up to 50% compared to traditional radiators.

Panel radiators offered by us have certificates allowing for use on the rigorous Scandinavian market. in Poland they obtained a declaration of conformity allowing for use in the country.

• work in comfort / reduction mode
• Weekly programmer
• Open window detection function
• adaptive start function

• apartment
• office
• cabinets
• hospitals
• kindergarten
• for allergy sufferers, sick people and children
• other rooms where it is important to keep clean and warm

Color: SNOW-WHITE

THE LATEST TECHNOLOGY CLASS 1 , IP 21

POWER SAVINGS UP TO 50%

ADDITIONAL HEAT SINKS ON THE BACK

IN THE 1500 W AND 2000 W MODELS

IT IS POSSIBLE TO PURCHASE RADIATORS OF OTHER DIMENSIONS

power is assigned to the dimension of the radiator

POWER TABLE / DIMENSION TABLE:

LENGTH (A) / HEIGHT (B)

• POWER: 350 W - DIMENSION 66 x 60 cm

• POWER: 500 W - DIMENSION 66 x 50 cm

• POWER: 400 W - DIMENSION 90 x 30 cm

• POWER : 600 W - DIMENSION 114 x 30 cm

• POWER: 700 W - DIMENSION 90 x 60 cm

• POWER : 800 W - DIMENSION 138 x 30 cm

• POWER : 1000 W - DIMENSION 78 x 66 cm

• POWER : 1000 W - DIMENSION 114 x 60 cm

• POWER : 1500 W - DIMENSION 78 x 66 cm

• POWER : 1250 W - DIMENSION 138 x 60 cm

• POWER : 2000 W - DIMENSION 114 x 60 cm

1. SIDE VIEW

2. VIEW - FRONT WITHOUT CONVECTOR

3. VIEW - FRONT WITH CONVECTOR

4. VIEW - FRONT WITHOUT CONVECTOR ON HANGERS

5. VIEW - FRONT WITH CONVECTOR ON HANGERS

1. SIDE VIEW

2. VIEW - FRONT WITHOUT CONVECTOR

3. VIEW - FRONT WITH CONVECTOR

4. VIEW - FRONT WITHOUT CONVECTOR ON HANGERS

5. VIEW - FRONT WITH CONVECTOR ON HANGERS

1. Operation in manual mode.

The required temperature is set using the setting knob in the range of 5˚C÷30˚C according to the above drawing, and using the mode switch setting it in the comfort position. Setting the mode switch to the reduction position means that the previously set temperature will be reduced by 3,5˚C (the mode LED glows green). Turn on the heater by setting the main switch in position 1, set the required temperature on the knob. If the set temperature is greater than the room temperature, the controller will turn on the heating, which will be indicated by the operating status diode (green color – heater attached). If the heater heats the room to the required temperature, the status diode will go out and the controller will turn off the heating.

2. Operation in automatic mode.

Factory settings of the controller : set the knob in "Auto" mode and the mode switch in comfort positions . Turn on the controller with the main switch (pos. 1 ) - the operating status LED will start blinking orange quickly and when the "Auto" mode is loaded it will go out. The controller will set to factory values : comfort =19˚C, reduction =15,5˚C According to the algorithm : reduction = comfort - 3,5˚C When setting the mode switch in the comfort position, the mode diode lights up green every 6th second. (when loading mode, the operating status LED flashes red quickly). When setting the mode switch in the reduction position, the mode diode lights up green for 5s and then goes out for 1s. (when loading mode, the operating status LED flashes quickly green). Any change in the position of the mode switch causes the set mode to load after approx. 1 min.

3. Driver programming (weekly programmer).

The factory settings described in the point above have a constant value, but you can create your own settings tailored to your individual needs at any time. To do this, use the weekly programmer function. With the help of a programmer, we create the so-called. events or elements of the program according to which the controller will direct the work of the entire device. We can create our own values for comfort mode, and for reduction mode, where the rule described above does not apply. We can create up to 100 events per week, but it is absolutely necessary to remember that between created, subsequent events the time period is not less than 15 minutes, (minimum cycle time ≥ 15 minutes). If the programming time for the next event is less than 15 minutes, this setting will be removed and the driver will remember the last event created correctly.

4. Creating an event. Every time a user changes the position of a mode switch, an “event” is created. Creating an event is possible only if the driver is in “Auto” mode.

1. Color-emitting operating status LED (green, red, green+red = orange)

2.

3. Mode Diode – Green

4. Mode switch

5. 1-on main switch (ON), 0 – off (OFF)

Range of settings:

1. 5˚C

2.19˚C

3. 24˚C

4. 30˚C

5. Auto mode

The controller has a special system supporting the settings (pre-installed backup), which stores programmed data for up to 12 hours in the event of a power failure. If the program is lost, the operating status diode will start flashing red at a frequency of 1 time / 6 s.

Modify the weekly program settings. The created weekly program can be modified at any time. Modifications can only be made if the driver knob is in the “Auto” position. If you want to modify the program settings, follow the description in sections 4 and 5 of this manual.

Delete the weekly program. To delete the weekly program, change the position of the mode switch 5 times.

Open window detection function. If in the room where the heater is located in less than 10 minutes, the temperature will decrease by 2˚C in the controller, the so-called function is activated. open window. The controller will switch its operation to antifreez mode (anti-freezing) setting the temperature to 7˚C

Adaptive start function. The adaptive start function will only start when the user has set the position of the mode switch to comfort. If the user e.g. at 10 a.m. 8:00 will set the mode switch to the comfort position, and set the required temperature (e.g. 20˚C ) is every next day of the week the controller will remember these settings and maintain them. If the room temperature is lower than the required controller will start heating in advance, so that at an hour. 8:00 has been reached set temp. 20˚C. The factory settings of the controller allow it to react earlier with a maximum adaptation time of 120 minutes (2 hours). ).

• - MODERN ELECTRONIC PROGRAMMER
• - SMOOTH TEMPERATURE CONTROL
• - SPACE SAVING
• - INCREASED HEATING EFFICIENCY
• - LOW POWER CONSUMPTION ECO-HEATING
• - IN 1500 W AND 2000 W MODELS
• - ADDITIONAL HEAT SINKS ON THE BACK
• INCREASING HEAT DISSIPATION

• apartment
• office
• cabinets
• hospitals
• kindergarten
• for allergy sufferers, sick people and children
• other rooms where it is important to keep clean and warm

• protection against overheating
• possibility of wall mounting or as freestanding
• white color
• Power supply:220~230V / 50Hz
• electric cable (1,5m) terminated with plug
• IP 21
• Class I

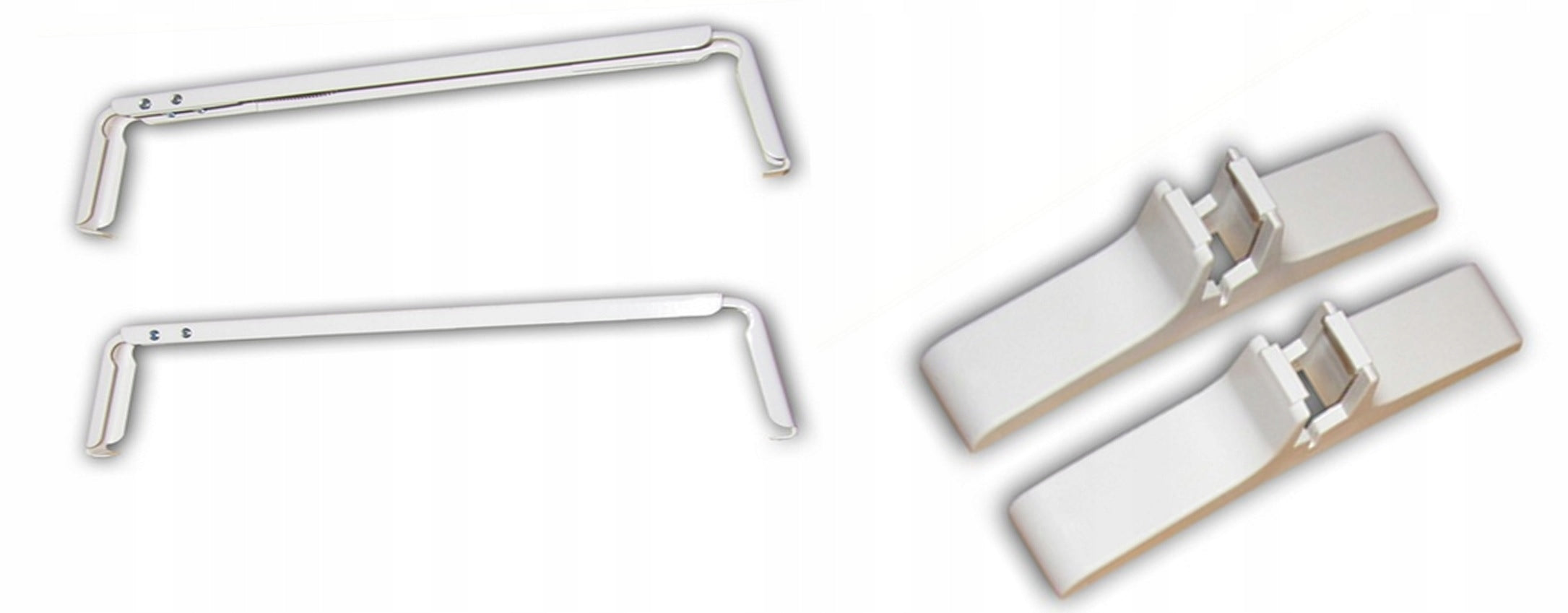

• wall mount braces
• feet to put on the floor
• assembly instructions

Safety - ensures automatic protection, which prevents excessive overheating of the device during operation and an anti-freeze function.

The heater is quiet and odorless, produces a pleasant microclimate, does not dry the air and does not burn dust, which is why it is ideal for allergy sufferers, sick people and children.

Each heater has a limiter to protect against overheating of the heater, making it safe to use.

A sensitive electronic thermostat is integrated into the radiator, which allows precise temperature control in the room.

CLEANLINESS IN THE ROOM

Natural air circulation, does not burn dust. Dust does not settle and does not spread in the room.

NOISE - Heaters thanks to modern technology are very quiet.

USER SAFETY

All elements in the heater are built-in.

SAVINGS IN POWER CONSUMPTION - ECO

Panel oil heater filled with very good oil,

It gives heat to the environment, even when it does not draw electricity.

Thanks to the very large heating surface of the radiator panel, it effectively transfers heat to the environment.

Thanks to modern technology, you can save up to 50% of energy consumption.

Electronic thermostat. The heater is equipped with the most modern thermostat available on the market.

It responds to temperature fluctuations by turning the heater on and off.

Thanks to modern technology, we maintain a constant temperature in the room.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Elpe
Parametry	Dominant color	white
Parametry	Model	GRZEJNIK PANELOWY OLEJOWY ELEKTRYCZNY 138x60
Parametry	Kind	oil
Parametry	Maximum power	1250 W
Parametry	Product weight with unit packaging	28 kg
Parametry	Manufacturer code	GRZEJNIK PANELOWY OLEJOWY ELEKTRYCZNY 138x60
Parametry	EAN (GTIN)	5904922958188
Parametry	Packaging status	original
Parametry	Customs tariff code	85162910
