Elektrinis aliejinis šildytuvas 2000 W, baltas, su LCD, 114 x 60 cm

Trumpai apie prekę

Prekė: Elektrinis aliejinis šildytuvas 2000 W, baltas, su LCD, 114 x 60 cm. Kategorija: Elektriniai šildytuvai.

• Gamintojas: no brand
• Modelis: GRZEJNIK PANELOWY 2000W EKO 114x60

2000 Watt OIL ELECTRIC HEATER

with the latest digital controller

• Color: Snow White
• Width 114 cm
• Height 60 cm
• NO 1 IN EUROPEAN PARSLEY CLASS 1 , IP 44
• POWER SAVINGS OF UP TO 50 %
• THE LATEST TECHNOLOGY
• POWER 2000 W

DRIVER FUNCTIONS:

• weekly programmer function

• open window detection function

• Adaptive start function

• TURBO function (so-called fast heating)

• NIGHT function (temperature reduction at night)

• heater surface temperature limit function

• CHILD function (protection against child burn)

Specific design (IP44 rating) allows for use

-making the device in rooms with increased humidity (e.g. bathrooms).

Extremely popular in Scandinavian countries, they definitely enter the Polish market, displacing old rib oils.

The new technology means saving space, electricity and order in the room. Instead of traditional "electric-eating" radiators, we offer a compact panel, flat, light, filled with ecological oil with excellent thermal properties.

Modern technology of a very sensitive to temperature fluctuations electronic thermostat saves electricity consumption and increases heating efficiency and thus saves electricity by up to 50% compared to traditional radiators.

Panel radiators offered by us have certificates allowing for use on the rigorous Scandinavian market. in Poland they obtained a declaration of conformity allowing for use in the country.

• apartment
• office
• cabinets
• hospitals
• kindergarten
• for allergy sufferers, sick people and children
• other rooms where it is important to keep clean and warm

Electric heater with a modern digital controller, filled with special mineral heating oil. Tight design (protection degree IP44) allows the device to be used in rooms with increased humidity (e.g. bathrooms).

The radiator is flat, light and snow-white in color.

It works quietly, is odorless, does not dry the air and does not burn dust.

Ideal for rooms for children, allergy sufferers and sick people.

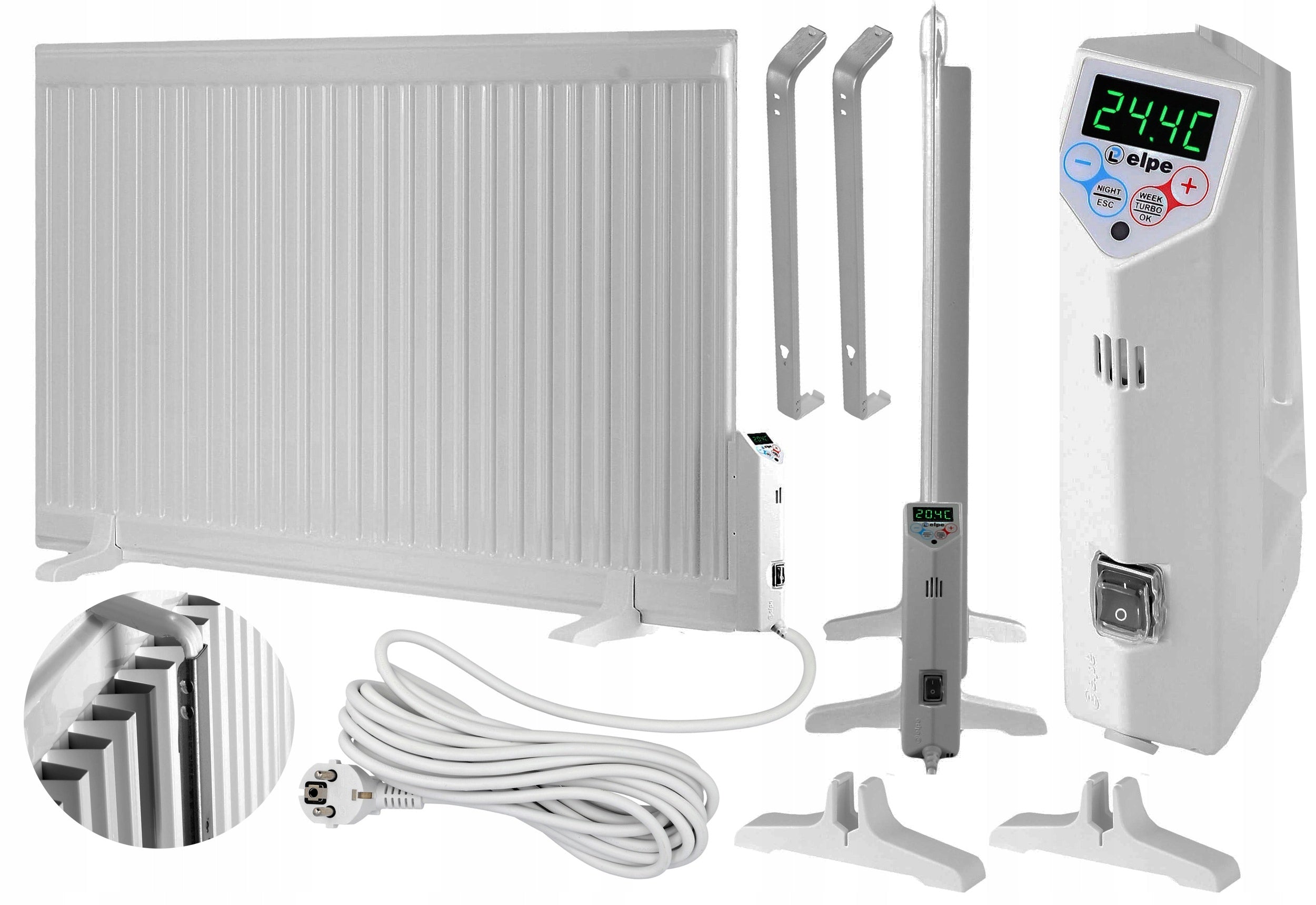

The radiator is equipped with a set of feet that allow you to place it anywhere and a set of hangers that allow you to hang it on the wall.

The thermostat is located on the right side of the radiator and its position cannot be changed. This is due to the placement, on the back of the radiator, of an additional trapezoidal sheet heat sink for faster heat dissipation.

• apartment
• office
• cabinets
• hospitals
• kindergarten
• for allergy sufferers, sick people and children
• other rooms where it is important to keep clean and warm

• protection against overheating
• possibility of wall mounting or as freestanding
• white color
• Power supply:220~230V / 50Hz
• electric cable (1,3m) terminated with plug
• IP 44
• Class I

• wall mount braces
• feet to put on the floor
• assembly instructions

Safety - ensures automatic protection, which prevents excessive overheating of the device during operation and an anti-freeze function.

The heater is quiet and odorless, produces a pleasant microclimate, does not dry the air and does not burn dust, which is why it is ideal for allergy sufferers, sick people and children.

Each heater has a limiter to protect against overheating of the heater, making it safe to use.

A sensitive electronic thermostat is integrated with the heater, which allows precise temperature control in the room.

CLEANLINESS IN THE ROOM

Natural air circulation, does not burn dust. Dust does not settle and does not spread in the room.

NOISE - Heaters thanks to modern technology are very quiet.

USER SAFETY

All elements in the heater are built-in.

SAVINGS IN POWER CONSUMPTION - ECO

Panel oil heater filled with very good oil,

It gives heat to the environment, even when it does not draw electricity.

Thanks to the very large heating surface of the radiator panel, it effectively transfers heat to the environment.

Thanks to modern technology, you can save up to 50% of energy consumption.

Electronic thermostat. The heater is equipped with the most modern thermostat available on the market.

It responds to temperature fluctuations by turning the heater on and off.

Thanks to modern technology, we maintain a constant temperature in the room.

FUNCTIONS AND OPERATING MODES OF THE THERMOSTAT:

1. Normal operation mode – thermostat operates in the temperature range of 5°C (antifreezing)

÷ 34°C.

Temperature measurement is carried out with a resolution of 0,1 ° C, the hysteresis of the set room temperature is

0,2°C (0,2°C down from set temperature).

NTC 2k2 temperature sensors measure in the range of -40°C÷120°C.

Temperature measurement outside the range indicates damage to the sensor. Checking sensors performed

is all the time when the controller is connected to the 230V AC network. If there is damage to the sensors then

The relay will be disconnected if it was switched on, and an error code will appear on the display. If the sensor starts

Measure correctly then the controller will spontaneously return to work. If before sensor damage

The controller works in TURBO, NIGHT mode, when you return it will start working in normal operation mode.

The thermostat has double protection against overheating:

• the first stage (software protection) takes place after reaching a temperature of 70°C (sensor measures

temperature at the appropriate point of the heater-this point lies outside the heating surface). Once achieved

70°C disconnects the heating circuit. When the radiator temperature drops to 67˚C heating circuit

will be re-attached.

• second stage (thermal sensor protection – thermal) is activated when the temperature is at the appropriate temperature

the point of the heater has reached 80°C (this point lies outside the heating surface), and the first stage

Security didn't work for some reason. The thermal sensor disconnects the heating circuit. When the temperature

lower to 50˚C the heating circuit will be switched on again.

In order to set the set temperature in normal operation mode, press the “PLUS” or “MINUS” button.

The display will show the currently set temperature and the “C” stamp will flash. Buttons

“PLUS” and “MINUS” change the set temperature. Holding down the “PLUS” or “MINUS” button value

settings change automatically. To save the set temperature, press the button “WEEK/TURBO/

OK” To exit the temperature setting without remembering the changes, press the “NIGHT/ESC” button. If

We will not press anything for 5s, there is an automatic output without changing the setting. The purpose of the thermostat is

controlling the operation of the heater (switching on and off the heating) in accordance with the user's settings. Because

The temperature sensor responsible for its measurement in the room is placed in close proximity

from a warm device its measurement and display indication may vary in the range of 1,0 ÷ 1,5°C (up)

in relation to the indications of the room thermometer. When setting the required temperature, the difference should be taken into account

indications of the thermostat sensor with respect to the room thermometer.

2. Turbo mode "TURBO mode" - consists in switching on the controller for heating with a maximum setting of 34 ° C, for the time specified by the user.

To enter the "TURBO" mode, press and hold the "WEEK/TURBO/OK" button for 4s until the "0h" setting appears. Pressing the “WEEK/TURBO/OK” button again changes the setting to: 1h, 2h, 3h (h-hours) and OFF. After selecting the required setting, release the "WEEK/TURBO/OK" button (we do not press anything more), wait 2s and after this time the controller will load the TURBO mode setting and its duration set by us. If we turn on TURBO mode correctly, the dot on the third segment of the display will blink.

Turn off TURBO functions can be by:

• Press and hold the “WEEK/TURBO/OK” button for 4s and select the OFF option, release the “WEEK/TURBO/OK” button and wait 2s. The controller will exit the TURBO function.

• Enter the “NIGHT” setting (see below).

• Reset the controller by disconnecting the power supply – setting the main switch 0-1 in the “0” position.

When the "TURBO" function is disabled, the driver goes to the last active function (weekly function if it was active or normal mode if the weekly function was disabled).

The "TURBO" mode has a higher priority (temperature control) than the weekly function!!!

4. “SAFE” and “CHILD” functions – SAFE and CHILD functions are designed to protect the heater against heating surface above temperature – respectively: 70°C and 50°C. To achieve this, the radiator works (if all the conditions for switching on the heating are met) in cycles:

• 15s heating, 45s stop for SAFE function

• 10s heating, 50s stop for CHILD function.

In addition, the heater will be disconnected when the heater sensor (measured at the appropriate point outside the heating surface) measures a temperature higher or equal to:

• 58°C for SAFE function (reactivation of heating at temp. 55˚C)

• 38°C for CHILD function (reactivation of heating at temp. 35˚C)

According to the temperature of the heating surface:

• 64˚C for SAFE function (heating at temp. heating surface 61˚C)

• 44˚C for CHILD function (heating switched on at temp. heating surface 41˚C)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Dominant color	white
Parametry	Model	GRZEJNIK PANELOWY 2000W EKO 114x60
Parametry	Kind	oil
Parametry	Number of power levels	2000
Parametry	Maximum power	2000 W
Parametry	Functions	timer
Parametry	Product width	114 cm
Parametry	Product height	60 cm
Parametry	Product weight	17 kg
Parametry	Product weight with unit packaging	17 kg
Parametry	Manufacturer code	GRZEJNIK PANELOWY ELEKTRYCZNY 2000W EKO
Parametry	EAN (GTIN)	5904922258134
Parametry	Packaging status	original
Parametry	Safety	automatic shutdown if the device tips over,anti-slip feet,safety switch,overheating protection,frost protection
