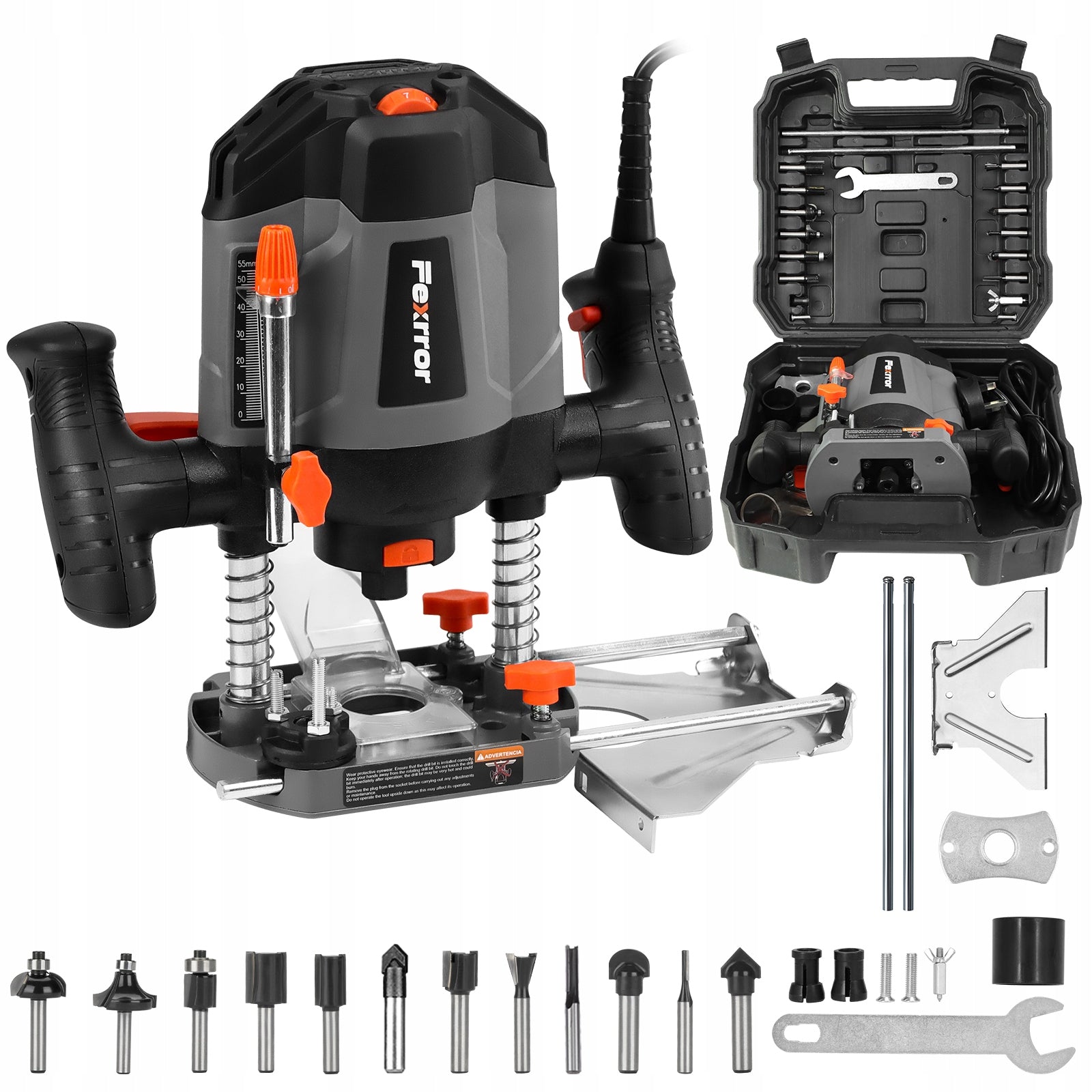

Elektrinis frezavimo staklės medžiui su 12 frezų rinkiniu

Trumpai apie prekę

Prekė: Elektrinis frezavimo staklės medžiui su 12 frezų rinkiniu. Kategorija: Frezavimo staklės.

• Gamintojas: no brand
• Modelis: 6975694541228
• Įtampa: 230 V

Want to create efficiently in wood?

Fexrror 1200W Spindle Cutter will allow you to do that!

12 cutters for different jobs, replacement without tools, 7 degrees of speed control for different types of wood.

Universal head (1/4”/6mm/8mm), safe switch + 30 000 rpm /min.

Power and safety in a lightweight design – ready to go at any time.

For woodworking enthusiasts: this is what you must have!

✅Rated voltage: 230 V ~ 50 Hz

✅Input power: 1200 W

✅Idle speed: 11 000 - 30 000 rpm /min

✅Handle diameter: 6/8 mm

✅Max. milling depth: 55 mm

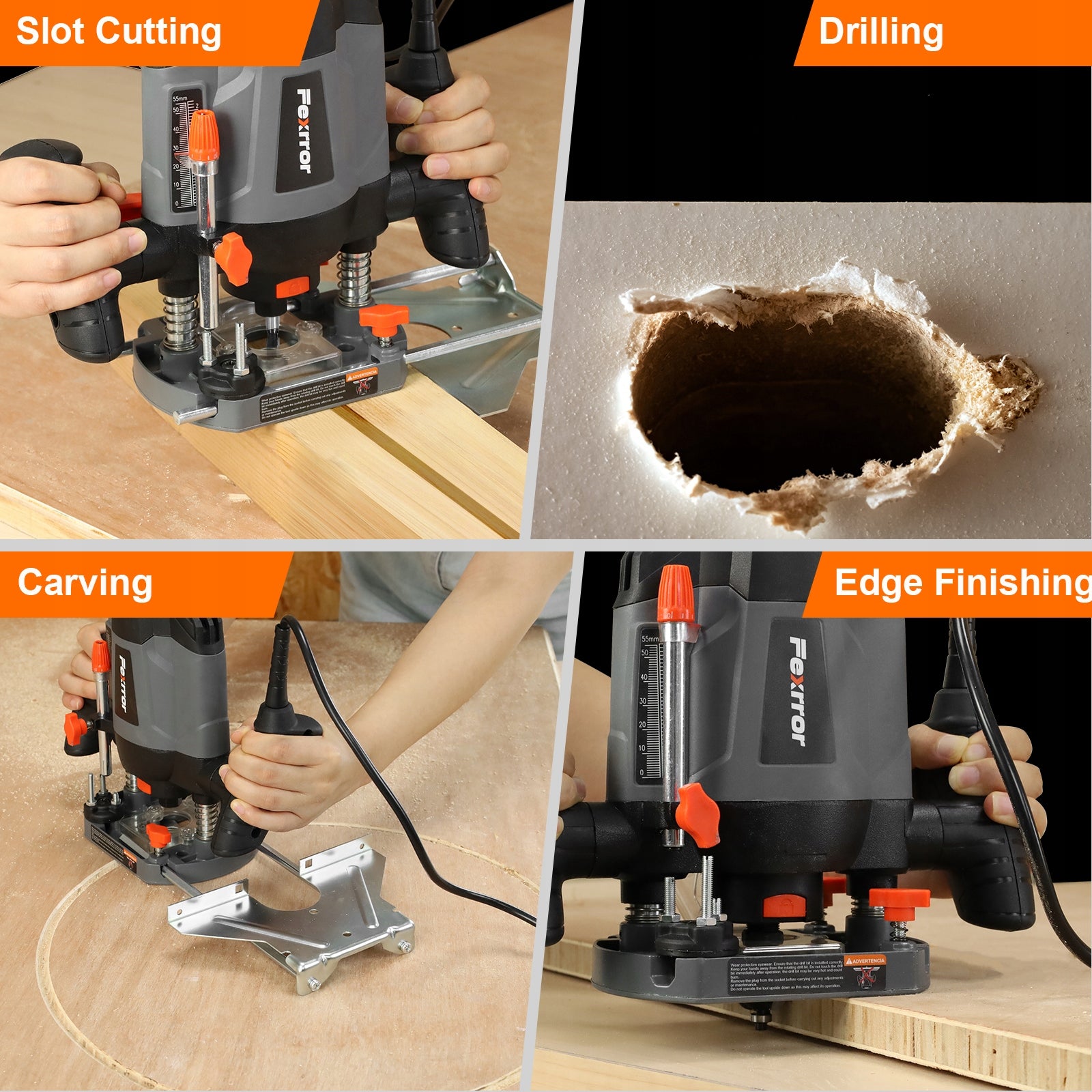

✅Set of cutters: 12 different types (including straight, rounding, engraving) for grooving, edging, carving and profiling.

✅ Precise depth adjustment: Control knob + scale indicator + depth limiter lock lever ensure accurate control of machining dimensions.

✅Security: Start lock and safe switch prevent accidental start-up.

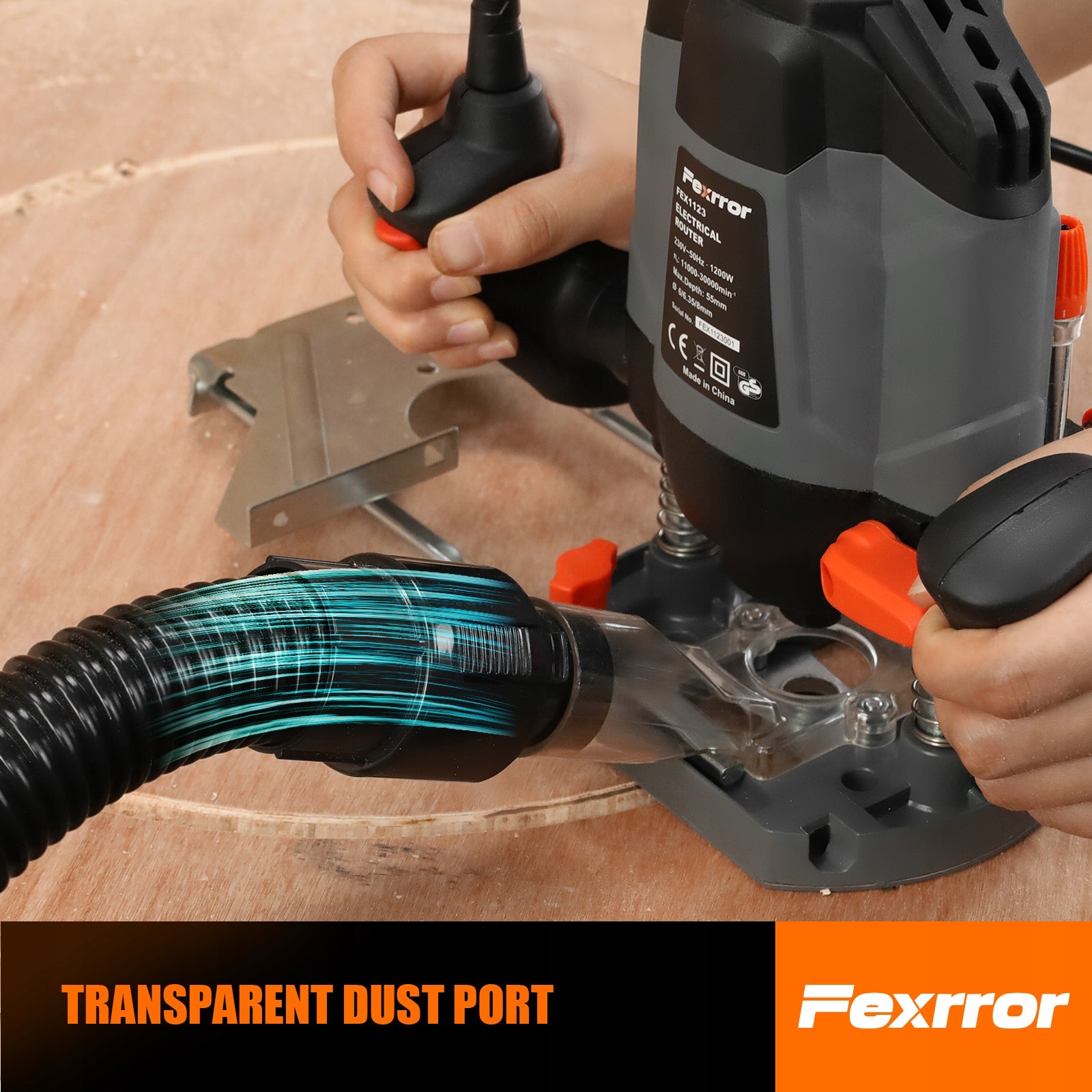

✅Vacuum cleaner cover: When connected to the vacuum cleaner, it instantly collects sawdust and dust during milling, protecting the health of the operator, preventing contamination of the milling machine mechanism, extending the life of the device and ensuring clean and efficient operation.

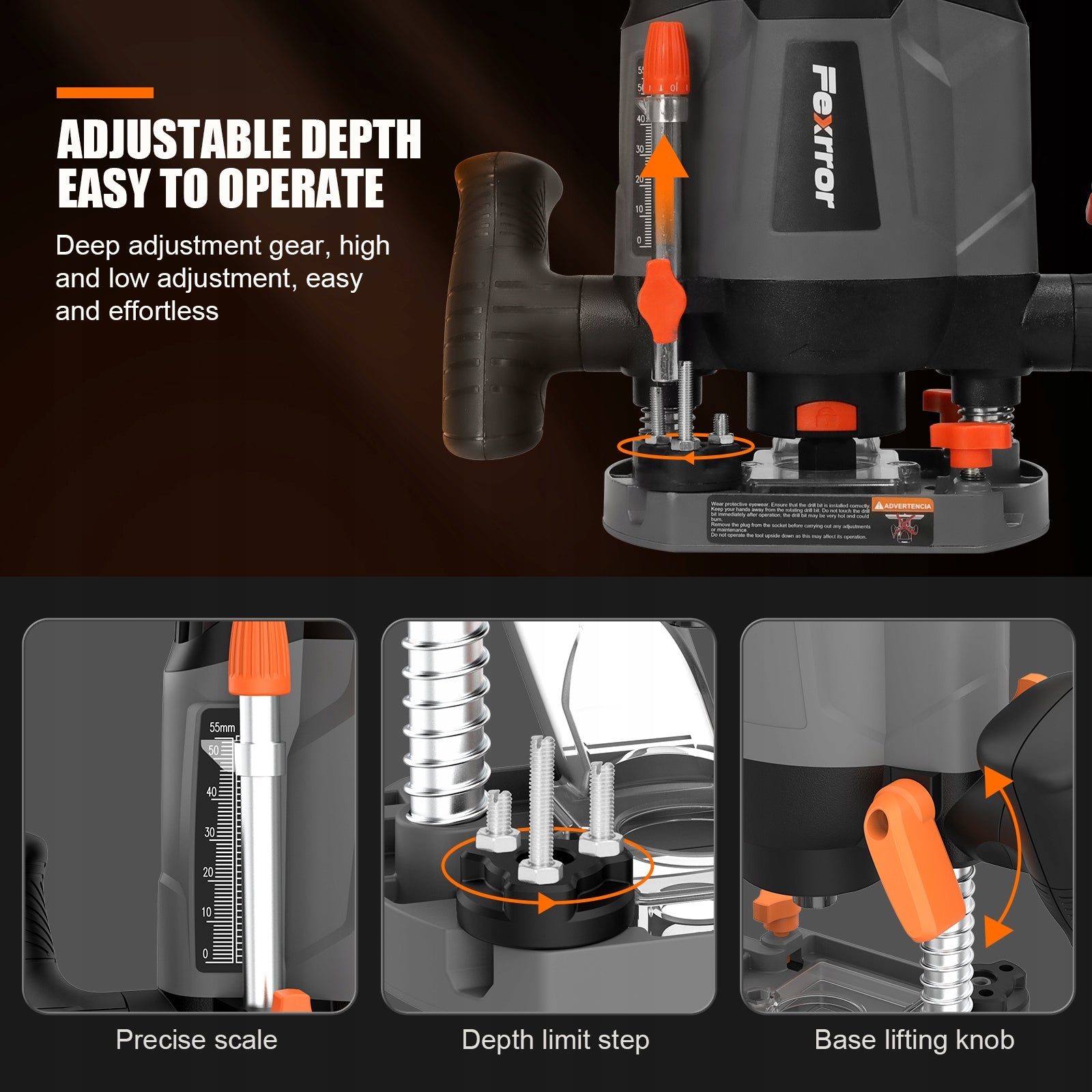

✅Fexrror milling machine: Super easy depth adjustment!

✅ Precise scale: Readable markings for instant reading

✅Depth limiter degree: Determines the maximum milling depth, preventing over-processing

✅Base Lift Knob: Smooth Height Adjustment

✅Thanks to the depth adjustment system – both small corrections and large changes can be made in one move.

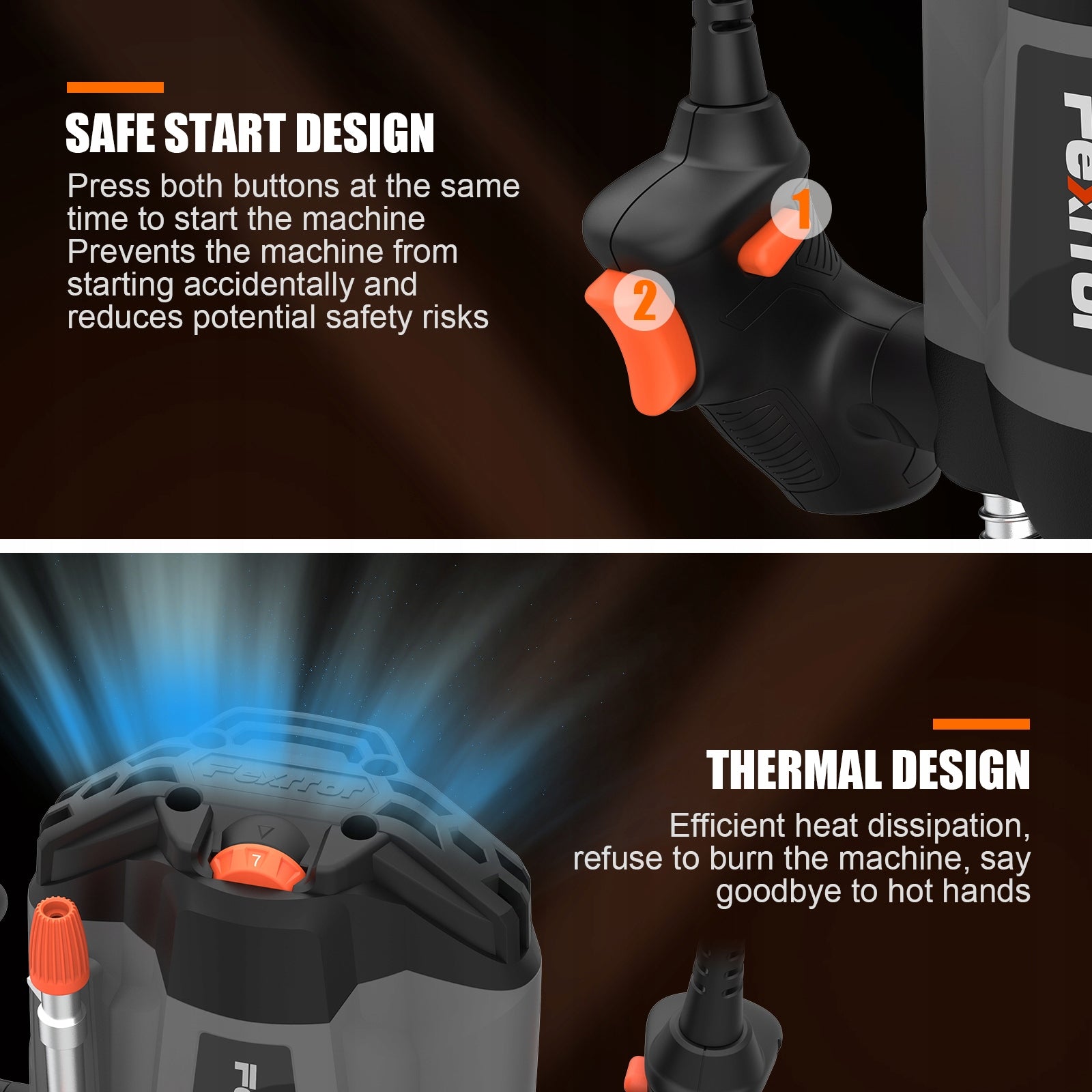

✅Safe start-up

It requires to press two buttons at the same time, which prevents accidental start-up – especially important in crowded workshops with many tools.

✅Cooling system

Effectively dissipates heat during long-term work (e.g. milling grooves in solid wood furniture), protecting mechanism from overheating and providing a comfortable temperature of handles.

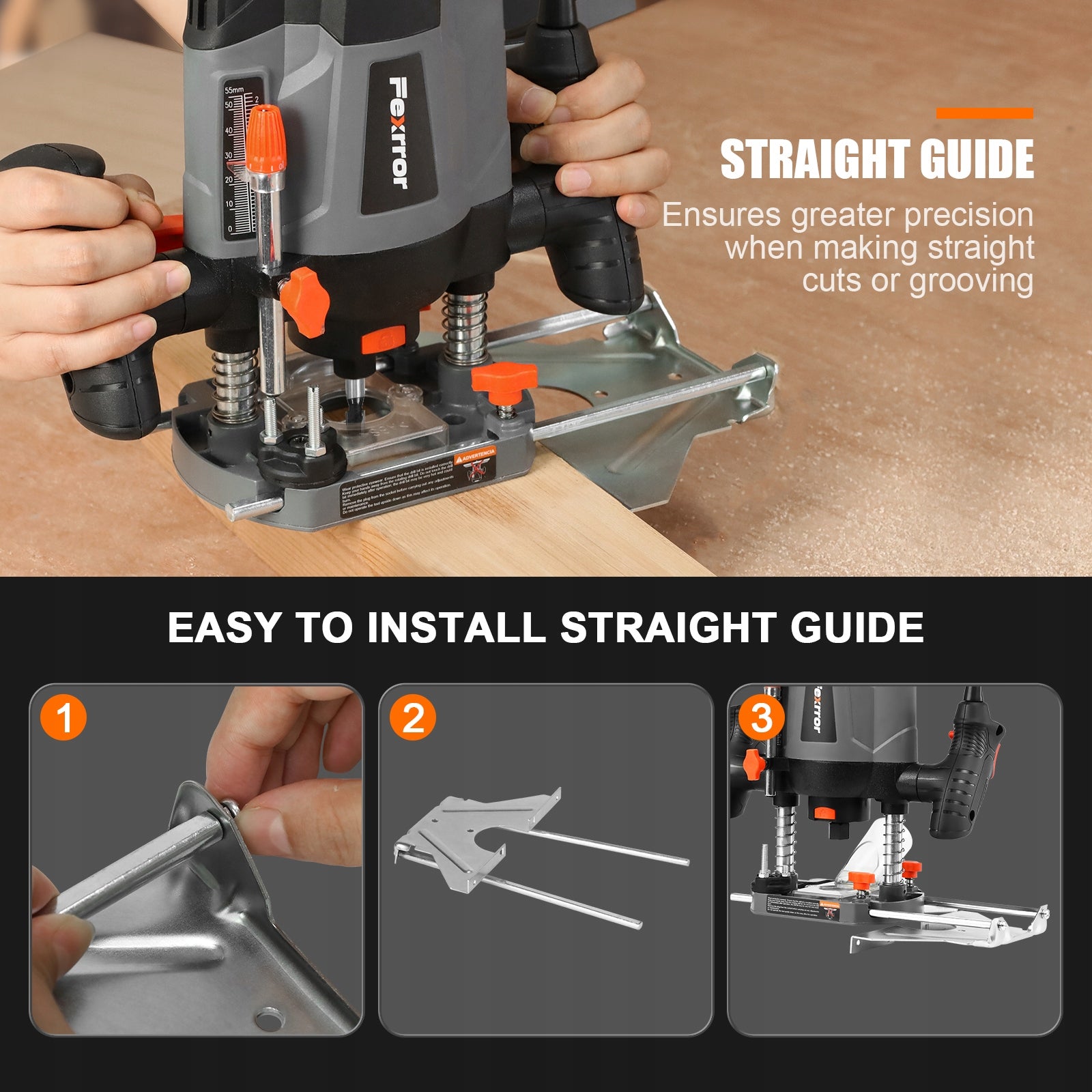

✅Feature:

After installation, it ensures stable straight line guidance of the cutter during straight cutting or groove milling, increasing machining precision.

Ideal for making straight cable channels in wood or cutting even slats – get rid of the problem of crooked cuts.

✅Assembly:

first assembly of guide elements

then mounting to the cutter

at the end of the regulation.

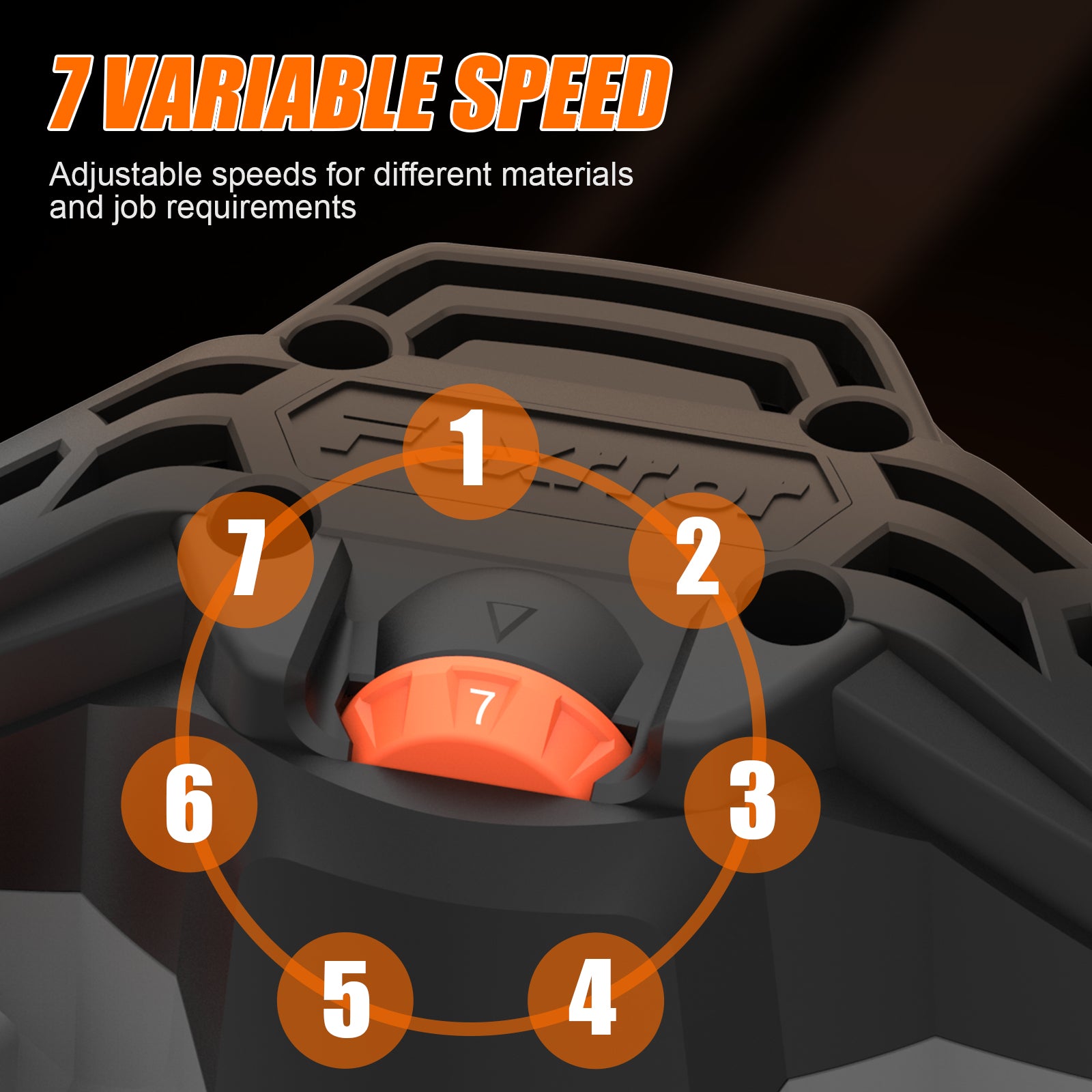

• Speed control: 7 degrees for different machining needs.
• Start lock: Requires unlocking before ON/OFF is enabled (prevents accidental startup).
• Control knob: Precise adjustment of milling depth.
• Depth adjustment scale indicator: It makes it easier to read the adjustment range.
• Depth limiter lock lever: Help to fix the set depth.
• Locking screw: Stabilizes regulatory elements.
• Spindle lock key: Blocks the spindle when replacing cutters (safety and convenience).
• Jump limiter: Parameter control (e.g. depth) during processing.
• Base plate: Guarantees the stability of the device.
• ON/OFF switch: On/off control.
• Handle: Allows you to drive the device with confidence.
• EU nut: Attaches the connected elements.
• Locking screw: Strengthens the stability of connections.
• Guide rail: Provides precise guidance of the device.

✅Angle mill profiled: dia. 12,7 mm

✅ 90° subtitle cutter: d. 9,05 mm

✅Rounding mill: R6,3 mm

✅Edge cutter: dia. 12,7 mm

✅ 90° subtitle cutter: dia. 12,7 mm

✅Semi-circular milling: R6,3 mm

✅Straight cutter (4 sizes):

• Wed. 3 mm
• Wed. 6 mm
• Wed. 12 mm
• Wed. 16 mm

✅Swallow tail mill: dia. 12,7 mm

✅Frame cutter: d. 12,7 mm

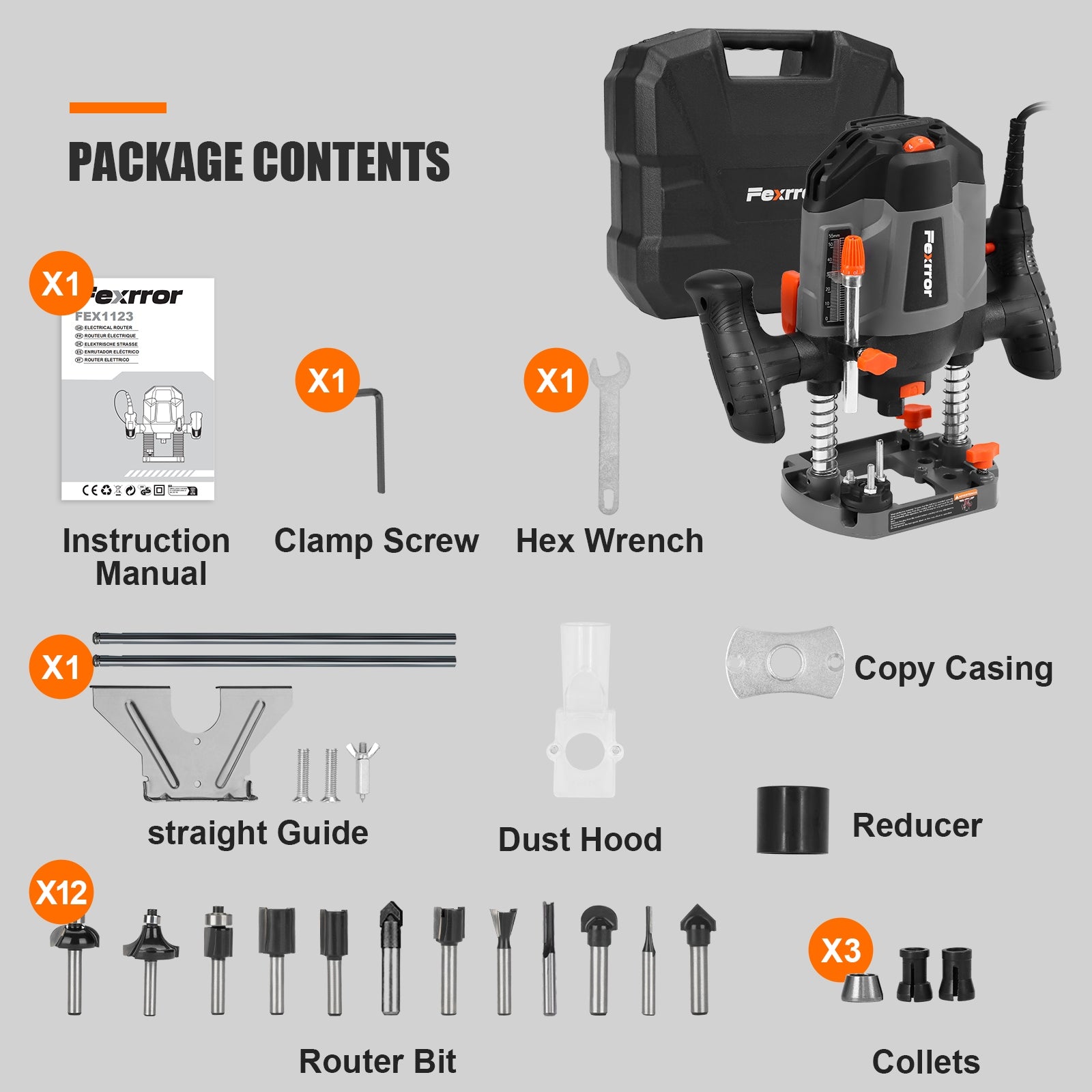

• Main milling unit Fexrror × 1 pc.
• Plastic storage container × 1 pc.
• User manual × 1 pc
• Pressure screw × 1 pc.
• Allen wrench × 1 pc.
• Straight guide rail × 1 pc. (with additional parts)
• Dust cover × 1 pc.
• Copy sleeve × 1 pc.
• Reducer (reduction sleeve) × 1 pc.
• Milling heads × 12 pcs. (12 types for grooving, engraving, etc. )
• Clamp holders (Collets) × 3 pcs.

Specifications
