Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: 3 eur
Aprašymas
Trumpai apie prekę

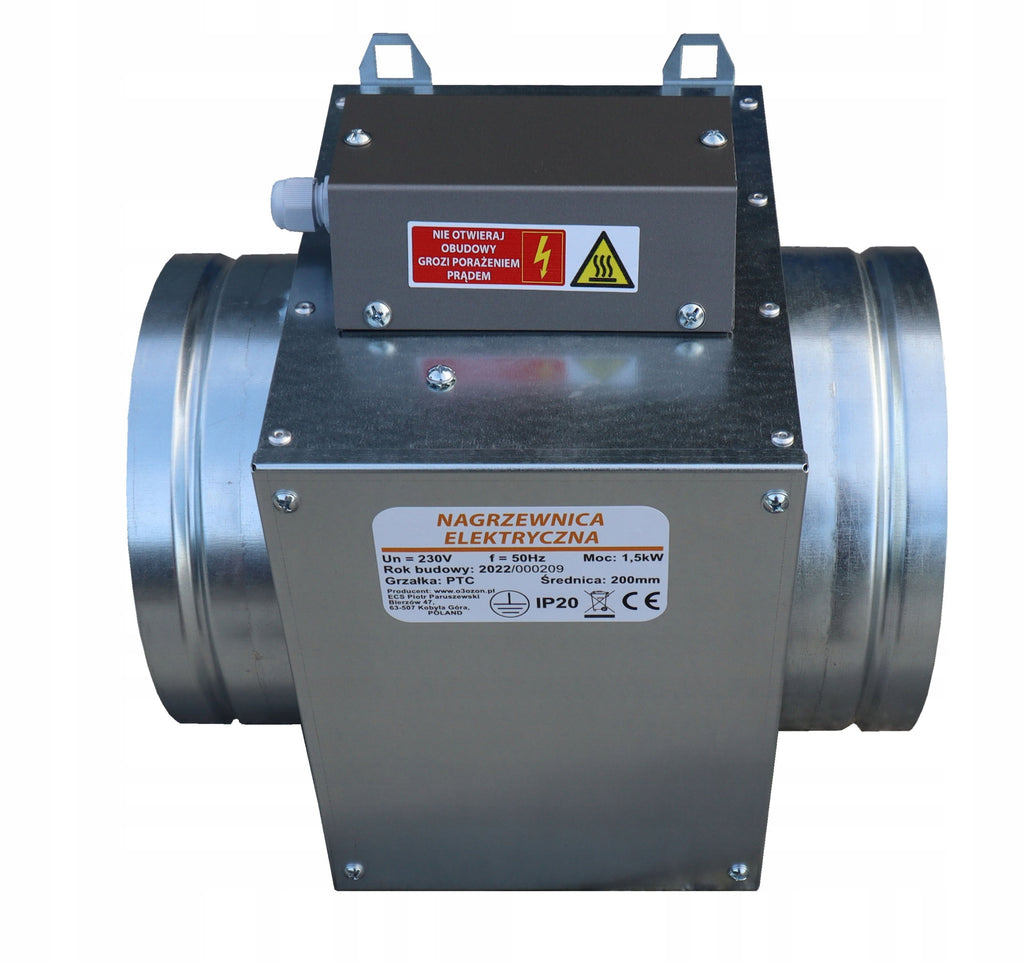

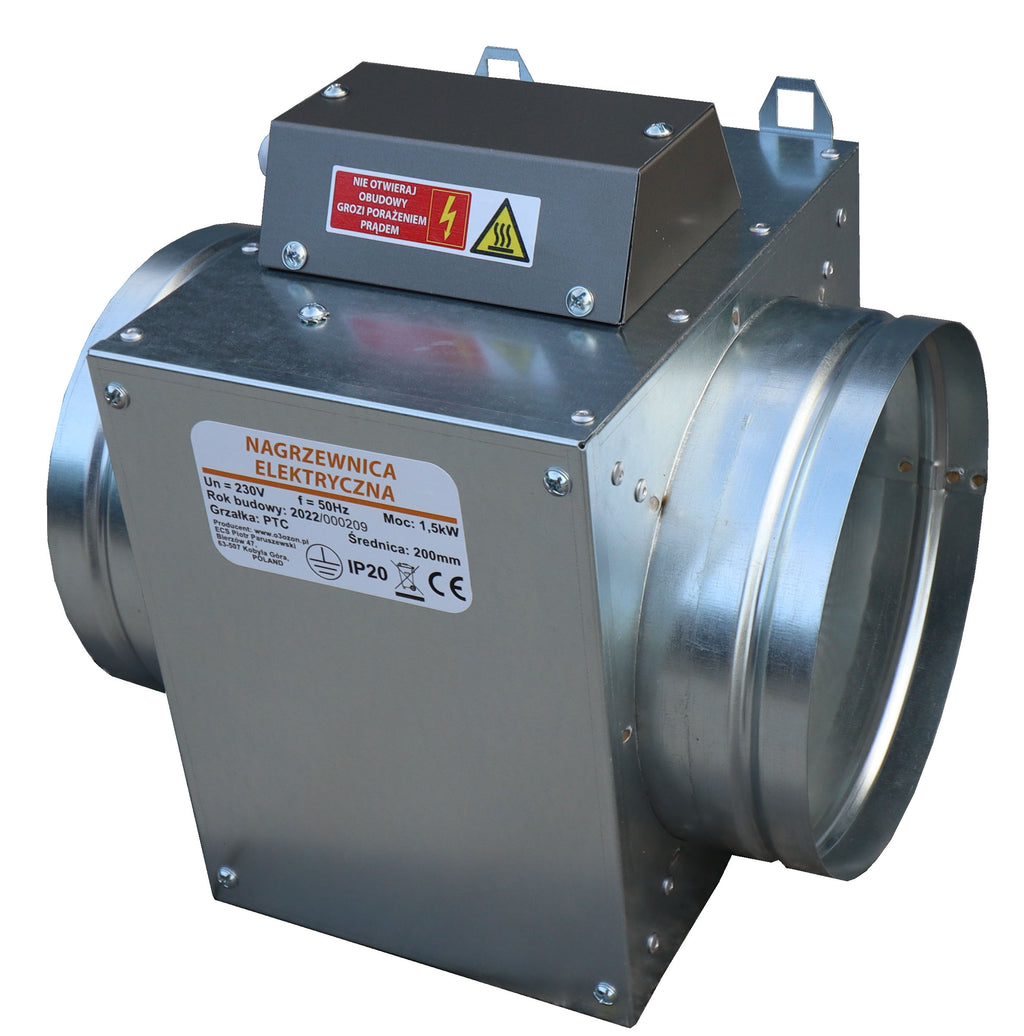

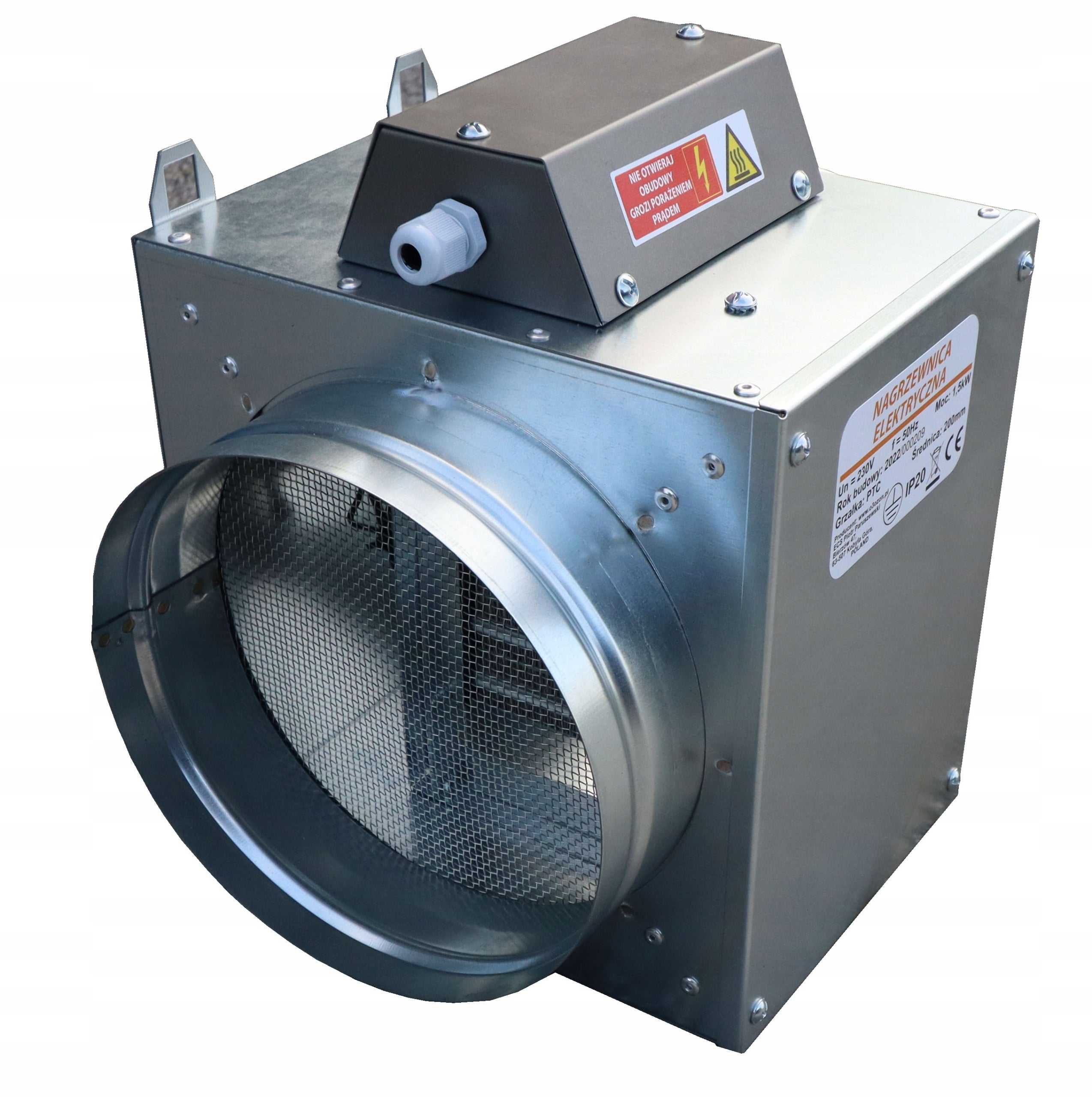

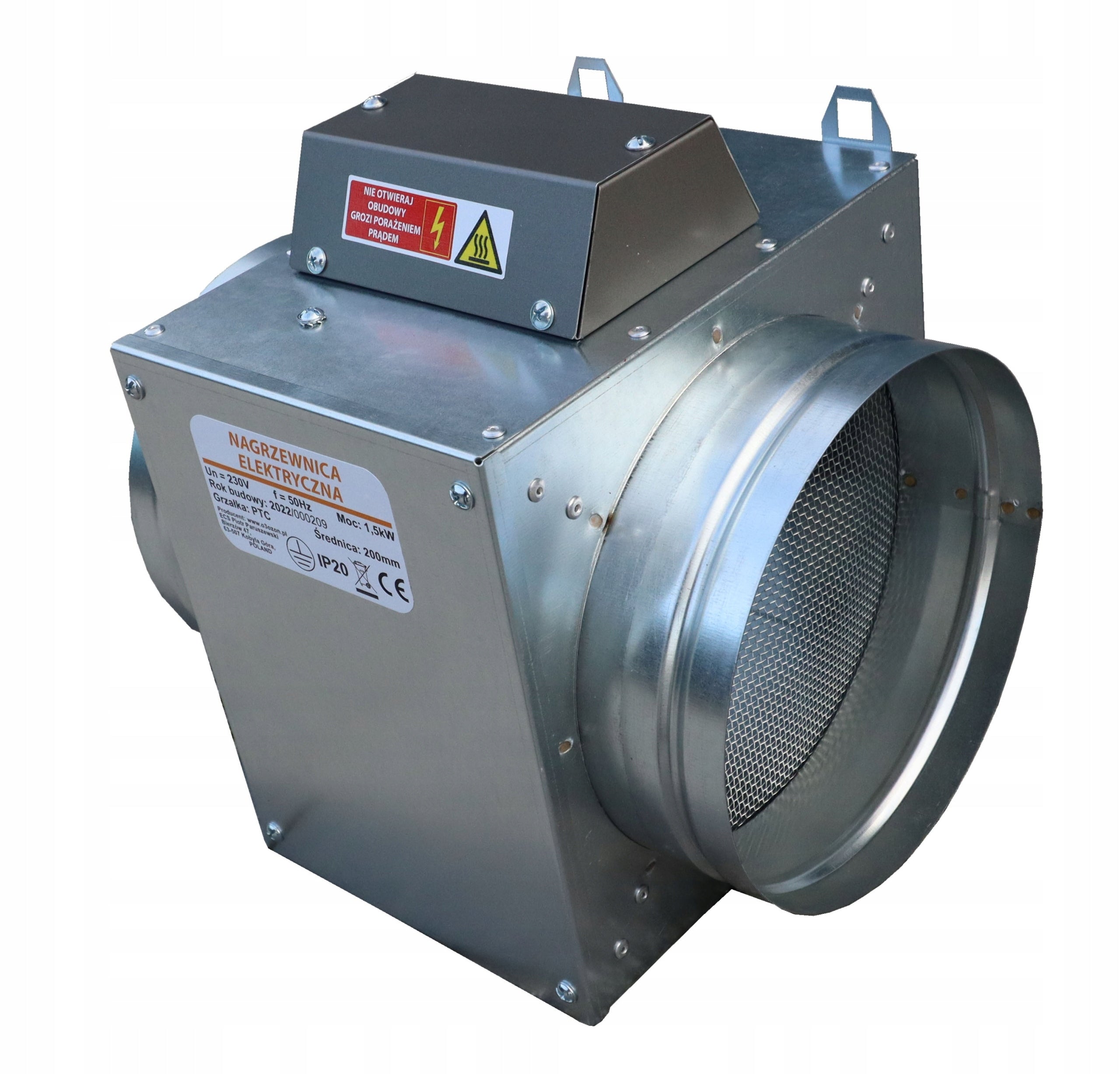

Prekė: Elektrinis kanalo šildytuvas 200 mm, 1,5 kW, PTC. Kategorija: Rekuperacinės vėdinimo sistemos.
- Gamintojas: no brand
- Modelis: NAGRZEWNICA PTC 1,5KW
Before you buy, watch the video https://youtu.be/MA1V6HQD64U
PTC electric heaters are used in ventilation systems in which it is necessary to increase the temperature of the supplied air or stabilize it at a constant level. The housing of the device is made of galvanized steel sheet terminated on stubs. Specially shaped heater in the form of a mesh made of stainless steel and alminium guarantees even heating of the flowing air. In the outer box there is a connection block and thermal protection preventing overheating of the element. The product can be installed in both vertical and horizontal ventilation ducts at any direction of air flow. ATTENTION HEATER REQUIRES ADDITIONAL CONTROL, E.G. FROM THE VENTILATION UNIT, AND MUST BE CONNECTED ON NON-COMBUSTIBLE DUCTS (e.g. steel pipes) AT A DISTANCE OF 0,8m FROM THE HEATER
Video presenting the operation of the PTC https://youtu.be/mRJiBHpKzyc heater
Video presenting the operation of the PTC https://youtu.be/mRJiBHpKzyc heater
TECHNICAL PARAMETERS (HEATERS):

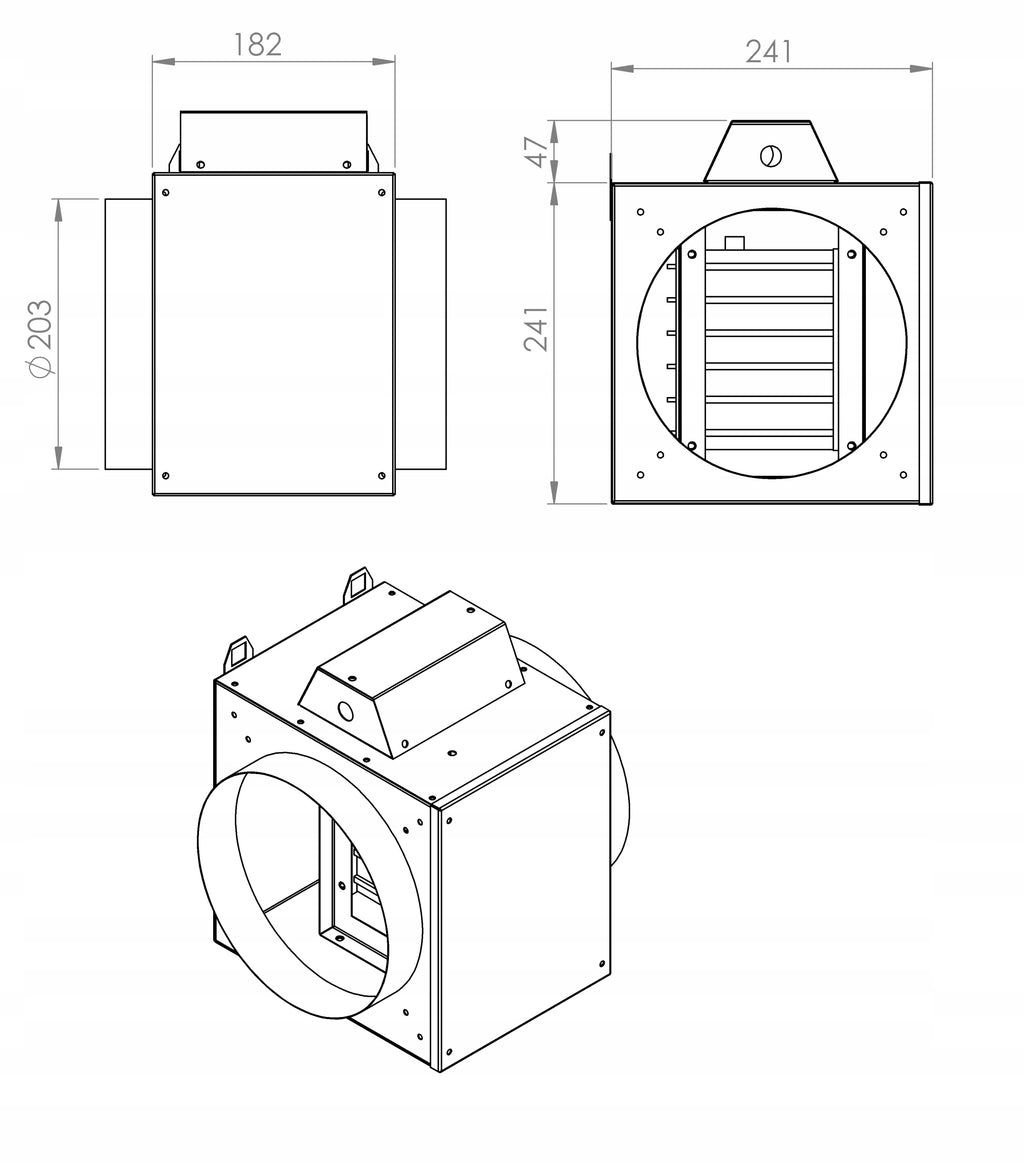

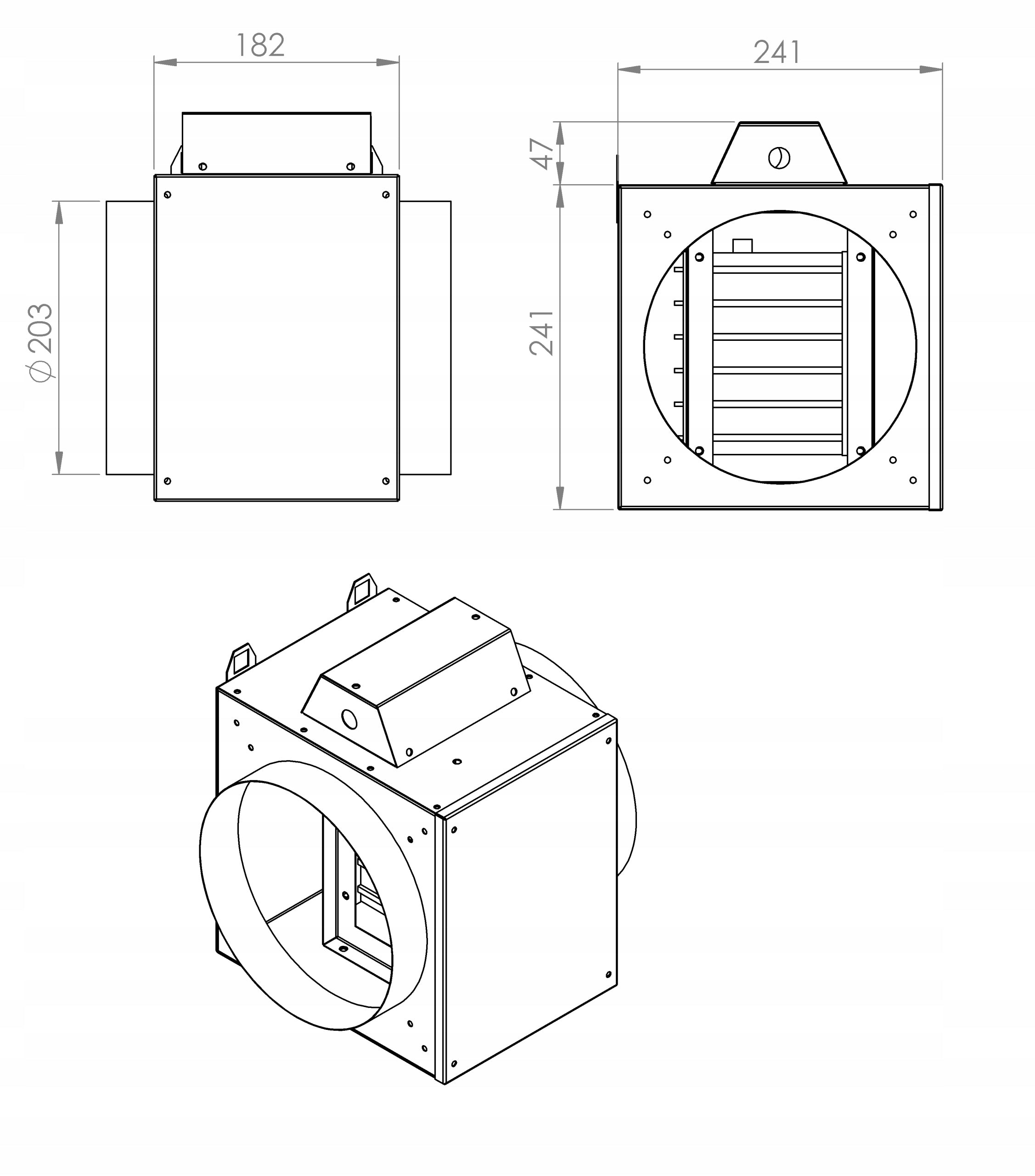

- Connection diameter (mm): 200
- Power supply: 230V, 50Hz

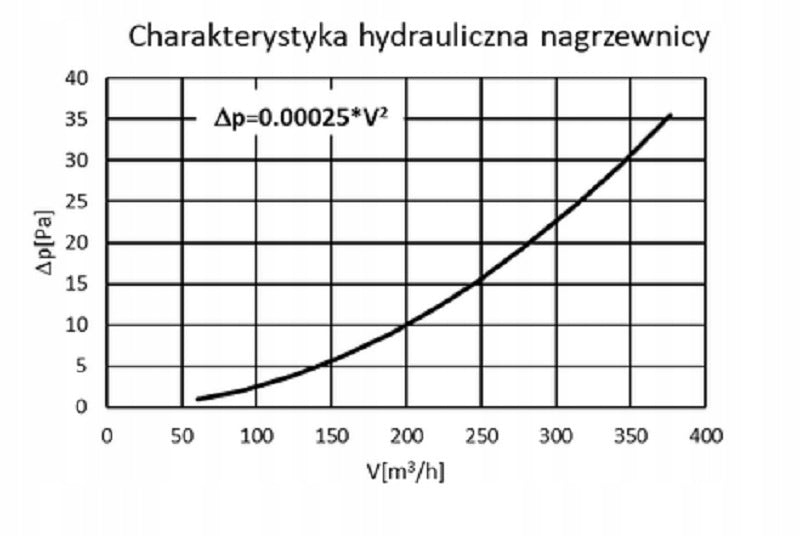

- Minimum airflow (m3/h): 170
- Power (kW): 1,5
- Nominal current (A): 7
PACKAGING:
- Package contents: heater, manual and warranty.
- Relay: solid state; Output: 4÷32VDC; 25A; 24÷280VAC SSR-2528ZD3 QLT POWER
- Relay type
- semiconductor
- Operating current max.
- 25A
- Switched voltage
- 24...280V AC
- Relay version
- 1-fazowy
- Relay series
- SSR-Z
- Method of switching
- (the position in parentheses is a momentary position)
- attachment in zero
- Control voltage
- 4...32V DC
See the presentation of the MAX-VENT gen2 system, you can install it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself
▶ https://youtu.be/zwnY-pdrwj8
presentation of the system
▶ https://youtu.be/m8BvSsrRX5w
presentation of the entire GWC duct air conditioning, etc. . Look
▶ https://youtu.be/a3_OZIj2fLI
Durability of our products
▶ https://youtu.be/ZMhyH29QXEY
See the installation course of ventilation system recuperation in the MAX-VENT system and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to install devices, how to choose, how to design ventilation with recuperation and channel air conditioning
▶ https://youtu.be/PQYRlMa0cU4
How to choose an exchanger for the ventilation unit, recuperator recuperation course odc1
▶ https://youtu.be/JaYdZvX_Jl0
How to select and make intakes and launchers , recuperator course of recuperation assembly odc1a
▶ https://youtu.be/T4-kbpZCiRg
How to choose a recuperator, ventilation units, installation course of ventilation recuperation odc3
▶ https://youtu.be/hmj_Zri58Wo
Great anemostat theory in ventilation recuperation, installation course of ventilation recuperation odc4
▶ https://youtu.be/zW6ewKM40F4
Linear diffuser mezzanine how to make , installation course of ventilation recuperation section 4a
▶ https://youtu.be/TUGCt0jLmsk
Great theory of ventilation recuperation , installation course of ventilation recuperation odc5
▶ https://youtu.be/2DrL7inP8xA
Theory of anemostat distribution , installation course of ventilation recuperation section 6 part 1
▶ https://youtu.be/tT88G79NqjE
Distribution of anemostats in accordance with PN-83 , installation course of ventilation recuperation section 6 part 2
▶ https://youtu.be/Uq1FjNinR7U
CONNECTING DISTRIBUTION BOXES SYSTEM MAX-VENT GEN2 EASE OF INSTALLATION RECUPERATION
▶ https://youtu.be/qKcPhyyynKM
Arrangements of anemostats according to FASHION FACEBOOK , installation course of ventilation recuperation section 6 part 3
▶ https://youtu.be/TzhaNNL84hU
Distribution of anemostats ideas of Paruszewski , installation course of ventilation recuperation section 6 part 4
See the source of knowledge Learn a new profession, there are dozens of videos on the channel, hundreds of tips from a person with 20 years of experience, you will find a compendium of knowledge about ventilation, recuperation, etc...
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Kind | heat recovery ventilator |
| Parametry | Manufacturer code | NAGRZEWNICA PTC 1,5KW |
| Parametry | Range of energy efficiency classes | A+ - G |
| Parametry | Energy efficiency class | A |
