Elektrinis ortakinis šildytuvas ECH 200, 2,0 kW, 1 fazės

Trumpai apie prekę

Prekė: Elektrinis ortakinis šildytuvas ECH 200, 2,0 kW, 1 fazės. Kategorija: Oro šildytuvai.

• Gamintojas: Havaco
• Modelis: 5905679893340

Description

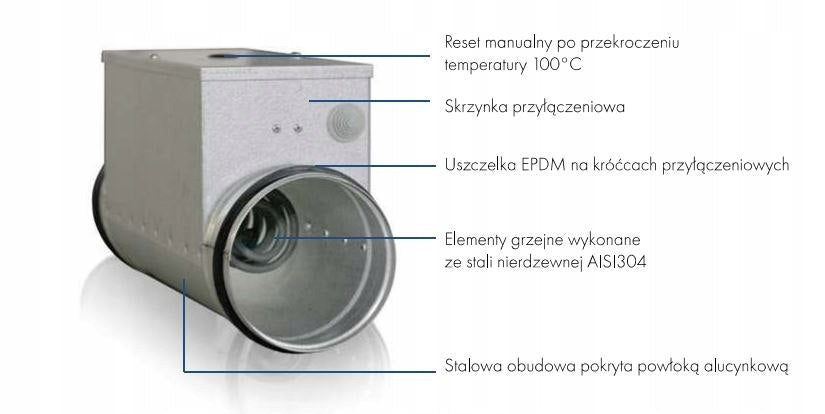

Electric heaters are designed to heat clean air. The housing is made of aluminide, resistant to elevated temperature. The heating elements are stainless steel. The heater has 2 safety thermostats, and screw terminals, connection connectors are equipped with a gasket. Heaters can be mounted in a horizontal and vertical position. The maximum output temperature is 50°C

Installation

Heaters can be mounted in any position, except in the position with the junction box facing downwards. If there is a possibility of accidental contact with heating elements, appropriate covers should be used. The speed of air flowing through the heater must not be less than 1,5 m/s. The flow of explosive or aggressive gases is prohibited. Heaters can only be used to heat clean air. Devices designed for internal installations.

Electrical connection

The electrical connection must be made by a qualified electrician, in accordance with applicable national and international regulations. The power source and power cord must match the data on the heater rating plate. The circuit breaker shall be selected according to the technical data. The heater must be grounded.

Electric duct heater ECH 200 2 kW 1F • Check details.

• Energy efficiency class: A+
• Energy class- cooling: A
• Energy class- heating: A+
• Heating power: 2
• Condition: New
• Packaging condition: original
• Product weight with unit packaging: 3 (3)

5905679893340
