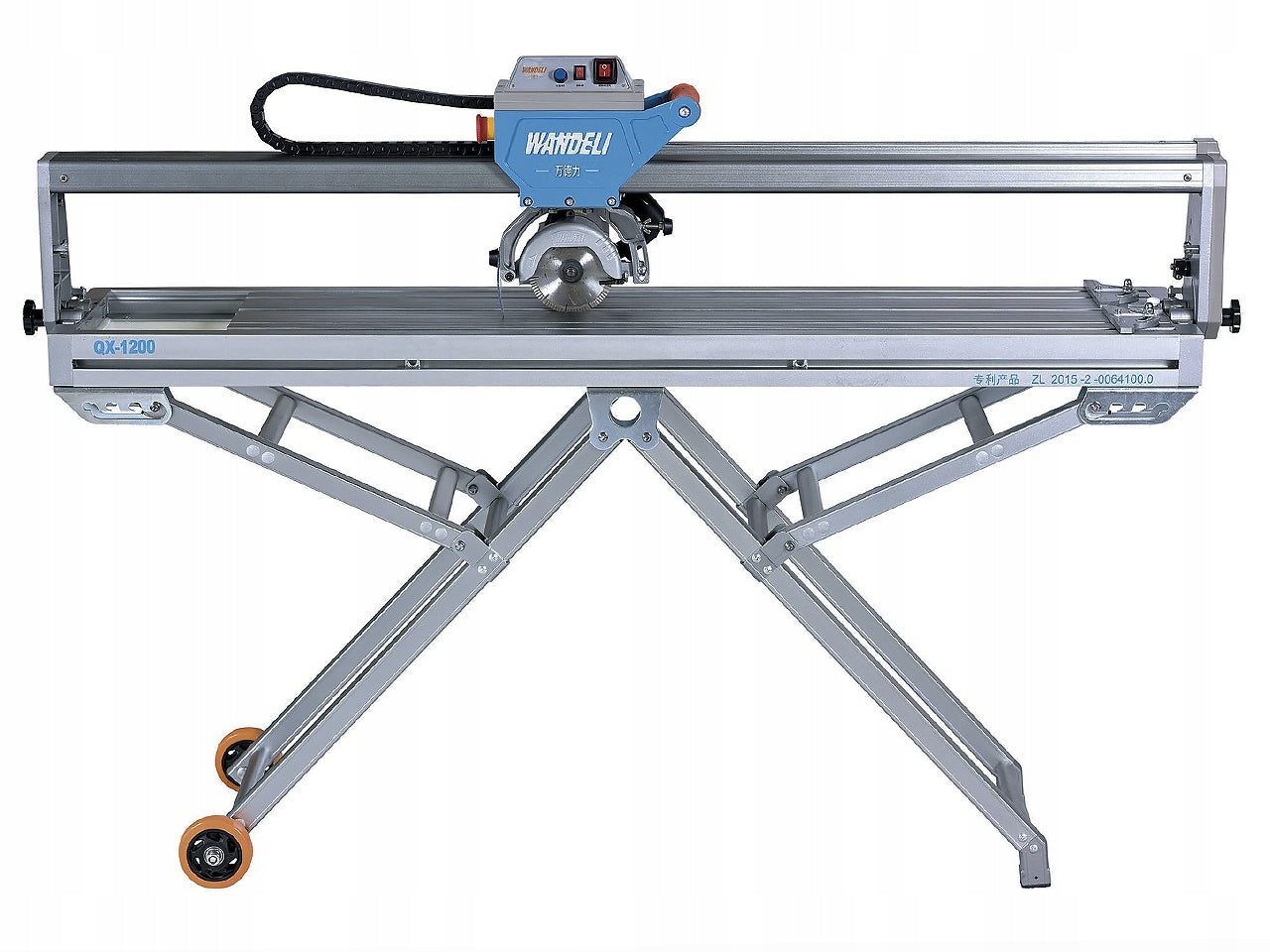

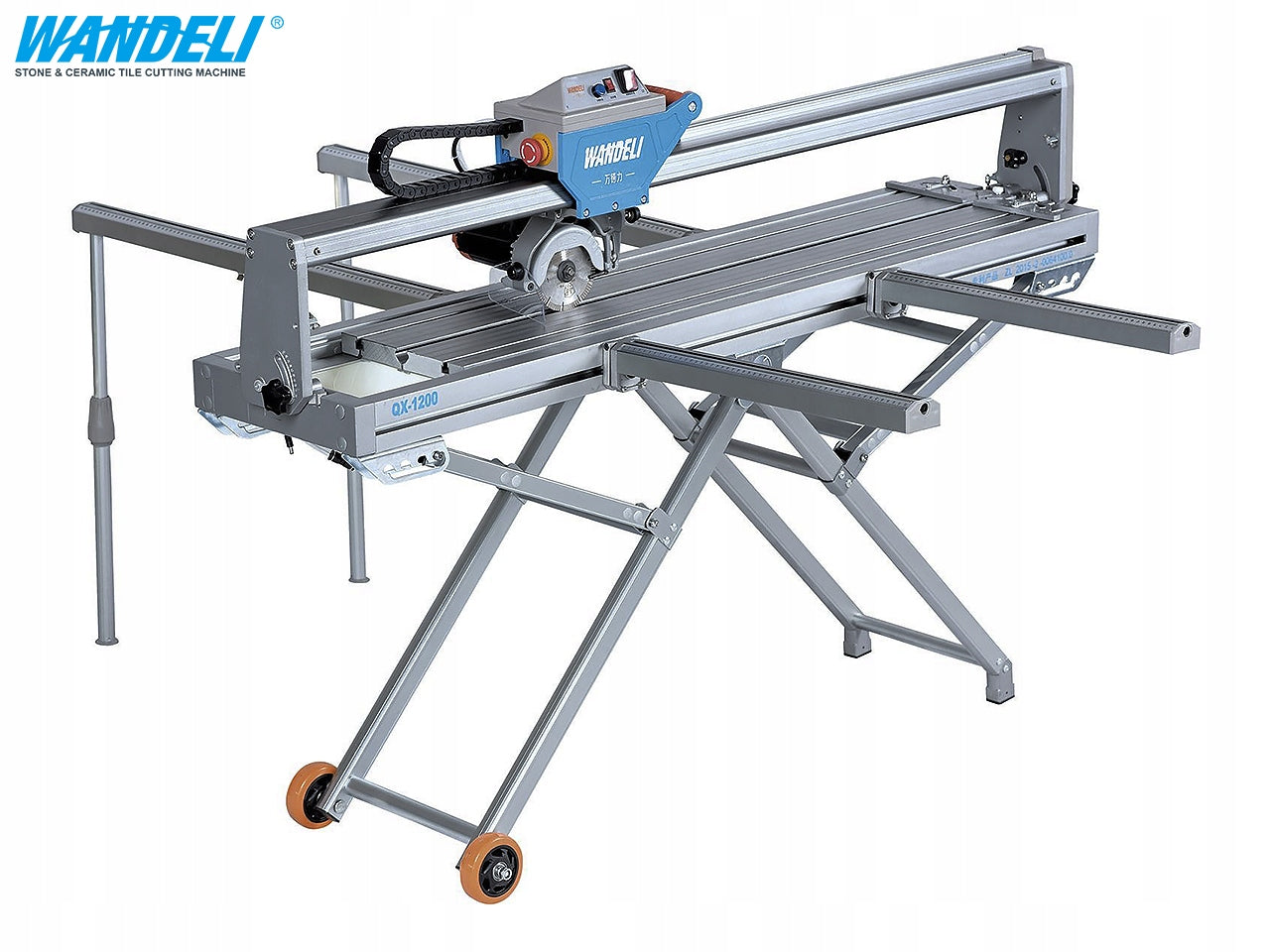

Elektrinis pjaustytuvas WANDELI QX-1200, 1550W, šepetėlinis variklis, rankinis

Trumpai apie prekę

Prekė: Elektrinis pjaustytuvas WANDELI QX-1200, 1550W, šepetėlinis variklis, rankinis. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Wandeli
• Modelis: WANDELI-QX-1200
• Galia: 4000 W

Latest model with brushless motor

Technical parameters of the WANDELI QX-1200

Engine - 230V/50 Hz

Engine power - 4500W

Engine rotation - 8000 rpm /min.

Maximum disc diameter - Ø125 mm

Maximum cutting thickness 90°/45° - 30/20 mm

Maximum cutting length - 1200 mm

Table sizes - 1200 x 350 mm

Water pump - DC24V 36W 15m 9l/m

Package dimensions - 1760 x 460 x 580 mm

Net weight/gross - 36/43 Kg

The Wandeli QX versions have many advantages over their competitors:

1) Aluminium body

2) Lightweight

3) Mobile (one person transport)

4) Precise

5) Cost of discs (Discs up to 125mm max cutting thickness 30mm, optimally 115mm)

6) Rail protection from the inside (from the table) prevents the guide rollers from getting dirty

7) Possibility of cutting using a template (repeated cutting)

8) Can be used on the razor special discs for making non-slip furrows and oblique edges on the tile

9) Possibility to put two discs at once, which allows you to cut the tile at the same time and make the original rim

10) Side supports (included in the set) on two sides that are mounted anywhere to the table and the ability to twist them together, which allows you to increase the plane supporting the plate on one side of the razor

11) A sliding table top is also mounted to the supports, which gives the possibility of setting the tile to the scale of the supports.

12) Limiters that are mounted to the table, give the possibility of beveling the tiles after the template (very accelerates work with large amounts of cutting at an angle).

13) Another plus are protractors, which are mounted anywhere on the table and give the possibility of cutting diagonally on the template \" karo \"

14) An important advantage is that the machine does not accumulate water and sludge, it constantly escapes with drainage into the tank under the table, it allows for quick trouble-free cleaning of the razor and mobility during operation

15) many adjustment options

16) electrical cables nicely hidden and do not protrude behind the dimensions of the razor

17) dry cutting capability

18) powerful engine and high speed

19) lifted motor, which allows you to adjust the depth of cutting and cut holes in the tiles (max distance from table to disc is 12mm at 115mm disc)

20) Laser
