Elektrinis plytelių pjaustyklė, 120 cm

Trumpai apie prekę

Prekė: Elektrinis plytelių pjaustyklė, 120 cm. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Vortex
• Modelis: VX4070
• Galia: 3000 W

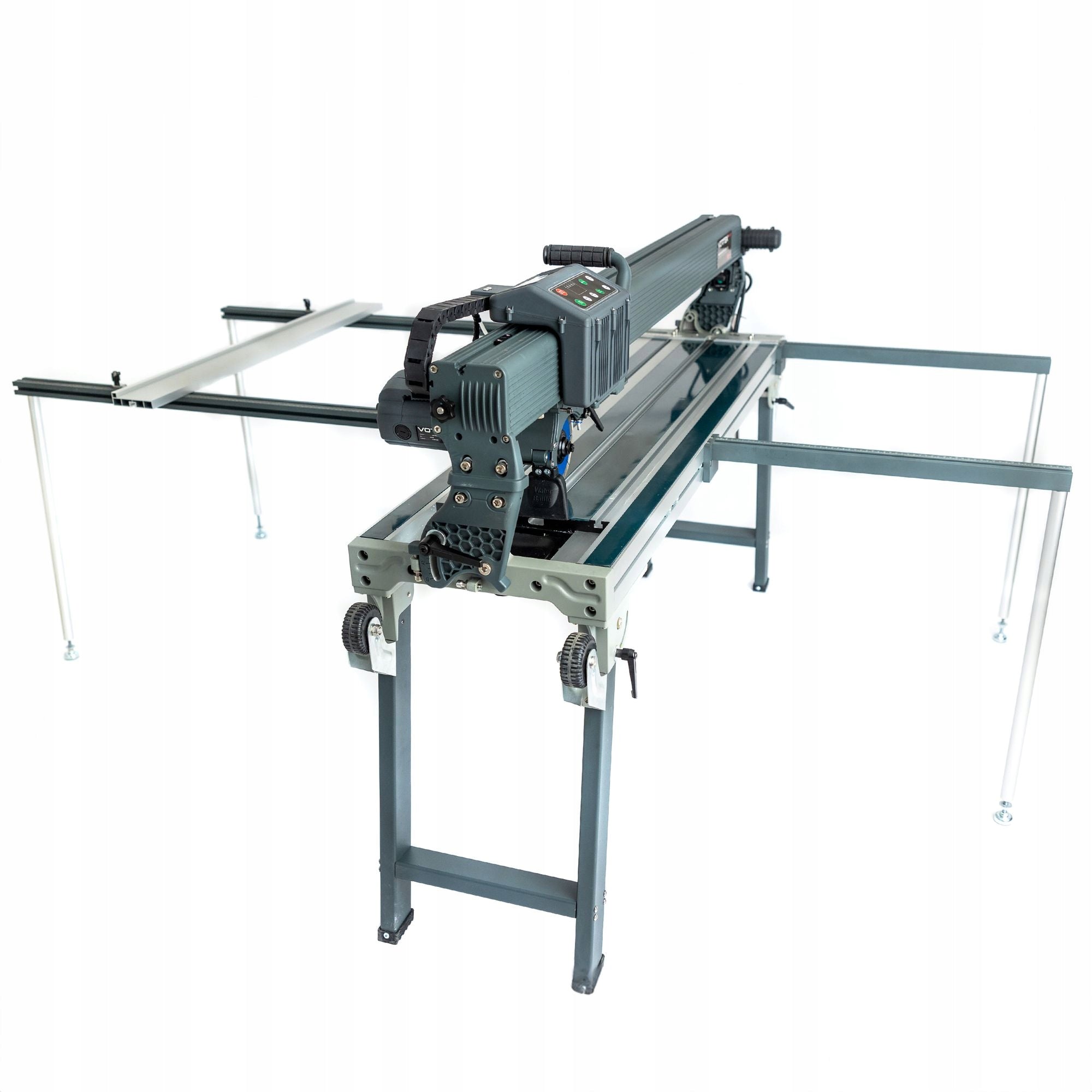

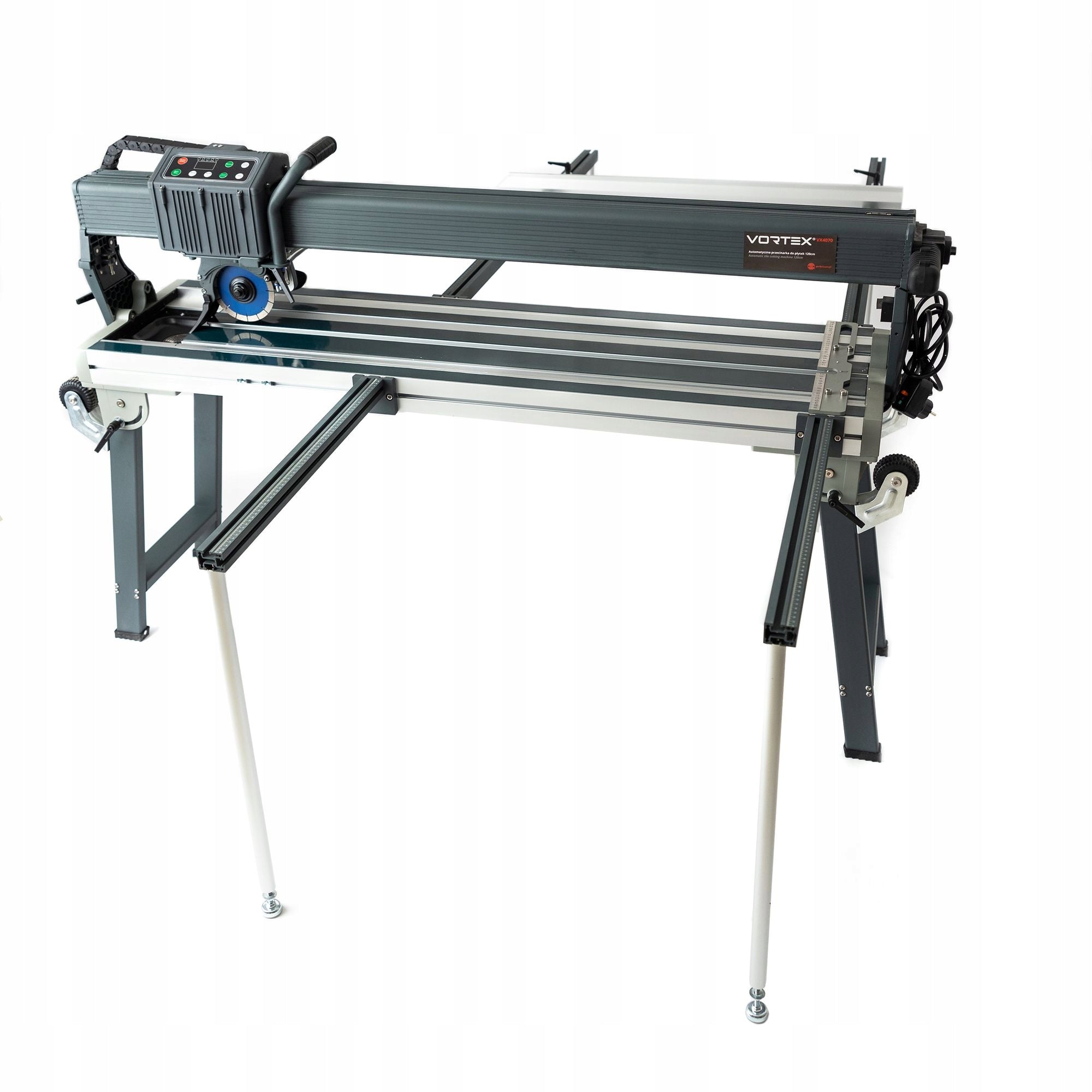

Automatic electric cutter

VORTEX VX4070 for tiles with a length of 120 cm

Automatic cutter Vortex designed for precise cutting of glaze at an angle of 90° and 45° and cutting length up to 120 cm and thickness of tiles 30mm. Advanced machine with the possibility of fully automatic, semi-automatic and manual operation!

⚠ Technical Data

✔ Model: VX4070

✔ Power Source: Electric

✔ Power: 3000 W

✔ Voltage: 230V-50Hz

✔ Speed: 12 000 RPM

⚠ Parameters

✔ Maximum cutting length: 1200 mm

✔ Maximum cutting depth: 30mm

✔ Tabletop width: 40 cm

✔ Cutting at an angle of 90° and 45°

✔ Maximum cutting depth at an angle of 45°: 20mm

✔ Maximum dimension of the plate in diagonal cutting: 850x850 mm

⚠ Additional information

✔ Cutting with automatic feed (10 speed levels)

✔ Semi-automatic cutting

✔ Manual cutting

✔ Built-in laser

✔ Water pump

✔ Folding legs with wheels for easy transport

Comes with

• Legs with cantilever side rails
• Tile stop strip
• Water filter with connection cable
• Cutting strip 45°
• Caro cutting template
• Wrenches for twisting
• Additional knobs, screws, accessories.

The Vortex VX4070 cutter stands out from other devices of this type available on the market thanks to several innovative solutions that significantly affect its stability, precision and efficiency. The design of the machine is based on the use of discs with a smaller size and a centering hole of 20mm, which translates into increased stability and precision of cutting.

Made of aluminum, the table top has grooves for mounting various improvements, such as handles holding the plate during cutting or locks ensuring repeatability of the cutting process. In addition, the workspace of the tabletop has been lined with rubber pads, stabilizing the plate and preventing it from accidentally shifting.

The frame of the machine is also made of aluminum, which not only provides protection against corrosion, but also makes the whole thing lighter. To facilitate transport, it is equipped with wheels on both sides.

Two sets of additional side supports significantly increase the stability of the machine and allow the processing of large plates. The 3000W motor ensures adequate performance even when cutting very hard materials.

The coolant is delivered to the disc from a separate tank using a pump fixed on the bottom of the worktop. The water filtration system prevents damage to the pump, and the two water supply nozzles can be easily detached and used to clean the machine after work.

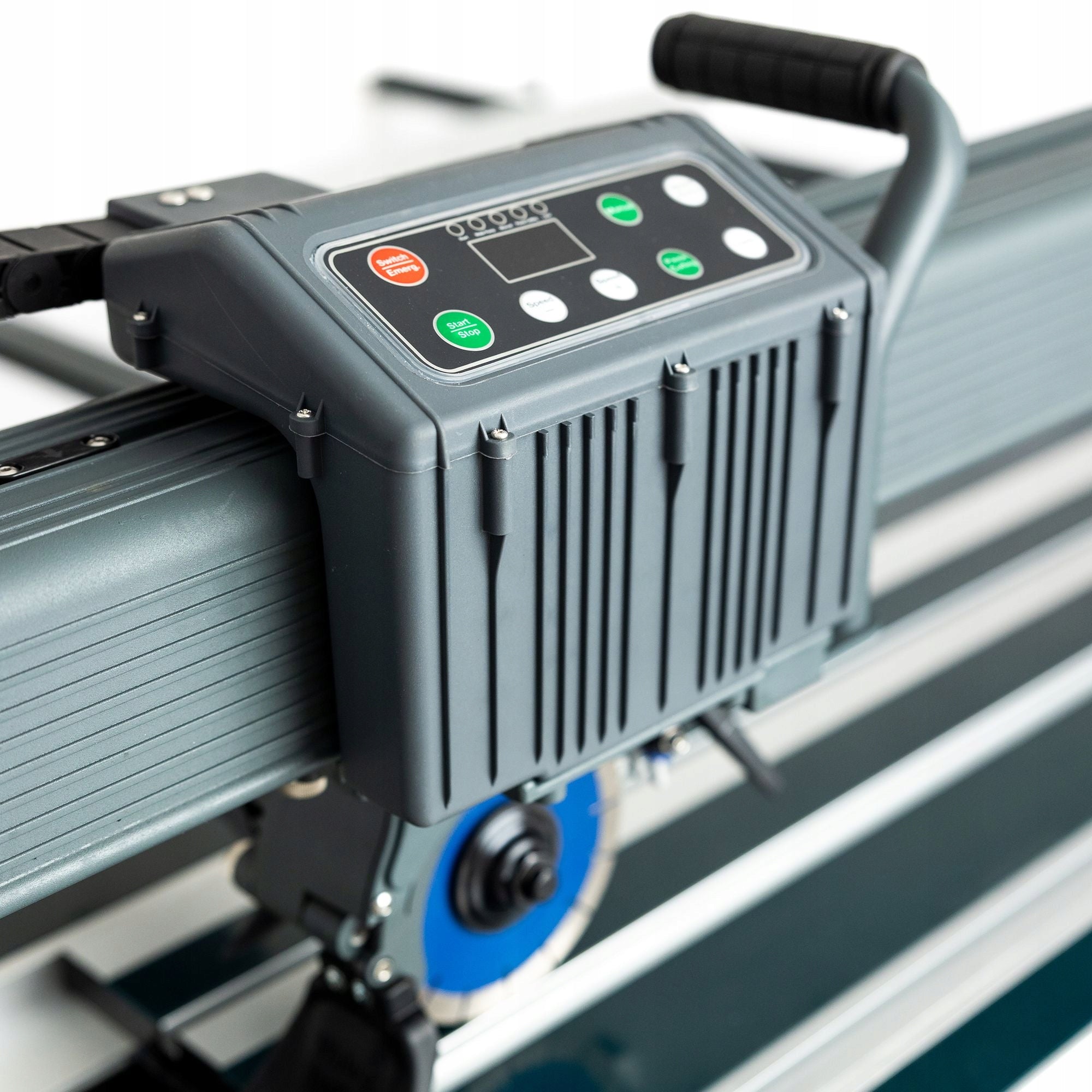

Operation of the machine is simple and intuitive thanks to the panel with display, which allows you to adjust operating modes, control the water supply, LED lighting, laser and feed speed of the cutter. With 10 speed levels in automatic mode, you can easily adjust the work to suit your specific needs and materials, making it the perfect solution for professionals working on the same tiles and discs.

Specifications
