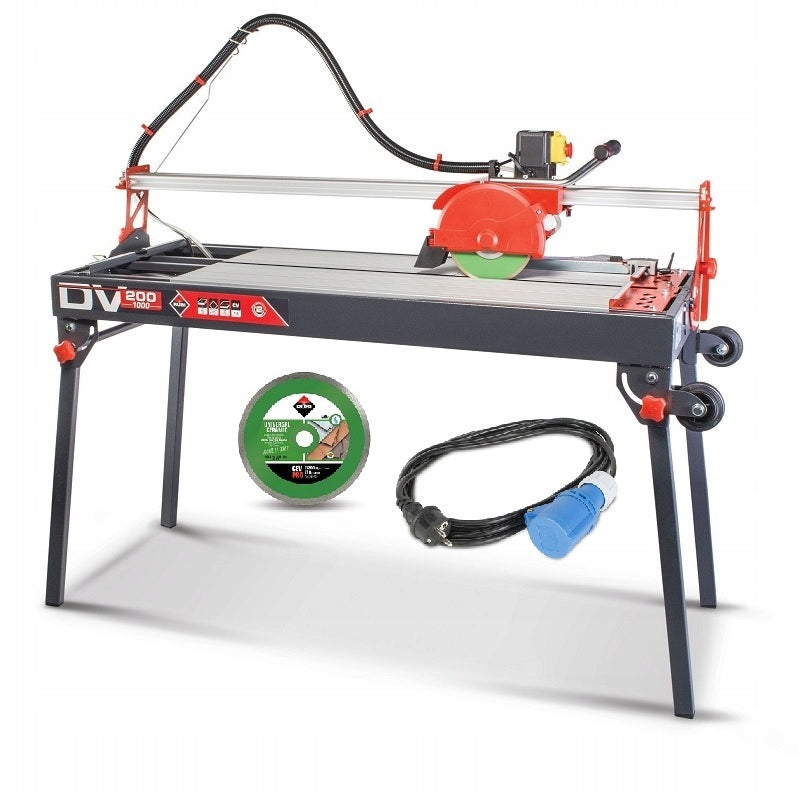

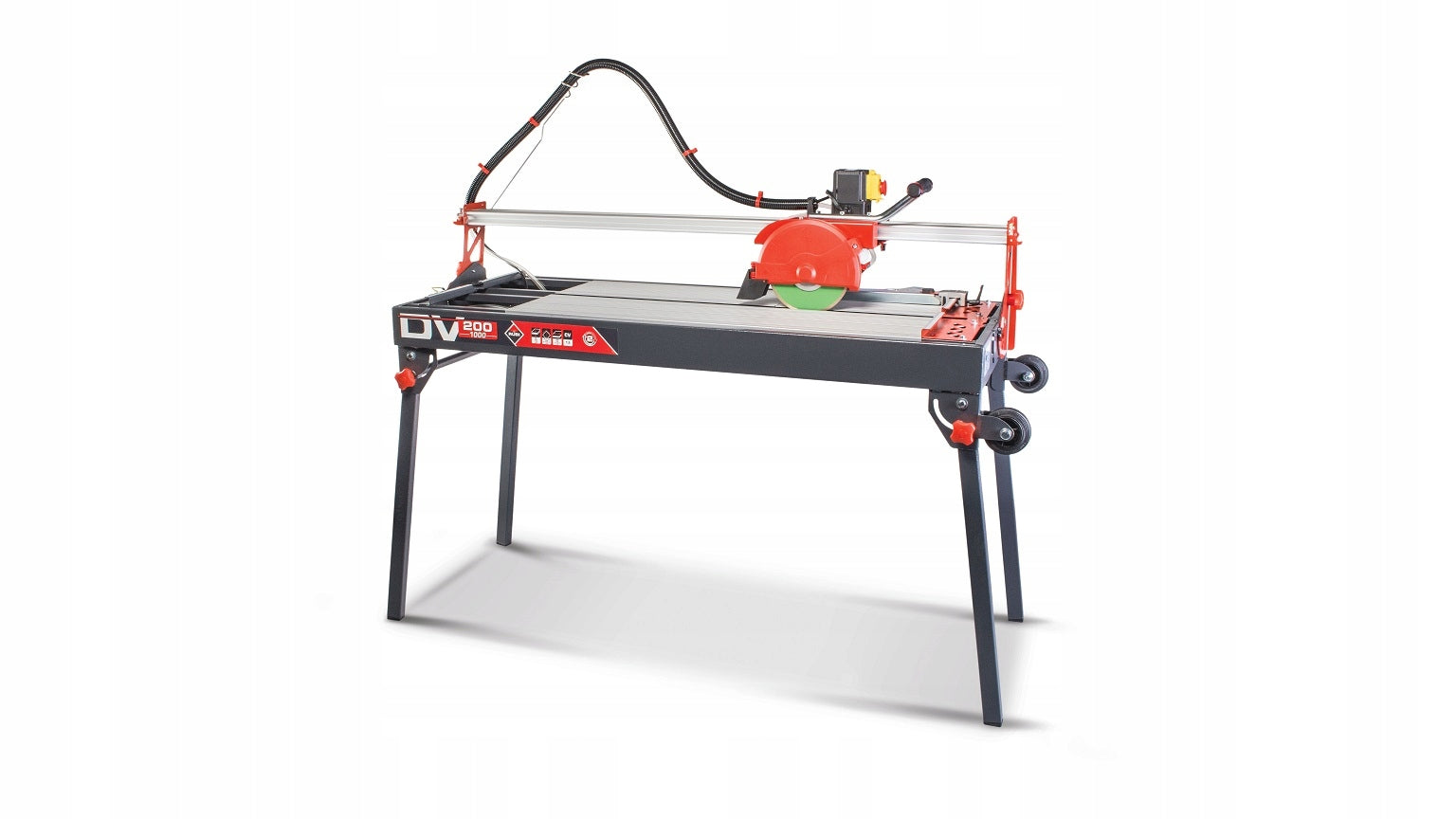

Elektrinis plytelių pjaustytuvas RUBI DV-200 1000, 106 cm

Trumpai apie prekę

Prekė: Elektrinis plytelių pjaustytuvas RUBI DV-200 1000, 106 cm. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Rubi
• Modelis: 54911
• Galia: 1100 W

CATALOG NUMBER 54911

The RUBI DV-200 1000 electric cutter for straight and angled cuts with a sliding head offers the user maximum functionality and reliability.

DV-200 1000 is ideal for intensive cuts of ceramic tiles and glazed stoneware, as well as for cutting porcelain stoneware tiles and occasionally stone tiles.

The motor assembly in the DV-200 1000 sliding on the guide using bearings offers maximum precision and cutting quality, as well as the ability to cut for elements up to 106 cm long.

The removable aluminum tops make it easy to clean and maintain the DV-200 1000 electric cutter, while the leg folding system with built-in wheels makes it easy to transport the device. The DV-200 1000 is equipped with a C3 SYSTEM, allowing you to adjust the cooling point and purification of the disc with water according to the user's preferences, significantly improving the performance of diamond discs. DV-200 1000 includes CEV PRO 200 mm diamond disc. The continuous edging of the disc ensures that cuts are made in all ceramic materials with the best quality and good performance.

The 1,5 hp (1,1 kW) motor with thermal switch is perfect for cutting stoneware tiles.

The DV-200 1000 includes an adjustable side gauge (from 0° to 45°) to facilitate and streamline serial cuts.

The large working area (100x48,5 cm) is ideal for working with large format tiles, and the working height of 84,5 cm provides the user with better ergonomics. RUBI has always paid close attention to the health of users of our tools. Ergonomics issues have always been taken into account when designing tools, because we believe that safety and minimizing risk at work are crucial for maintaining health and achieving proper work efficiency.

TECHNICAL DATA

• Ref. - 54911
• EAN-13 - 8413797549119
• Cutting length - 106 cm
• Tile size when cutting diagonally - 76,5x76,5 cm
• Cutting height - 35 mm
• Bevel thickness - 15 mm
• Power supply - 230V-50Hz.
• Rotations per minute - 2790
• Outer diameter - 200 mm
• Length width height - 160x59x117 cm
• Net weight - 57,5 kg

Diamond blade for wall tiles, CONTINUOUS edging CEV 200 PRO

CEV diamond discs with continuous edging are the best choice when cutting wall tiles.

CEV discs, thanks to their versatility, are great for situations where the tiler has to work with different types of tiles.

Using universal diamond discs, such as CEV, reduces working time because you do not need to replace the disc every time you change the material. In this way, we can achieve optimal results and cutting quality for a wide range of wall and floor tiles.

The CEV diamond blade has a continuous rim. This type of blade provides the highest quality cutting finish.

CEV discs are ideal for cutting ceramic tiles and other stone finishing materials with a thickness of less than 25 mm.

Fixing the edging with laser welding technology guarantees high quality and user safety.

TECHNICAL DATA

• Ref. - 25913
• EAN-13 - 8413797259131
• Outer diameter - 200 mm
• Internal diameter - 25,4 mm
• Disc edging height - 7 mm
• Thickness of the rim of the disc - 1,7 mm

Shield mounted on the device.

Approximate cable length - 3,5 m.

TECHNICAL DATA

• Ref. - 58850
• EAN-13 - 8413797588507
• Power supply - 230V - 50 Hz.EUR

The RUBI brand is known for the best durability and quality of its tools. For more than 65 years, RUBI has been manufacturing tools of the highest quality and durability to achieve the best performance in the toughest working conditions and to meet the needs reported in each market. Since its inception, RUBI has actively participated in professional training and international fairs, which ensured continuous intensive development. RUBI continues to pay close attention to participation in international fairs and exhibitions, as this helps to maintain the pace of growth and promotes the search for solutions that facilitate the daily work of professional tilers around the world.
