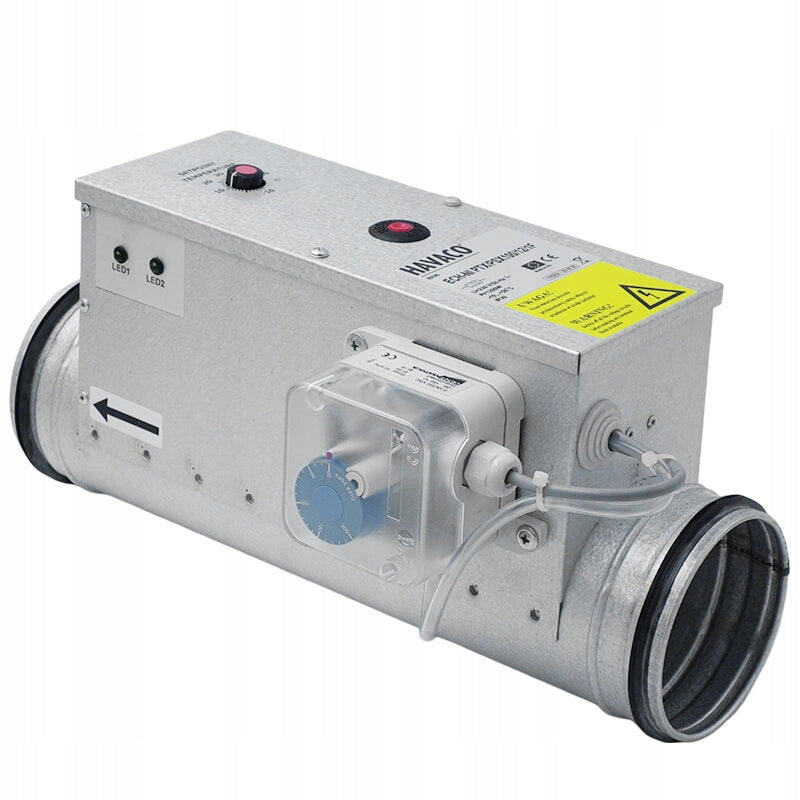

Elektrinis šildytuvas HAVACO ECH-NI PTX-160/30/3F

Trumpai apie prekę

Prekė: Elektrinis šildytuvas HAVACO ECH-NI PTX-160/30/3F. Kategorija: Oro šildytuvai.

• Gamintojas: Havaco
• Modelis: ECH-NI PTX-160/30/3F

Model: ECH-NI PTX-160/30/3F

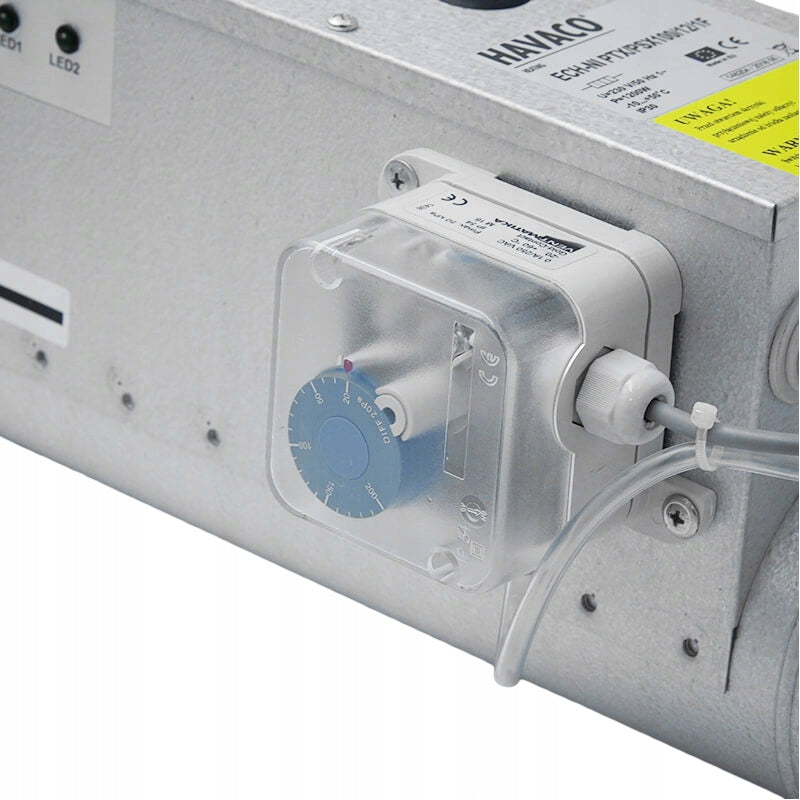

ECH NI PTX/PSX HAVACO is a series of electric duct heaters with built-in automation system containing heater power regulator and flow sensor (PTX) and pressure switch (PSX). Regulation is done on the principle of pulsation. The time between turning the heaters on and off is adjusted by the controller to ensure that the set temperature value is maintained. The temperature setting is carried out by means of a potentiometer placed on the heater housing. In the absence of air flow, the heating function is turned off, regardless of the air temperature behind the heater. ECH heaters are adapted for installation in round channels. They are available in typical ventilation diameters from 100 to 500 mm and powers from 0,3 to 24,0 kW.

Each heater has two-stage protection against overheating:

• I degree at 50st.C - automatic reset
• II degree at 100st.C - manual reset required

Design

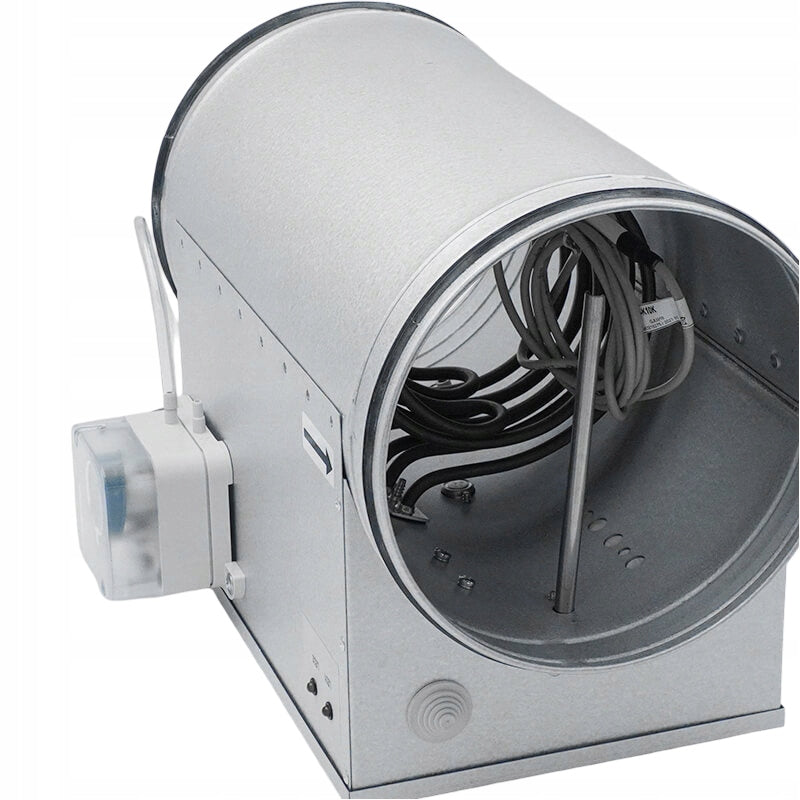

The heater housing is made of steel sheet covered with high quality Alucynkowy coating, which guarantees high corrosion resistance. The connection connectors are made in negative tolerance and have EPDM gasket. The heating elements are made of AISI 304 stainless steel. The junction box has a degree of protection IP44.

Application

Duct heaters are used to heat clean air in domestic ventilation systems, especially in autumn and winter, as well as in industrial installations that require a constant temperature of the supplied air. ECH heaters also work well as pre-heaters or secondary heaters, complementing installations based on ventilation units with heat recovery.

Installation

Heaters can be mounted in any position, except in the position with the junction box facing downwards. If there is a possibility of accidental contact with heating elements, appropriate covers should be used. The speed of air flowing through the heater must not be less than 1,5 m/s. The flow of explosive or aggressive gases is prohibited. Heaters can only be used to heat clean air. Devices designed for internal installations.

Electrical connection

The electrical connection must be made by a qualified electrician, in accordance with applicable national and international regulations. The power source and power cord must match the data on the heater rating plate. The circuit breaker shall be selected according to the technical data. The heater must be grounded.

Specifications
