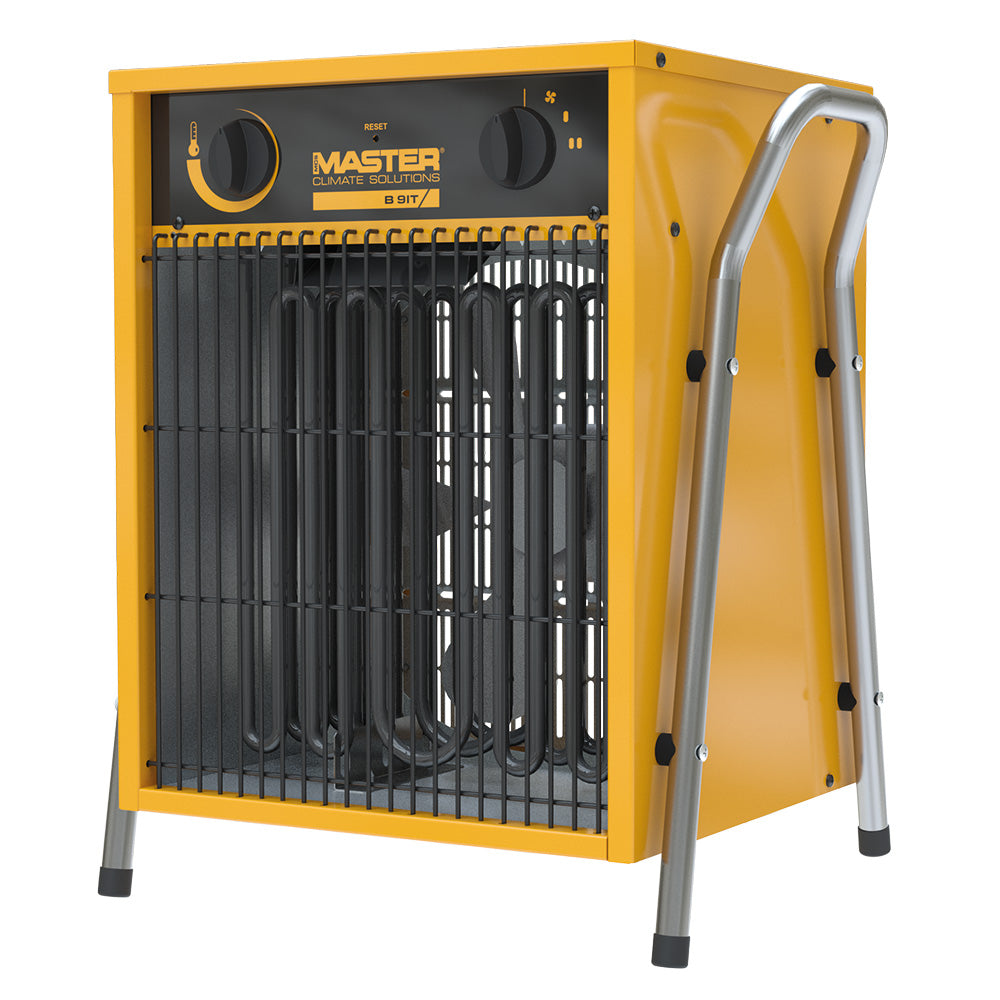

Elektrinis šildytuvas MASTER B 9 IT, 9 kW, 400 V, su termostatu, oro srautas 800 m³/h

Trumpai apie prekę

Prekė: Elektrinis šildytuvas MASTER B 9 IT, 9 kW, 400 V, su termostatu, oro srautas 800 m³/h. Kategorija: Oro šildytuvai.

• Gamintojas: Master
• Modelis: B 9 IT

Heat where you need it

MASTER B 9 is a portable electric heater designed for temporary and additional heating of working rooms. It will work well when working in the workshop, heating the garage or performing renovation works.

Two power levels 4,5 and 9 kW allow you to adjust the heating intensity to your current needs. The fan with a flow rate of 800 m³/h forces air circulation and helps distribute heat in the room.

APPLICATION

The heater can be used to:

• Workshops and services — heating up space during repairs and technical works.
• Garages and utility rooms — raising the temperature for the duration of work.
• Warehouses and facilities — additional heating of selected rooms.
• Construction and renovation works — providing an additional source of heat, taking into account the conditions required by the materials used.
• Production rooms — periodic support for existing heating.
• Temporary heating — when the heating system has not yet been started or an additional heat source is needed.

The effectiveness of heating depends on the volume of the room, insulation, ventilation and external temperature. The choice of the device should be based on the demand for heat, and not only on the floor surface.

TWO POWER LEVELS — CHOOSE HOW YOU WANT TO WORK

There are two heating settings available:

• 4,5 kW — for milder heating.
• 9 kW — when full power is needed.

Heat where you need it

MASTER B 9 is a portable electric heater designed for temporary and additional heating of working rooms. It will work well when working in the workshop, heating the garage or performing renovation works.

Two power levels 4,5 and 9 kW allow you to adjust the heating intensity to your current needs. The fan with a flow rate of 800 m³/h forces air circulation and helps distribute heat in the room.

APPLICATION

The heater can be used to:

• Workshops and services — heating up space during repairs and technical works.
• Garages and utility rooms — raising the temperature for the duration of work.
• Warehouses and facilities — additional heating of selected rooms.
• Construction and renovation works — providing an additional source of heat, taking into account the conditions required by the materials used.
• Production rooms — periodic support for existing heating.
• Temporary heating — when the heating system has not yet been started or an additional heat source is needed.

The efficiency of heating depends on the volume of the room, insulation, ventilation and external temperature. The choice of the device should be based on the demand for heat, and not only on the floor surface.

TWO POWER LEVELS — CHOOSE HOW YOU WANT TO WORK

There are two heating settings available:

• 4,5 kW — for milder heating.
• 9 kW — when full power is needed.

BUILT-IN THERMOSTAT

The room thermostat with adjustment in the range of 5 – 35°C allows you to set the expected temperature and control the heating operation.

Achieving the selected temperature depends on heat loss in the building. The thermostat does not replace the appropriate selection of heater power.

FAN MODE WITHOUT HEATING

The MASTER B 9 also allows the fan itself to work. This is a useful feature when you need to force air movement without additional heating.

This mode ensures air circulation – it does not act as an air conditioning unit and does not actively reduce its temperature.

ELECTRIC HEATING WITHOUT EXHAUST GASES

The device does not require fuel replenishment. During heating, there is no combustion process, therefore the heater:

• does not produce exhaust gases,
• does not consume oxygen in the combustion process,
• does not add moisture to the air generated when burning fuel.

It is a practical solution for rooms where adequate electrical power supply is available.

THERMAL PROTECTION

The heater is equipped with heating thermostat and engine with thermal protection. The device also has a manual security reset, operated according to the manufacturer's instructions.

During operation, free air flow should be ensured and the required distances from surrounding objects should be maintained.

PORTABLE DESIGN

The weight of 9,3 kg and compact dimensions make it easy to move the device between stations. One heater can be used in different rooms, depending on the current needs and availability of 400 V power supply.

TECHNICAL DATA

• Brand: MASTER
• Model: B 9
• Type: electric blower heater
• Heating power: 4,5 / 9 kW
• Air flow: 800 m³/h
• Power supply: 400 V, three-phase, 50 Hz
• Rated current: 13 A
• Heater side connection: 16 A, 5-pin
• Room thermostat: built-in
• Temperature control range: 5 – 35°C
• Working without heating: yes, fan mode
• Overheating protection: yes
• Engine thermal protection: yes
• Manual reset: yes
• Degree of protection: IP24
• Dimensions of the device (length × W × H ): 340 × 420 × 440 mm
• Net weight: 9,3 kg

VALID BEFORE PURCHASE — 400 V POWER SUPPLY

MASTER B 9 requires a suitable three-phase installation 400 V. The device is not connected to a standard 230 V household outlet.

Before purchasing, check the available power supply and connection requirements described in the instructions.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Master
Parametry	Kind	electric
Parametry	Heating power	9 kW
Parametry	Model	B 9 IT
Parametry	Product weight with unit packaging	10.8 kg
Parametry	Manufacturer code	B9IT
Parametry	Energy efficiency class	A
Parametry	Range of energy efficiency classes	A++ - G
