Elektrinių parametrų matuoklis SONEL MPI-536 su priedais

Trumpai apie prekę

Prekė: Elektrinių parametrų matuoklis SONEL MPI-536 su priedais. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLMPI536

Multifunctional Electrical Installation Parameter Meter

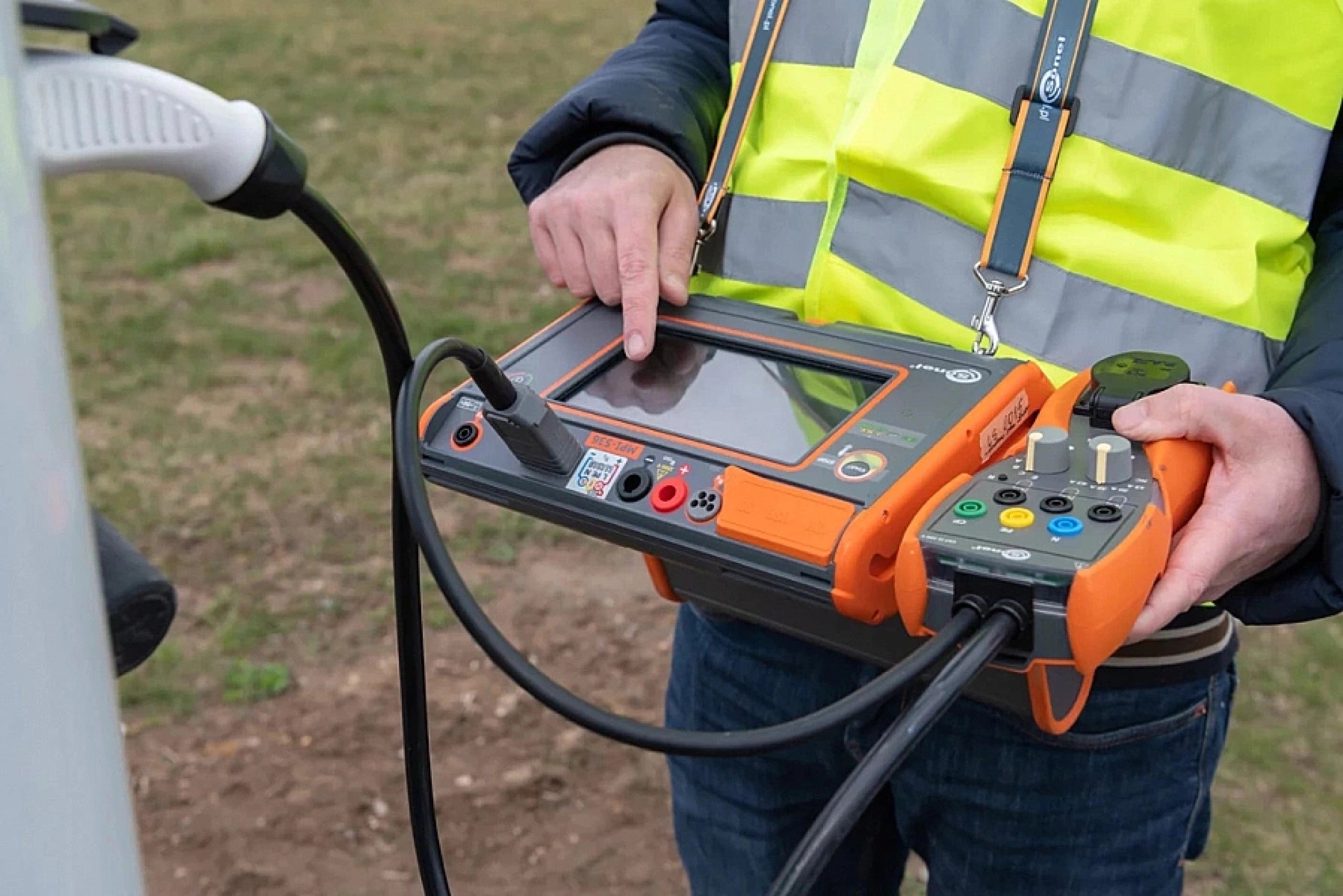

SONEL MPI-536

☑ The meter is designed for checking home and industrial electrical installations. With the help of the instrument, measurements can be made, the results of which determine the safety status of the installation. This makes it possible to measure the parameters of shock protection using one universal device.

☑ In terms of insulation resistance control Sonel MPI-536 has a very wide capabilities – its maximum measuring voltage is up to 2500 V.

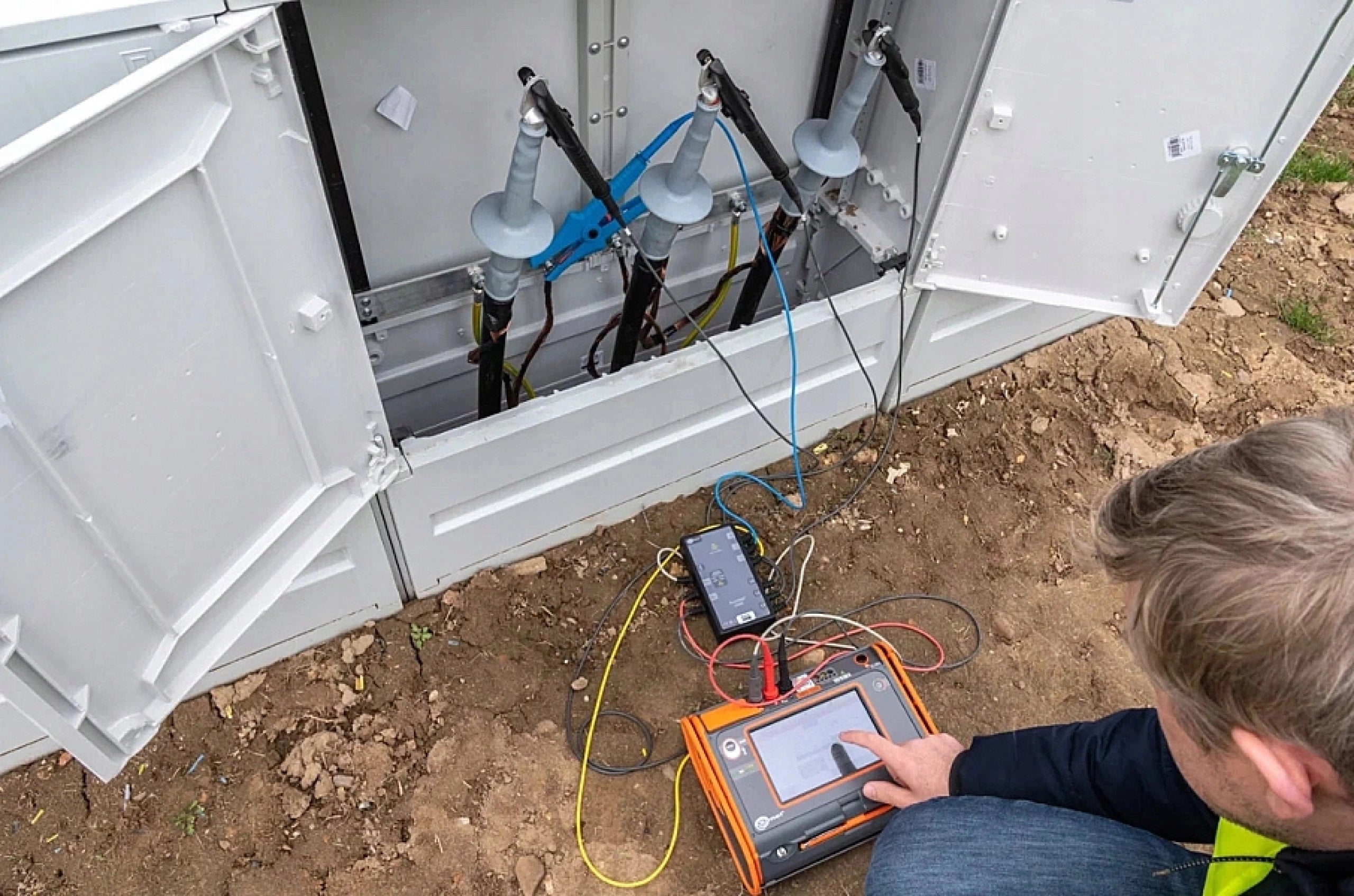

☑ Diagnostics of isolation are supported by charts R(t)/U(t), R(t)/I(t), U(t)/I(t), I(U), available both after and during the measurement. In addition, the instrument calculates absorption coefficients and temperature coefficients. In addition, Sonel MPI-536 enables automatic measurement of insulation resistance of 3-, 4- or 5-wire cables using the optional AutoISO-2500 adapter.

What is included in the set?

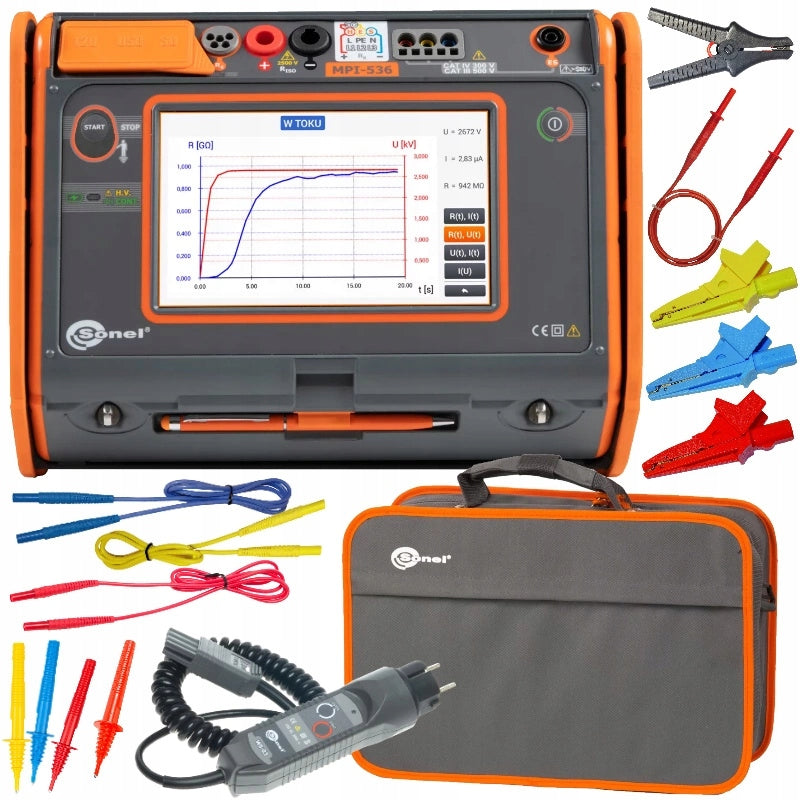

• 1 pc. MPI-536
• 3 pcs. Wires 1,2m 1 kV (banana plugs) red, blue, yellow
• 2 pcs. Wires 1,8m 5 kV (banana plugs) red/black shielded
• 2 pcs. Measuring cable on a spool for measuring earthings 15 m and 30 m
• 1 pc. USB interface cable
• 3 pcs. Crocodile 1 kV 20A red, blue, yellow
• 1 pc. Uni-Schuko cable with measurement trigger (CAT III 300 V)
• 1 pc. probe 30 cm for driving into the ground

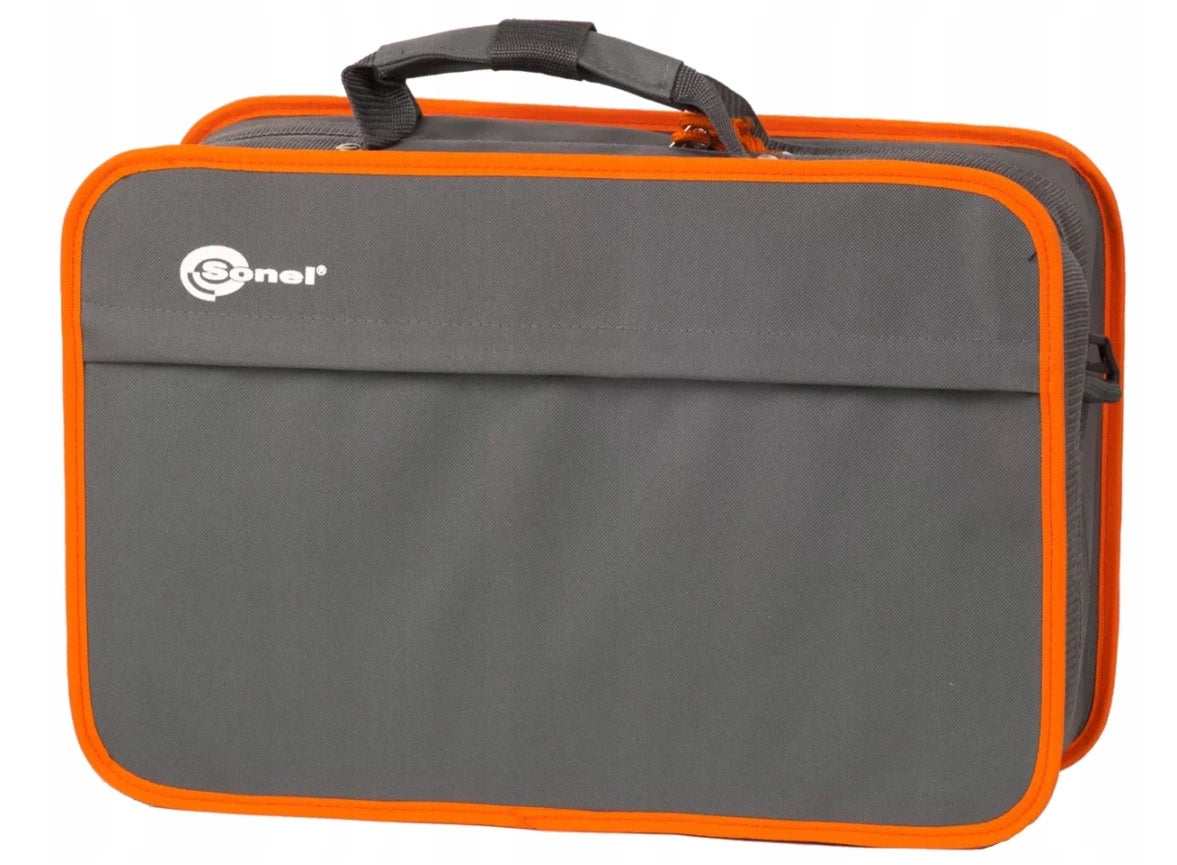

• 1 pc. Shells for meter (type L-2)
• 1 pcs. Case L2
• 3 pcs. 1 kV blade probe (banana socket) red / blue / yellow
• 1szt. Crocodile 11 kV 32 A black
• 1 pc. 5 kV blade probe (banana socket) red
• Calibration certificate
• Instruction manual in Polish

POWER SUPPLY:

• 1 pc. 230 V power cable (IEC C7 plug)
• 1 pcs. Power supply for meters (type Z7)
• 1 pc. Battery charging cable from 12 V car socket
• 1 pc. Li-Ion 11,1 V 3,4 Ah Battery Container

LINK to a short video showing the entire contents of the set👉🏼 https://www.youtube.com/watch?v=REsBBmFN_78&t=6s

The calibration certificate is a document issued free of charge in the production process of the meter.

It confirms the conferral of metrological properties and maintaining measurement consistency.

In the calibration certificate under the date of issue of the document there is a dotted field: “Date of commissioning”. This is the field left for the instrument user, in which the date of purchase should be entered.

The entered date of purchase can be used to determine the next calibration date based on the manufacturer’s recommendation below:

Subsequent execution of the metrological confirmation (calibration) is recommended to be carried out within 12 months from the date of purchase, but no later than 24 months from the date of production / checking.

Another metrological inspection is carried out by the Research and Calibration Laboratory of Sonel S.A. companies, and the issued document is called - Calibration Certificate.

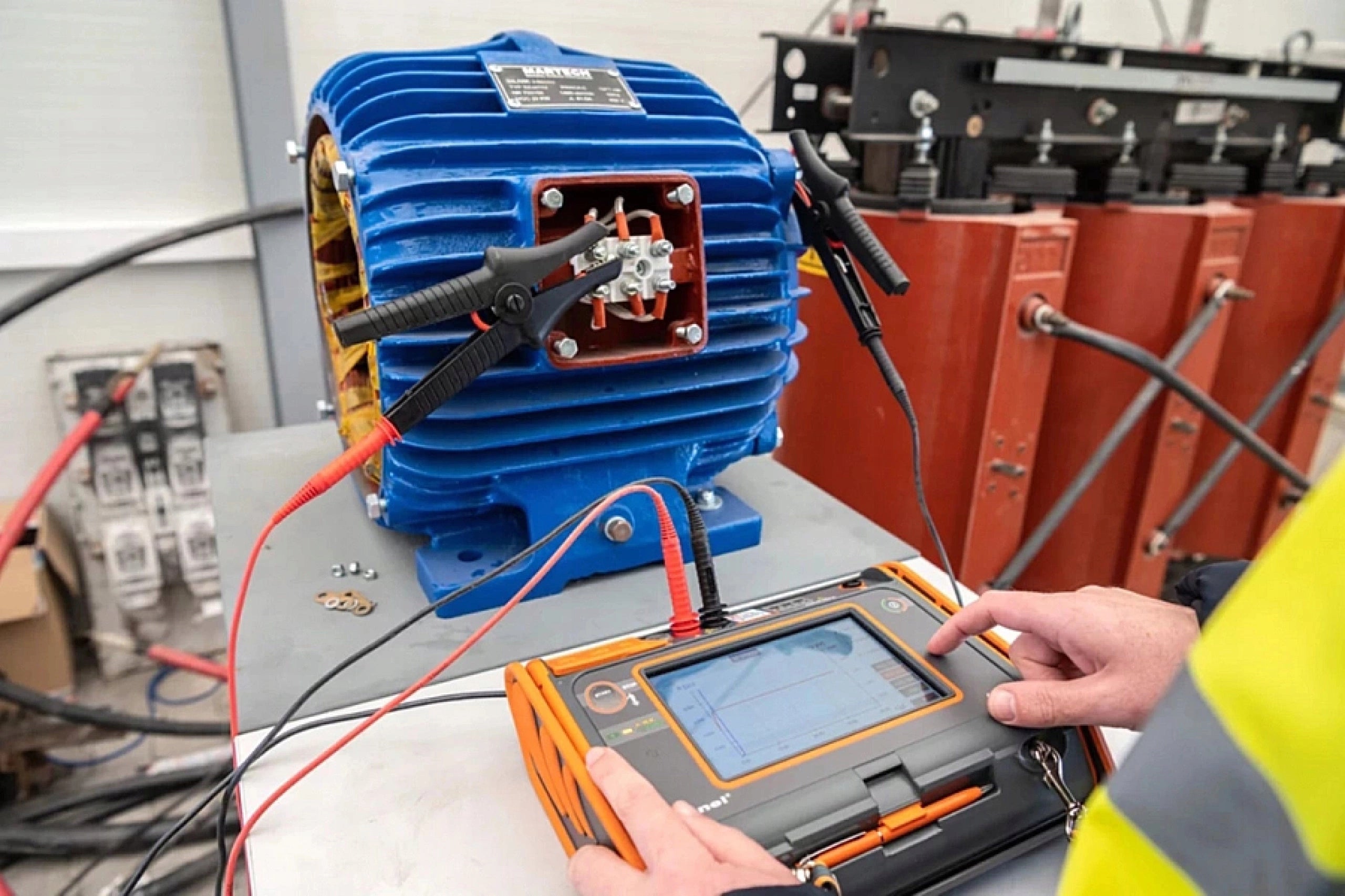

Insulation resistance specialist

• Measurement of insulation resistance with voltage of 2,5 kV
• RISO visualization in the form of a chart
• The largest (7”) touch panel on the market – extraordinary ergonomics and ease of use
• Removable microSD card – easily increase memory capacity
• Li-Ion battery – longer operation of the meter
• Measurement of all parameters of protection against shock – one device instead of several
• Quick short-circuit loop measurement with RCD switch without triggering (up to a few seconds) – saving time
• Autotests – possibility of automatic measurements in sequence – simplification of measurements
• Fast track from measurements to report – saving time

The instrument can perform all acceptance measurements of electrical installations in accordance with applicable regulations:

• Short-circuit loop impedance (also in circuits with RCD circuit breakers),
• Parameters of RCD circuit breakers,
• Isolation resistance,
• Grounding resistance (4 measurement methods + soil resistivity measurement),
• Continuity of protective and compensatory connections,
• Lighting intensity,
• Phase order test,
• Engine direction test.

✔ Installation security check

Thanks to the device, you can control home and industrial electrical installations in terms of safety. Measurements can be easily automated by:

• Testing of residual current circuit breakers in Auto mode,
• self-tests – i.e. freely configurable measurement sequences,
• Use of AutoISO-2500 adapter to test insulation resistance of 3-, 4- and 5-wire wires.

Verification of the correctness of the protective cable connections

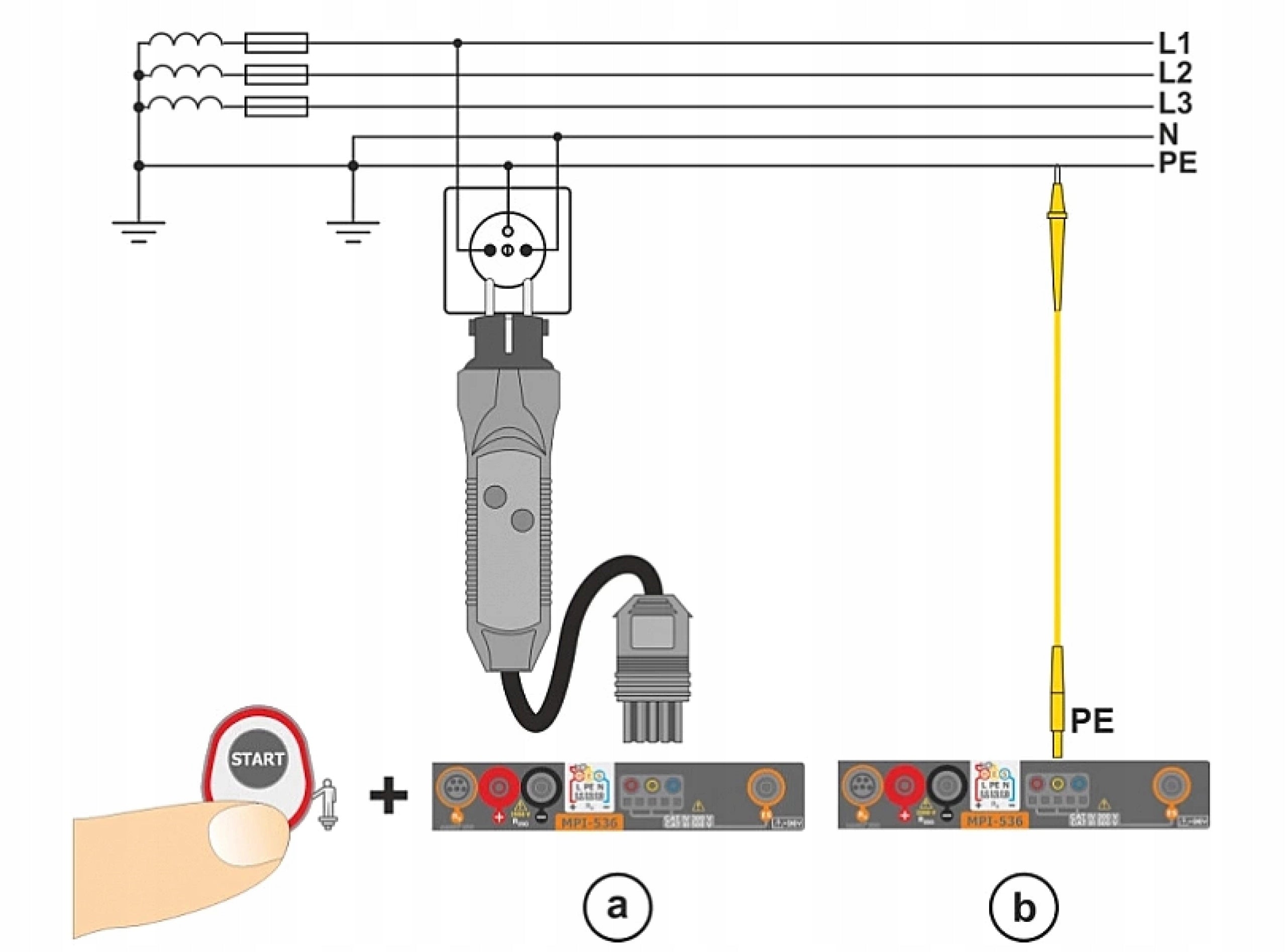

• After connecting the meter as in the figure touch the touch electrode and wait about 1 s. If a voltage is found on the PE cable, the instrument:

✅ displays the PE inscription! (installation error, PE cable connected to phase wire) and

✅ will generate a continuous beep.

This capability is available for all measuring functions concerning RCD circuit breakers and short-circuit loops except for ZL-N, L-L measurement.

WARNING

• After the presence of phase voltage on the PE protective cable is detected, the measurements should be stopped immediately and the installation error removed.
• Make sure that we are standing on an uninsulated substrate during the measurement. Isolated substrate may cause an incorrect check result.
• If the voltage on the PE cable exceeds the permissible value (approx. 50 V), the meter will signal this fact.

✔ Readability

• The device is equipped with a color, touch LCD screen with a diagonal of 7” and a resolution of 800x480 pixels. A large screen means more information available when using the meter. The included stylus also allows you to work in dielectric gloves.

✔ Built-in help system

• The device has built-in help screens with measurement diagrams. Thanks to this, it is easy and quick to see how to connect a given system depending on the type of measurement performed.

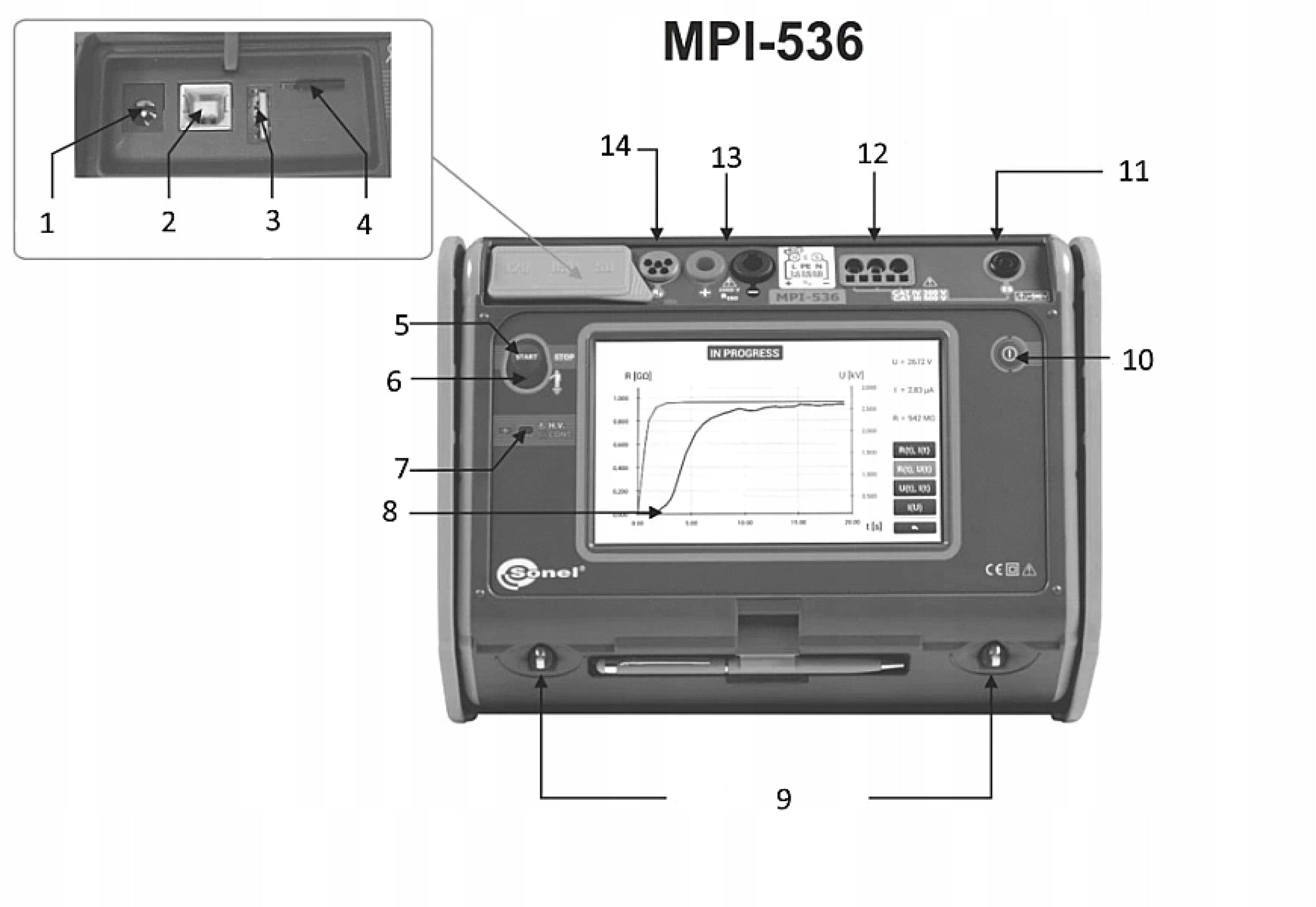

CONSTRUCTION OF MPI 536

1. Socket 12V chargers
2. USB socket (PC communication)
3. USB socket (pendrive)
4. microSD card slot
5. Starting the measurement procedure
6. Touch electrode
7. Indication of measurement and battery status
8. Touch screen
9. Ear to fasten suspenders
10. Enable and disable meter
11. ES socket for measuring ground resistance and ground resistivity
12. Measuring socket
13. Measurement socket R iso
14. Re grounding measurement socket

Technical data:

Safety and conditions of use

• Measuring category according to PN-EN 61010: IV 300 V, III 500 V
• Degree of protection: IP51
• Type of insulation according to PN-EN 61010-1 and IEC 61557: double
• Dimensions: 288 x 223 x 75 mm
• Working temperature: 0...+45°C
• Storage temperature: -20...+60°C

Memory and communication

• Measurement results memory: unlimited
• Results transmission: USB 2.0

Other information

• Quality standard – development, design and production: ISO 9001
• The product meets the requirements of EMC (emission for the industrial environment) according to the following standards: PN-EN 61326-1 PN-EN 61326-2-2

Specification

MEASUREMENT FUNCTIONS:

• A- Measuring range
• B- Display range
• C- Resolution
• D- Accuracy

6- Insulation resistance

• 6.1- Measuring voltage 10 V
• 6.2- Measuring voltage 50 V
• 6.3- Measuring voltage 100 V
• 6.4- Measuring voltage 250 V
• 6.5- Measuring voltage 500 V
• 6.6- Measuring voltage 1000 V
• 6.7- Measuring voltage 1500 V
• 6.8- Measuring voltage 2500 V

7- Resistance of protective and compensating cables

• 7.1- Measurement of continuity of protective and compensatory connections with current ±200 mA
• 7.2- Small current resistance measurement

8- Lighting intensity

• 8.1- Measurement in lux (lx)
• 8.2- Measurement in stopocandels (fc)

9- Phase order indication

Specification

MEASUREMENT FUNCTIONS:

• A- Measuring range
• B- Display range
• C- Resolution
• D- Accuracy

1- Short-circuit loop impedance

• 1.1- Short-circuit loop ZL-PE, ZL-N, ZL-L
• 1.2- Short-circuit loop ZL-PE in RCD mode

2- Measurements of RC circuit breaker parameters

RCD shutdown test and tA activation time measurement current 0,5 In, 1 In, 2 In, 5 In

• 2.1- RCD of general type and short term
• 2.2- Selective RCD

3- Measurement of activation current RCD IA measuring current 0,2 In...2,0 In

• 3.1- for sinusoidal differential current (type AC)
• 3.2- for 1-way and 1-way differential current with 6 mA direct current primer (type A)
• 3.3- for direct differential current (type B)

4- Grounding resistance

• 4.1- Method 3- and 4-wire
• 4.2- 3-wire method + clamps
• 4.3- 2-clamp method

5- Land resistivity

Comparison of MPI measures

Signs in Table

1. Comparison of MPI meters
2. Signs in Table
3. Measuring voltage [V]
4. Measuring range
5. Circuit current I sc
6. Power supply
7. Memory (number of records)
8. Voltage measurement
9. Maximum measurement time set
10. Measurement of 2 absorption coefficients
11. Built-in fast charger
12. Automatic measurement in the slot

Specifications
