Elektrocheminis alkotesteris su USB-C įkrovimu ir kandikliais

Trumpai apie prekę

Prekė: Elektrocheminis alkotesteris su USB-C įkrovimu ir kandikliais. Kategorija: Alkoholio matuokliai.

• Gamintojas: no brand
• Modelis: JCY-A05
• Spalva: black

Portable breathalyzer for measuring alcohol in exhaled air.

🚗 Precise design of air flow channel;

🚗High-precision sampling system;

🚗High-precision sensor;

🚗The latest algorithm;

🚗Active breath detection;

🚗Two-core processor;

🚗LED display of results;

🚗Results within 3 seconds.

Precision mode:

🚗Install mouthpiece for more accuracy;

Fast mode:

🚗No mouthpiece required, ideal for many users;

The precise design of the air flow channel ensures results within 1 second.

🚗Exhale;

🚗Air intake;

🚗Vacuum cable;

🚗Input of the sensor;

🚗Data analysis;

🚗Display results;

Lightweight and compact for easy portability.

Stylish design and sturdy case.

High-quality ABS material with impact-resistant and dustproof construction.

Tested for stability and reliability in fall tests.

Supports Type-C fast charging.

Built-in 200mAh lithium battery provides robust, long-lasting performance; Exceptional battery life up to 30 days.

Action procedure and test results.

The red light lights up immediately, accompanied by a beep.

Widely used in many situations.

Compact and minimalist design for easy portability.

🚗Regeneration after alcohol consumption;

🚗Preparation for driving a car;

🚗Family meetings;

🚗Social gatherings in the bar;

🚗Business meetings;

Displaying product details:

1. ABS material;

2. Non-slip textured design;

3. Replaceable PP air nozzle;

4. Port for sampling;

5. LED display;

6. High-precision sensor;

7. High-precision processor;

8. Circuit board + speaker + charging port type C;

9. Lithium battery;

User manual:

Press and hold the power button for 2 seconds to turn on the device; Insert the mouthpiece into the appropriate port on the device;

Press the power button once to go to the test interface, where the message "Preparation" will appear on the screen;

The screen will display the message "Please blow" along with the voice message. Point your mouth towards the air intake and blow continuously for 3 seconds. Once the air is exhaled, the device will vibrate. Vibrations will stop after 3 seconds. If the exhalation time is less than 3 seconds or is interrupted, the device will indicate a break in exhalation and resume the exhalation phase;

After successful exhalation of air, the device goes into data analysis mode;

After the analysis is completed, the test result will be announced by voice and displayed on the screen;

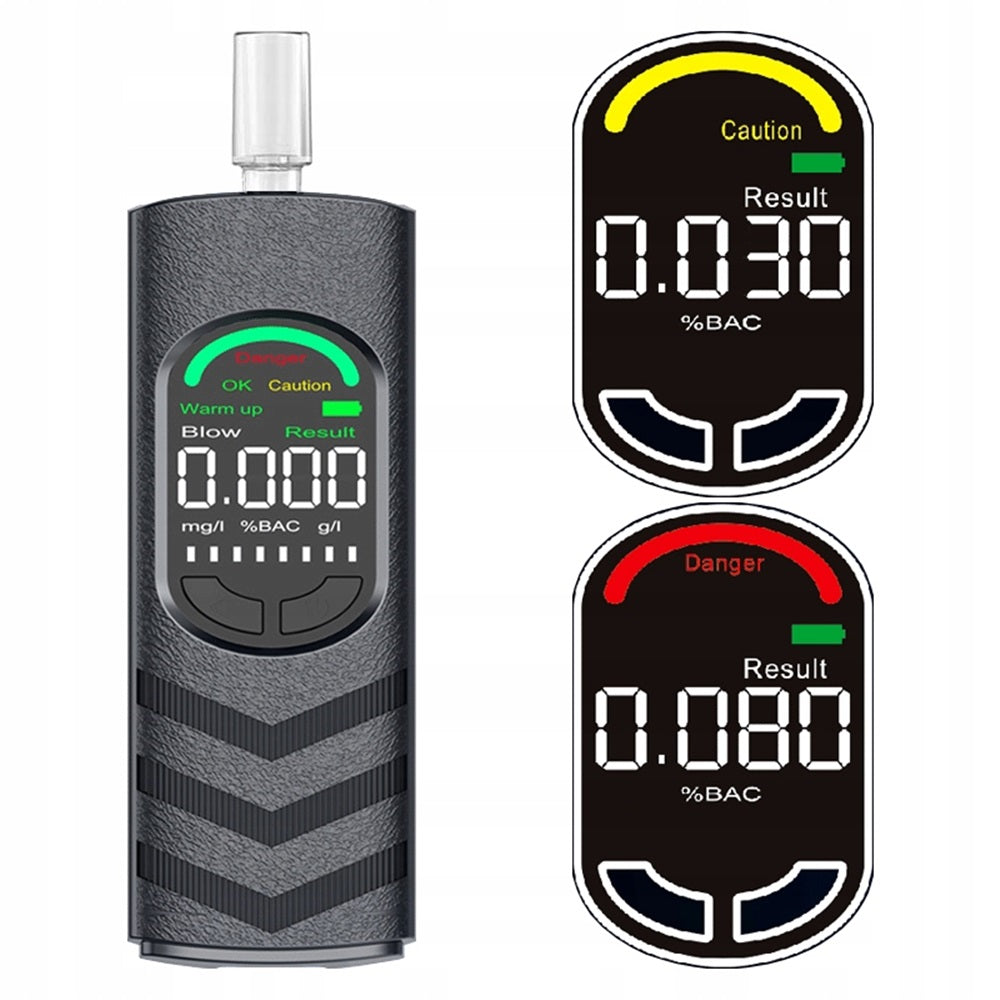

Measurement results:

Green light – condition below normal:

When the measurement result is ＜0,3 g/l, the green light is on. When the measurement result is ＜0,030% BAC, the green light is on.

When the measurement result is ＜0,15 mg/l, the green light is on.

Yellow light – condition after drinking alcohol/driving under the influence of alcohol:

It refers to the behaviour of drivers of vehicles whose blood alcohol concentration is ≥0,3 g/l and ＜0,5 g/l.

It refers to the behavior of drivers of vehicles whose blood alcohol concentration is ≥0,030% BAC and ＜0,080% BAC.

It refers to the behaviour of drivers of vehicles whose blood alcohol concentration is ≥0,15 mg/l and ＜0,25 mg/l.

Yellow light, beep;

Red light – driving under the influence of alcohol / drunk driving:

It refers to the behaviour of the driver of a vehicle whose blood alcohol concentration is ≥0,5 g/l.

It refers to the behavior of the driver of a vehicle whose blood alcohol concentration is ≥0,080% BAC.

It refers to the behaviour of the driver of a vehicle whose blood alcohol concentration was >0,25 mg/l.

A red light came on and a quick alarm signal sounded.

❗Important comments:❗

The battery must be charged first before the first use.

If the product was delivered for the first time and has not been used for a long time,

sensor needs cleaning.

❗The handling procedure is as follows:❗

Press the power button.

Wait without blowing air.

Automatic cleaning of the power off has been completed (repeat step 3 three times).

If the device is not used for a long time, store it in a place protected from direct sunlight and away from strong electromagnetic radiation.

SPECIFICATION PARAMETERS:

🚗Product Name: Breathalyzer

🚗Brand: PYGHDIRECT

🚗Model: MR505

🚗Material: ABS + electronic components

🚗Current: 150 mA

🚗 Power Supply: Type-C charging

🚗 Battery capacity: built-in 200 mAh lithium battery

🚗Voltage: 5 V 1 A

🚗Working temperature range: -5°C to 45°C

🚗Storage temperature range: -20°C to 50°C

🚗Detection mode: semiconductor gas sensor

🚗Sensor replacement: not allowed

🚗Measurement range of alcohol concentration in exhaled air: 0 – 0,20% BAC (0 – 0,95 mg/l)

🚗Measurement accuracy: 0,01

🚗Heat-up time: 10 seconds

🚗Response time: 3 seconds

🚗Target Users: People who consumed alcohol

🚗Product weight: 37 g

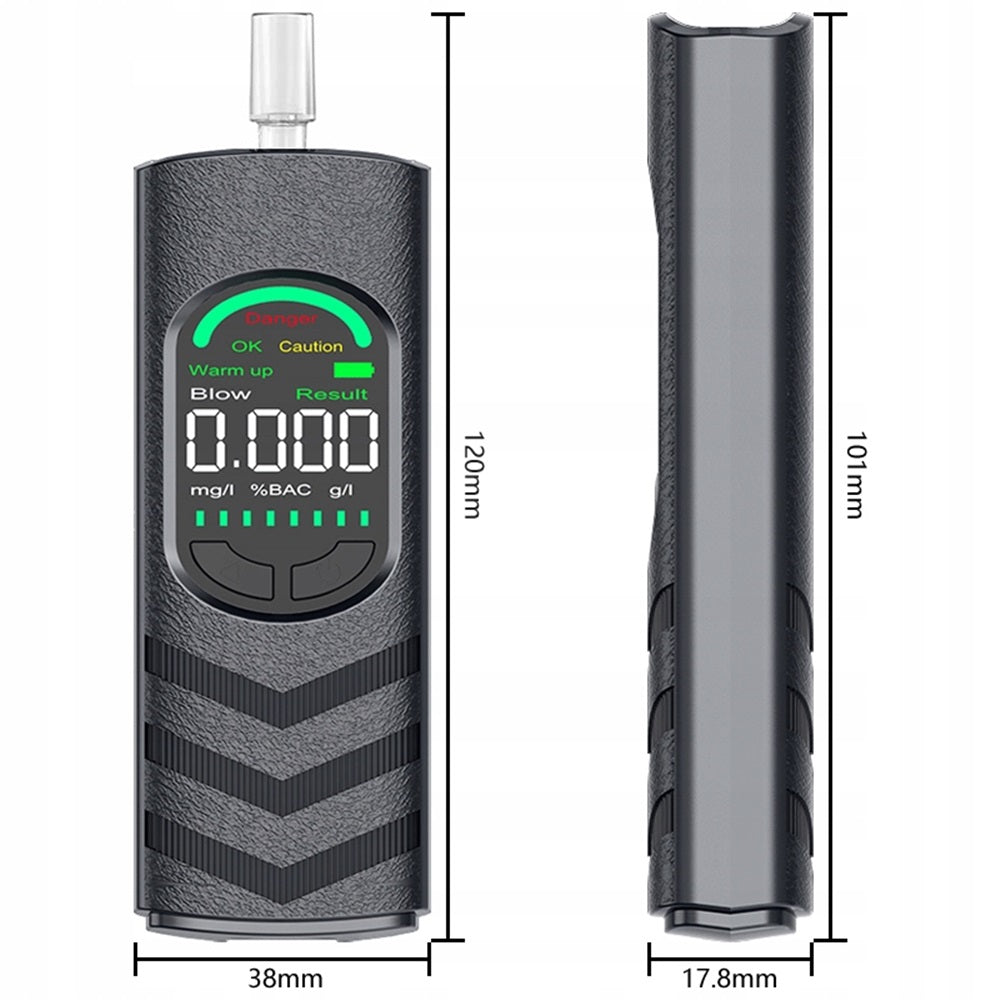

🚗Dimensions without mouthpiece: 101 × 38 × 17,8 mm

🚗Dimensions with mouthpiece: 120 × 38 × 17,8 mm

🚗Package weight: 73 g

🚗Package dimensions: 122 × 81 × 30 mm

🚗Color: Black

✅IN THE SET YOU GET:✅

🚗Breathalyzers * 1;

🚗Breathalyzer mouthpieces * 5;

🚗USB charging cable * 1;
