Elektrodas XA9, 500 mm rankenos, TICK suvirinimo aparatui, TELWIN 803156

Trumpai apie prekę

Prekė: Elektrodas XA9, 500 mm rankenos, TICK suvirinimo aparatui, TELWIN 803156. Kategorija: Sandarikliai.

• Gamintojas: Telwin
• Modelis: Ramion XA9 Zgrzewarka kleszczowa MODULAR

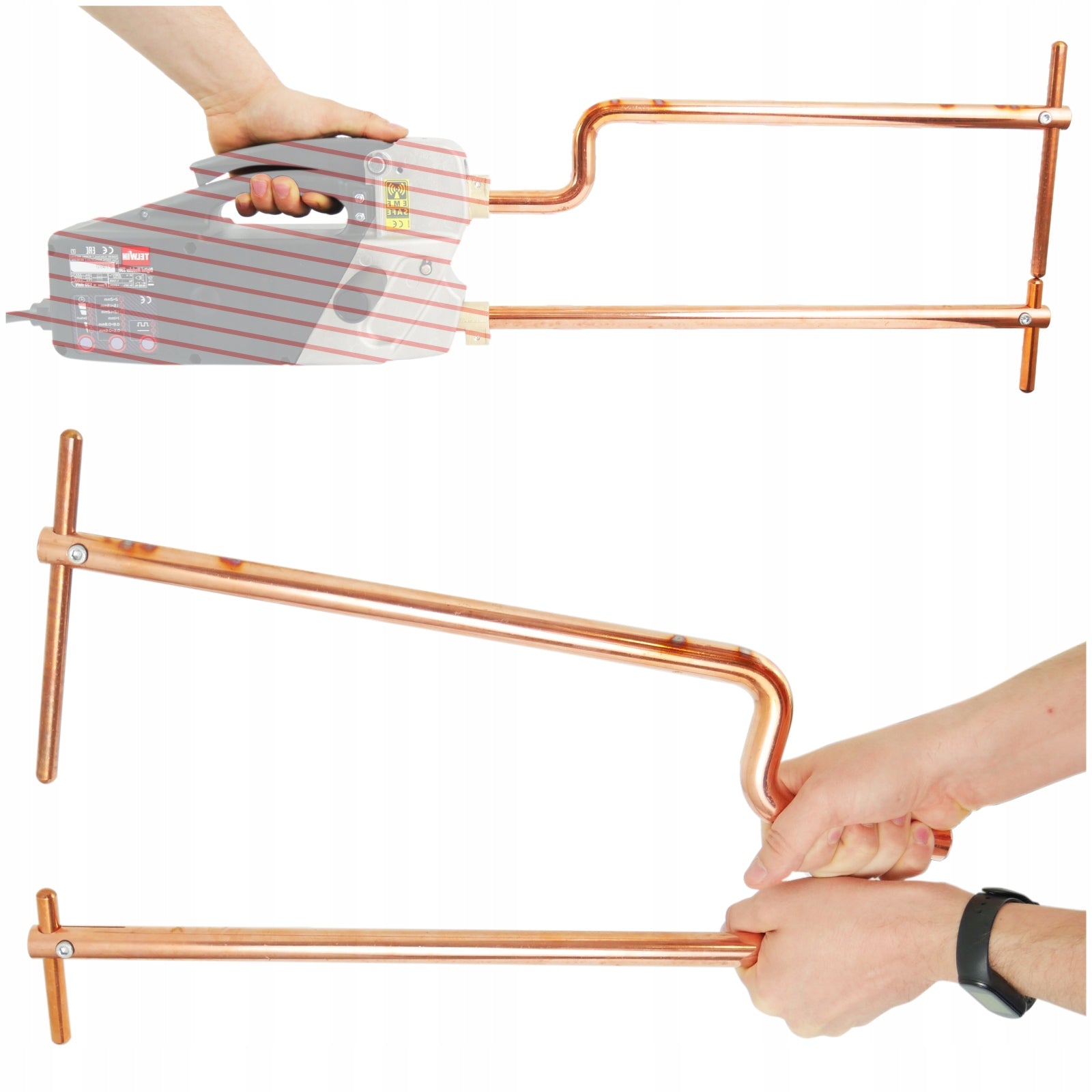

✅ The arms are durable and used by the tick welding machine for point welding of stainless steel and low carbon sheets. It is especially used for repairs of car bodies.

Technical data:

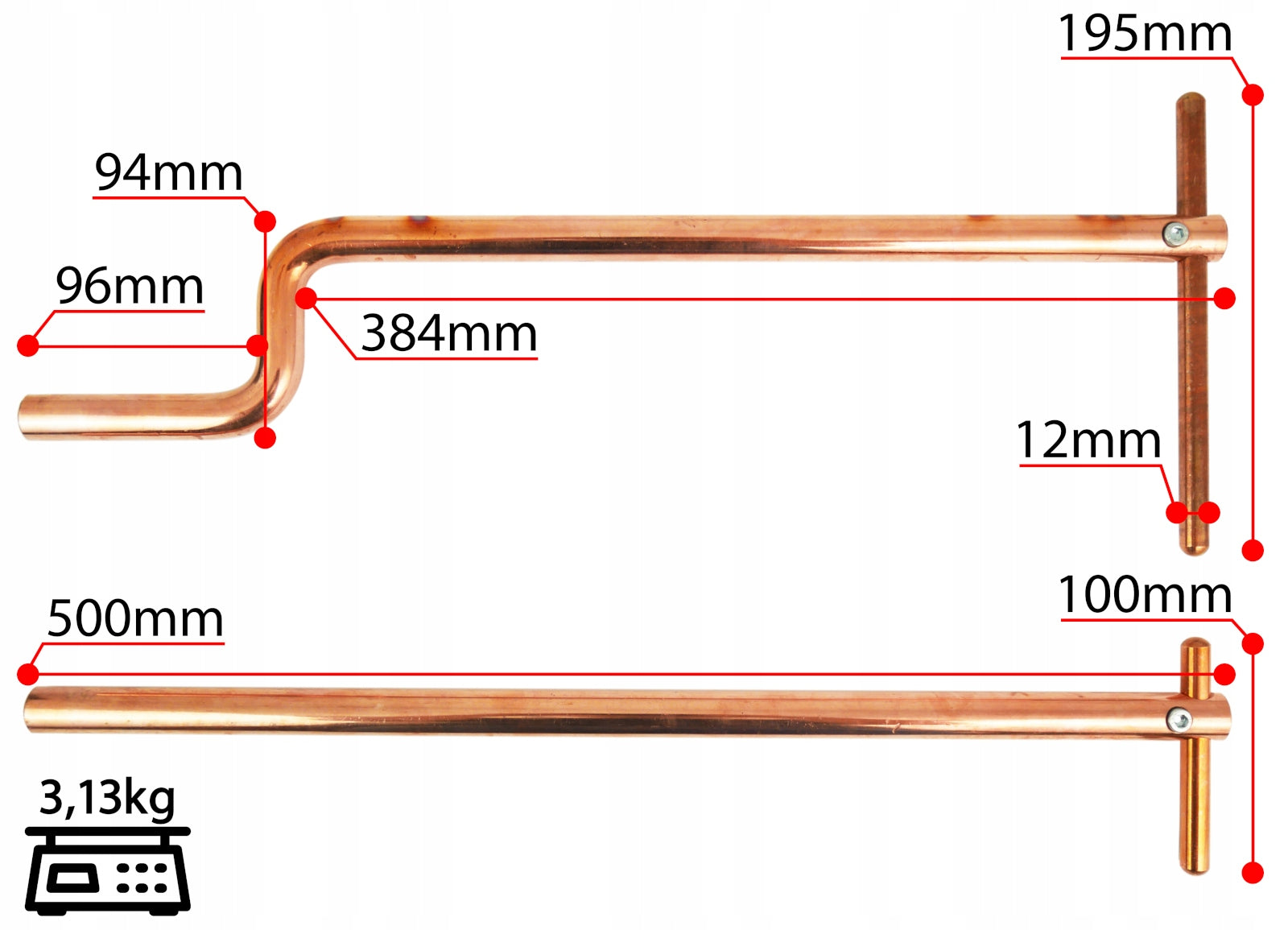

• ✔ Length: 500mm
• ✔ Weight: 3.13kg

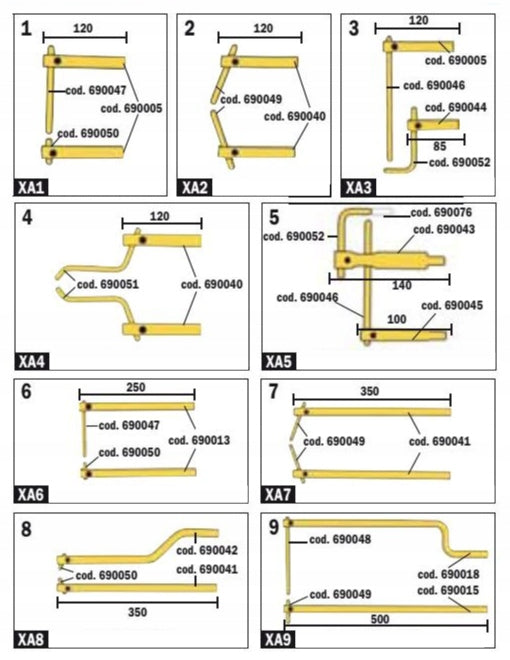

Arms with electrodes:

• ✔ XA1 L=120mm [standard] - cod. 803151
• ✔ XA2 L=120mm - cod. 803150
• ✔ XA3 L=120mm - cod. 803158
• ✔ XA4 L=120mm - cod. 803155
• ✔ XA5 L=140mm - cod. 803159
• ✔ XA6 L=250mm - cod. 803152
• ✔ XA7 L=350mm - cod. 803153
• ✔ XA8 L=350mm - cod. 803154
• ✔ XA9 L=500mm - cod. 803156

Welding process - the number of welds per hour.

✅ Modular 20/Ti:

• Thickness: 0,6 + 0,6 | continuous welding: 380

• Thickness: 0,8 + 0,8 | continuous welding: 280

• Thickness: 1 + 1 | continuous welding: 200

✅ Modular 230/400:

• Thickness: 0,6 + 0,6 | continuous welding: 380
• Thickness: 0,6 + 0,6 | pulsation welding: 150

• Thickness: 0,8 + 0,8 | continuous welding: 280
• Thickness: 0,8 + 0,8 | pulsation welding: 115

• Thickness: 1 + 1 | continuous welding: 200
• Thickness: 1 + 1 | pulsation welding: 90

• Thickness: 1,2 + 1,2 | continuous welding: 130
• Thickness: 1,2 + 1,2 | pulsation welding: 65

• Thickness: 1,5 + 1,5 | continuous welding: 75
• Thickness: 1,5 + 1,5 | pulsation welding: 50

• Thickness: 2 + 2 | continuous welding: 42
• Thickness: 2 + 2 | pulsation welding: 35

Included:

• ✔ Shoulders with straight electrodes XA9 L=500
