Elektroninis slėgio jungiklis OMNIGENA EVO PRESS, 160 l/min, 1/4

Trumpai apie prekę

Prekė: Elektroninis slėgio jungiklis OMNIGENA EVO PRESS, 160 l/min, 1/4. Kategorija: Universalūs įrankiai.

• Gamintojas: no brand
• Modelis: EVO-PRESS

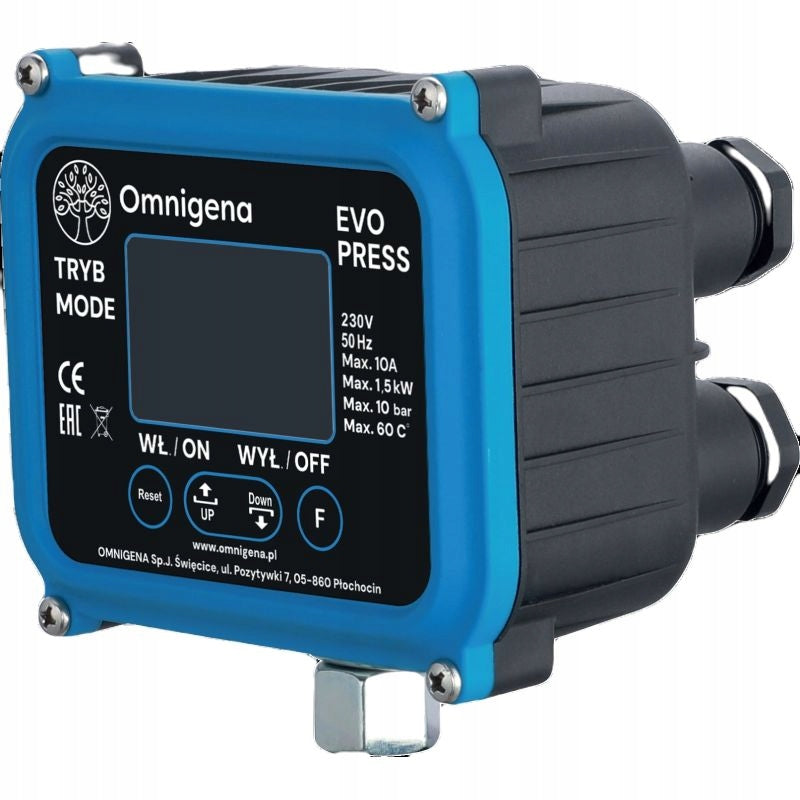

OMNIGENA EVO PRESS

The EVO PRESS smart circuit breaker is a modern electronic device used to control the operation of the water pump, replacing the traditional mechanical pressure switch and pressure gauge. The innovative EVO PRESS protects the pump against dry operation, without water and, as in a traditional pressure switch, you can set the lower pressure of switching on and upper pump shutdowns. The color intuitive display is user-friendly and provides all the necessary information regarding the current pressure, pump operation and possible errors resulting from the conditions prevailing in the installation, e.g. lack of water.

• Power supply voltage: 230 V
• Maximum current: 10 A
• Maximum allowable pressure: 10 Bar
• Maximum liquid temperature: 60ºC
• Maximum operating environment temperature: 35ºC
• Diameter of connection connectors: 1/4" inch gw.
• Protection rating: IP 65

APPLICATION:

The EVO PRESS smart circuit breaker is a modern electronic device used to control the operation of the water pump, replacing the traditional mechanical pressure switch and pressure gauge. The innovative EVO PRESS protects the pump against dry operation, without water and, as in a traditional pressure switch, you can set the lower pressure of switching on and upper pump shutdowns. The color intuitive display is user-friendly and provides all the necessary information regarding the current pressure, pump operation and possible errors resulting from the conditions prevailing in the installation, e.g. lack of water.

Features

• Automatic switching on and off of the pump
• Protection of the controlled pump against dry running (dry operation without water)
• Additional protection of electronics against moisture
• Possibility to set the lower switching pressure and the upper pump shutdown pressure using an intuitive control panel
• Communicating the operating and power status on the display

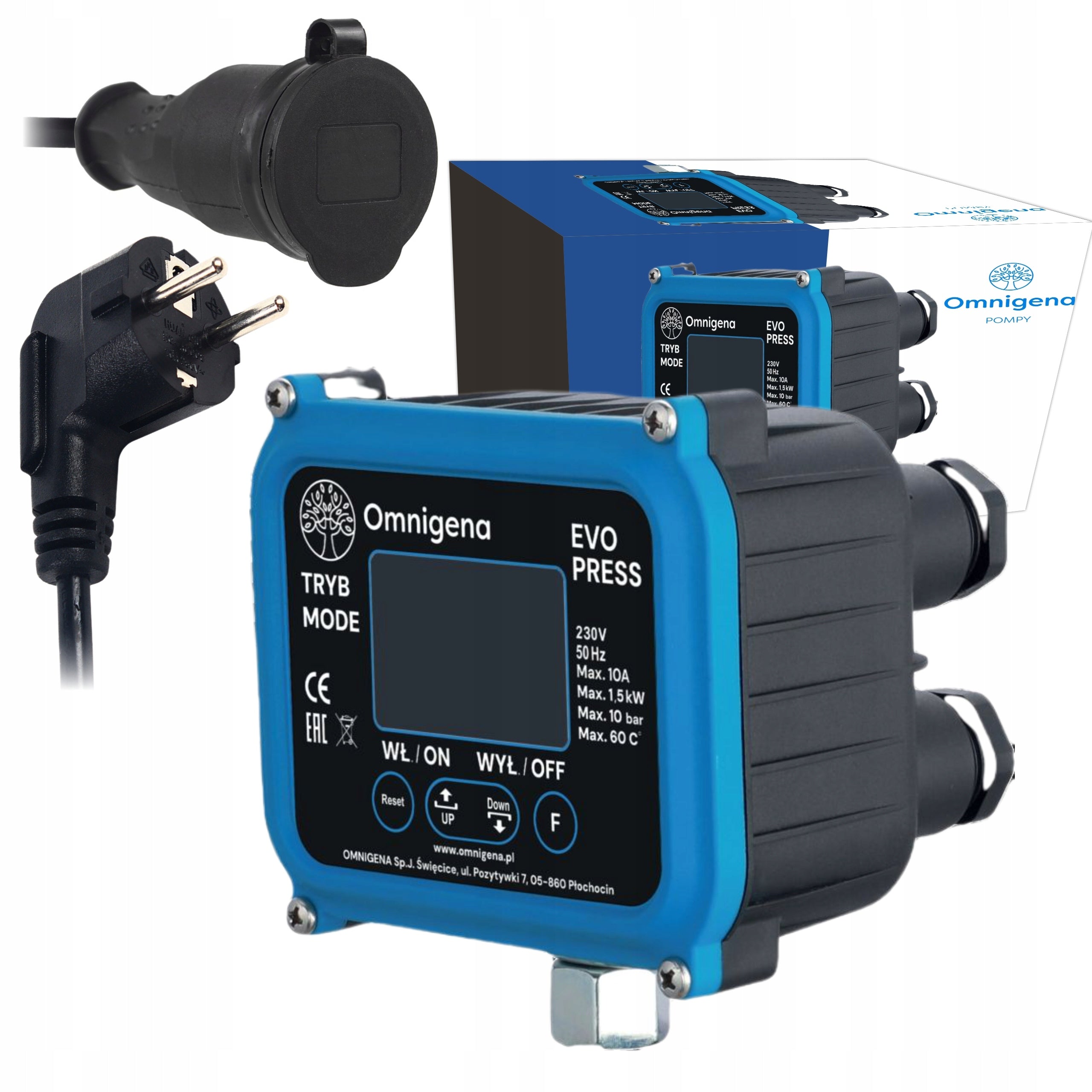

• Equipped with two cables. One terminated with a plug for network connection and the other terminated with an outlet for connecting the controller to the pump.

Housing fracture-proof plastic

Voltage [V] 230

Position at work Vertical and level

Working pressure max [bar] 10 bar

Specifications
